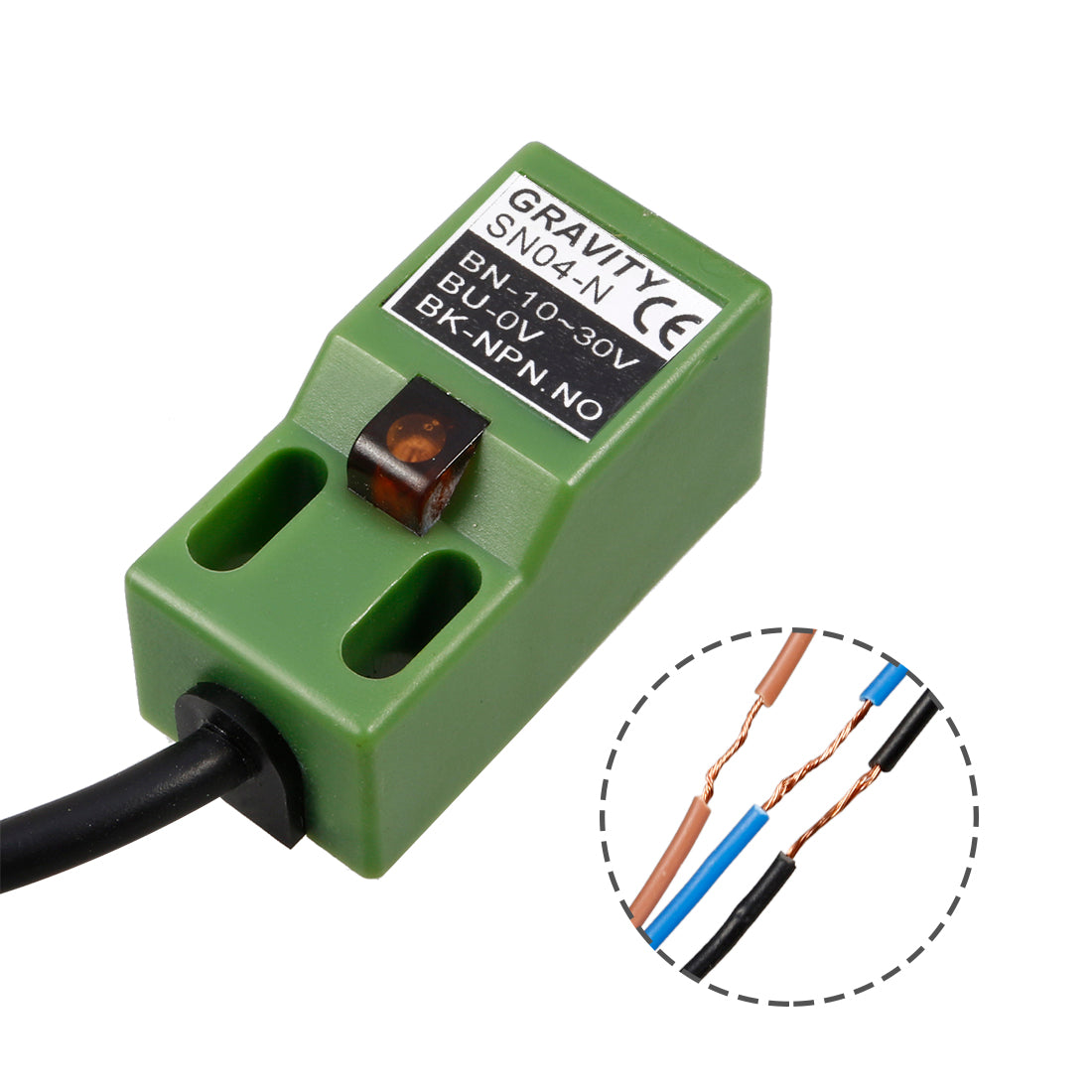

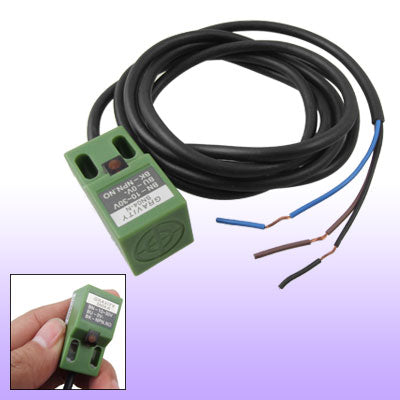

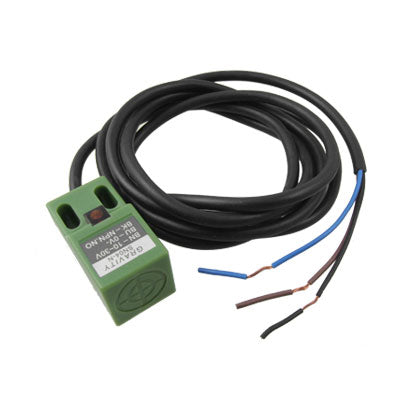

Harfington Uxcell SN04-N DC 10-30V 200mA NPN NO 3-wire 4mm Approach Sensor Inductive Proximity Switch

Uxcell SN04-N DC 10-30V 200mA NPN NO 3-wire 4mm Approach Sensor Inductive Proximity Switch

ID:1204735
ID:1204735
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Product Name : Proximity Switch Sensor;Model : SN04-N;Type :NPN No;Theory : Inductance Sensor;Wire Type:3-Wire
  • Output : Switching Transducer;Sensing Distance : 4mm (+/-10%);Working Voltage : 10-30V DC;Switch Appearance Type:Rectangle Type
  • Response Frequency : 500Hz max;Indicator : Red LED;Size : 18 x18 x 36mm/0.7" x 0.7" x 1.4"(W*H*L)

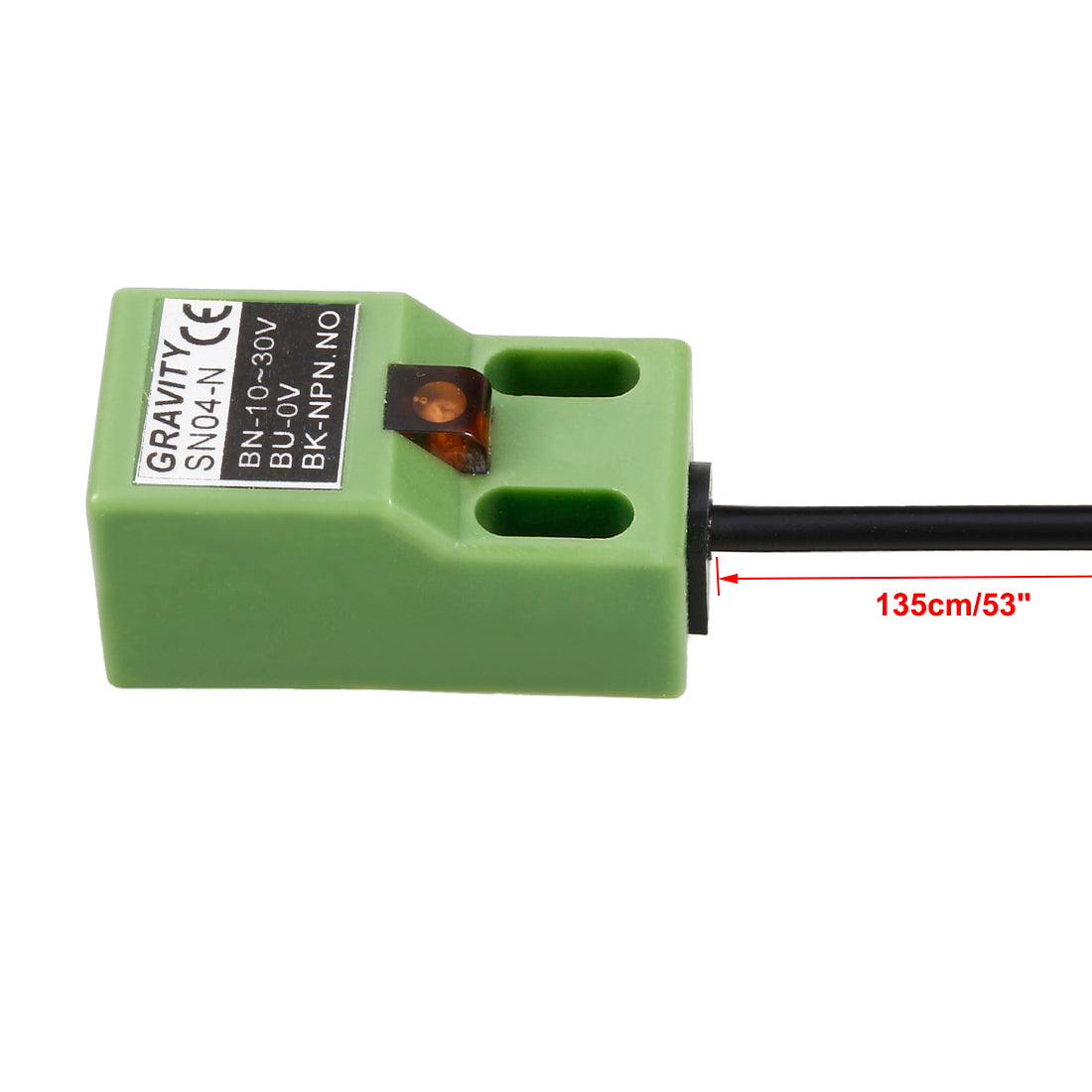

  • Cable Length : 135cm/53";Hole Size : 0.9 x 0.4cm/0.35" x 0.2"(L*W);Extenal Material : ABS Resin
  • Net Weight : 48g;Color : Black, Green;Package Content : 1 x Proximity Sensor Switch,2 x Screws
About this item
  • Product Name : Proximity Switch Sensor;Model : SN04-N;Type :NPN No;Theory : Inductance Sensor;Wire Type:3-Wire
  • Output : Switching Transducer;Sensing Distance : 4mm (+/-10%);Working Voltage : 10-30V DC;Switch Appearance Type:Rectangle Type
  • Response Frequency : 500Hz max;Indicator : Red LED;Size : 18 x18 x 36mm/0.7" x 0.7" x 1.4"(W*H*L)
  • Cable Length : 135cm/53";Hole Size : 0.9 x 0.4cm/0.35" x 0.2"(L*W);Extenal Material : ABS Resin
  • Net Weight : 48g;Color : Black, Green;Package Content : 1 x Proximity Sensor Switch,2 x Screws
Specification

Specification

SKU
a11021800ux0169
Product name
Proximity Switch Sensor
Model
SN04-N
Type
NPN NO
Switch appearance type
Rectangle Type
Wire type
3-wire
Theory
Inductance Sensor
Output
Switching Transducer
Sensing distance
4mm(+/-10%)
Working voltage
10-30V DC
Output current
200mA
Response frequency
500Hz max
Indicator
Red LED
Size
18 x18 x 36mm/0.7" x 0.7" x 1.4"(W*H*L)
Cable length
115cm/45.3 inch
Hole size
0.9 x 0.4cm/0.35" x 0.2"(L*W)
Extenal material
ABS Resin
Net weight
48g
Color
Black, Green
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Over-current and short circuit protection, with LED indicate, easily identifiable.The Proximity Sensor Switch is used for testing parts such as size and speed can also be used in frequency counters, frequency pulse generator, liquid level control and processing procedures for the automatic convergence.

US$6.59 Regular price
US/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Description

Description

Over-current and short circuit protection, with LED indicate, easily identifiable.The Proximity Sensor Switch is used for testing parts such as size and speed can also be used in frequency counters, frequency pulse generator, liquid level control and processing procedures for the automatic convergence.
