uxcell Uxcell 10 Pcs SS22F25-G5 2 Position DPDT 2P2T Panel Mount Mini Slide Switch Solder Lug
2/ 0

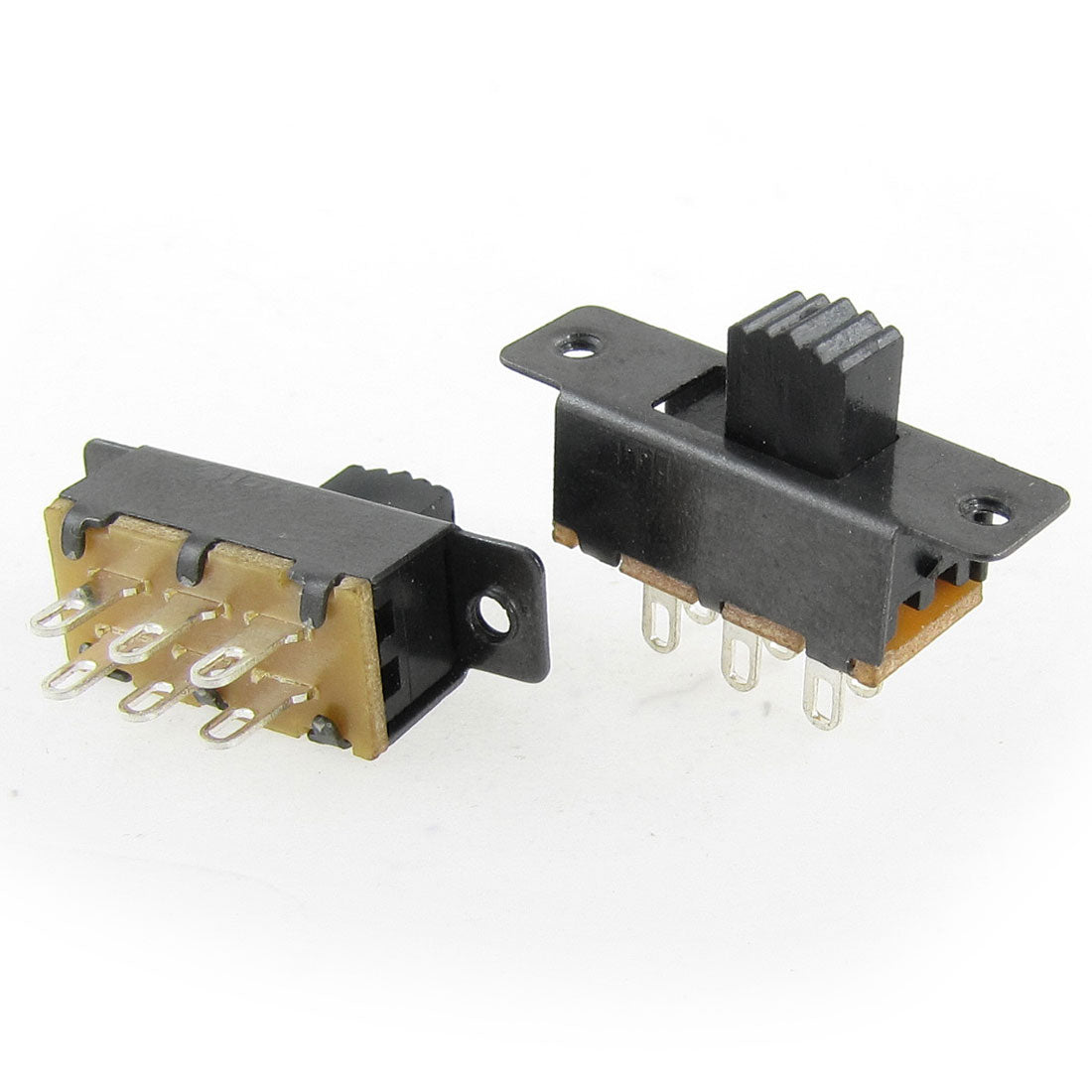

Uxcell 10 Pcs SS22F25-G5 2 Position DPDT 2P2T Panel Mount Mini Slide Switch Solder Lug

ID:1203677
ID:1203677
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Product Name : Slide Switch;Model : SS22F25;Action Type : DPDT
  • Power : DC 50V 0.5A;Terminal Quantity : 6;Terminal Length : 4mm/ 0.16"
  • Contact Resistance : 30mΩ Max;Insulation Resistance : 100mΩ Min at 500V DC;Withstand Voltage : AC 500V for 1 min
  • Overall Size : 23 x 7 x 16mm/ 0.9" x 0.28" x 0.63"(L*W*H);Knob Size : 5 x 3.5 x 5mm/ 0.2" x 0.14" x 0.2"(L*W*H);Material(External) : Plastic, Metal
  • Main Color : Silver Tone, Black;Weight : 20g;Package Content : 10 x Slide Switch
About this item
  • Product Name : Slide Switch;Model : SS22F25;Action Type : DPDT
  • Power : DC 50V 0.5A;Terminal Quantity : 6;Terminal Length : 4mm/ 0.16"
  • Contact Resistance : 30mΩ Max;Insulation Resistance : 100mΩ Min at 500V DC;Withstand Voltage : AC 500V for 1 min
  • Overall Size : 23 x 7 x 16mm/ 0.9" x 0.28" x 0.63"(L*W*H);Knob Size : 5 x 3.5 x 5mm/ 0.2" x 0.14" x 0.2"(L*W*H);Material(External) : Plastic, Metal
  • Main Color : Silver Tone, Black;Weight : 20g;Package Content : 10 x Slide Switch
Specification

Specification

SKU
a12013100ux0102
Product name
Slide Switch
Model
SS-22F25G5
Action type
DPDT
Power
DC 50V 0.5A
Terminal quantity
6
Terminal length
4mm/ 0.16 inch
Contact resistance
30mΩ Max
Insulation resistance
100mΩ Min at 500V DC
Withstand voltage
AC 500V for 1 min
Overall size
23 x 7 x 16mm/ 0.9" x 0.28" x 0.63"(L*W*H)
Knob size
5 x 3.5 x 5mm/ 0.2" x 0.14" x 0.2"(L*W*H)
Material(external)
Plastic, Metal
Main color
Silver Tone, Black
Weight
20g
Package content
10 x Slide Switch
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Features: Easy Structure, Mini Body, 6 Terminal, Double Pole Double Throw, Sliding Knob Actuator.Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc.For use in low power applications.

US$5.60 Regular price
US/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Description

Description

Features: Easy Structure, Mini Body, 6 Terminal, Double Pole Double Throw, Sliding Knob Actuator.Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc.For use in low power applications.
