uxcell Uxcell 32mmx50mm Double Action Pneumatic Actuator Thin Air Cylinder SDA 32-50
2/ 0

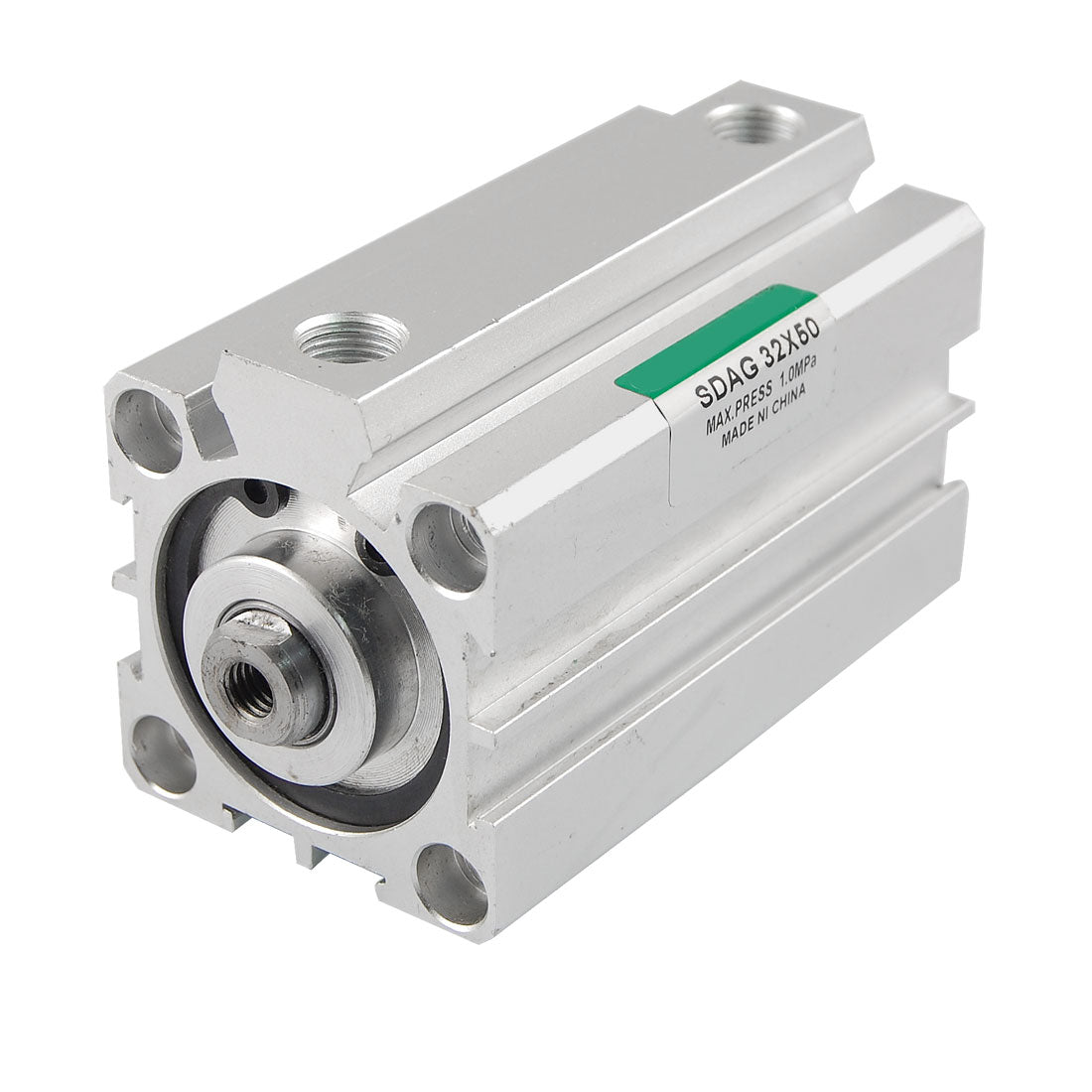

Uxcell 32mmx50mm Double Action Pneumatic Actuator Thin Air Cylinder SDA 32-50

ID:1203563
ID:1203563
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Product Name : Air Cylinder;Model : SDA 32-50;Action Type : Double Action
  • Bore : 32mm/1.3'';Stroke : 50mm/2'';Max Presssure : 1.0Mpa
  • Port Dia.(Approx) : 8mm/0.3'';Center Threaded Hole Dia(Approx) : 5mm/0.2'';Piston Rod External Diameter : 12mm/0.5''
  • Mounting Thread Diameter : 5mm/0.2'';Overall Size(Approx) : 50 x 44 x 83mm/2'' x 1.7'' x 3.3'' (L*W*H);Material : Aluminum Alloy
  • Weight : 288g;Package Content : 1 x Air Cylinder
About this item
  • Product Name : Air Cylinder;Model : SDA 32-50;Action Type : Double Action
  • Bore : 32mm/1.3'';Stroke : 50mm/2'';Max Presssure : 1.0Mpa
  • Port Dia.(Approx) : 8mm/0.3'';Center Threaded Hole Dia(Approx) : 5mm/0.2'';Piston Rod External Diameter : 12mm/0.5''
  • Mounting Thread Diameter : 5mm/0.2'';Overall Size(Approx) : 50 x 44 x 83mm/2'' x 1.7'' x 3.3'' (L*W*H);Material : Aluminum Alloy
  • Weight : 288g;Package Content : 1 x Air Cylinder
Specification

Specification

SKU
a12030500ux0027
Product name
Air Cylinder
Model
SDA 32-50
Action type
Double Action
Bore
32mm/1.3"
Stroke
50mm/2"
Max presssure
1.0Mpa
Port dia.(approx)
8mm/0.3"
Center threaded hole dia(approx)
5mm/0.2"
Piston rod external diameter
12mm/0.5"
Mounting thread diameter
5mm/0.2"
Overall size(approx)
50 x 44 x 83mm/2"; x 1.7"; x 3.3"; (L*W*H)
Material
Aluminum Alloy
Weight
288g
Package content
1 x Air Cylinder
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
  • 32mm bore and 50mm stroke, 1.0Mpa pressure, double action and single rod. Air cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.

US$14.98 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Description

Description

  • 32mm bore and 50mm stroke, 1.0Mpa pressure, double action and single rod. Air cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.
