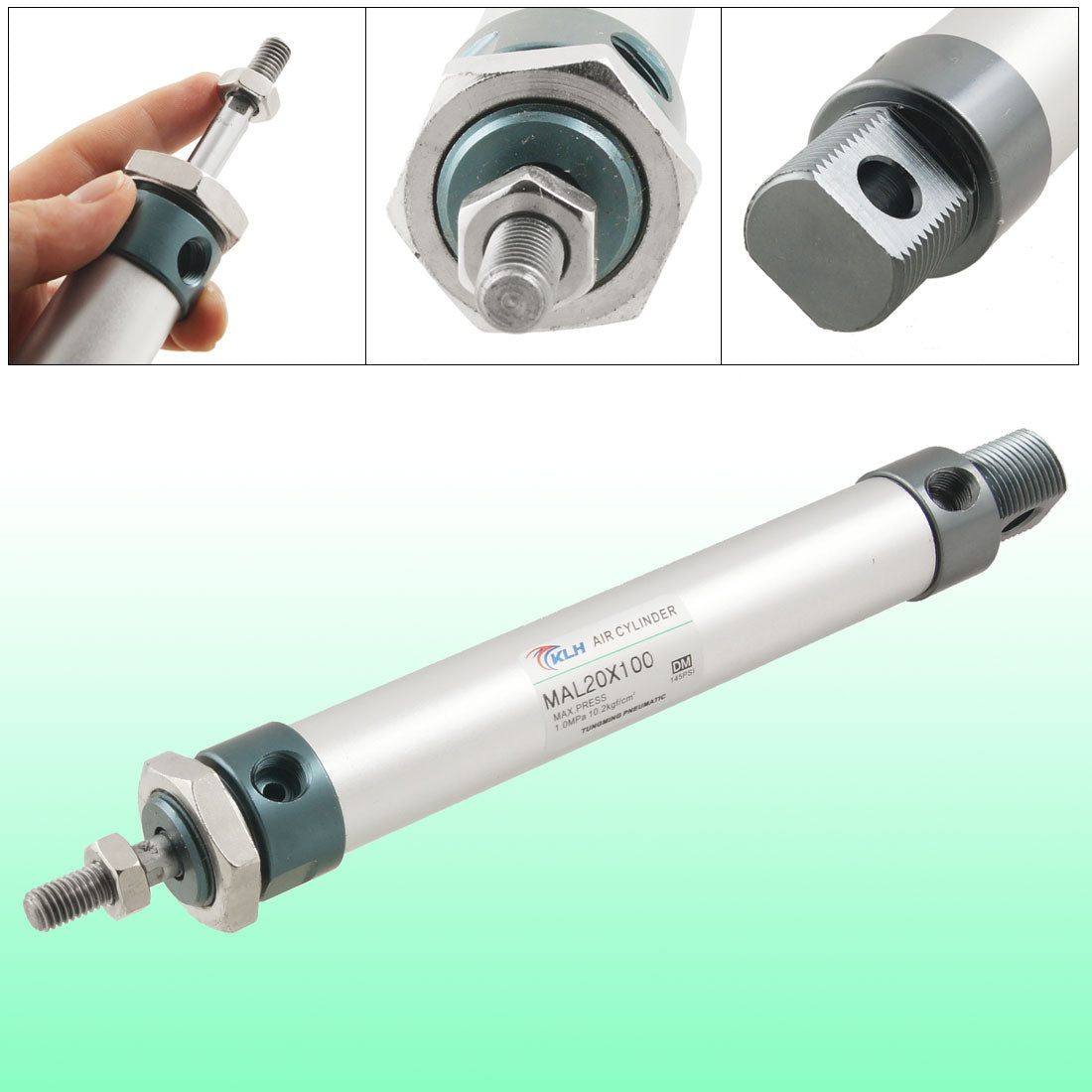

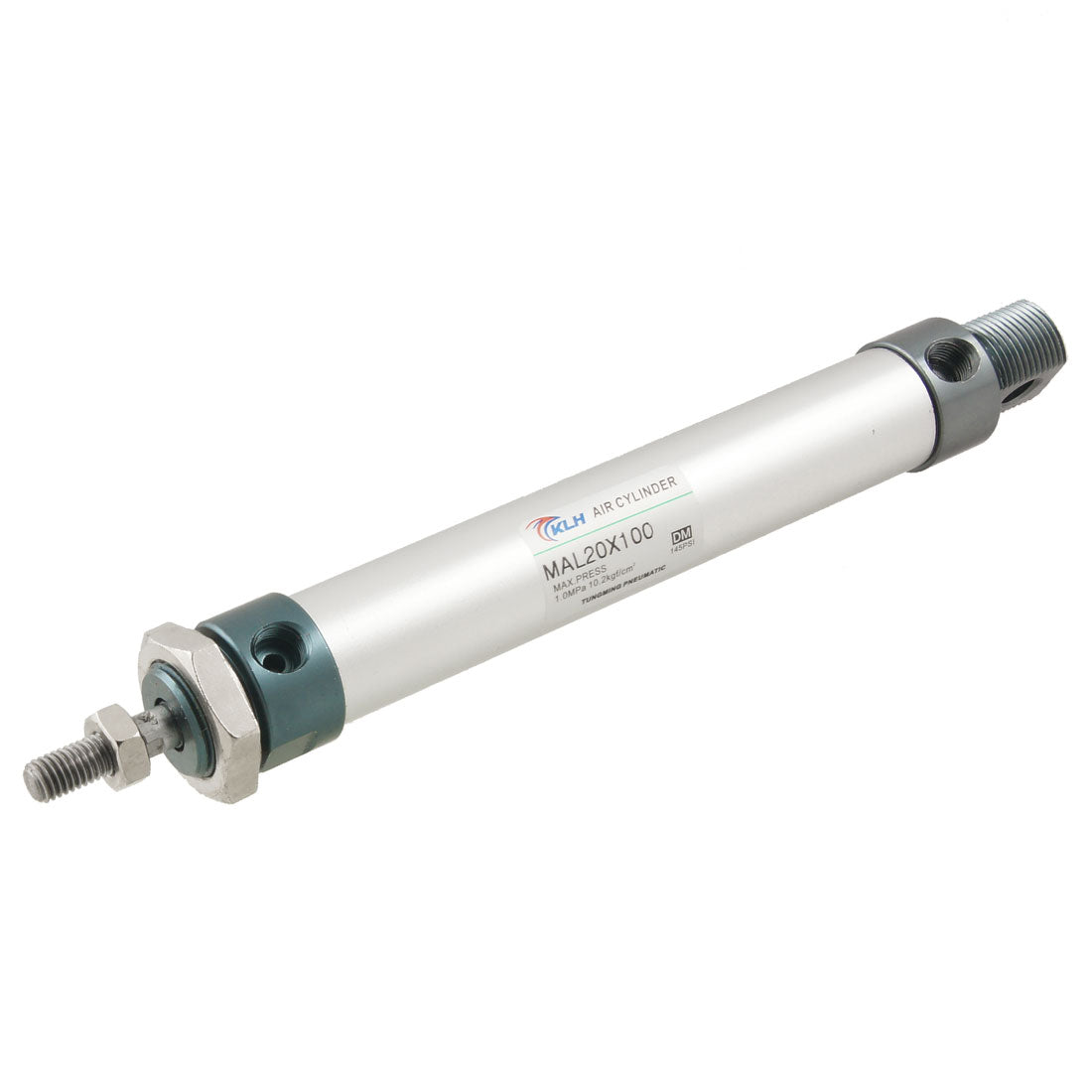

uxcell Uxcell MAL20x100 20mm Bore 100mm Stroke Sinlge Rod Stainless Steel Air Cylinder
2/ 0

Uxcell MAL20x100 20mm Bore 100mm Stroke Sinlge Rod Stainless Steel Air Cylinder

ID:1202045
ID:1202045
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Product Name : Pneumatic Cylinder;Model : MAL20x100;Action Type : Double Acting;Rod Type : Single Rod
  • Fluid : Air;Power : Pneumatic;Bore : 20mm / 0.78";Stroke : 100mm / 3.9"
  • Max.Pressure : 1.0MPa / 10.2Kg/cm2 / 145PSI;Rod Diameter : 8mm / 0.31";Rod Thread Diameter : 8mm / 0.31";Air Hole Diameter : 8.5mm / 0.33"
  • Blue End Thread Diameter : 22mm / 0.86";Blue End Hole Diameter : 8mm / 0.31";Size : 230 x 25mm/ 9" x 0.98" (L*D);Material : Stainless Steel
  • Air cylinders are mainly used in pneumatic and hydraulic systems, such as punching machine, pneumatic and hydraulic system maintenance, etc.
About this item
  • Product Name : Pneumatic Cylinder;Model : MAL20x100;Action Type : Double Acting;Rod Type : Single Rod
  • Fluid : Air;Power : Pneumatic;Bore : 20mm / 0.78";Stroke : 100mm / 3.9"
  • Max.Pressure : 1.0MPa / 10.2Kg/cm2 / 145PSI;Rod Diameter : 8mm / 0.31";Rod Thread Diameter : 8mm / 0.31";Air Hole Diameter : 8.5mm / 0.33"
  • Blue End Thread Diameter : 22mm / 0.86";Blue End Hole Diameter : 8mm / 0.31";Size : 230 x 25mm/ 9" x 0.98" (L*D);Material : Stainless Steel
  • Air cylinders are mainly used in pneumatic and hydraulic systems, such as punching machine, pneumatic and hydraulic system maintenance, etc.
Specification

Specification

SKU
a12051400ux0182
Product name
Pneumatic Cylinder
Model
MAL20x100
Action type
Double Acting
Rod type
Single Rod
Fluid
Air
Power
Pneumatic
Bore
20mm / 0.78 inch
Stroke
100mm / 3.9 inch
Max.pressure
1.0MPa / 10.2Kg/cm2 / 145PSI
Rod diameter
8mm / 0.31 inch
Rod thread diameter
8mm / 0.31 inch
Air hole diameter
8.5mm / 0.33 inch
Blue end thread diameter
22mm / 0.86 inch
Blue end hole diameter
8mm / 0.31 inch
Size
230 x 25mm/ 9" x 0.98" (L*D)
Material
Stainless Steel
Color
Silver Tone, Blue
Net weight
255g
Package content
1 x Pneumatic Cylinder
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
  • This Cylinder features: 25m bore and 100mm stroke, 1.0Mpa pressure, double acting, single rod. Two screw hole connections to get the air in and out, and a rod connected to the plunger that goes in and out. Cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.

US$13.07 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Description

Description

  • This Cylinder features: 25m bore and 100mm stroke, 1.0Mpa pressure, double acting, single rod. Two screw hole connections to get the air in and out, and a rod connected to the plunger that goes in and out. Cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion.
