Harfington Uxcell DC 6-36V NPN NO 4mm Approach Sensor Inductive Proximity Switch LJ12A3-4-Z/BX

Uxcell DC 6-36V NPN NO 4mm Approach Sensor Inductive Proximity Switch LJ12A3-4-Z/BX

ID:1200043
ID:1200043
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Product Name : Inductive Proximity Switch;Model : LJ12A3-4-Z/BX;Theory : Inductive Sensor;Wire Type : 3 Wire Type (Brown, Blue, Black)
  • Switch Appearance Type : Cylinder Type, Metal Shell;Output Type : NPN NO;Detecting Distance : 4mm(+/-10%);Supply Voltage : DC 6-36V
  • Output Current : 300 mA;Detect Object : Iron;Column Sensor Diameter : 10.5mm/0.4";Total Size : 62 x 21mm/ 2.4'' x 0.8'' (L*Max.D)
  • Threaded Diameter : 12mm/0.5";Cable Length : 1.1m/43.3'';External Material : Plastic, Metal
  • Net Weight : 45g;Color : Silver Tone, Blue, Gray;Package Content : 1 x Inductive Proximity Switch
About this item
  • Product Name : Inductive Proximity Switch;Model : LJ12A3-4-Z/BX;Theory : Inductive Sensor;Wire Type : 3 Wire Type (Brown, Blue, Black)
  • Switch Appearance Type : Cylinder Type, Metal Shell;Output Type : NPN NO;Detecting Distance : 4mm(+/-10%);Supply Voltage : DC 6-36V
  • Output Current : 300 mA;Detect Object : Iron;Column Sensor Diameter : 10.5mm/0.4";Total Size : 62 x 21mm/ 2.4'' x 0.8'' (L*Max.D)
  • Threaded Diameter : 12mm/0.5";Cable Length : 1.1m/43.3'';External Material : Plastic, Metal
  • Net Weight : 45g;Color : Silver Tone, Blue, Gray;Package Content : 1 x Inductive Proximity Switch
Specification

Specification

SKU
a13042400ux0788
Product name
Inductive Proximity Switch
Model
LJ12A3-4-Z/BX
Theory
Inductive Sensor

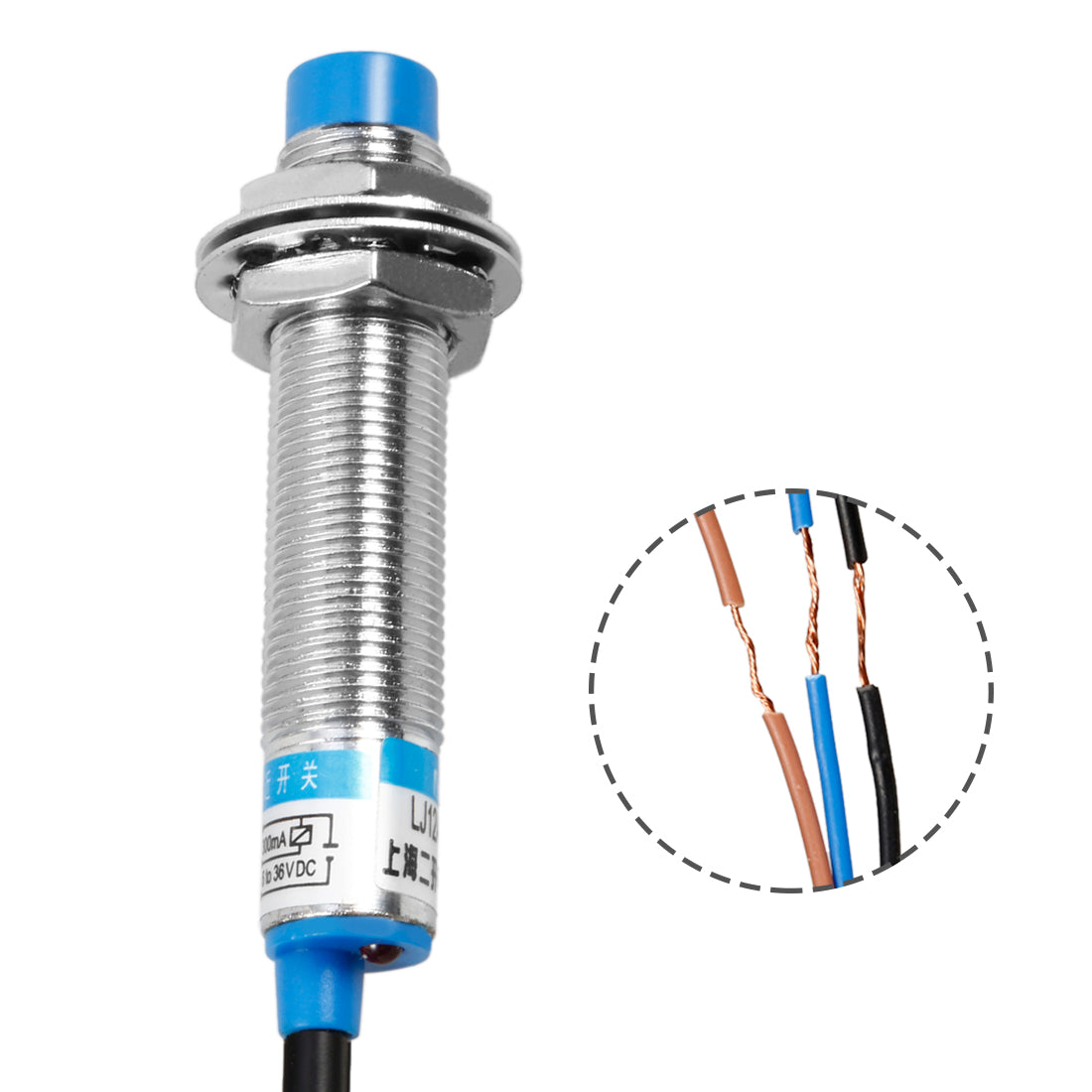

Wire type
3 Wire Type (Brown, Blue, Black)
Switch appearance type
Cylinder Type, Metal Shell
Output type
NPN NO
Detecting distance
4mm(+/-10%)
Supply voltage
DC 6-36V
Output current
300 mA
Detect object
Iron
Column sensor diameter
10.5mm/0.4 inch
Total size
62 x 21mm/ 2.4" x 0.8" (L*Max.D)

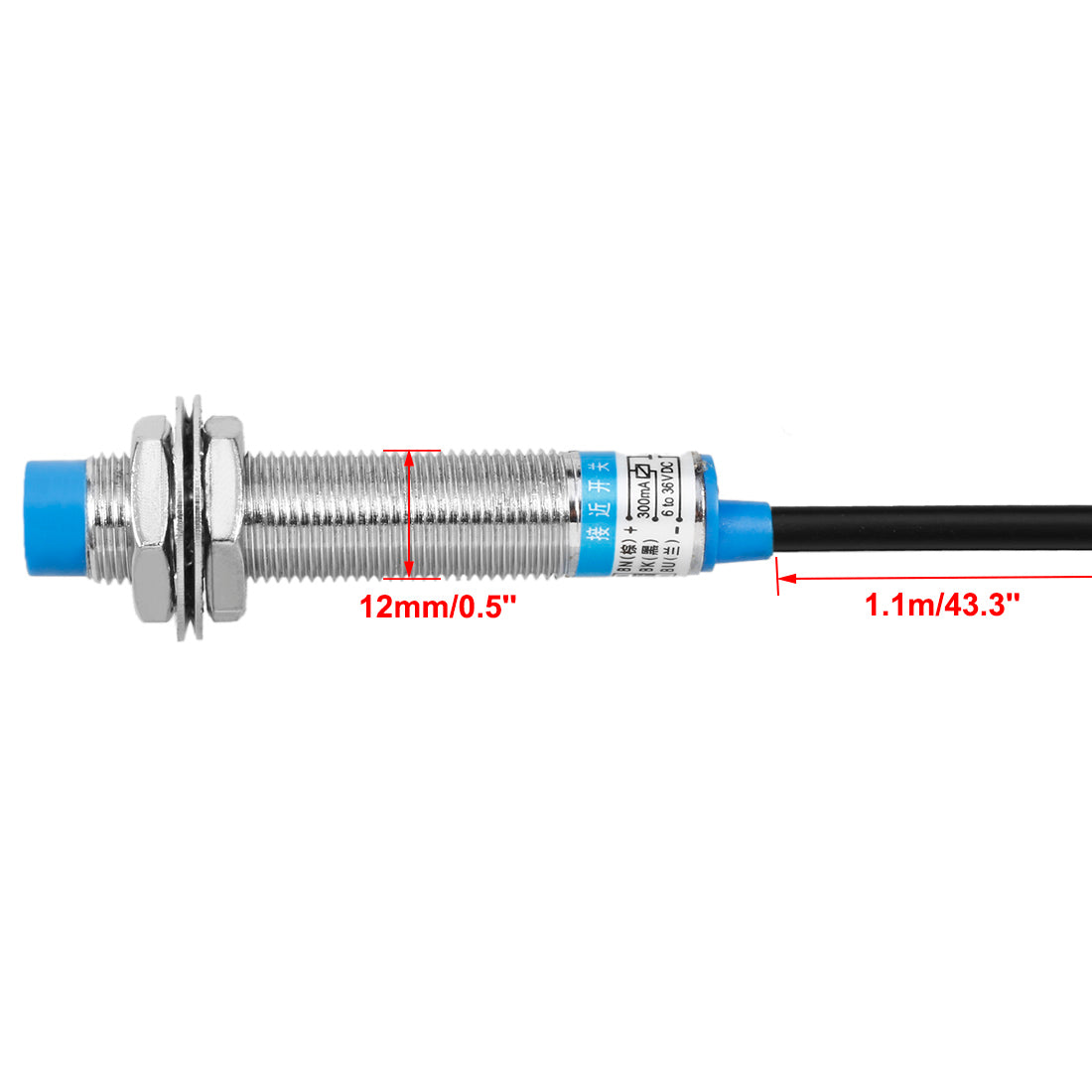

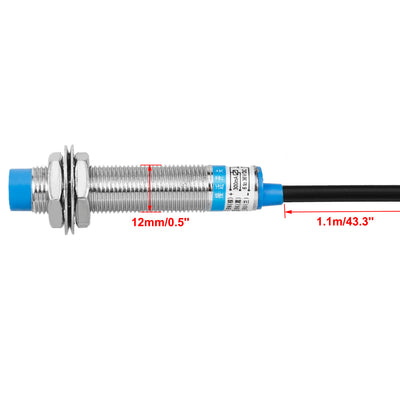

Threaded diameter
12mm/0.5 inch
Cable length
1.1m/43.3"
External material
Plastic, Metal
Net weight
45g
Color
Silver Tone, Blue, Gray
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Power supply inverted connecting protection, short circuit protection, non-contact detecting device.
When proximity switch is close to some target object, it will send out control signal.
Used widely in the machine tool industry, frequency counters and other automatic control system.
