Harfington Uxcell JF-1040B DC12V 25N Force 15mm Actuator 2-Wires Pull Push Open Frame Linear Motion Solenoid Electromagnet with Blue Wire

Uxcell JF-1040B DC12V 25N Force 15mm Actuator 2-Wires Pull Push Open Frame Linear Motion Solenoid Electromagnet with Blue Wire

ID:1192595
ID:1192595
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Product Name : DC Solenoid Electromagnet;Model : JF-1040B;Rated Voltage : DC 12V
  • Type : Pull Push;Rated Current : 400mA;Force & Stroke : 25N/15mm
  • Body Size : 40 x 29x 25mm / 1.6"x 1.1"x 1"(L*W*T);Plunger Bar Size : 10 x 74mm / 0.4"x 2.9"(Max.D*L);Mounting Hole Dia. : 2.5mm/ 0.14"
  • Cable Length : 17cm / 6.7";Material : Metal, Electronic Parts;Main Color : As Picture Shown
  • Weight : 141g;Package Content : 1 x DC Solenoid Electromagnet
About this item
  • Product Name : DC Solenoid Electromagnet;Model : JF-1040B;Rated Voltage : DC 12V
  • Type : Pull Push;Rated Current : 400mA;Force & Stroke : 25N/15mm
  • Body Size : 40 x 29x 25mm / 1.6"x 1.1"x 1"(L*W*T);Plunger Bar Size : 10 x 74mm / 0.4"x 2.9"(Max.D*L);Mounting Hole Dia. : 2.5mm/ 0.14"
  • Cable Length : 17cm / 6.7";Material : Metal, Electronic Parts;Main Color : As Picture Shown
  • Weight : 141g;Package Content : 1 x DC Solenoid Electromagnet
Specification

Specification

SKU
a16040600ux0404
Product name
DC Solenoid Electromagnet
Model
JF-1040B
Rated voltage
DC 12V
Type
Pull Push
Rated current
400mA
Force and stroke
25N/15mm
Body size
40 x 29x 25mm / 1.6"x 1.1"x 1"(L*W*T)
Plunger bar size
10 x 74mm / 0.4"x 2.9"(Max.D*L)
Mounting hole dia.
2.5mm/ 0.14 inch
Cable length
17cm / 6.7 inch
Material
Metal, Electronic Parts
Main color
As Picture Shown
Weight
141g
Package content
1 x DC Solenoid Electromagnet
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

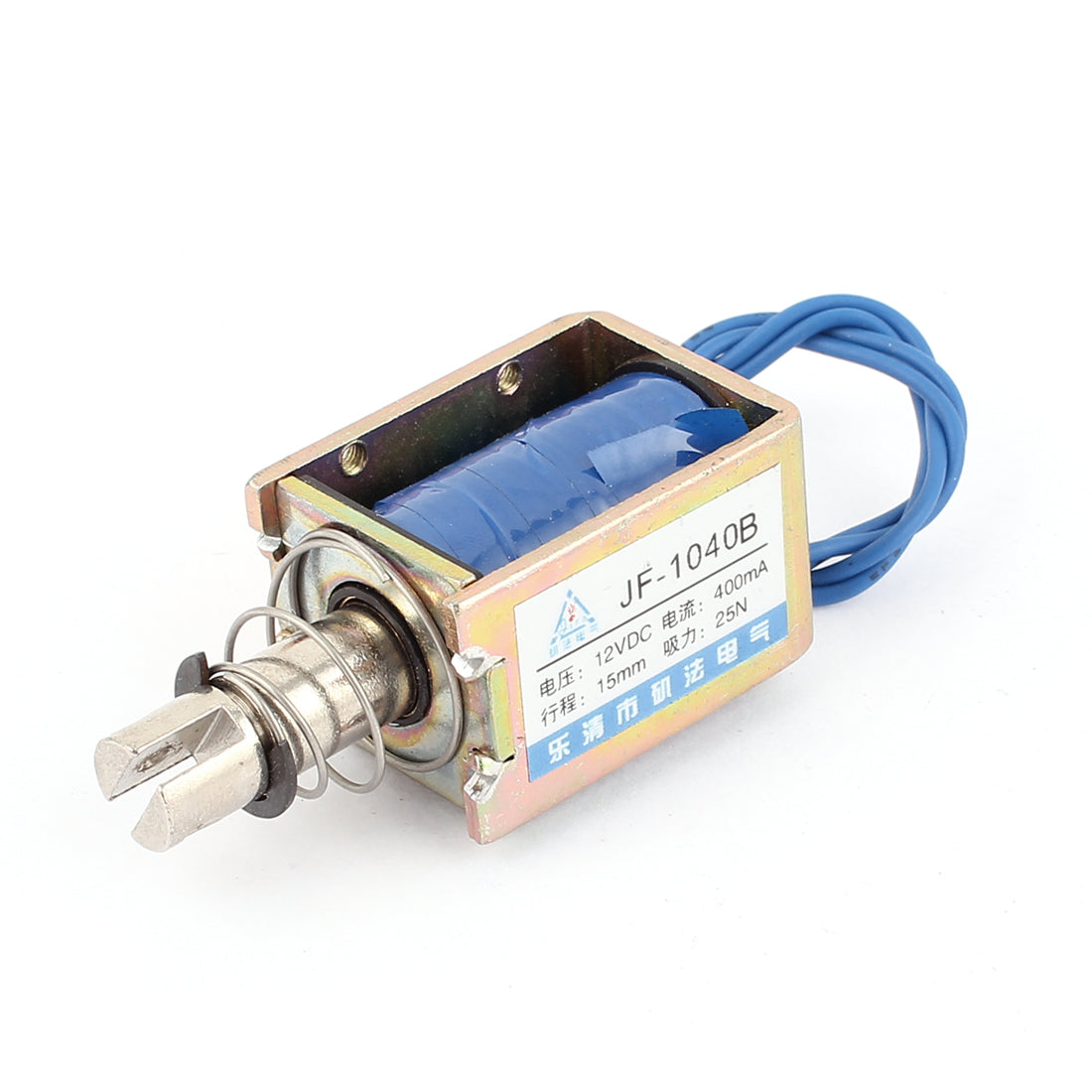

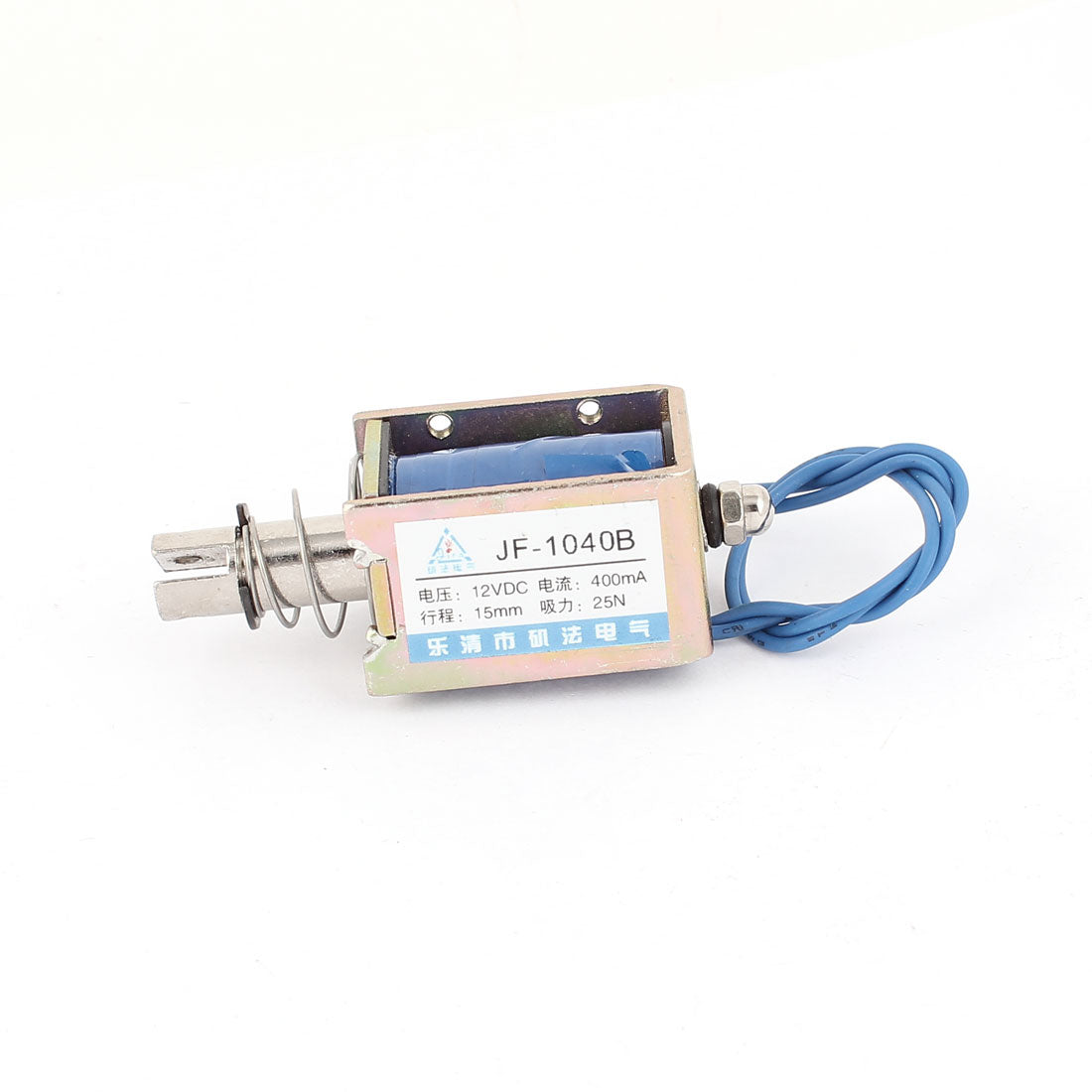

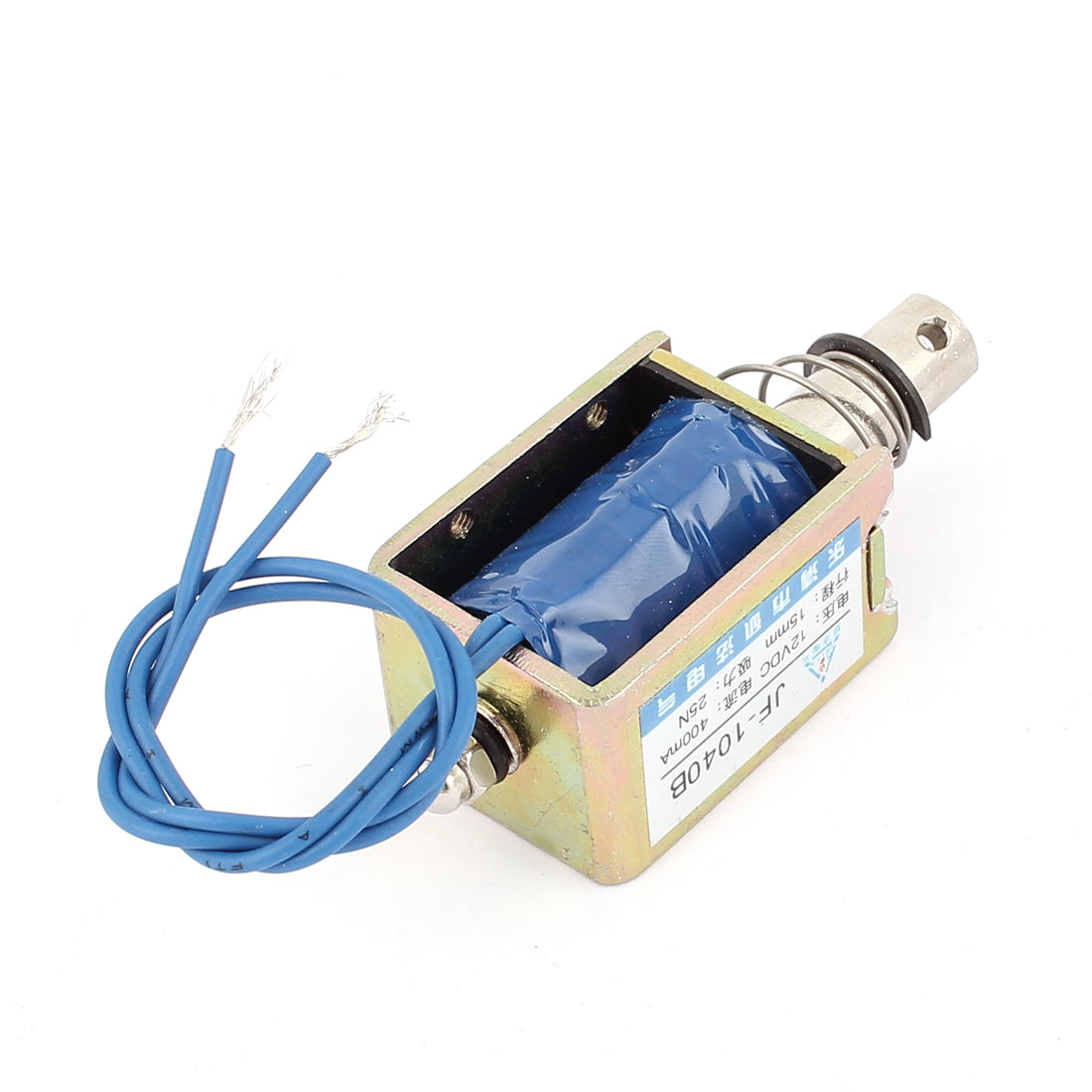

Pull push type, linear motion, open frame, plunger spring return, DC solenoid electronmagnet.
DC Solemoid Electromagnet mainly used in vending machines, transport equipment, office facility household appliance, mechanical, etc.
Solenoids of this category work externally through pulling pushing in plunger.
When energized, doing work through pulling pushing in plunger joined object.
US$14.59 Regular price
US/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Description

Description

Pull push type, linear motion, open frame, plunger spring return, DC solenoid electronmagnet.
DC Solemoid Electromagnet mainly used in vending machines, transport equipment, office facility household appliance, mechanical, etc.
Solenoids of this category work externally through pulling pushing in plunger.
When energized, doing work through pulling pushing in plunger joined object.
