Description
Description

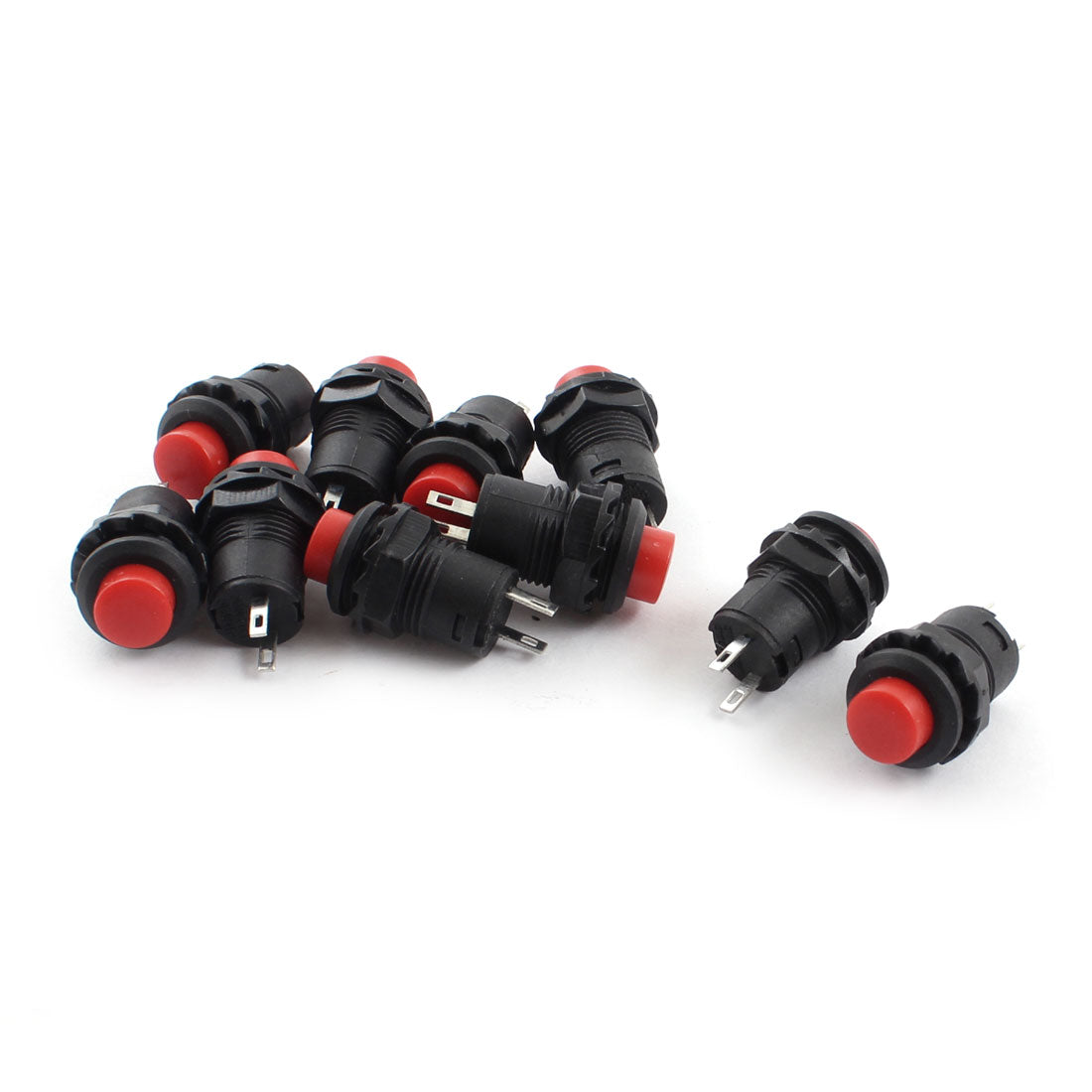

Product Name: Push Button Switch;
Model: DS228;
Action Type: Latching;
Contact configuration: SPST;
Rating Voltage: AC 120V 3A, AC 250V 1.5A;
Terminals Quantity: 2;
Mounting Hole Diameter: 12mm / 0.47";
Button Diameter: 9mm/ 0.35";
Overall Size: 16 x 22mm/ 0.63" x 0.87"(DxH);
Material: Plastic and Metal;
Color: Red, Black;
Package Content: 10 x Push Button Switch
Description:
Advantage: The SPST latching push button switch helps daily wiring work. This Self-Lock Micro Push Button Switch is made of quality plastic and metal, which features anti-corrosion, high conductivity, and high temperature resistance. The thread panel mount installs cleanly on metal or plastic shells or chips, and the button is easy to push. The self-lock latching removes holding the button during long test runs.
Easy to use: Insert the DS228 SPST latching push button switch into the install hole, and secure it with the included hex nut. Connect the two terminals to your load and power source using solder or crimp connectors. Once wired, press the round button once to latch the circuit on, press again to release.
Multiple Uses: The DS228 SPST latching push button switch is a compact self-lock mini round rocker switch built for electricians, lab technicians, and circuit DIY hobbyists. This on off button switch fits car horns, ignition systems, home doorbells, PC cases, table lamps, small appliances, breadboard prototypes, and lab test rigs.
Notes: Confirm the rating voltage and currency of this switch matches your load—exceeding it can damage the push button switch. Always disconnect power before wiring, and verify the diagram for your project. For auto, marine, boat, or car use, install the switch in a weather-protected enclosure.
Product Name: Push Button Switch;
Model: DS228;
Action Type: Latching;
Contact configuration: SPST;
Rating Voltage: AC 120V 3A, AC 250V 1.5A;
Terminals Quantity: 2;
Mounting Hole Diameter: 12mm / 0.47";
Button Diameter: 9mm/ 0.35";
Overall Size: 16 x 22mm/ 0.63" x 0.87"(DxH);
Material: Plastic and Metal;
Color: Red, Black;
Package Content: 10 x Push Button Switch
Description:
Advantage: The SPST latching push button switch helps daily wiring work. This Self-Lock Micro Push Button Switch is made of quality plastic and metal, which features anti-corrosion, high conductivity, and high temperature resistance. The thread panel mount installs cleanly on metal or plastic shells or chips, and the button is easy to push. The self-lock latching removes holding the button during long test runs.
Easy to use: Insert the DS228 SPST latching push button switch into the install hole, and secure it with the included hex nut. Connect the two terminals to your load and power source using solder or crimp connectors. Once wired, press the round button once to latch the circuit on, press again to release.
Multiple Uses: The DS228 SPST latching push button switch is a compact self-lock mini round rocker switch built for electricians, lab technicians, and circuit DIY hobbyists. This on off button switch fits car horns, ignition systems, home doorbells, PC cases, table lamps, small appliances, breadboard prototypes, and lab test rigs.
Notes: Confirm the rating voltage and currency of this switch matches your load—exceeding it can damage the push button switch. Always disconnect power before wiring, and verify the diagram for your project. For auto, marine, boat, or car use, install the switch in a weather-protected enclosure.
