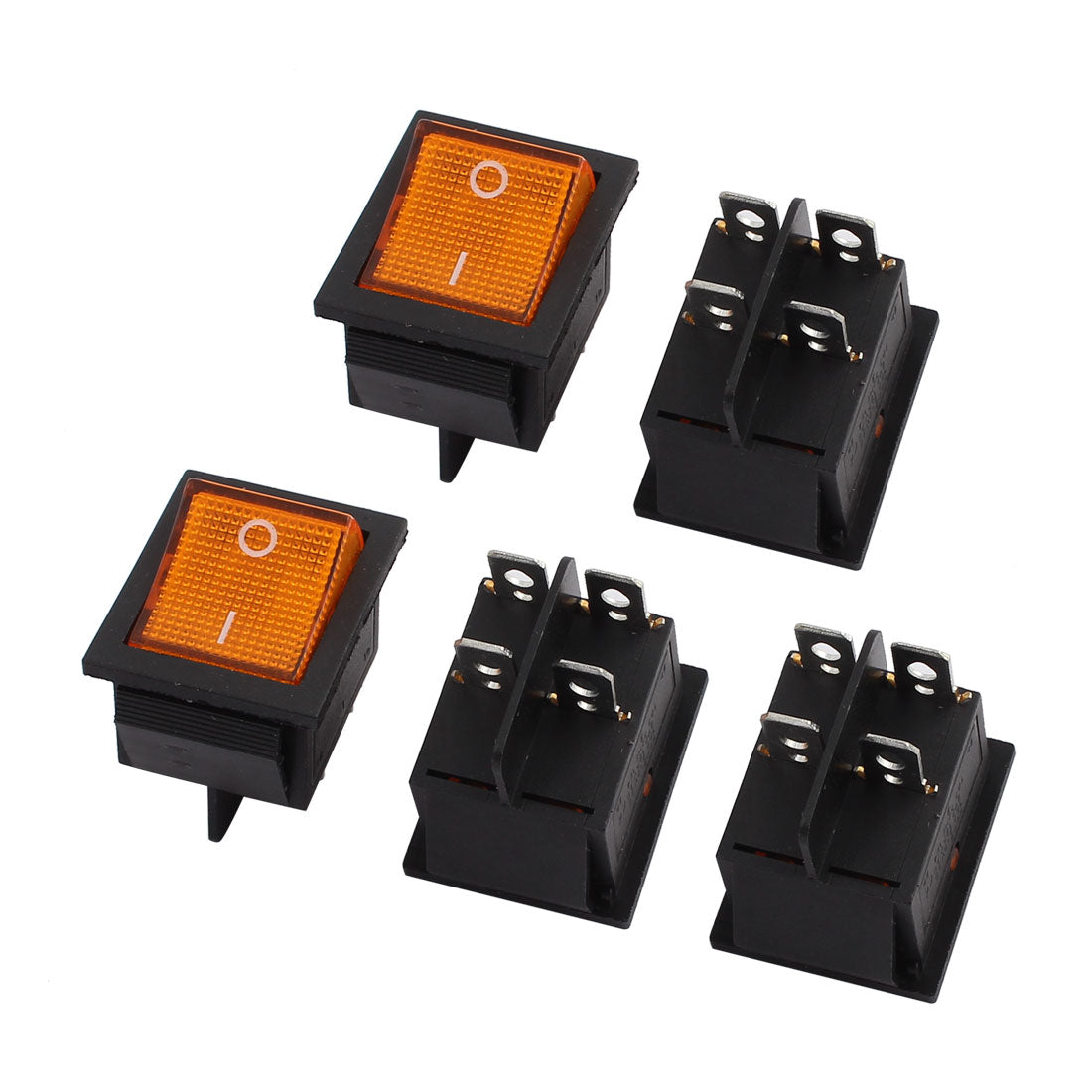

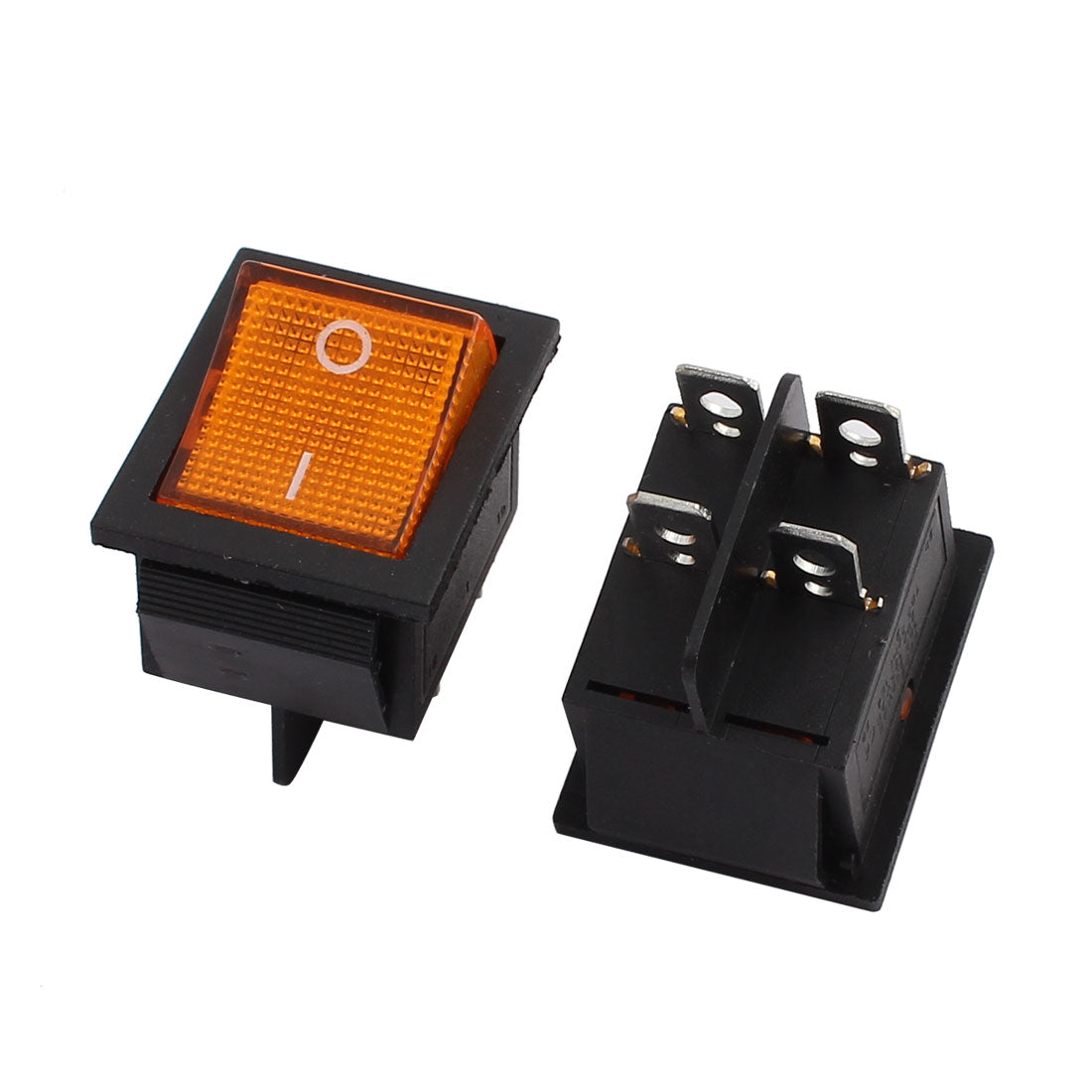

5pcs AC 250V 16A AC 125V 20A ON/OFF DPST 2 Positions 4 Terminals Boat Rocker Switch

ID:
$9.63 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Country of Manufacture: CHINA; Material: Plastic,Metal; Net Weight: 60g
  • Package Content: 5pcs x Boat Rocker Switch; Model: KCD2
  • Main Color: Yellow, black; Contact Type: 2 Positions
  • Action: Latching(Self-Locking); Rating: AC 250V 16A, AC 125V 20A(for resistive load only)
  • Mounting Size: 25mm x 21mm/ 1" x 0.8"(L*W); Light Color: Orange
  • In stock, ready to ship
Cart
Cart
About this item
  • Country of Manufacture: CHINA; Material: Plastic,Metal; Net Weight: 60g
  • Package Content: 5pcs x Boat Rocker Switch; Model: KCD2
  • Main Color: Yellow, black; Contact Type: 2 Positions
  • Action: Latching(Self-Locking); Rating: AC 250V 16A, AC 125V 20A(for resistive load only)
  • Mounting Size: 25mm x 21mm/ 1" x 0.8"(L*W); Light Color: Orange
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
AC 250V Current rerating for different loads
Inductive Load: 5.6A
Lamp Load: 2.88A
Motor Load: 3.2AC
apactive Load: 2.88A

AC125V Current rerating for different loads
Inductive Load: 7A
Lamp Load: 3.6A
Motor Load: 4A
Capactive Load: 3.6A

Very Important Notice:Ratings on the switch label are only for Purely Resistive AC load, for other types of loads please refer to the ratings above.DC load Current ratings are much lower than AC load,if you need to use this switch with more than 0.5A DC load,contact us for compatibility at first.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$9.63 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

AC 250V Current rerating for different loads
Inductive Load: 5.6A
Lamp Load: 2.88A
Motor Load: 3.2AC
apactive Load: 2.88A

AC125V Current rerating for different loads
Inductive Load: 7A
Lamp Load: 3.6A
Motor Load: 4A
Capactive Load: 3.6A

Very Important Notice:Ratings on the switch label are only for Purely Resistive AC load, for other types of loads please refer to the ratings above.DC load Current ratings are much lower than AC load,if you need to use this switch with more than 0.5A DC load,contact us for compatibility at first.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
