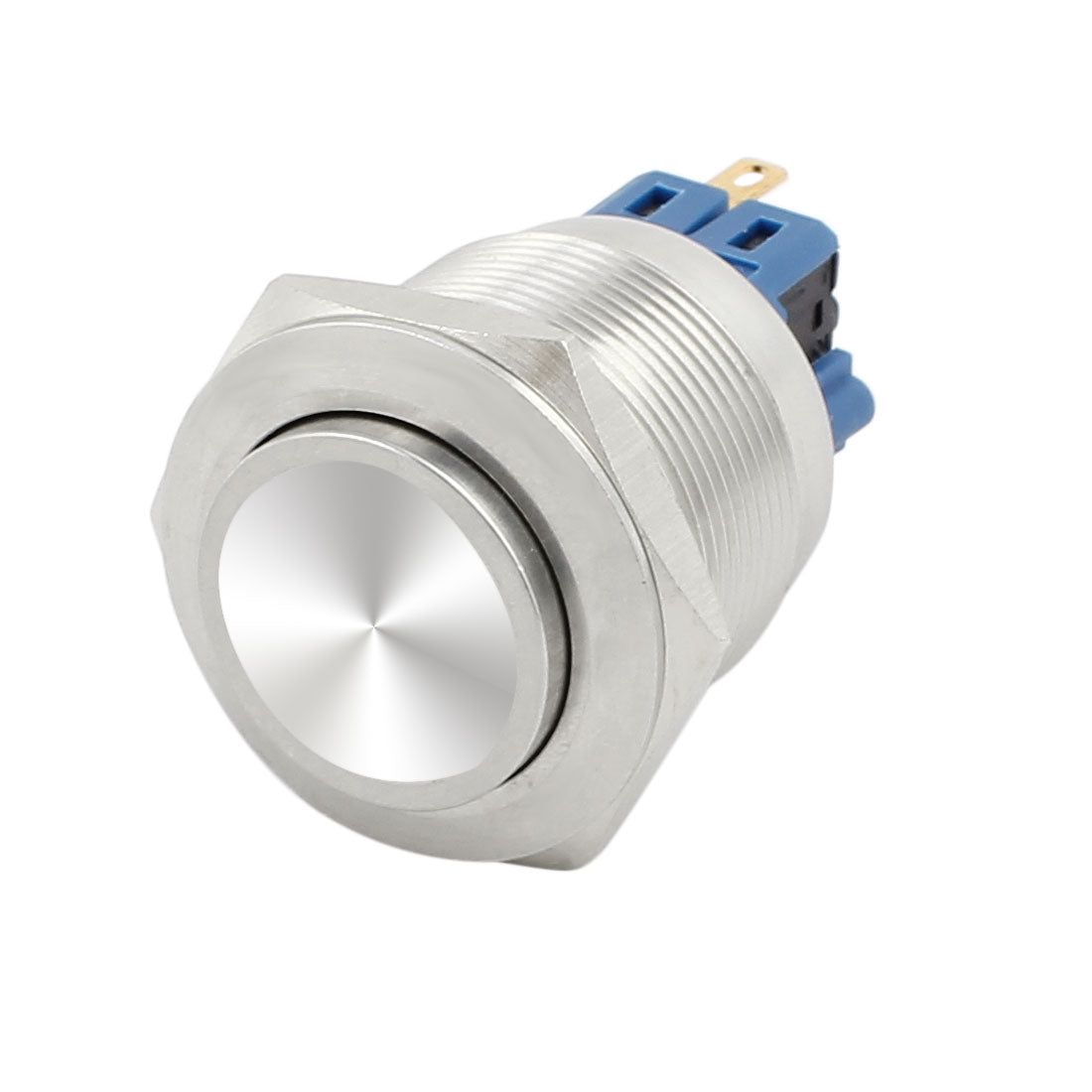

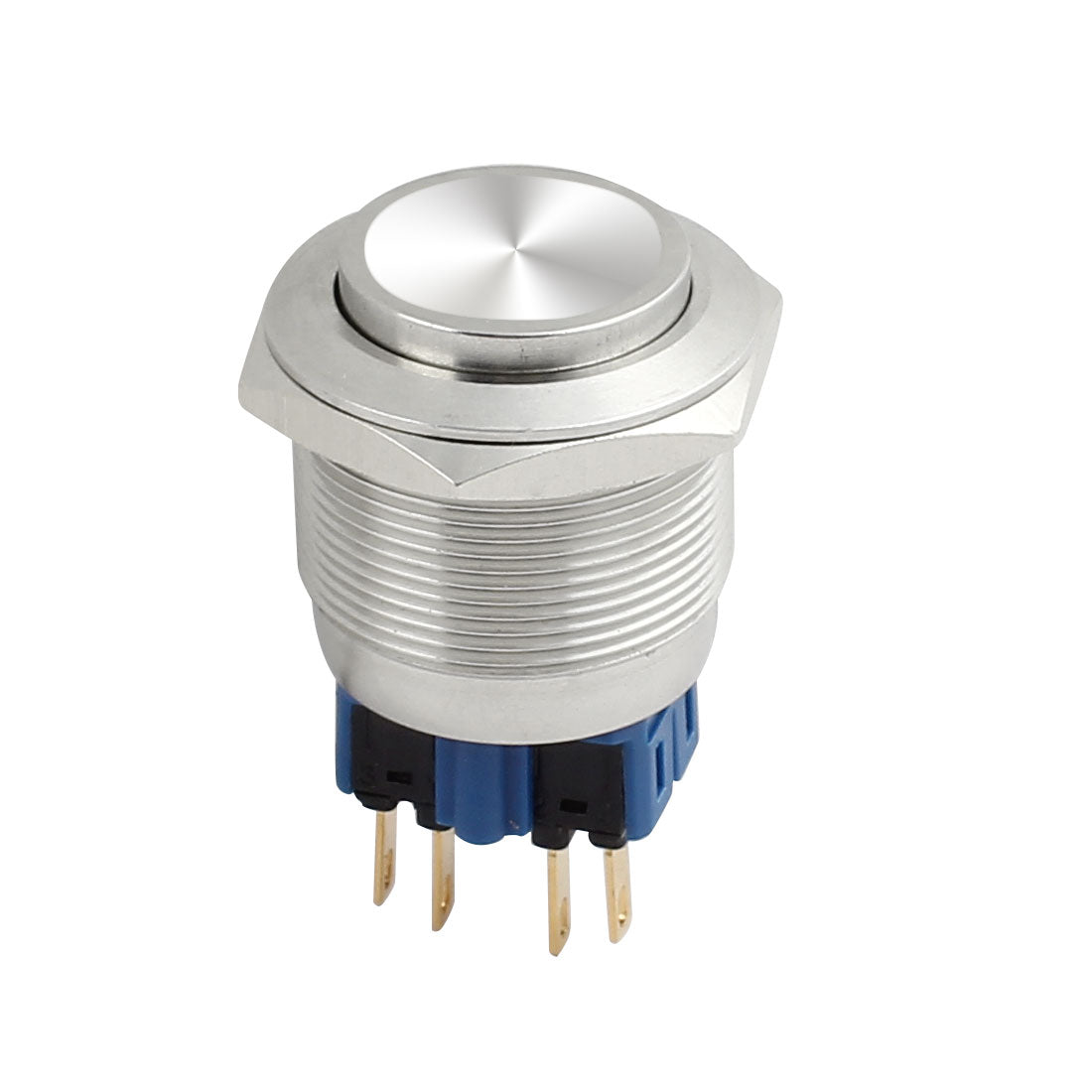

Harfington 25mm Dia Mounting High Round Momentary Stainless Steel Metal Push Button Switch

25mm Dia Mounting High Round Momentary Stainless Steel Metal Push Button Switch

ID:
$12.06 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Oeperation Type: Momentary; Contact Type: 1NO+1NC; Current: 5A; Voltage: AC 250V;Install Style: PCB Type
  • Product Material: Stainless Steel, Electric Parts; Net Weight: 48g; Total Size: 44 x 32mm/1.73" x 1.25"(L*Max.D)
  • Main Color: Silver Tone; Cap Type: High Round; Terminal Quantity: 4; Thread Diameter: 25mm
  • Operating Temperature: -25C to +55C; Operating Humidity: 45 to 85%RH;Protection Rating: IP67
  • Contact Resistance: 50Mohm Maximum; Insulation Resistance: 100Mohm Minimum;Package Content: 1 x Push Button Switch
  • In stock, ready to ship
Cart
Cart
About this item
  • Oeperation Type: Momentary; Contact Type: 1NO+1NC; Current: 5A; Voltage: AC 250V;Install Style: PCB Type
  • Product Material: Stainless Steel, Electric Parts; Net Weight: 48g; Total Size: 44 x 32mm/1.73" x 1.25"(L*Max.D)
  • Main Color: Silver Tone; Cap Type: High Round; Terminal Quantity: 4; Thread Diameter: 25mm
  • Operating Temperature: -25C to +55C; Operating Humidity: 45 to 85%RH;Protection Rating: IP67
  • Contact Resistance: 50Mohm Maximum; Insulation Resistance: 100Mohm Minimum;Package Content: 1 x Push Button Switch
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Notice:
Rated IP67 waterproof.These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater.

Main application:

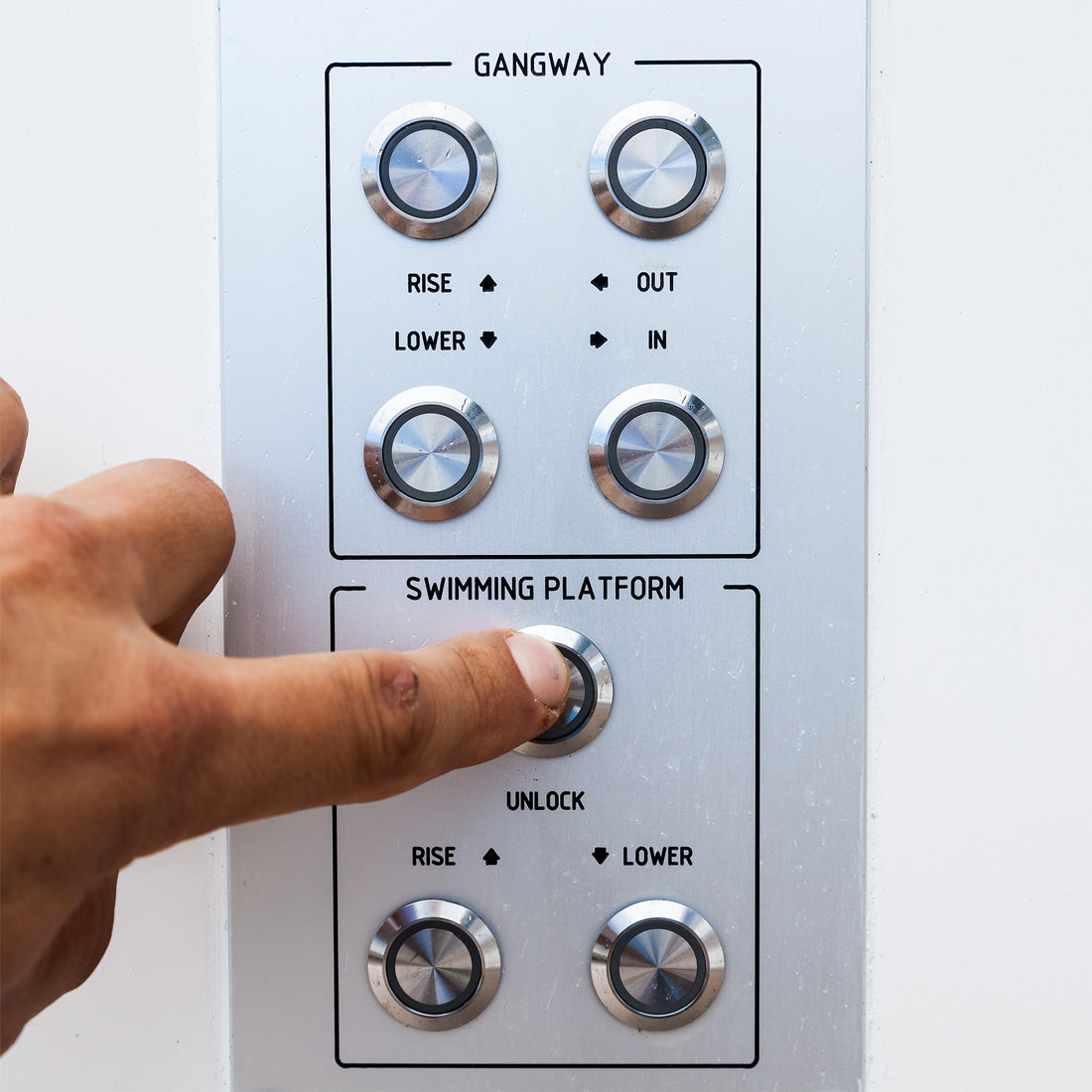

Furniture,hotel equipment,cleaning equipment,audio equipment,industrial equipment,lighting engineering,building models,access control system,car,motorcycle,balance electric scooter,computers,coffee machines,juicers etc.

Specificatios:
Mounting Thread Dia: 25mm
Operation Type: Momentary
Switch Contact: 1NO+1NC
Pole and Throw: DPST
Head Shape: High Round
Max Switch Rating:AC 5A/250V

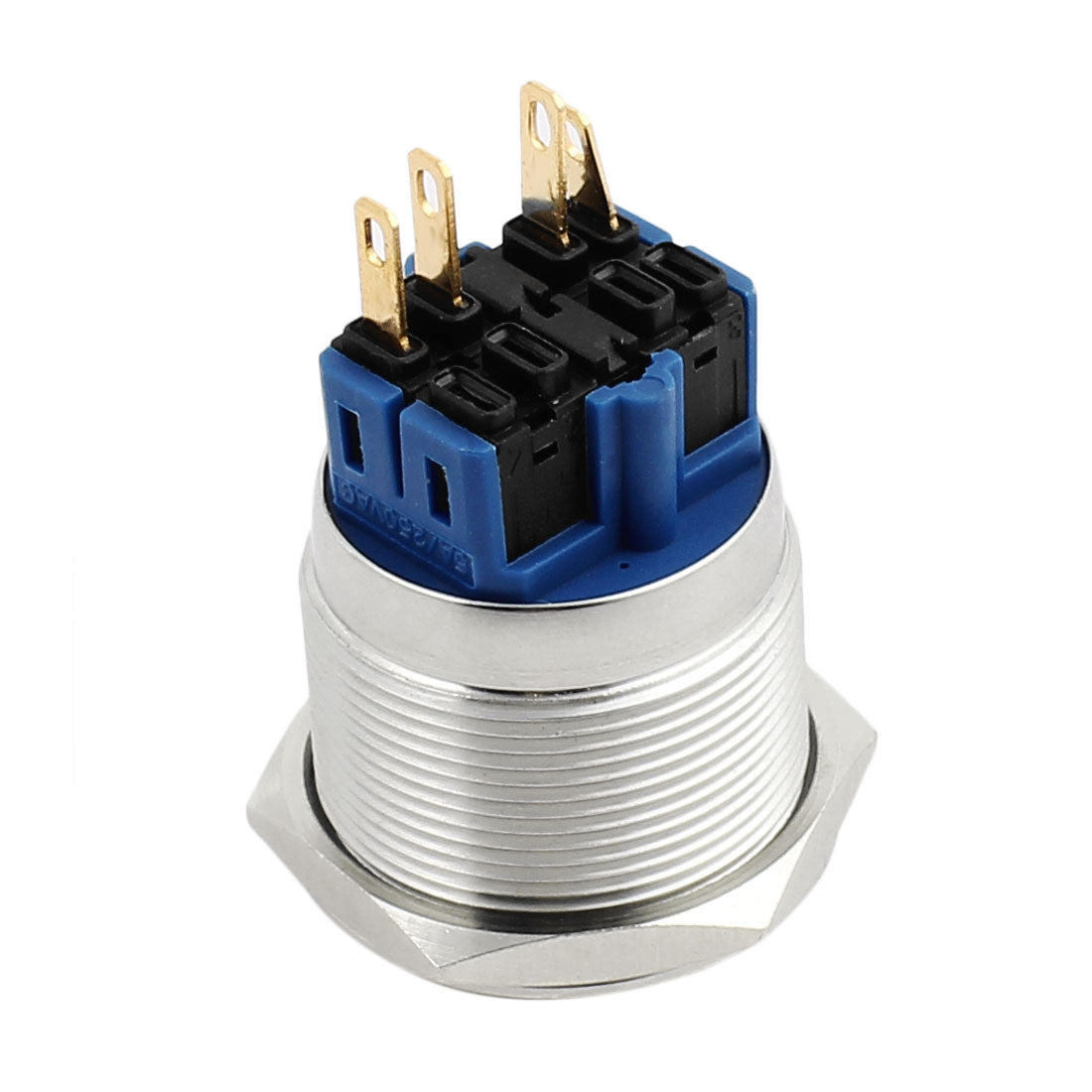

Terminal Type: Solder
Terminal Quantity:4
Weight:48g
Body Material: Stainless Steel (SS is much more resistant to wear and abrasion)
Button Material: Stainless Steel
Protection Rating: IP67
Operation Temperature: -20C to + 55C

Package Include:
1 x  Metal Button Switch

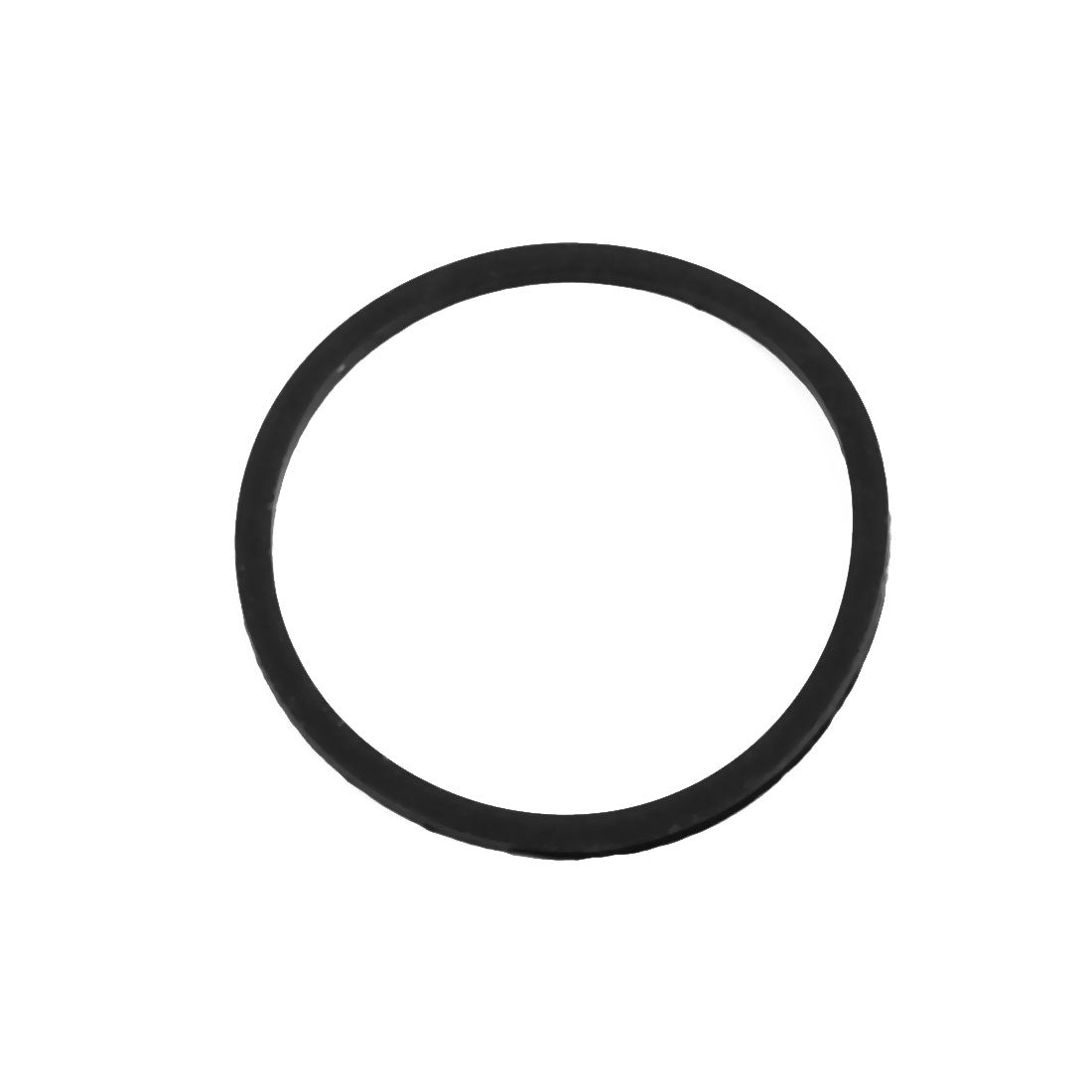

1 x  Rubber O-ring
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$12.06 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description


Notice:
Rated IP67 waterproof.These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater.

Main application:
Furniture,hotel equipment,cleaning equipment,audio equipment,industrial equipment,lighting engineering,building models,access control system,car,motorcycle,balance electric scooter,computers,coffee machines,juicers etc.

Specificatios:
Mounting Thread Dia: 25mm
Operation Type: Momentary
Switch Contact: 1NO+1NC
Pole and Throw: DPST
Head Shape: High Round
Max Switch Rating:AC 5A/250V
Terminal Type: Solder
Terminal Quantity:4
Weight:48g
Body Material: Stainless Steel (SS is much more resistant to wear and abrasion)
Button Material: Stainless Steel
Protection Rating: IP67
Operation Temperature: -20C to + 55C

Package Include:
1 x  Metal Button Switch
1 x  Rubber O-ring
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
