Harfington Uxcell Joystick Switch  Controllers 4 Position 4NO Momentary Type AC 380V 10A 30mm Panel Mount

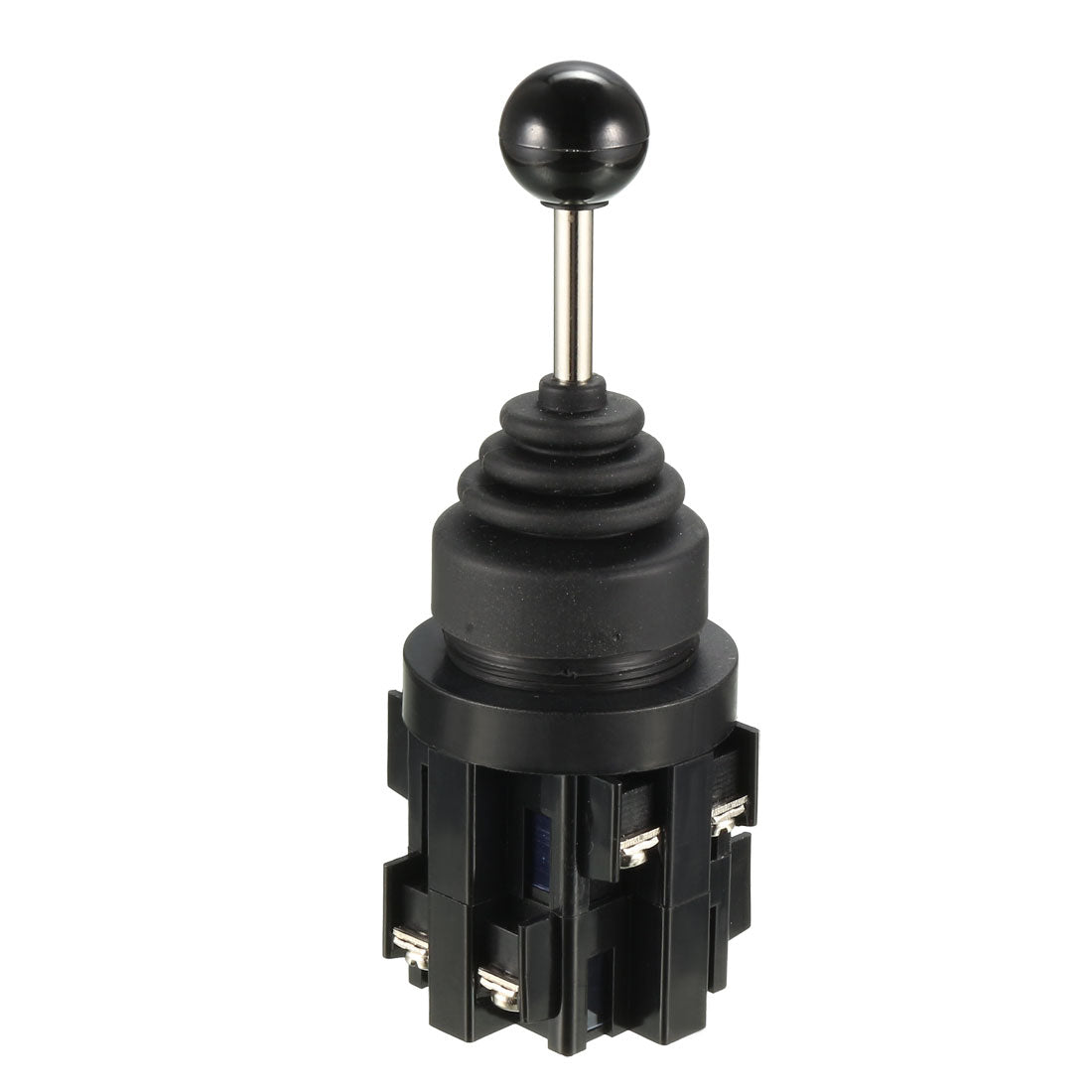

Uxcell Joystick Switch Controllers 4 Position 4NO Momentary Type AC 380V 10A 30mm Panel Mount

ID:1169673
ID:1169673
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Operate at 4 directions, with the 30 degrees declination of operation handle
  • Momentary type operation with 1 normally open contact per direction
  • Rated Voltage: AC 380V; Rated Current: 10A; Max. Voltage: 600V
  • Simply drill an 30mm (1-17/94") hole and secure it with the screw ring
  • Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc
About this item
  • Operate at 4 directions, with the 30 degrees declination of operation handle
  • Momentary type operation with 1 normally open contact per direction
  • Rated Voltage: AC 380V; Rated Current: 10A; Max. Voltage: 600V
  • Simply drill an 30mm (1-17/94") hole and secure it with the screw ring
  • Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc
Specification

Specification

SKU
a19011000ux0316
Rated voltage
AC 380V
Rated current
10A
Max voltage
600V
Action type
Momentary
Contacts type
1 NO Contact Per Direction
Terminals type
Screw Clamps Terminals
Panel mounting diameter
30mm / 1-17/94

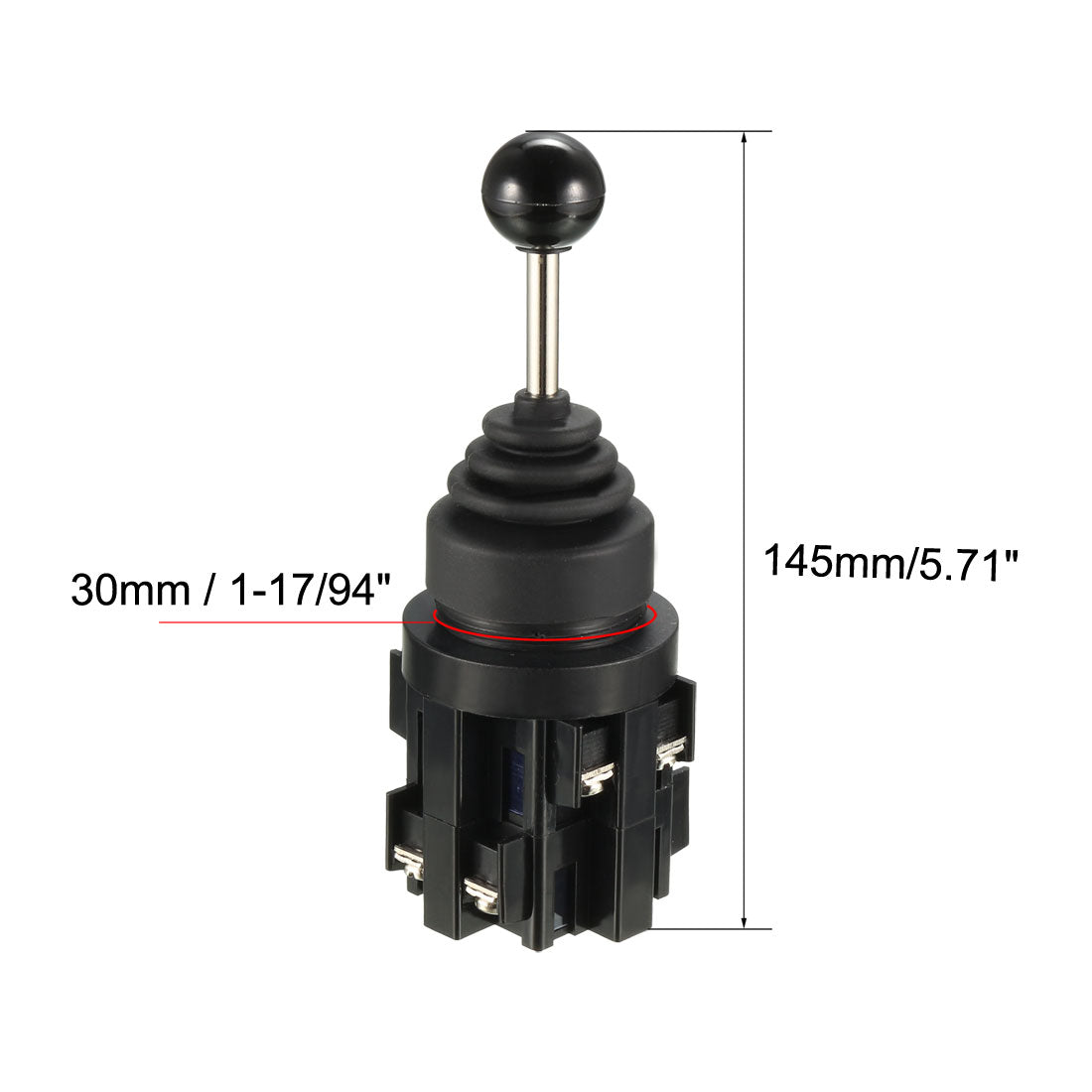

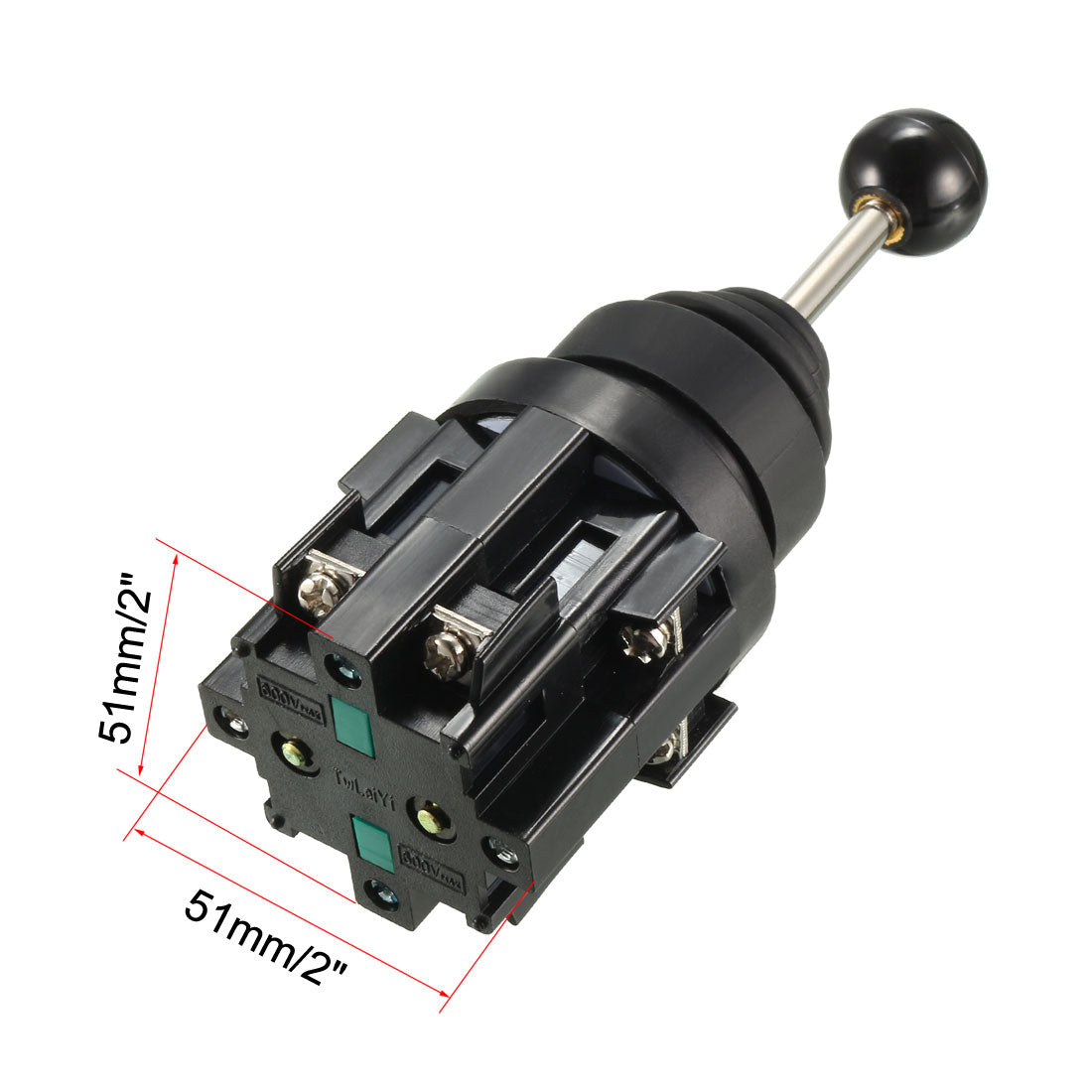

Overall size
145 x 51 x 51mm / 5.71" x 2" x 2" (L*W*H)
Joystick length
90mm / 3.54 inch
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

-Joystick switches or joysticks are manually actuated control devices for installation in control and front panels as well as in portable control equipment.

- controllers are used wherever motion sequences analogous to the actuation direction are controlled by hand.

-They are ideal for raising, lowering and triggering movements to the right and left.

-This 30mm selector switch is modularly designed to make assembly.

-Rubber bushing is oil-resistant and dust-preventive.

-Widely used in the steel and construction industry, in machine tools, for transport and conveyor systems, in the system and mechanical engineering sectors and for warehousing and studio technology.



Specification:

Rated Voltage: AC 380V

Rated Current: 10A

Max. Voltage: 600V

Action Type: Momentary

Positions: 4

Contacts Type: 1 NO Contact Per Direction

Terminals Type: Screw Clamps Terminals

Panel Mounting Diameter: 30mm / 1-17/94"

Overall Size: 145 x 51 x 51mm / 5.71" x 2" x 2" (L*W*H)

Joystick Length: 90mm / 3.54"

US$11.89 Regular price
US/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • Dispatch on Aug.16 - Aug.23. Contact us for more precise lead time.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Description

Description

Description:

-Joystick switches or joysticks are manually actuated control devices for installation in control and front panels as well as in portable control equipment.

- controllers are used wherever motion sequences analogous to the actuation direction are controlled by hand.

-They are ideal for raising, lowering and triggering movements to the right and left.

-This 30mm selector switch is modularly designed to make assembly.

-Rubber bushing is oil-resistant and dust-preventive.

-Widely used in the steel and construction industry, in machine tools, for transport and conveyor systems, in the system and mechanical engineering sectors and for warehousing and studio technology.



Specification:

Rated Voltage: AC 380V

Rated Current: 10A

Max. Voltage: 600V

Action Type: Momentary

Positions: 4

Contacts Type: 1 NO Contact Per Direction

Terminals Type: Screw Clamps Terminals

Panel Mounting Diameter: 30mm / 1-17/94"

Overall Size: 145 x 51 x 51mm / 5.71" x 2" x 2" (L*W*H)

Joystick Length: 90mm / 3.54"
