Harfington Uxcell 50W 270 Ohm 5% Aluminum Housing Resistor Screw  Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 1 pcs

Uxcell 50W 270 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 1 pcs

ID:1157685
ID:1157685
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • 50 Watt and 270 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range.
  • Aluminum Housed. An insulated cover on the wounded wires would suppress the heat, which promises the high performance of a resistor. Hence, the cooling job was achieved by aluminum case.
  • This 50W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built.
  • Board length 1.96 inches(49.8mm) with two 3.5mm mounting hole, and 2 terminals for a connection.
  • Reliable. Problems like the flush LED would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.
About this item
  • 50 Watt and 270 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range.
  • Aluminum Housed. An insulated cover on the wounded wires would suppress the heat, which promises the high performance of a resistor. Hence, the cooling job was achieved by aluminum case.
  • This 50W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built.
  • Board length 1.96 inches(49.8mm) with two 3.5mm mounting hole, and 2 terminals for a connection.
  • Reliable. Problems like the flush LED would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

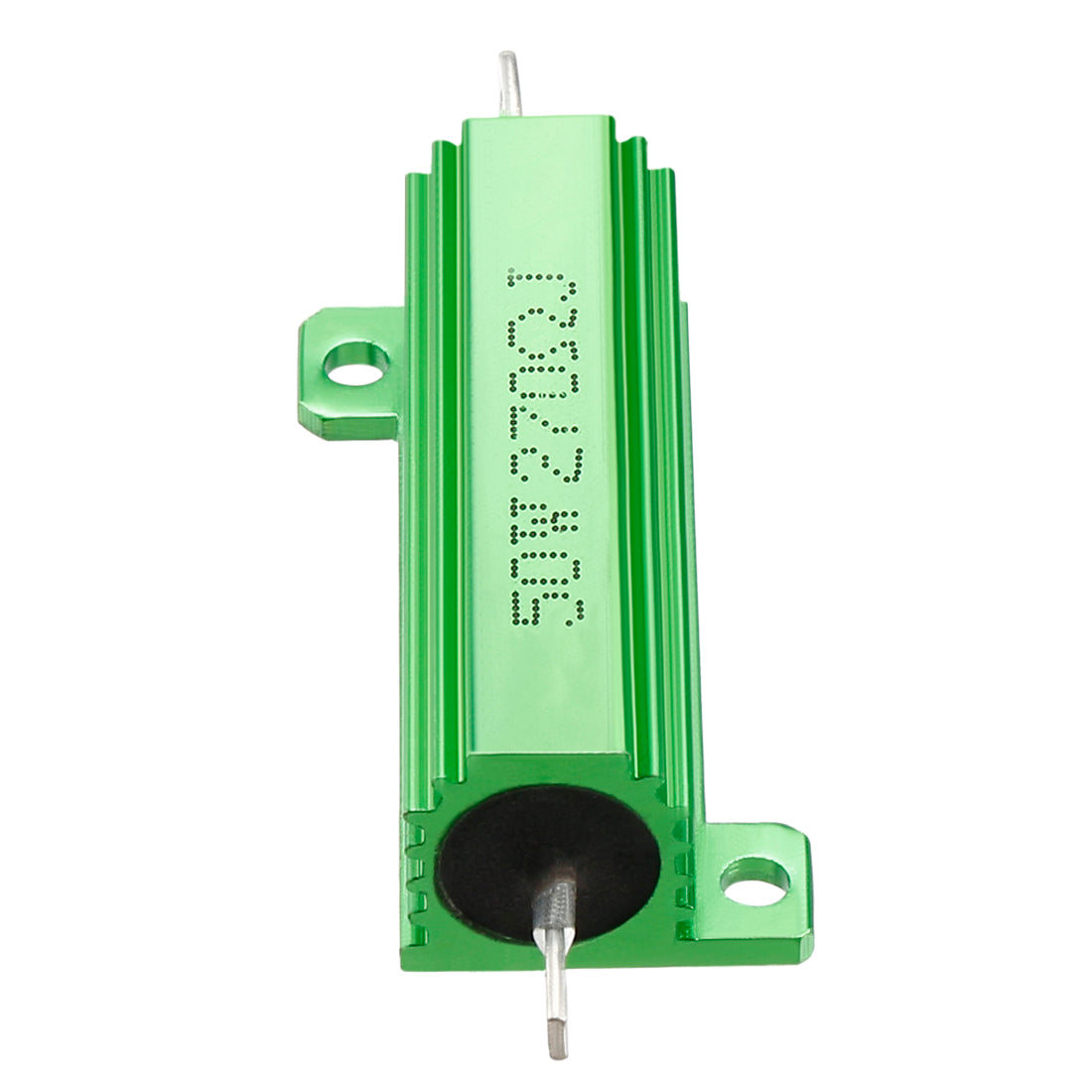

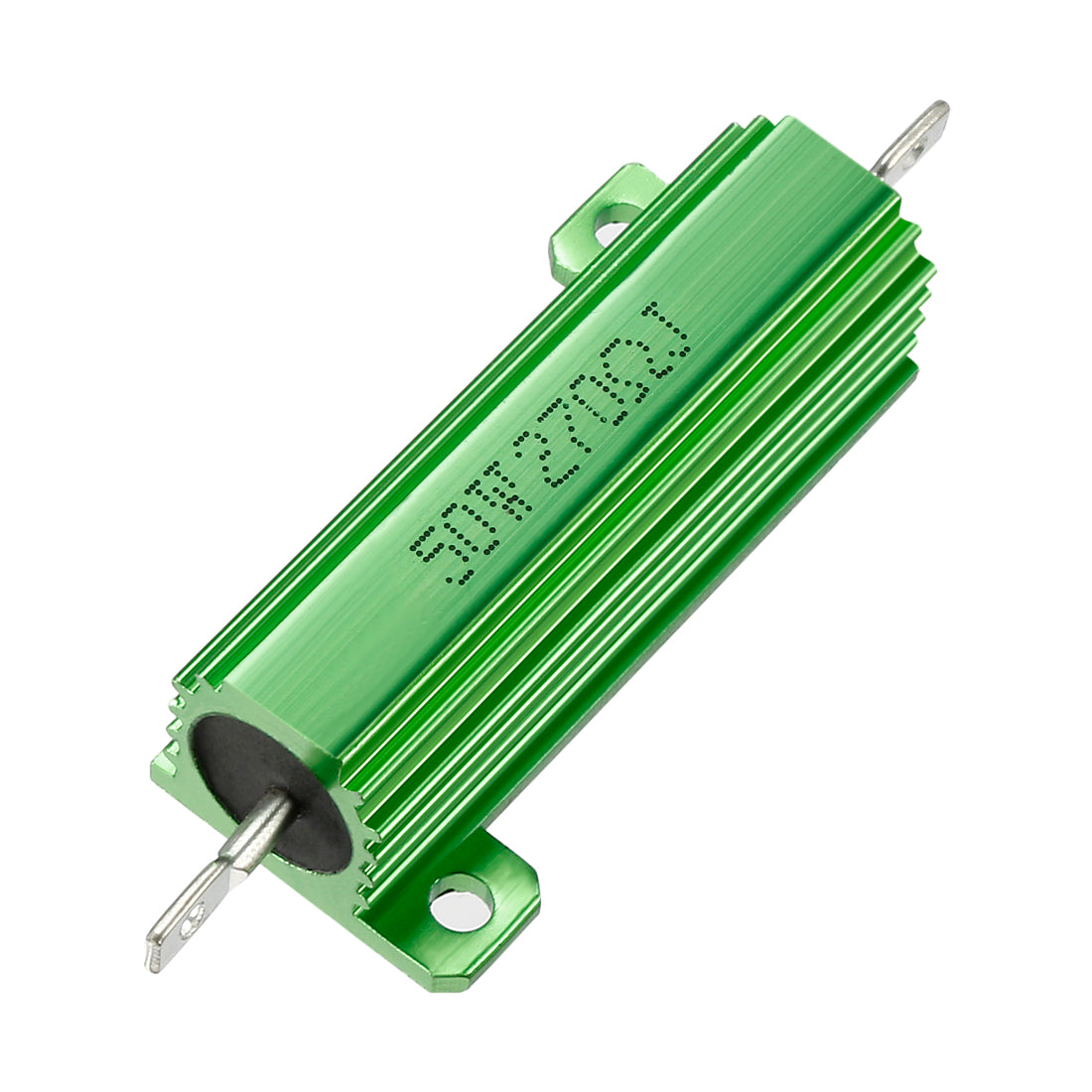

50 Watt 270 Ohm Aluminum Case Resistor with 5% Tolerance

Power: 50W

Resistance: 270 ohm

Tolerance: 5%

Connection Type: Rods

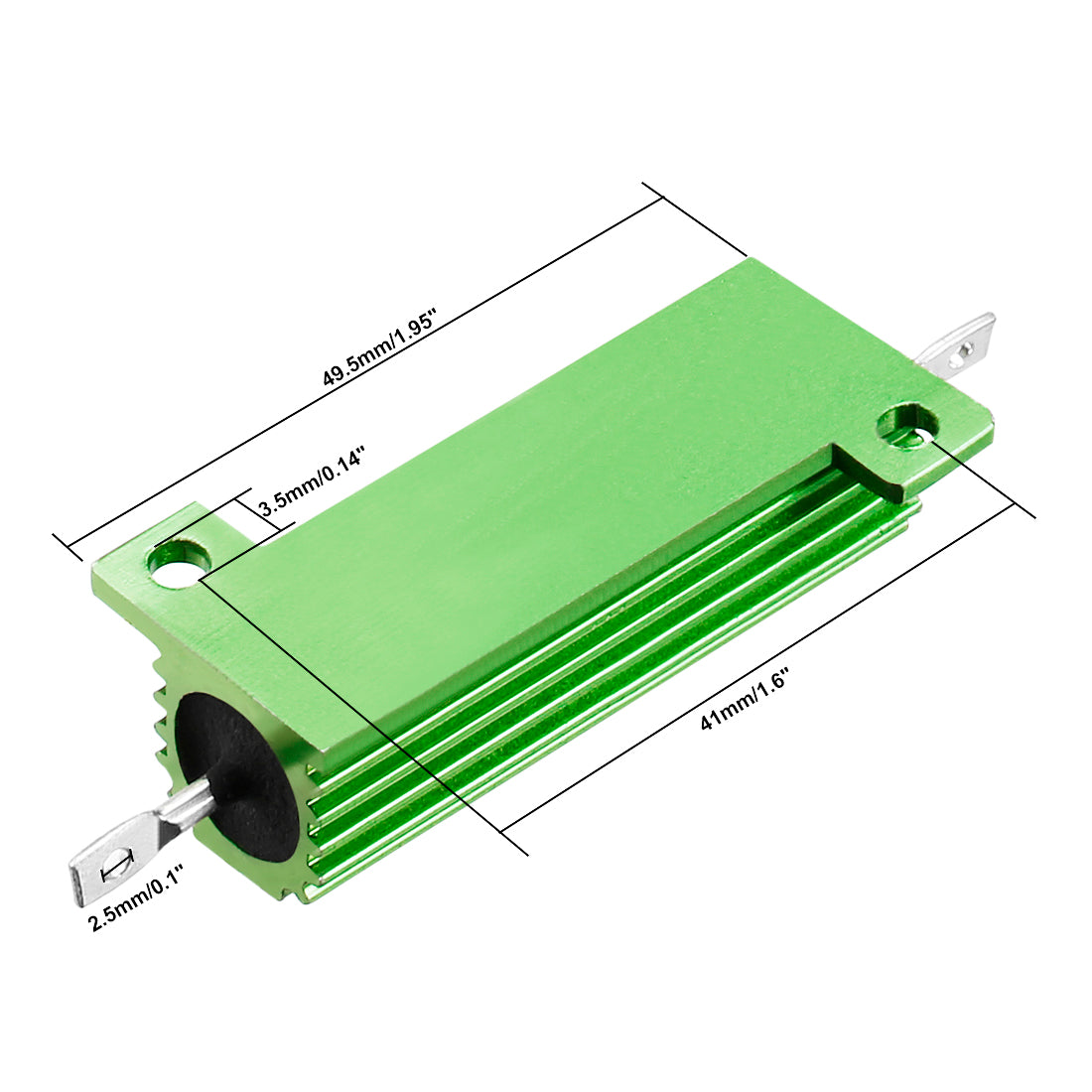

Board Length: 49.8mm

Mounting Hole Diameter: 3.5mm

Distance Between Mounting Hole: 41mm

Materials: Nickel Alloys Wire Wound Resistor with Aluminum Case

Color: Green

Package Content: 1 pcs 50W 270 ohm Aluminum Resistor

Suggestion:

a. The load resistor will get huge hot, please don't touch it when the resistor is working.Because alumnium resistor is a braking device which transfers Electric energy to Thermal energy.This is a normal physical phenomenon.

b. The load resistor should be mounted on metal board, not on flammable board such as plastic board,rubber,paper,wood and etc.

c. We recommend a 30%-50% increase in rated power based on your actual load power and add a heat sink device when it is necessary.
  • If you choose a 30% increase in rated power, you must add a heat sink device.
  • If you choose a 50% increase in rated power, you can add a heat sink device for the best use of its performance.

d. Not recommend to use it for Automotive repair or refit unless you have professional knowledge.

US$6.58 Regular price
US/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell 50W 270 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 1 pcs 1157685 US$6.58
Products Title ID Price Qty
Uxcell 50W 270 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 1 pcs 1157685 US$6.58
Uxcell 2 Pcs Aluminum Case Resistor 100W 4k Ohm Wirewound for LED Replacement Converter 1068485 US$8.38
Uxcell Aluminum Case Resistor 100W 2k Ohm Wirewound Green for LED Replacement Converter 100W 2kRJ 1044592 US$6.76
Uxcell Aluminum Case Resistor 100W 10 Ohm Wirewound Green for LED Replacement Converter 1055871 US$6.76
Uxcell 2 Pcs Aluminum Case Resistor 100W 68 Ohm Wirewound Green for LED Replacement Converter 100W 68RJ 1159631 US$8.57
Uxcell Aluminum Case Resistor 100W 1.5 Ohm Wirewound Green for LED Replacement Converter 100W 1.5RJ 1159637 US$6.78
Uxcell 2 Pcs Aluminum Case Resistor 100W 2 Ohm Wirewound Green for LED Replacement Converter 100W 2RJ 1159647 US$8.58
Uxcell 50W 40 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 1 pcs 1160159 US$6.57
Uxcell 50W 10k Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 1 pcs 1160165 US$6.57
Uxcell 50W 30 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 1 pcs 1160166 US$6.57
Uxcell 50W 180 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1174827 US$6.43
Uxcell 50W 27k Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 1 pcs 1174832 US$6.64
Uxcell Aluminum Case Resistor 100W 2.7k Ohm Wirewound Green for LED Replacement Converter 100W 2.7kRJ 1157117 US$6.76
Uxcell Aluminum Case Resistor 100W 40 Ohm Wirewound Green for LED Replacement Converter 100W 40 RJ 1157119 US$6.78
Uxcell 2 Pcs Aluminum Case Resistor 100W 3.9 Ohm Wirewound Green for LED Replacement Converter 100W 3.9RJ 1157131 US$8.60
Uxcell 2 Pcs Aluminum Case Resistor 100W 5.6 Ohm Wirewound Green for LED Replacement Converter 100W 5.6RJ 1157135 US$8.61
Uxcell 50W 6k Ohm 5% Aluminum Housing Resistor Screw Tap Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 1 pcs 1157667 US$6.58
Uxcell 50W 390 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1157668 US$8.00
Uxcell 50W 0.1 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1157689 US$8.00
Uxcell 50W 6.5 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1157696 US$7.84
Uxcell 50W 2.5 Ohm 5% Aluminum Housing Resistor Screw Tap Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1157697 US$7.90
Uxcell 2 Pcs Aluminum Case Resistor 100W 30 Ohm Wirewound Green for LED Replacement Converter 100W 30RJ 1085236 US$8.58
Uxcell 50W 250 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 Pcs 1105281 US$8.01
Uxcell 50W 100 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1105286 US$7.87
Uxcell 50W 27 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1105290 US$7.89
Uxcell 50W 16 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1105294 US$7.85
Uxcell 50W 1.5 Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Green 2 pcs 1105295 US$7.83
Uxcell 2 Pcs Aluminum Case Resistor 100W 250 Ohm Wirewound Green for LED Replacement Converter 100W 250RJ 1072509 US$8.63
Uxcell 2 Pcs Aluminum Case Resistor 100W 18 Ohm Wirewound Green for LED Replacement Converter 100W 18RJ 1072516 US$8.36
Uxcell 2 Pcs Aluminum Case Resistor 100W 40 Ohm Wirewound Green for LED Replacement Converter 100W 40RJ 1072518 US$8.56
Uxcell 2 Pcs Aluminum Case Resistor 100W 20 Ohm Wirewound Green for LED Replacement Converter 100W 20RJ 1080737 US$8.69
Qty: 0 Item(s)
Total Price: US$0.00
View more

Description

Description

50 Watt 270 Ohm Aluminum Case Resistor with 5% Tolerance

Power: 50W

Resistance: 270 ohm

Tolerance: 5%

Connection Type: Rods

Board Length: 49.8mm

Mounting Hole Diameter: 3.5mm

Distance Between Mounting Hole: 41mm

Materials: Nickel Alloys Wire Wound Resistor with Aluminum Case

Color: Green

Package Content: 1 pcs 50W 270 ohm Aluminum Resistor

Suggestion:

a. The load resistor will get huge hot, please don't touch it when the resistor is working.Because alumnium resistor is a braking device which transfers Electric energy to Thermal energy.This is a normal physical phenomenon.

b. The load resistor should be mounted on metal board, not on flammable board such as plastic board,rubber,paper,wood and etc.

c. We recommend a 30%-50% increase in rated power based on your actual load power and add a heat sink device when it is necessary.
  • If you choose a 30% increase in rated power, you must add a heat sink device.
  • If you choose a 50% increase in rated power, you can add a heat sink device for the best use of its performance.

d. Not recommend to use it for Automotive repair or refit unless you have professional knowledge.
