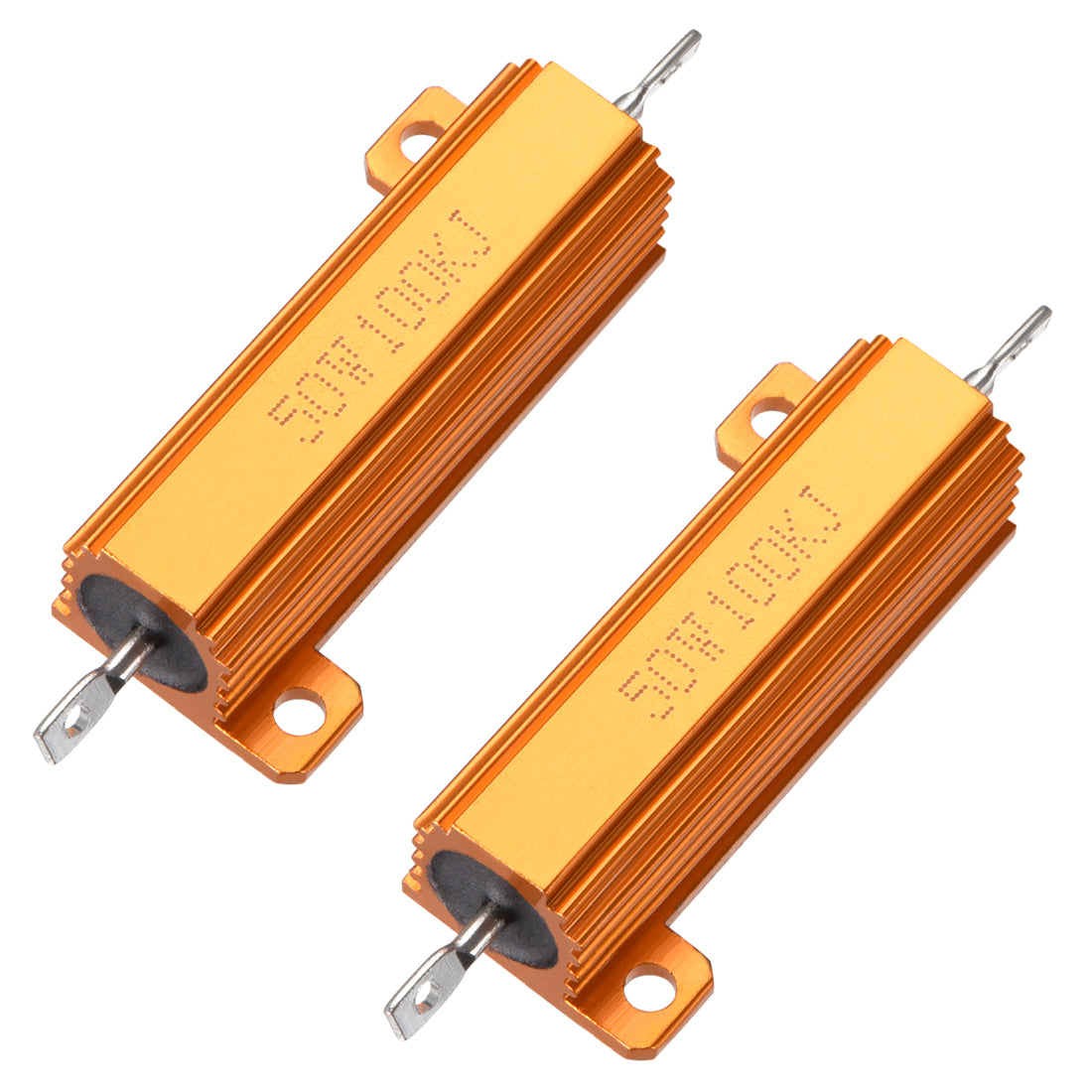

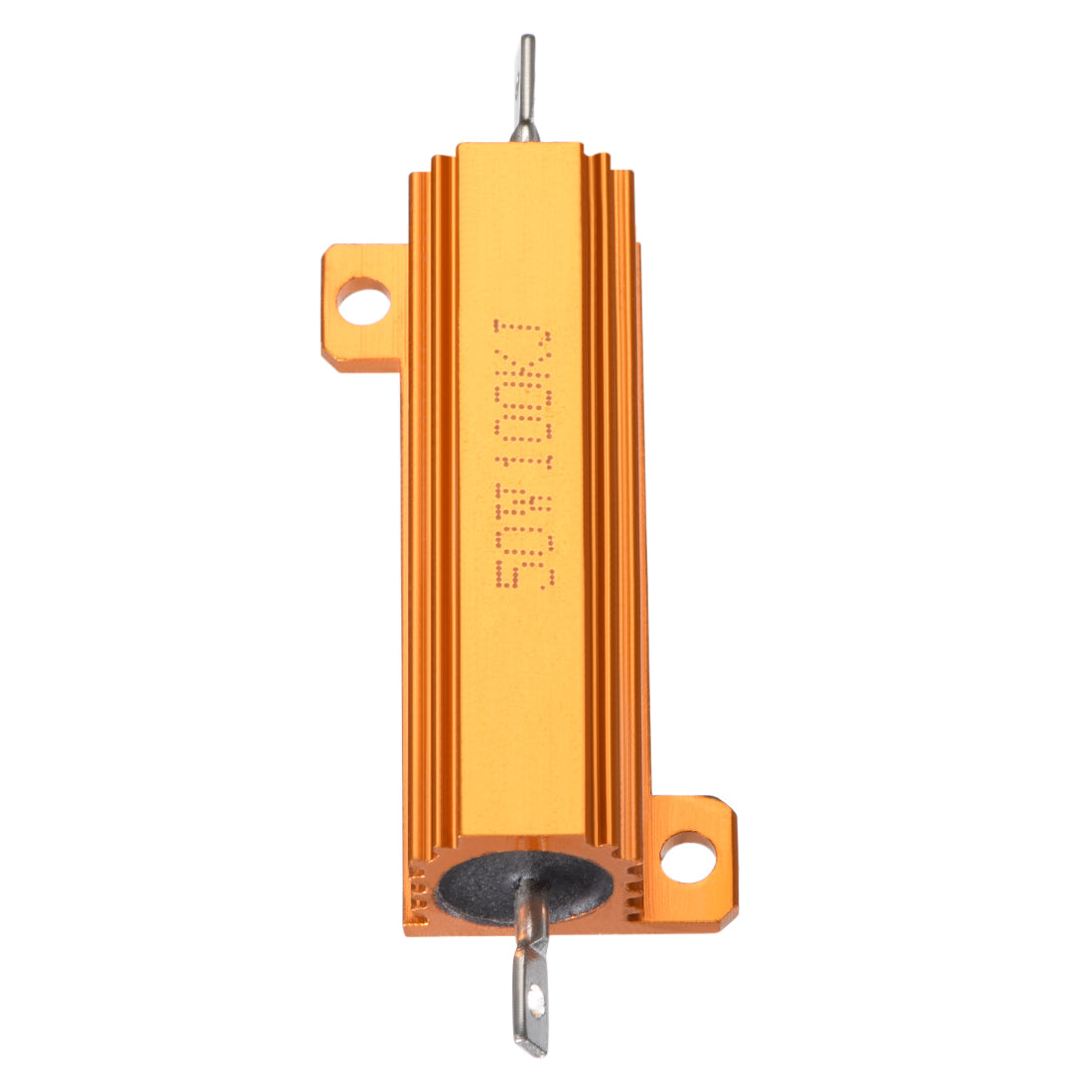

Harfington Uxcell 50W 100k Ohm 5% Aluminum Housing Resistor Screw  Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Gold Tone 2pcs

Uxcell 50W 100k Ohm 5% Aluminum Housing Resistor Screw Chassis Mounted Aluminum Case Wirewound Resistor Load Resistors Gold Tone 2pcs

ID:
$8.06 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About This Item
  • Aluminum Housing resistor,aluminum Case resistor
  • Rated resistance:100k Ohm,tolerance: 5%.Rated power:50W.
  • Wirewound Resistor.Mounting type:chassis mounted with Screws
  • Aluminum housing for heat dissipation, suitable for cooling plate installation, can be used in atrocious environment.
  • Widely used in ring doorbell,power supply, transducer, audio, frequency converter, frequency divider, elevator, arena audio.
  • In stock, ready to ship
Cart
Cart
About This Item
  • Aluminum Housing resistor,aluminum Case resistor
  • Rated resistance:100k Ohm,tolerance: 5%.Rated power:50W.
  • Wirewound Resistor.Mounting type:chassis mounted with Screws
  • Aluminum housing for heat dissipation, suitable for cooling plate installation, can be used in atrocious environment.
  • Widely used in ring doorbell,power supply, transducer, audio, frequency converter, frequency divider, elevator, arena audio.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:
Product features
Product Name : Aluminum Housing Resistor;
Resistance Value : 100k ohm;Resistance Tolerance : +/- 5% (J);
Power Rating : 50W;

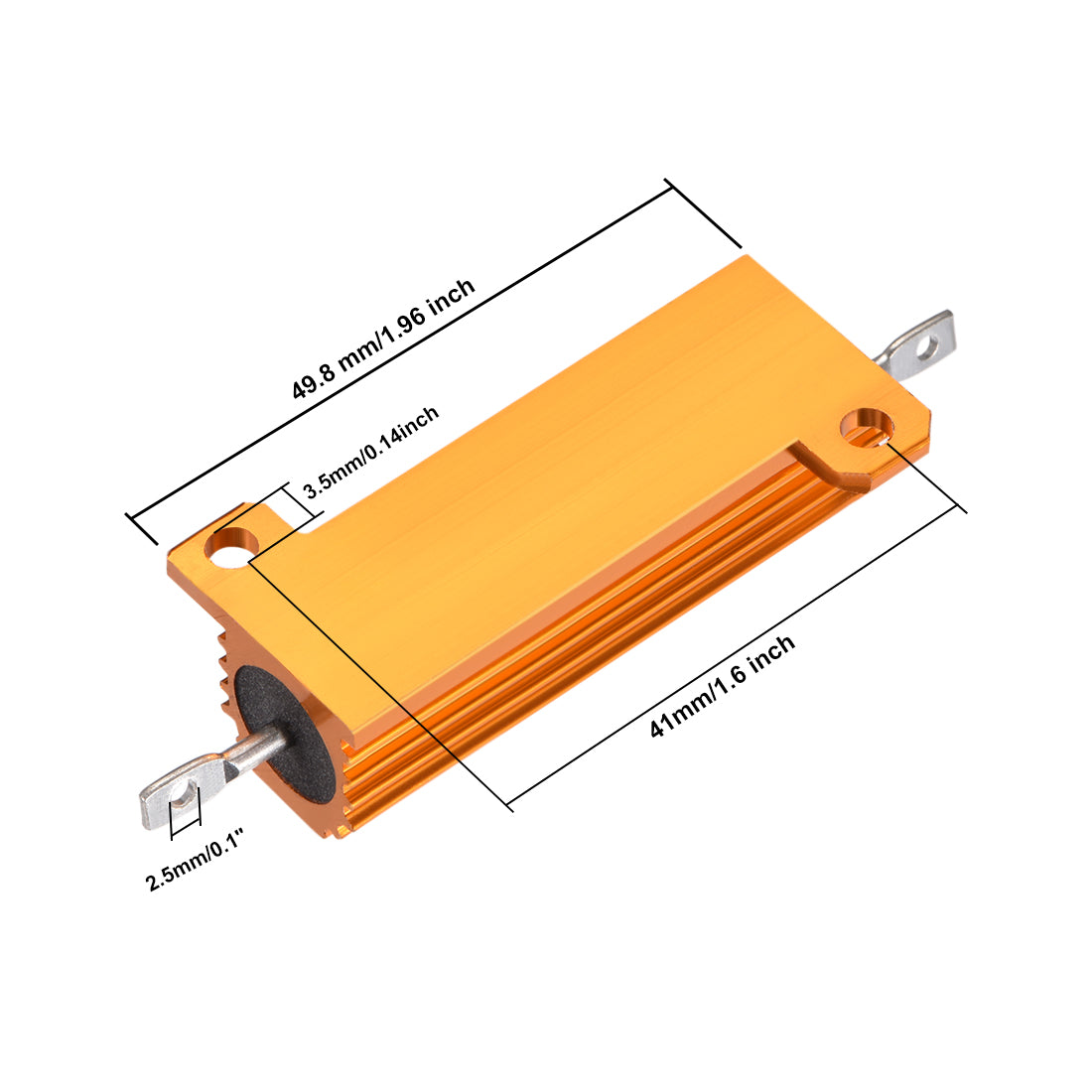

Body Size:49.8 x 27 x 15.5mm/1.96-inch x 1.06-inch x 0.61-inch(L*W*H)
Mounted Hole Size : 3.5mm/0.14inch
Total Size : 73 x 27 x 15.5mm/ 2.87-inch x 1.06-inch x 0.61-inch (L*W*T)
Casing Material : Aluminum,Ceramic,Alloy;
Color : Gold Tone
Weight : 50g;
Package Content : 2 x Aluminum Housing Resistor

Product description:
Aluminum housing for heat dissipation, suitable for cooling plate installation.
Small size, high power load, standard and non-inductive winding types. High insulating capacity, good performance in vibration. Multiple connection modes, easy to install.
Widely used in ring doorbell,power supply, transducer, elevator, and high requirement equipment industry.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products title ID Price Qty
Products title ID Price Qty
{[item.title]} {[item.id]} {['$' + item.price]}
Qty: {[total.qty]} Item(s)
Total Price: ${[total.price]}
View More

Description

Description

Product features
Product Name : Aluminum Housing Resistor;
Resistance Value : 100k ohm;Resistance Tolerance : +/- 5% (J);
Power Rating : 50W;
Body Size:49.8 x 27 x 15.5mm/1.96-inch x 1.06-inch x 0.61-inch(L*W*H)
Mounted Hole Size : 3.5mm/0.14inch
Total Size : 73 x 27 x 15.5mm/ 2.87-inch x 1.06-inch x 0.61-inch (L*W*T)
Casing Material : Aluminum,Ceramic,Alloy;
Color : Gold Tone
Weight : 50g;
Package Content : 2 x Aluminum Housing Resistor

Product description:
Aluminum housing for heat dissipation, suitable for cooling plate installation.
Small size, high power load, standard and non-inductive winding types. High insulating capacity, good performance in vibration. Multiple connection modes, easy to install.
Widely used in ring doorbell,power supply, transducer, elevator, and high requirement equipment industry.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
