Harfington Uxcell Vertical Mount Pool Liquid Level Sensor Control White Plastic Floating Ball Float Switch 13.8"

Uxcell Vertical Mount Pool Liquid Level Sensor Control White Plastic Floating Ball Float Switch 13.8"

ID:
$6.78 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About This Item
  • Product Name : Float Switch;Contacts : NO+NC;Max Contact Rating : Max Contact Rating;10W : 10W;Max Switching Voltage : DC 100V
  • Max Switching Current : 0.5A;Max Breakdown Voltage : DC 220V;Max Carry Current : 1.0A;Max Contact Resistance : 100mohm

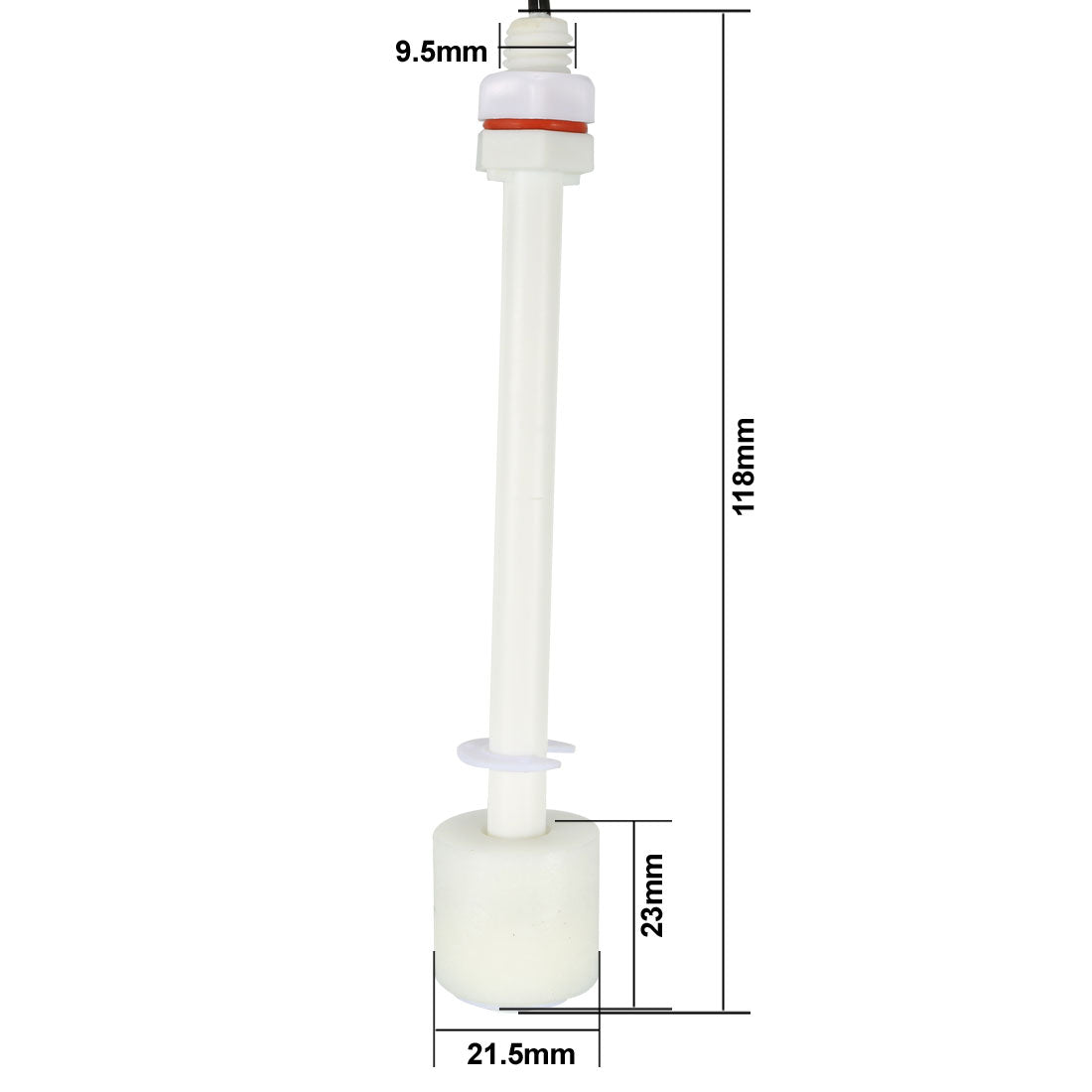

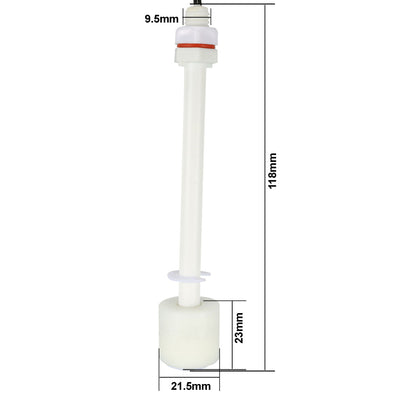

  • Temperature Rating : -10 ~ +60 C / 85 C;Float Ball Size(Approx) : 23 x 21.5mm /0.91" x 0.85"(L*D);Thread Dia(Approx) : 9.5mm / 0.37";Nut Dia(Approx) : 16mm / 0.63"
  • Bottom Clip Dia(Approx) : 17mm / 0.67";Straight Bar Dia : 8mm/0.31";Body Total Length : 118mm /4.6";Cable Length : 35cm /13.8"
  • Material : Plastic;Color : White, Black;Net Weight : 17g;Package Content : 1 x Float Switch
  • In stock, ready to ship
Cart
Cart
About This Item
  • Product Name : Float Switch;Contacts : NO+NC;Max Contact Rating : Max Contact Rating;10W : 10W;Max Switching Voltage : DC 100V
  • Max Switching Current : 0.5A;Max Breakdown Voltage : DC 220V;Max Carry Current : 1.0A;Max Contact Resistance : 100mohm
  • Temperature Rating : -10 ~ +60 C / 85 C;Float Ball Size(Approx) : 23 x 21.5mm /0.91" x 0.85"(L*D);Thread Dia(Approx) : 9.5mm / 0.37";Nut Dia(Approx) : 16mm / 0.63"
  • Bottom Clip Dia(Approx) : 17mm / 0.67";Straight Bar Dia : 8mm/0.31";Body Total Length : 118mm /4.6";Cable Length : 35cm /13.8"
  • Material : Plastic;Color : White, Black;Net Weight : 17g;Package Content : 1 x Float Switch
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:
Description:
1.A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
2.It can be easily converted from normally open to normally close by inverting the float.
3.Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products title ID Price Qty
Products title ID Price Qty
{[item.title]} {[item.id]} {['$' + item.price]}
Qty: {[total.qty]} Item(s)
Total Price: ${[total.price]}
View More

Description

Description

Description:
1.A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
2.It can be easily converted from normally open to normally close by inverting the float.
3.Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
