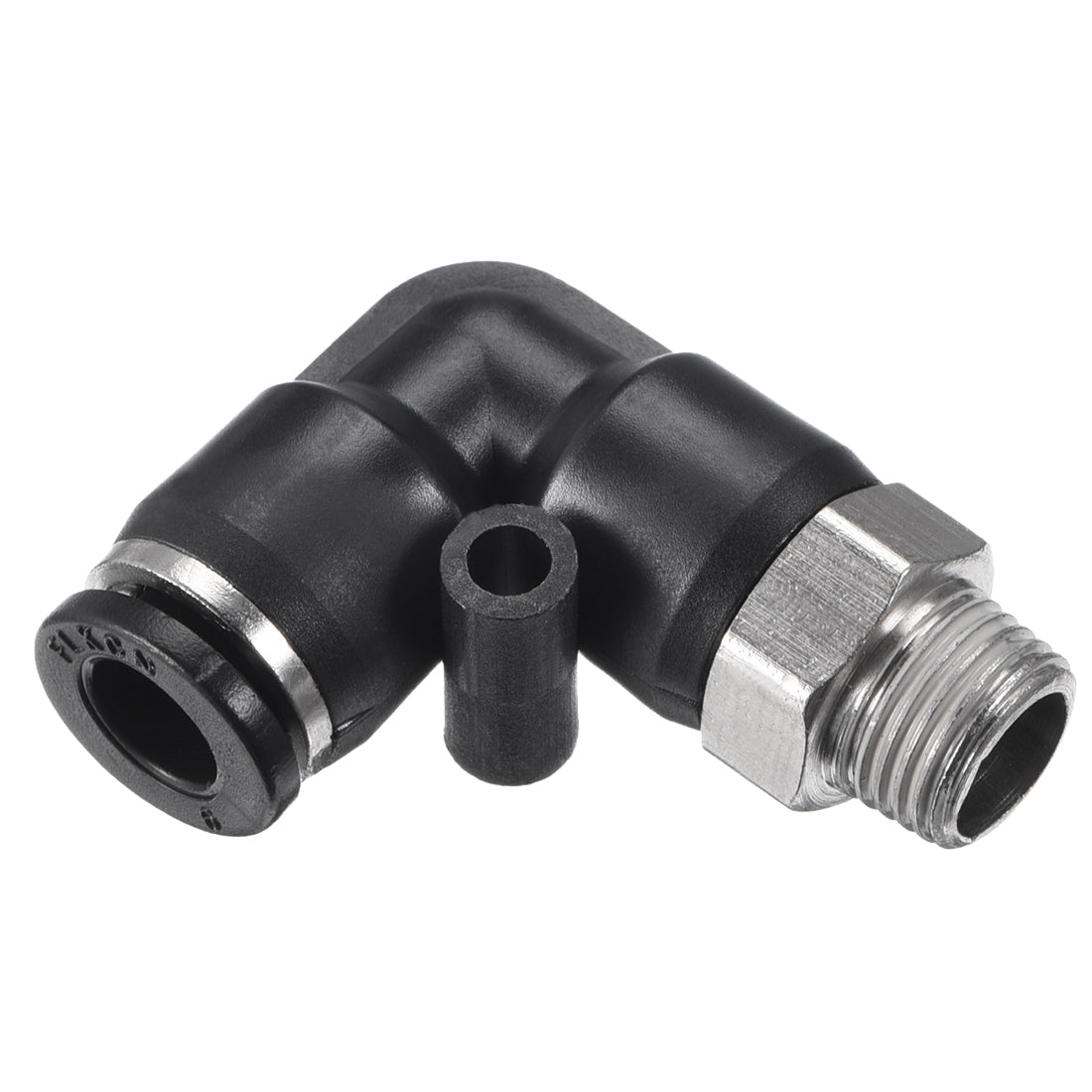

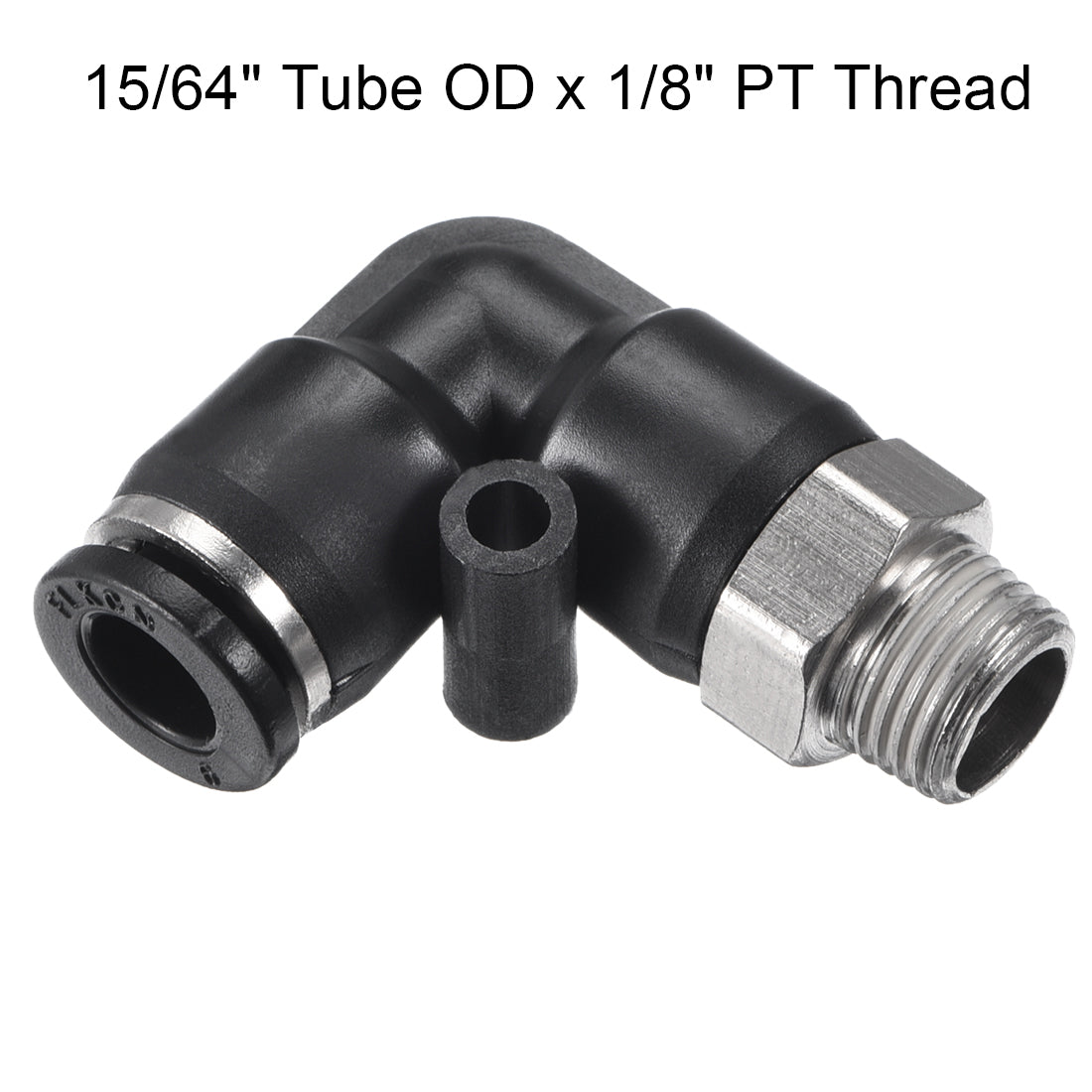

Harfington Uxcell Push to Connect Tube Fitting Male Elbow 6mm Tube OD x 1/8" PT Thread Pneumatic Air Push Fit Lock Fitting

Uxcell Push to Connect Tube Fitting Male Elbow 6mm Tube OD x 1/8" PT Thread Pneumatic Air Push Fit Lock Fitting

ID:1154128
ID:1154128
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • 【UNIVERSAL DESIGN】- Product Name : Elbow Push to Connect Fitting ; Type: 90 Degree Swivel Elbow Male Connector ;Tube and Thread Size : 6mm OD x 1/8" PT Male
  • Operating Pressure : 0-1MPa ; Operating temperature:-10 - 60 Degree Celsius
  • 【GOOD DESIGN】- Push-to-connect tube connection on one end and male G threads on the other end. A good release cap can withstand greater and stronger pressure without tripping.
  • 【ADVANTAGE】-Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
  • 【APPLICATION】- Elbow Air Fitting has Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.
About this item
  • 【UNIVERSAL DESIGN】- Product Name : Elbow Push to Connect Fitting ; Type: 90 Degree Swivel Elbow Male Connector ;Tube and Thread Size : 6mm OD x 1/8" PT Male
  • Operating Pressure : 0-1MPa ; Operating temperature:-10 - 60 Degree Celsius
  • 【GOOD DESIGN】- Push-to-connect tube connection on one end and male G threads on the other end. A good release cap can withstand greater and stronger pressure without tripping.
  • 【ADVANTAGE】-Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
  • 【APPLICATION】- Elbow Air Fitting has Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Product Features:

Product Name : Connect Fitting

Model : PL6-01

Color : Black

Material : Plastic,Metal

Male Thread Type : PT Type

Type: 90 Degree Swivel Elbow Male Connector

Thread Size :1/8" PT

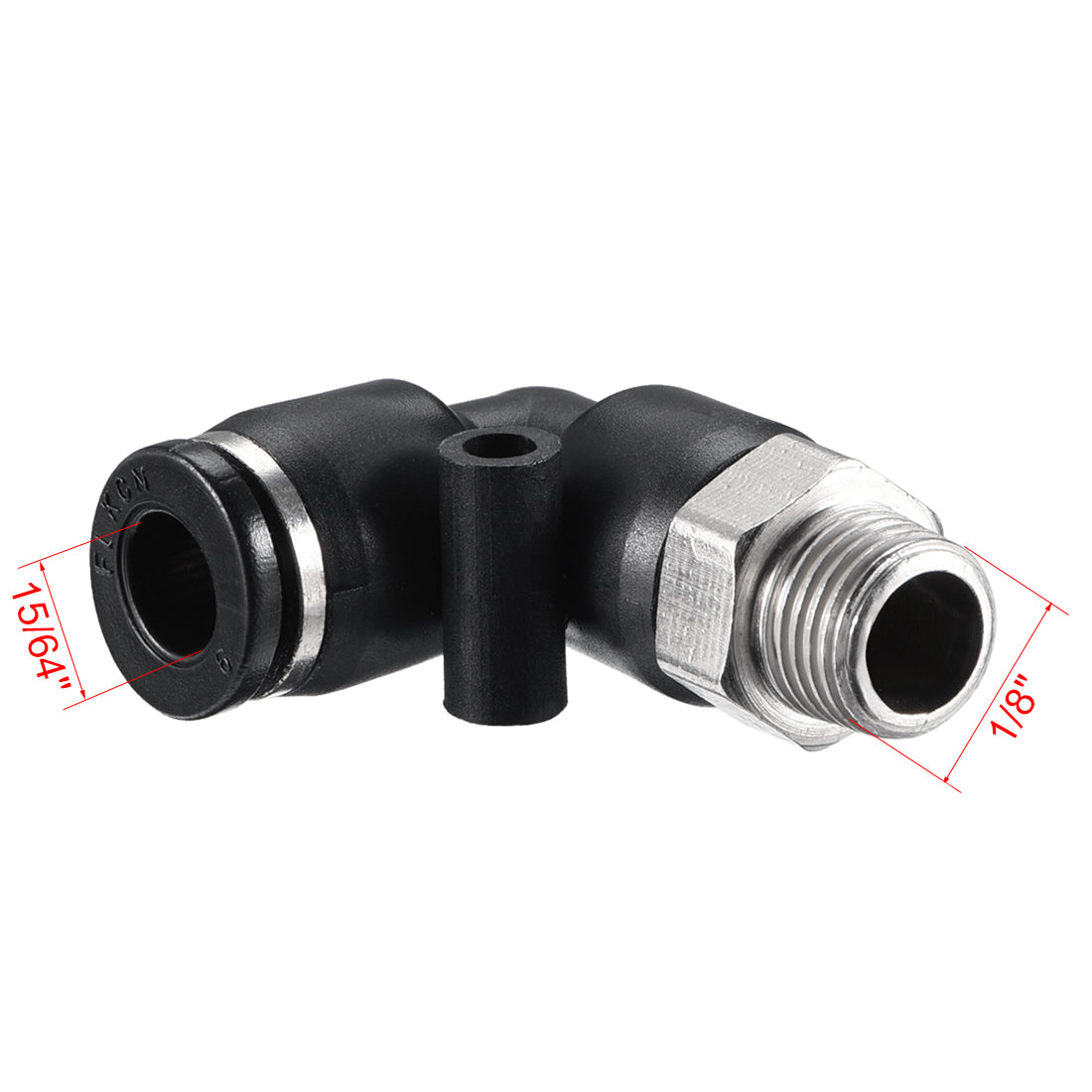

Tube Size (OD) : 0.24" / 6mm

Operating Pressure : 0-1MPa

Operating temperature:-10 - 60 Degree Celsius

Dimension : 34mmx 27mm x 13mm / 1.34inch x 1.06-inch x 0.51-inch(L x W x H )



Package Content:

1pcs x Fitting



Description:

1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.

2.Push-to-connect tube connection on one end and male PT threads on the other end.

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed.

6.The small tube is use for fixed.



Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
