Harfington Uxcell 5pcs Push to Connect Fittings Tube Connect  15/32" to 5/16" OD Reducing Straight Union Push Fit Fittings Tube Fittings Push Lock Blue

Uxcell 5pcs Push to Connect Fittings Tube Connect 15/32" to 5/16" OD Reducing Straight Union Push Fit Fittings Tube Fittings Push Lock Blue

ID:1154067
ID:1154067
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Pack of 5pcs 12mm -8mm OD plastic straight tube fitting; Operating Pressure : 0-1MPa; Operating temperature:-10 - 60 Degree Celsius
  • The Push-to-connect end can be rotated 360 degrees even after installation, which is convenient to use and has good sealing performance.
  • Push to Connect Fittings designed for using to connect with polyethylene, nylon and PU tubing. Quick and simple installation.
  • Push to connect fitting can realize the pipeline together or disconnected without tools, mainly used for air compression systems, vacuum systems, pneumatic systems.
  • Note: Make sure that the cutting surface of the pipe is vertical. Please insert the tube into the bottom before use.
About this item
  • Pack of 5pcs 12mm -8mm OD plastic straight tube fitting; Operating Pressure : 0-1MPa; Operating temperature:-10 - 60 Degree Celsius
  • The Push-to-connect end can be rotated 360 degrees even after installation, which is convenient to use and has good sealing performance.
  • Push to Connect Fittings designed for using to connect with polyethylene, nylon and PU tubing. Quick and simple installation.
  • Push to connect fitting can realize the pipeline together or disconnected without tools, mainly used for air compression systems, vacuum systems, pneumatic systems.
  • Note: Make sure that the cutting surface of the pipe is vertical. Please insert the tube into the bottom before use.
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Product Features:

Product Name : Connect Fitting

Model :PG12-8

Net Weight : 39g

Color : Black,Blue

Material : Plastic

Type: Straight Connector

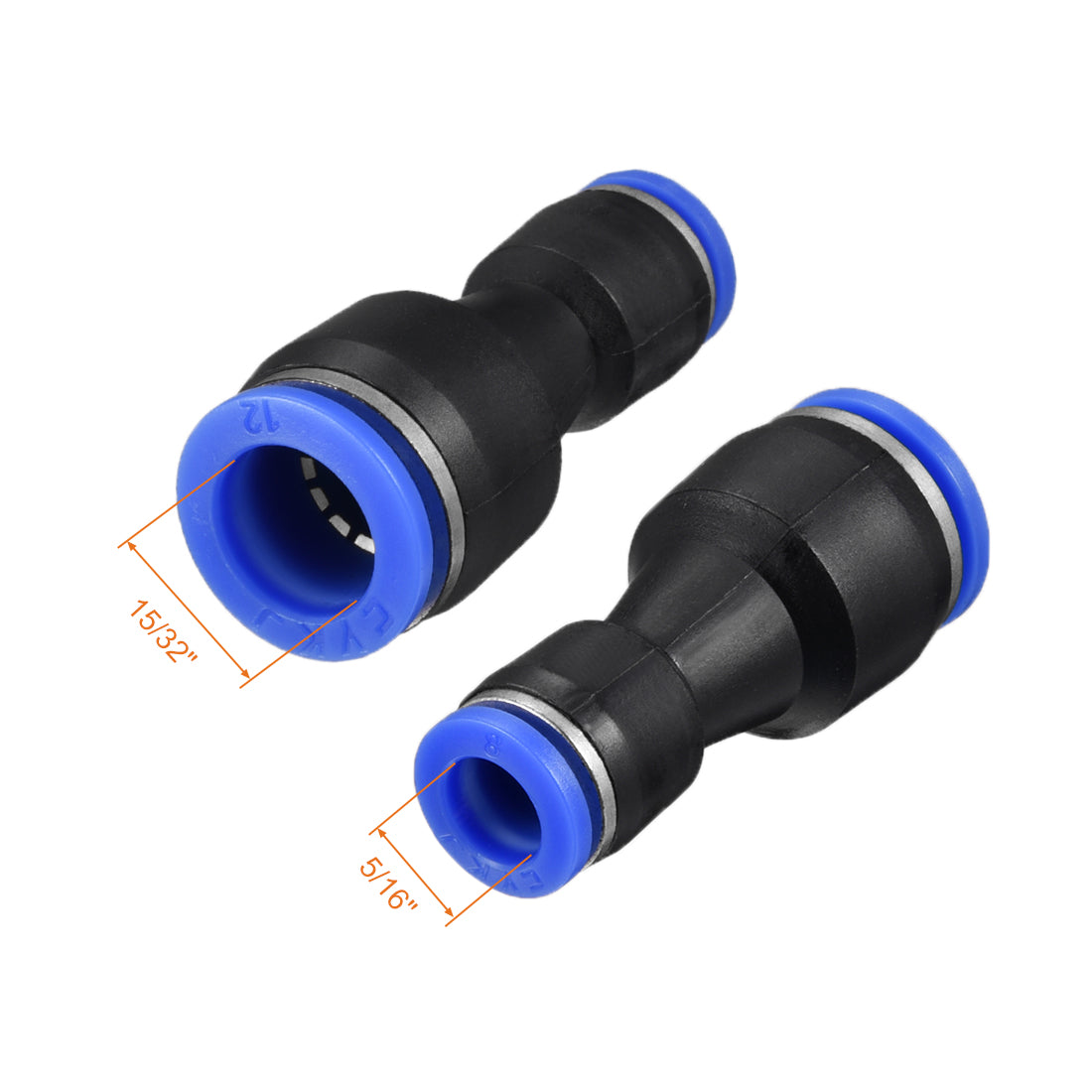

Tube Size (OD) :15/32" - 5/16" (12mm - 8mm)

Operating Pressure : 0-1MPa

Operating temperature:-10 - 60 Degree Celsiu

Dimension : 47mm x 21mm / 1.85-inch x 0.83-inch (L x D )



Package Content:

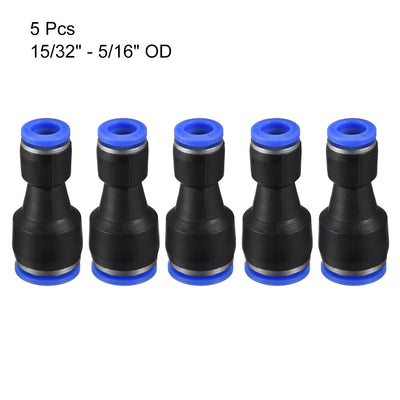

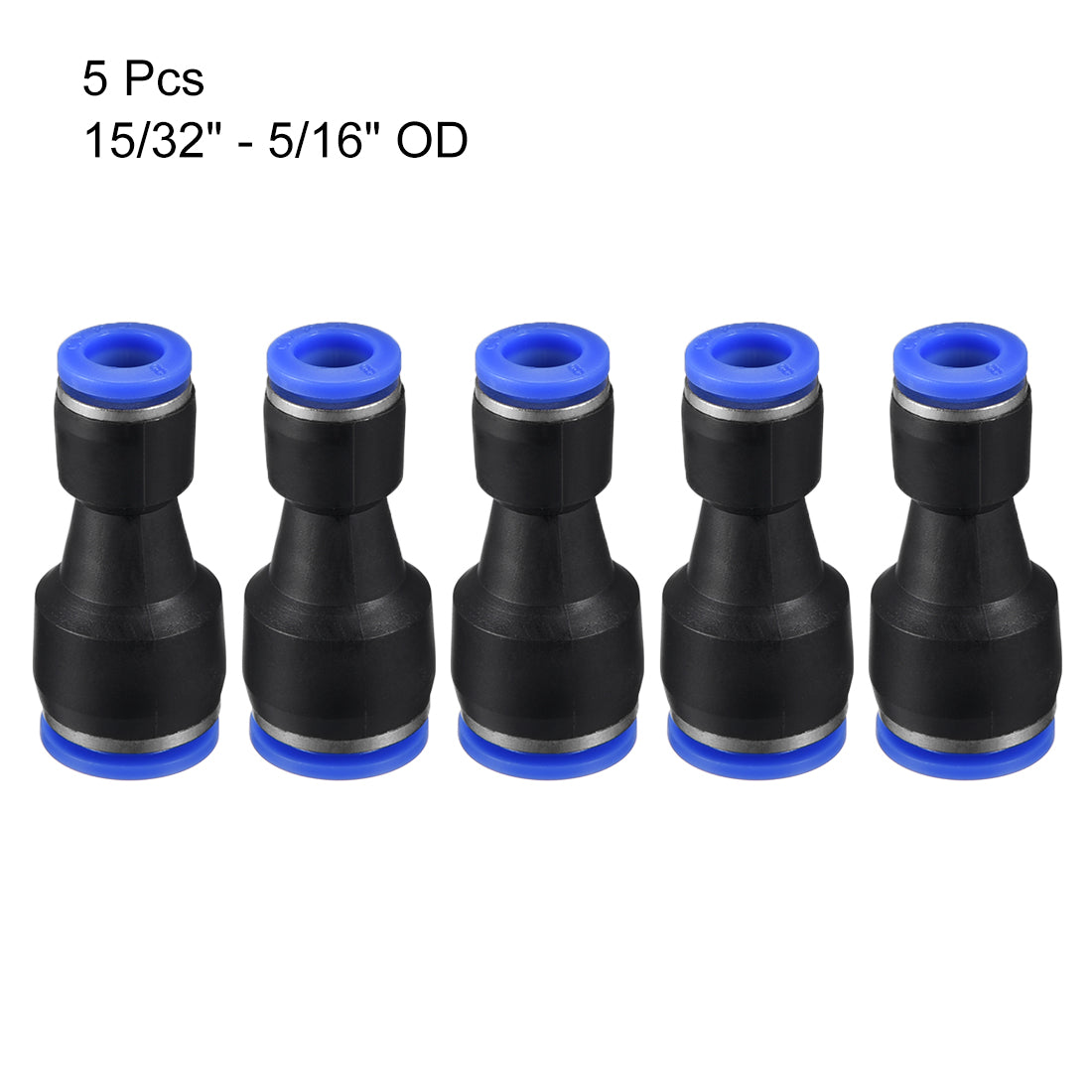

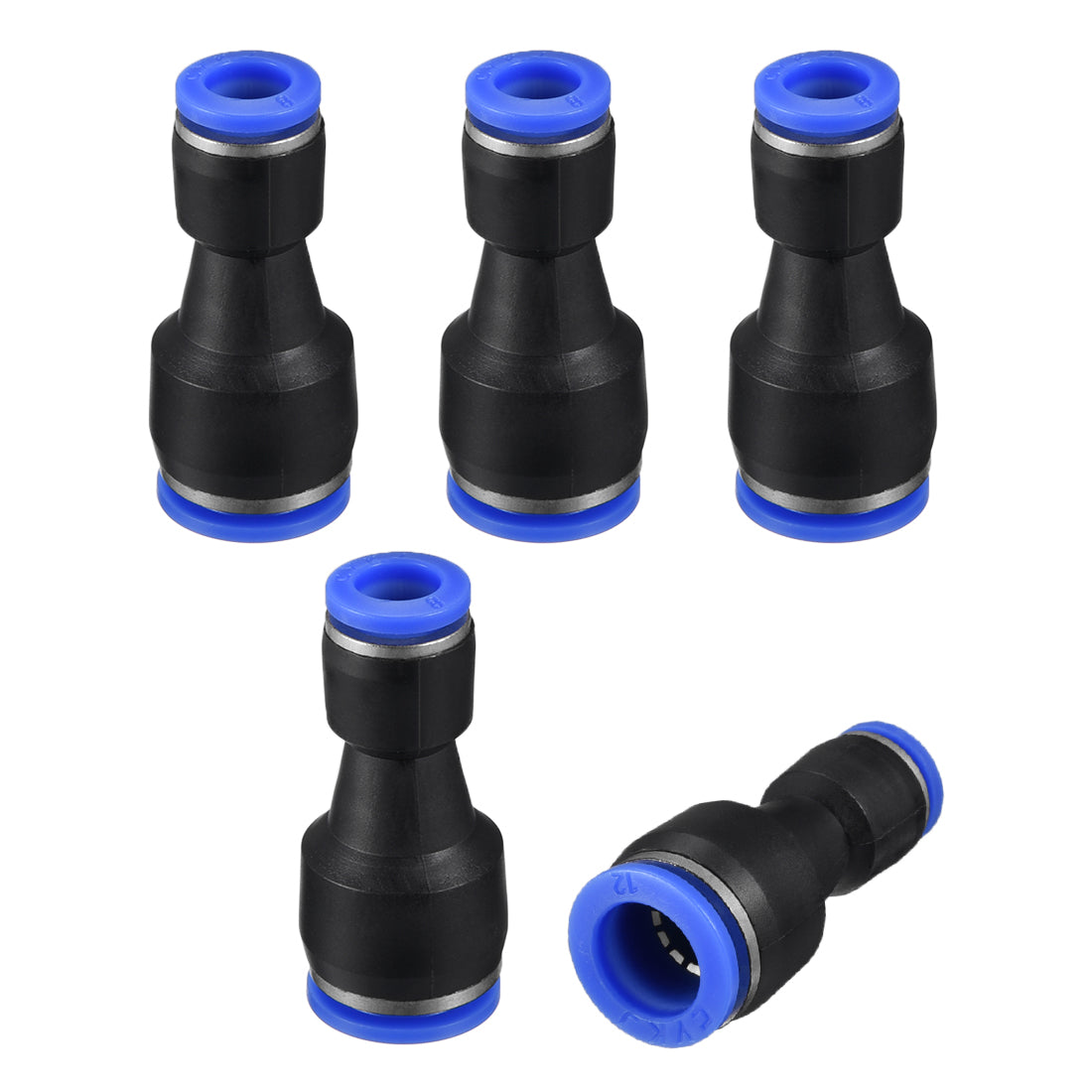

5pcs x Fitting



Description:

1.15/32" - 5/16" Push to Connect Fittings designed for using to connect with polyethylene, nylon and PU tubing.

 2.Easy to install .This tube connector is available in various styles and models . Each model to serve its purpose. All models of push lock fittings are designed to suit your pneumatic piping needs perfectly

3.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

4.You can easily change the tubing connector direction even after installation. The release ring of conforms with the ellipse design to ensure that the disconnecting of connect push is in good shape.

5.All push to lock contains internal hexagonal holes this enhances the installation process in a narrow space push connect fittings Can be dismantled and assembled easily These Push In Fittings Meet The Pressures And Temperatures Mentioned



Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.

US$5.90 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell 5pcs Push to Connect Fittings Tube Connect 15/32" to 5/16" OD Reducing Straight Union Push Fit Fittings Tube Fittings Push Lock Blue 1154067 US$5.90
Products Title ID Price Qty
Uxcell 5pcs Push to Connect Fittings Tube Connect 15/32" to 5/16" OD Reducing Straight Union Push Fit Fittings Tube Fittings Push Lock Blue 1154067 US$5.90
Uxcell 10pcs Push to Connect Fittings Tube Connect 25/64" to 15/64" Straight OD Push Fit Fittings Tube Fittings Push Lock Blue 1154072 US$6.71
Uxcell 5Pcs Push to Connect Fittings Tube Connect 5/32" -15/64" Straight OD Push Fit Fittings Tube Fittings Push Lock Blue 1206559 US$5.42
Uxcell 5pcs Push to Connect Fittings Tube Connect 5/16" to 5/32" Straight OD Push Fit Fittings Tube Fittings Push Lock Blue 1154066 US$5.52
Uxcell 4pcs Push to Connect Fittings Tube Connect 25/64" to 5/16" Straight OD Push Fit Fittings Tube Fittings Push Lock Blue 1154069 US$5.52
Uxcell 2pcs Push to Connect Fittings Tube Connect 5/16" to 5/32" OD Reducing Straight Union Push Fit Fittings Tube Fittings Push Lock Blue 1206545 US$5.42
Uxcell 4pcs Push to Connect Fittings Tube Connect 15/32" to 25/64" OD Reducing Straight Union Push Fit Fittings Tube Fittings Push Lock Blue 1154071 US$5.61
Uxcell 4pcs Push to Connect Fittings Tube Connect 25/64" to 15/64" Straight OD Push Fit Fittings Tube Fittings Push Lock Blue 1154074 US$5.45
Uxcell Push to Connect Fittings Tube Connect 5/16" -15/64" Straight OD Push Fit Fittings Tube Fittings Push Lock Blue 2pcs 1154095 US$5.42
Uxcell 5pcs Push to Connect Fittings Tube Connect 25/64" -15/64" Straight OD Push Fit Fittings Tube Fittings Push Lock Blue 1206560 US$5.84
Qty: 0 Item(s)
Total Price: US$0.00

Description

Description

Product Features:

Product Name : Connect Fitting

Model :PG12-8

Net Weight : 39g

Color : Black,Blue

Material : Plastic

Type: Straight Connector

Tube Size (OD) :15/32" - 5/16" (12mm - 8mm)

Operating Pressure : 0-1MPa

Operating temperature:-10 - 60 Degree Celsiu

Dimension : 47mm x 21mm / 1.85-inch x 0.83-inch (L x D )



Package Content:

5pcs x Fitting



Description:

1.15/32" - 5/16" Push to Connect Fittings designed for using to connect with polyethylene, nylon and PU tubing.

 2.Easy to install .This tube connector is available in various styles and models . Each model to serve its purpose. All models of push lock fittings are designed to suit your pneumatic piping needs perfectly

3.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

4.You can easily change the tubing connector direction even after installation. The release ring of conforms with the ellipse design to ensure that the disconnecting of connect push is in good shape.

5.All push to lock contains internal hexagonal holes this enhances the installation process in a narrow space push connect fittings Can be dismantled and assembled easily These Push In Fittings Meet The Pressures And Temperatures Mentioned



Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
