Harfington Uxcell 2Pcs Tank Pool Water Level Sensor Right Angle Float Switch

Uxcell 2Pcs Tank Pool Water Level Sensor Right Angle Float Switch

ID:1154037
ID:1154037
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Product Name : Float Switch;Max Contact Rating : Max Contact Rating;10W : 10W;Max Switching Voltage : 100V DC
  • Max Switching Current : 0.5A;Max Breakdown Voltage : 220V DC;Max Carry Current : 1.0A;Max Contact Resistance : 100mOhm

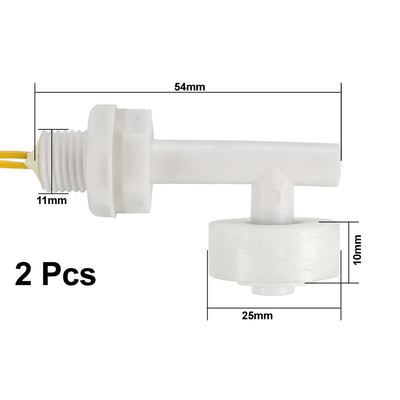

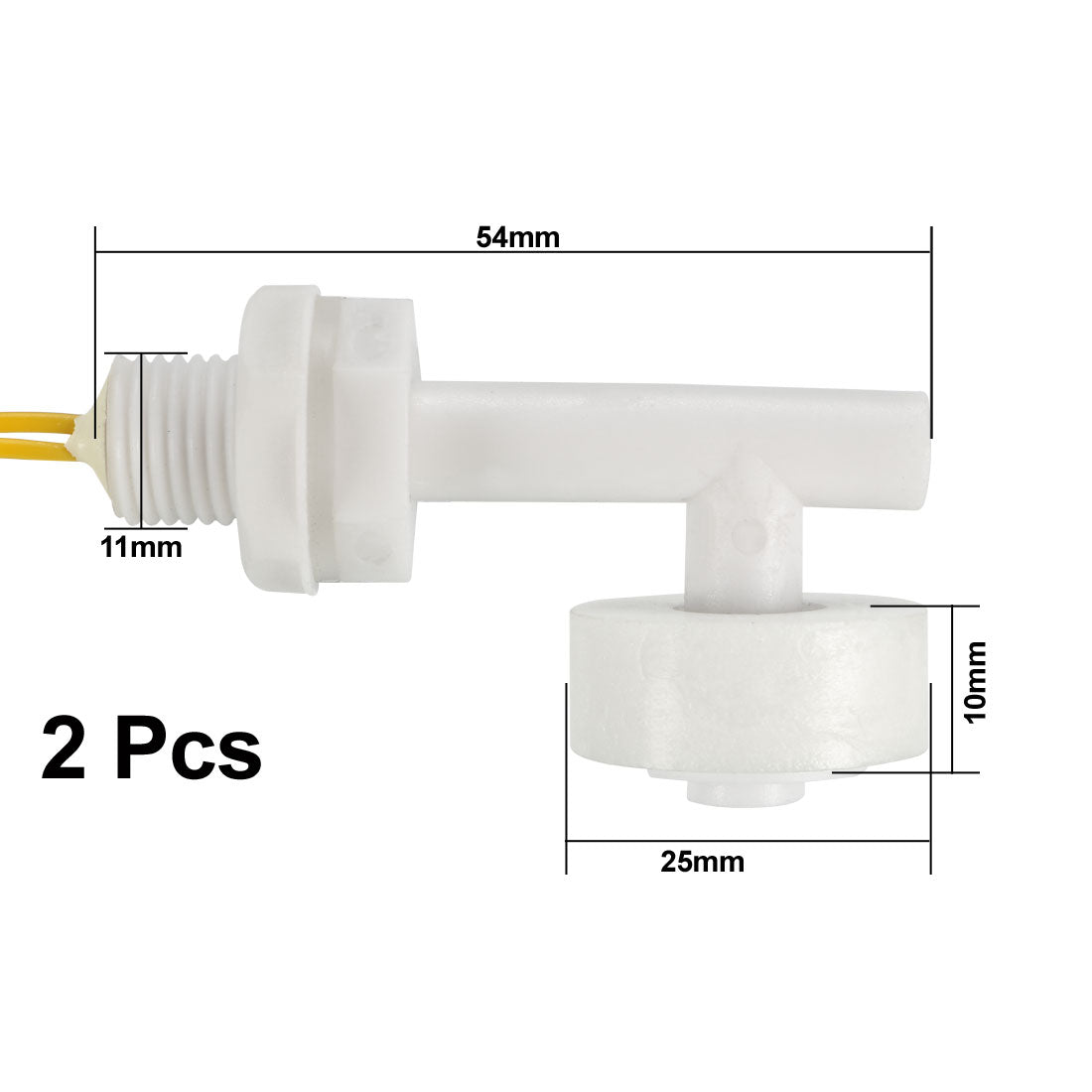

  • Temperature Rating : -10 ~ +60 C / +85 C;Float Ball Material : PP;Float Body Material : PP;Float Ball Size(Approx) : 10 x 25mm / 0.4" x 1"(L*D)
  • Thread Dia(Approx) : 11mm / 0.4";Hex Nut Diameter : 16mm / 0.63";Bottom Clip Dia(Approx) : 20mm / 0.8";Body Total Size : 54 x 25 x 28mm / 2.1" x 1" x 1.1(L*W*H)
  • Cable Length : 37cm / 14.6";Color : White, Yellow;Weight : 27g;Package Content : 2 x Float Switches
About this item
  • Product Name : Float Switch;Max Contact Rating : Max Contact Rating;10W : 10W;Max Switching Voltage : 100V DC
  • Max Switching Current : 0.5A;Max Breakdown Voltage : 220V DC;Max Carry Current : 1.0A;Max Contact Resistance : 100mOhm
  • Temperature Rating : -10 ~ +60 C / +85 C;Float Ball Material : PP;Float Body Material : PP;Float Ball Size(Approx) : 10 x 25mm / 0.4" x 1"(L*D)
  • Thread Dia(Approx) : 11mm / 0.4";Hex Nut Diameter : 16mm / 0.63";Bottom Clip Dia(Approx) : 20mm / 0.8";Body Total Size : 54 x 25 x 28mm / 2.1" x 1" x 1.1(L*W*H)
  • Cable Length : 37cm / 14.6";Color : White, Yellow;Weight : 27g;Package Content : 2 x Float Switches
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Description:
These float switches are a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
US$8.78 Regular price
US/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Description

Description

Description:
These float switches are a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
