Product Variants
| Products | Title | ID | Price | Qty | |
|---|---|---|---|---|---|
 | Uxcell Push To Connect Fittings T Type Thread Tee Tube Connect 15/32" OD x 1/4" G Male Thread Push Fit Fittings Tube Fittings Push Lock | 1153608 | US$6.15 |
| Products | Title | ID | Price | Qty | |
|---|---|---|---|---|---|
| Uxcell Push To Connect Fittings T Type Thread Tee Tube Connect 15/32" OD x 1/4" G Male Thread Push Fit Fittings Tube Fittings Push Lock | 1153608 | US$6.15 | ||
 | Uxcell Push To Connect Fittings T Type Thread Tee Tube Connect 5/16" OD x 1/4" G Male Thread Push Fit Fittings Tube Fittings Push Lock 2pcs | 1104481 | US$6.20 | ||
 | Uxcell Push to Connect Fittings T Type Thread Tee Tube Connect 15/64" OD x 1/4" PT Male Thread Push Fit Fittings Tube Fittings Push Lock | 1153604 | US$5.22 |
Description
Description

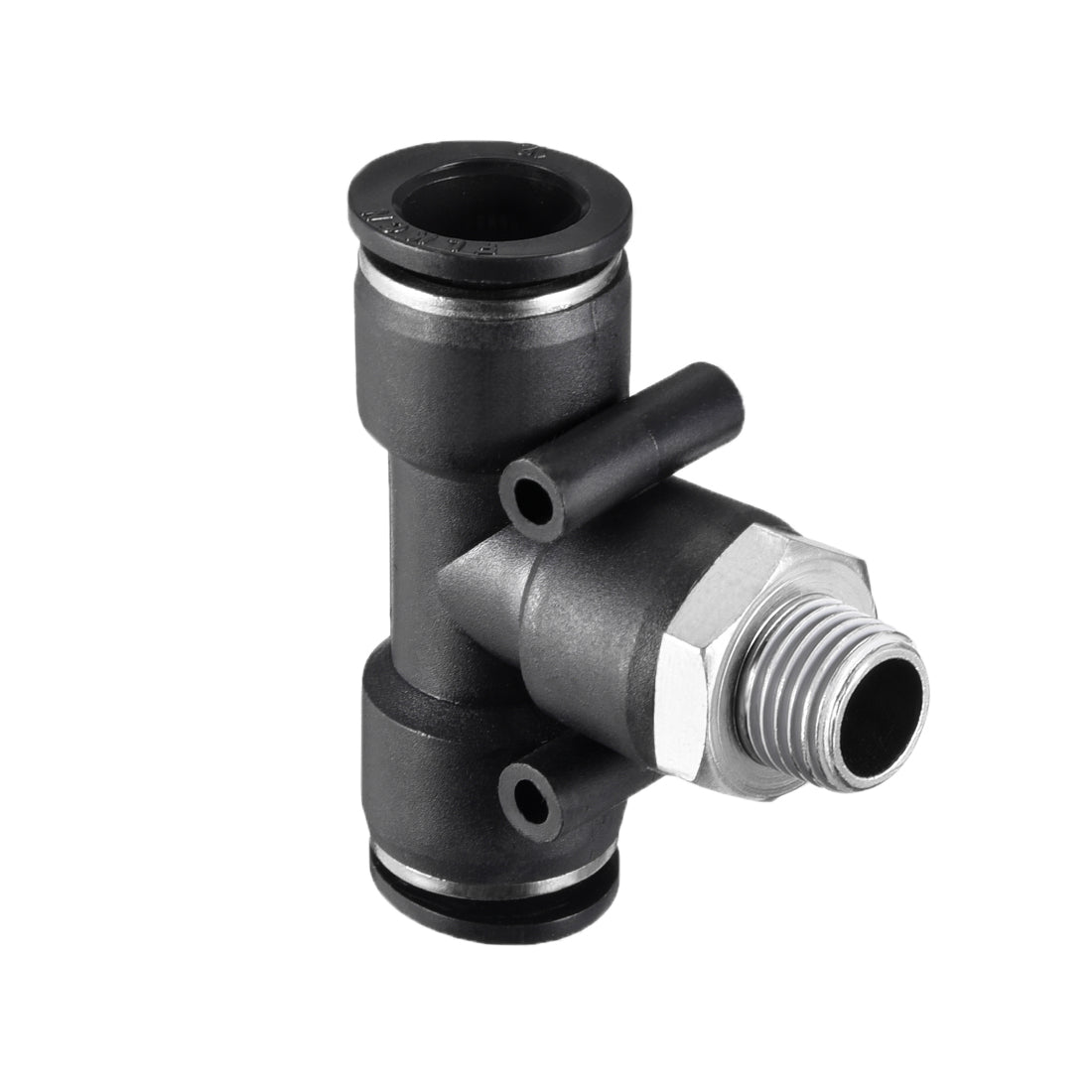

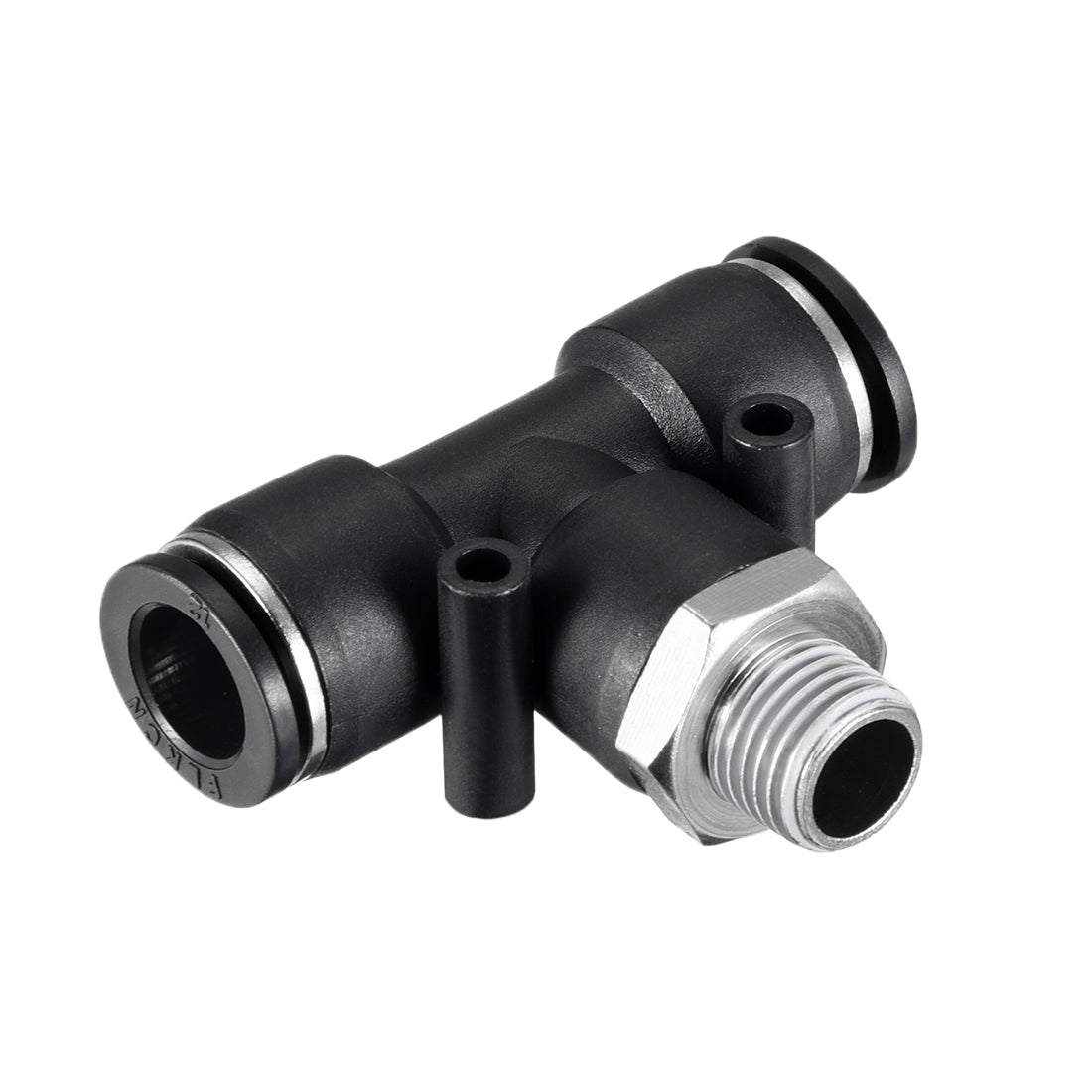

Product Features:
Product Name : Connect Fitting
Model : PB12-02
Color : Black
Net Weight : 38g
Material : Plastic,Copper
Type: T Type Thread Tee Connector
Operating Pressure : 0-1MPa
Operating temperature:0 - 60 Degree Celsius

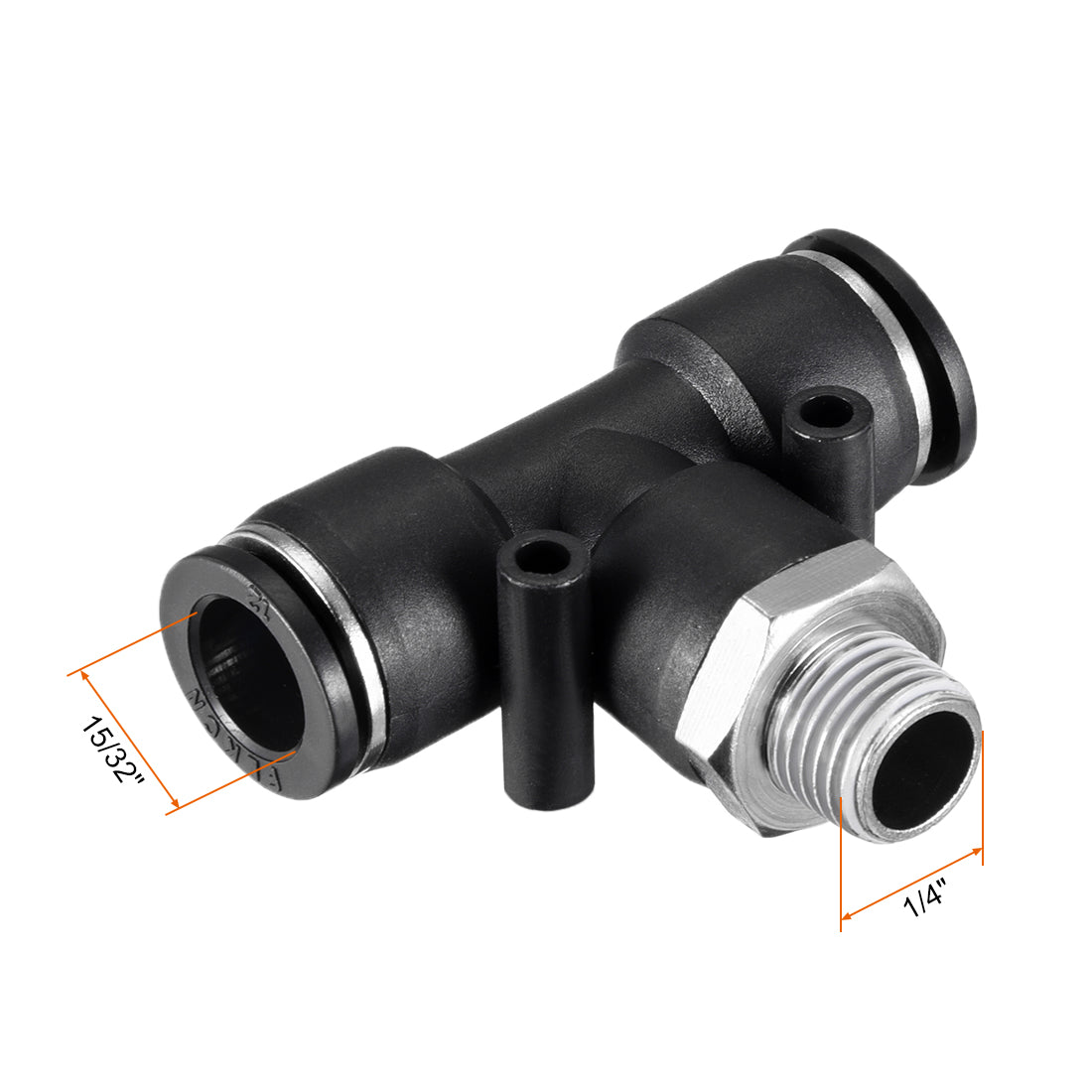

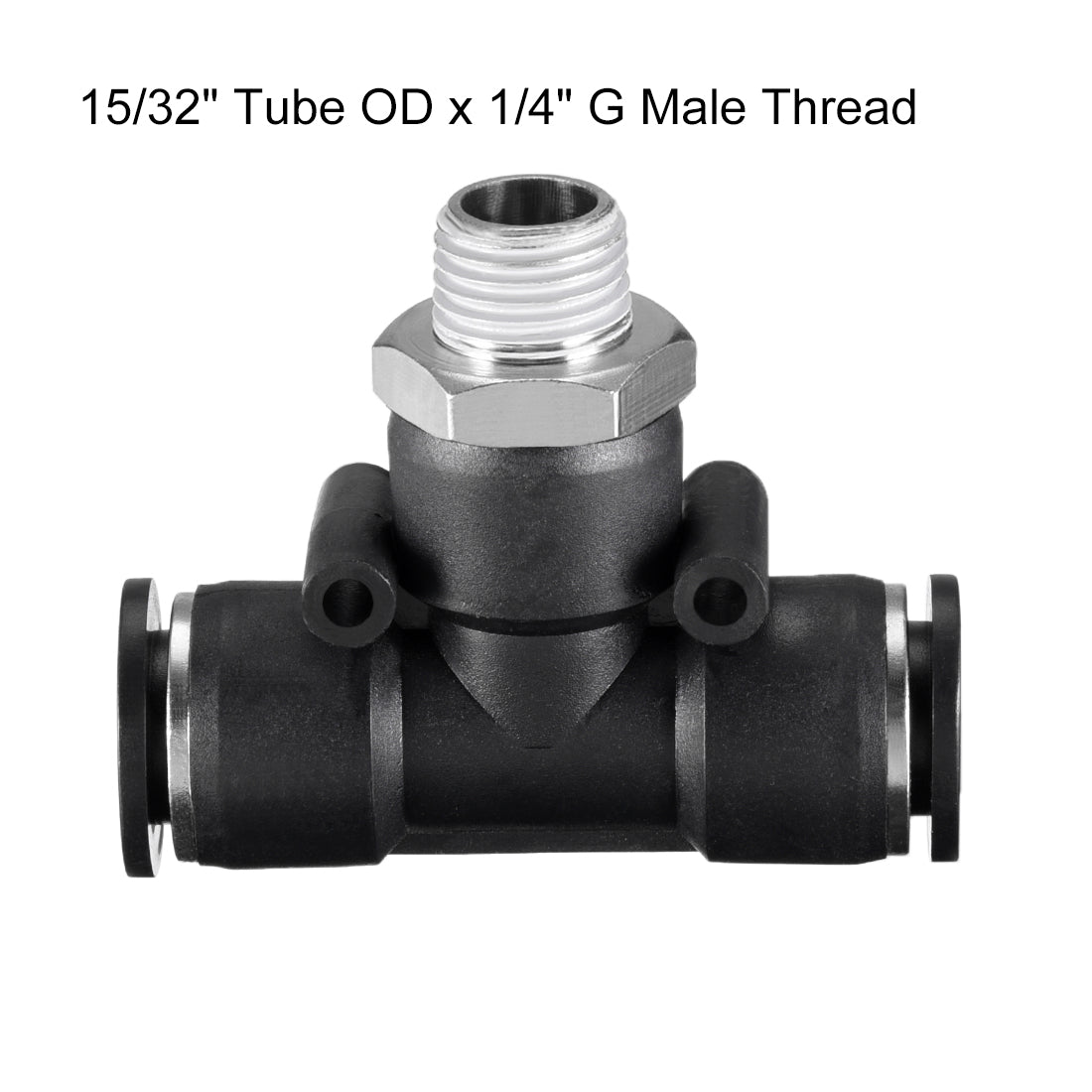

Thread Size : 1/4" G
Two Tube Size (OD) : 15/32" / 12mm
Dimension : 55mm x 47mm x 20mm / 2.17-inch x 1.85-inch x 0.79-inch(L x W x H )
Package Content:
1pcs x Fitting
Description:
1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.
2.Push-to-connect tube connection on two end and male G threads on the other end.
3.A good release cap can withstand greater and stronger pressure without tripping.
4.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
5.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed.
6.Two small tube in the side are use for fixed.
Mounted:
1.Cut the pipe flat, no slope
2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.
3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.
4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
Product Features:
Product Name : Connect Fitting
Model : PB12-02
Color : Black
Net Weight : 38g
Material : Plastic,Copper
Type: T Type Thread Tee Connector
Operating Pressure : 0-1MPa
Operating temperature:0 - 60 Degree Celsius
Thread Size : 1/4" G
Two Tube Size (OD) : 15/32" / 12mm
Dimension : 55mm x 47mm x 20mm / 2.17-inch x 1.85-inch x 0.79-inch(L x W x H )
Package Content:
1pcs x Fitting
Description:
1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.
2.Push-to-connect tube connection on two end and male G threads on the other end.
3.A good release cap can withstand greater and stronger pressure without tripping.
4.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
5.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed.
6.Two small tube in the side are use for fixed.
Mounted:
1.Cut the pipe flat, no slope
2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.
3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.
4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
