Harfington Uxcell Brass Pipe Fitting Reducing Hex G3/8 x G1/2 Male Pipe Brass Fitting 6pcs

Uxcell Brass Pipe Fitting Reducing Hex G3/8 x G1/2 Male Pipe Brass Fitting 6pcs

ID:1153507
ID:1153507
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Brass fitting for connecting two female threaded pipes ; Thread Size : G3/8 to G1/2 Male Pipe(The G3/8 Male OD Approx 16.6mm, The G1/2 Male OD Approx 20.9mm)
  • Operating temperatures range from -53 to 121 degrees C (-65 to 250 degrees F) ; Pressure Resistance range from 0 to 1.6 Mpa
  • MATERIAL. This Brass pipe fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.
  • ADVANTAGE.brass fitting has male G threads for connecting to female threaded pipes, creating a tighter seal than straight threads.
  • APPLICATION.Brass hex pipe fitting Can be used to connect various pipes, such as air pipe, fuel pipe, water pipe, etc.
About this item
  • Brass fitting for connecting two female threaded pipes ; Thread Size : G3/8 to G1/2 Male Pipe(The G3/8 Male OD Approx 16.6mm, The G1/2 Male OD Approx 20.9mm)
  • Operating temperatures range from -53 to 121 degrees C (-65 to 250 degrees F) ; Pressure Resistance range from 0 to 1.6 Mpa
  • MATERIAL. This Brass pipe fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.
  • ADVANTAGE.brass fitting has male G threads for connecting to female threaded pipes, creating a tighter seal than straight threads.
  • APPLICATION.Brass hex pipe fitting Can be used to connect various pipes, such as air pipe, fuel pipe, water pipe, etc.
Specification

Specification

SKU
a18101200ux0287
Product name
Brass Fitting
Material
Brass
Net weight
110g
Color
Gold Tone
Pressure resistance
0-1.6 Mpa
Operating temperature range
-53 to 121 degrees C
Type
Straight G Thread Brass Fitting
Total size
22.7mm x 21mm /0.89" x 0.83" (L x W)
Note
Before ordering, please confirm the right size.
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Specification:

Product Name : Brass Fitting

Material : Brass

Net Weight : 110g

Color : Gold Tone

Pressure Resistance : 0-1.6 Mpa

Operating temperature range : -53 to 121 degrees C

Type : Straight G Thread Brass Fitting

Each Side Thread Length (approx) : 8mm / 0.31"

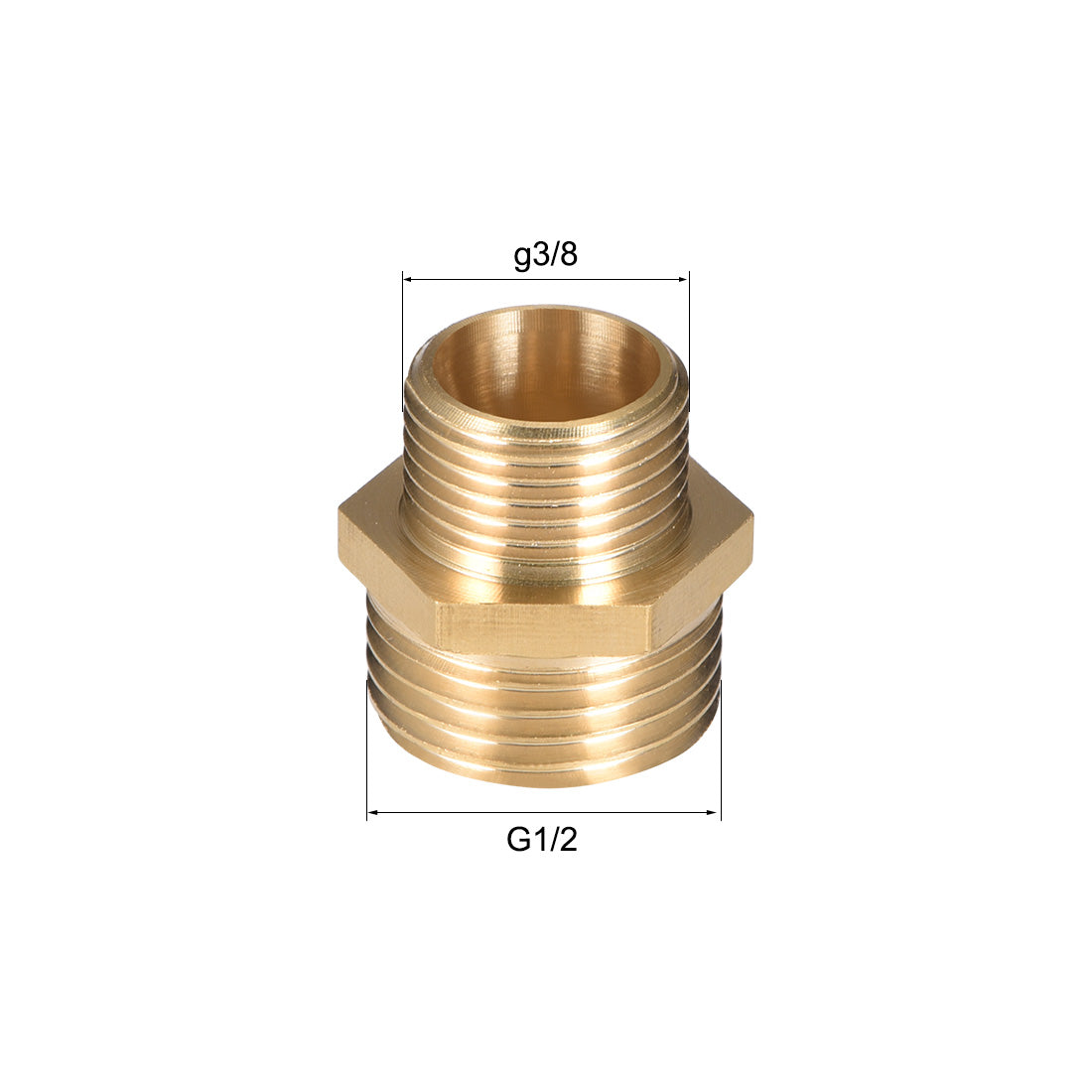

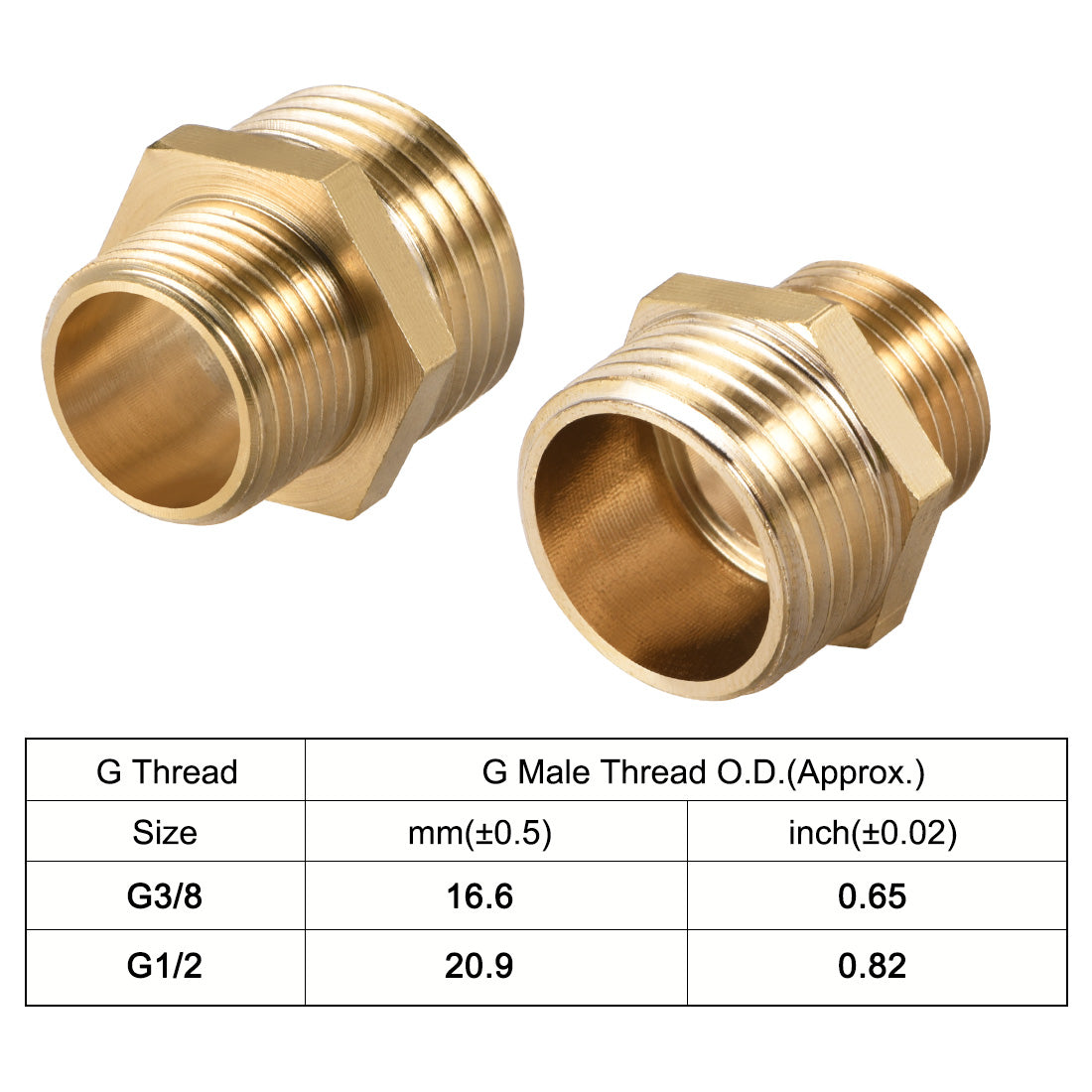

Thread Size : G3/8 to G1/2 Male Pipe(The G3/8 Male OD Approx 16.6mm, The G1/2 Male OD Approx 20.9mm)

Total Size : 22.7mm x 21mm /0.89" x 0.83" (L x W)



Package Content:

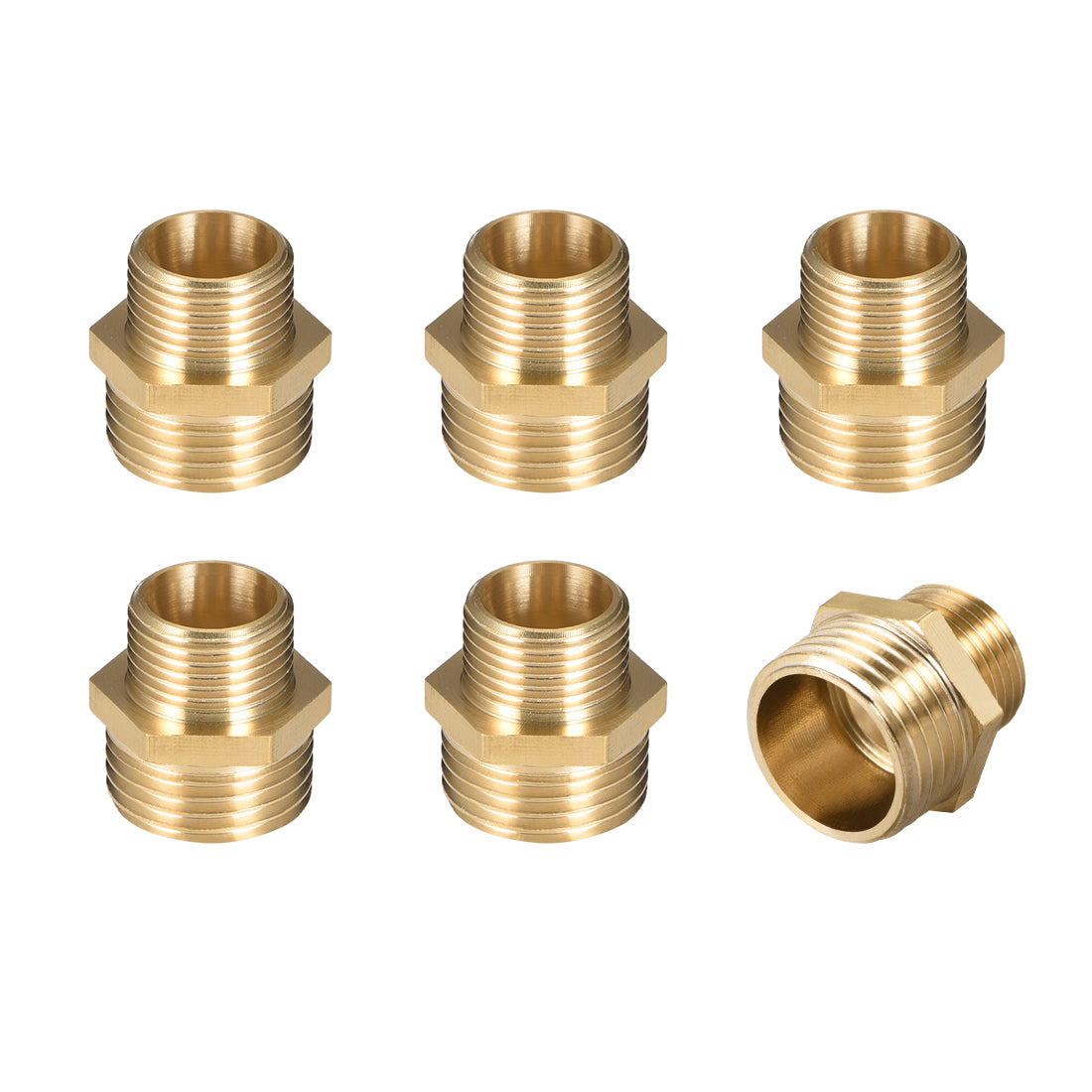

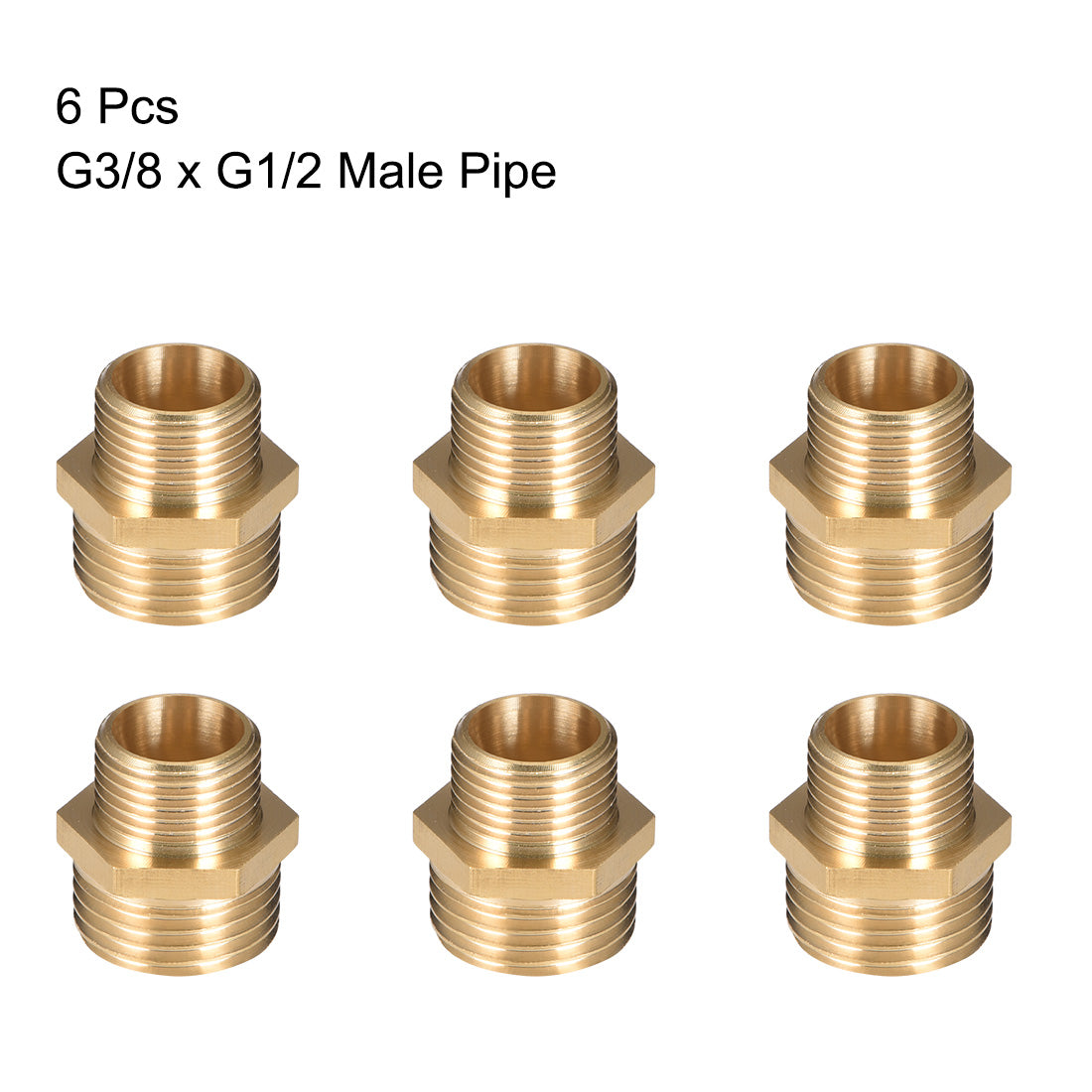

6pcs x Brass Fitting



Description:

1.Reducing hex pipe for connecting two threaded pipes with different diameters (G3/8 and G1/2 male threads)

2.The hex fitting is a short length of pipe with threaded ends for connecting threaded pipes, and it has a hexagonal section in the middle for an increased bearing surface when adjusting the fitting with a wrench.

3.It has male threads for connecting to female threaded pipes, creating a tighter seal than straight threads.

4.This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.

5.Can be used to connect various pipes, such as air pipe, fuel pipe, water pipe, etc.

Note: Before ordering, please confirm the right size.





US$7.91 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Description

Description

Specification:

Product Name : Brass Fitting

Material : Brass

Net Weight : 110g

Color : Gold Tone

Pressure Resistance : 0-1.6 Mpa

Operating temperature range : -53 to 121 degrees C

Type : Straight G Thread Brass Fitting

Each Side Thread Length (approx) : 8mm / 0.31"

Thread Size : G3/8 to G1/2 Male Pipe(The G3/8 Male OD Approx 16.6mm, The G1/2 Male OD Approx 20.9mm)

Total Size : 22.7mm x 21mm /0.89" x 0.83" (L x W)



Package Content:

6pcs x Brass Fitting



Description:

1.Reducing hex pipe for connecting two threaded pipes with different diameters (G3/8 and G1/2 male threads)

2.The hex fitting is a short length of pipe with threaded ends for connecting threaded pipes, and it has a hexagonal section in the middle for an increased bearing surface when adjusting the fitting with a wrench.

3.It has male threads for connecting to female threaded pipes, creating a tighter seal than straight threads.

4.This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.

5.Can be used to connect various pipes, such as air pipe, fuel pipe, water pipe, etc.

Note: Before ordering, please confirm the right size.
