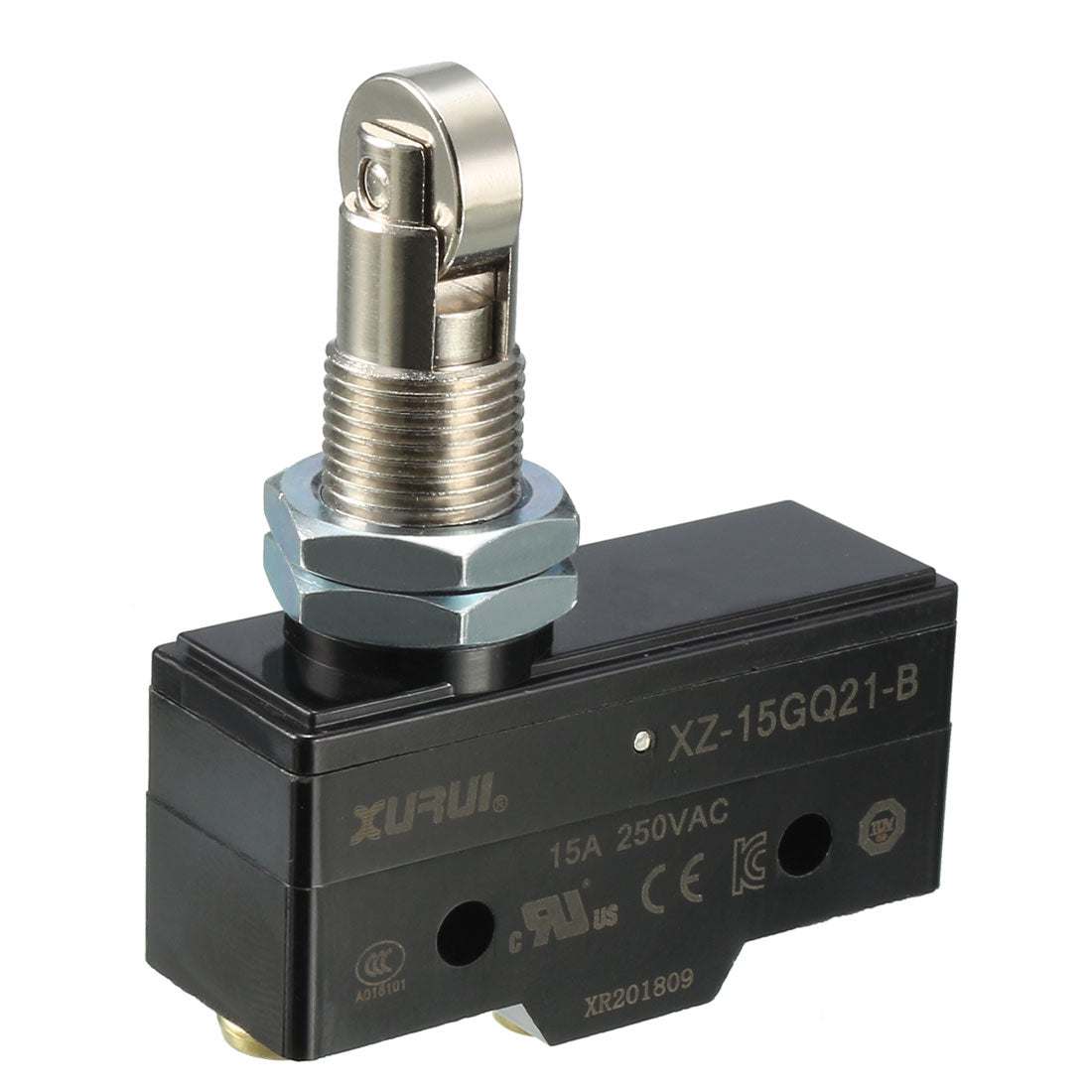

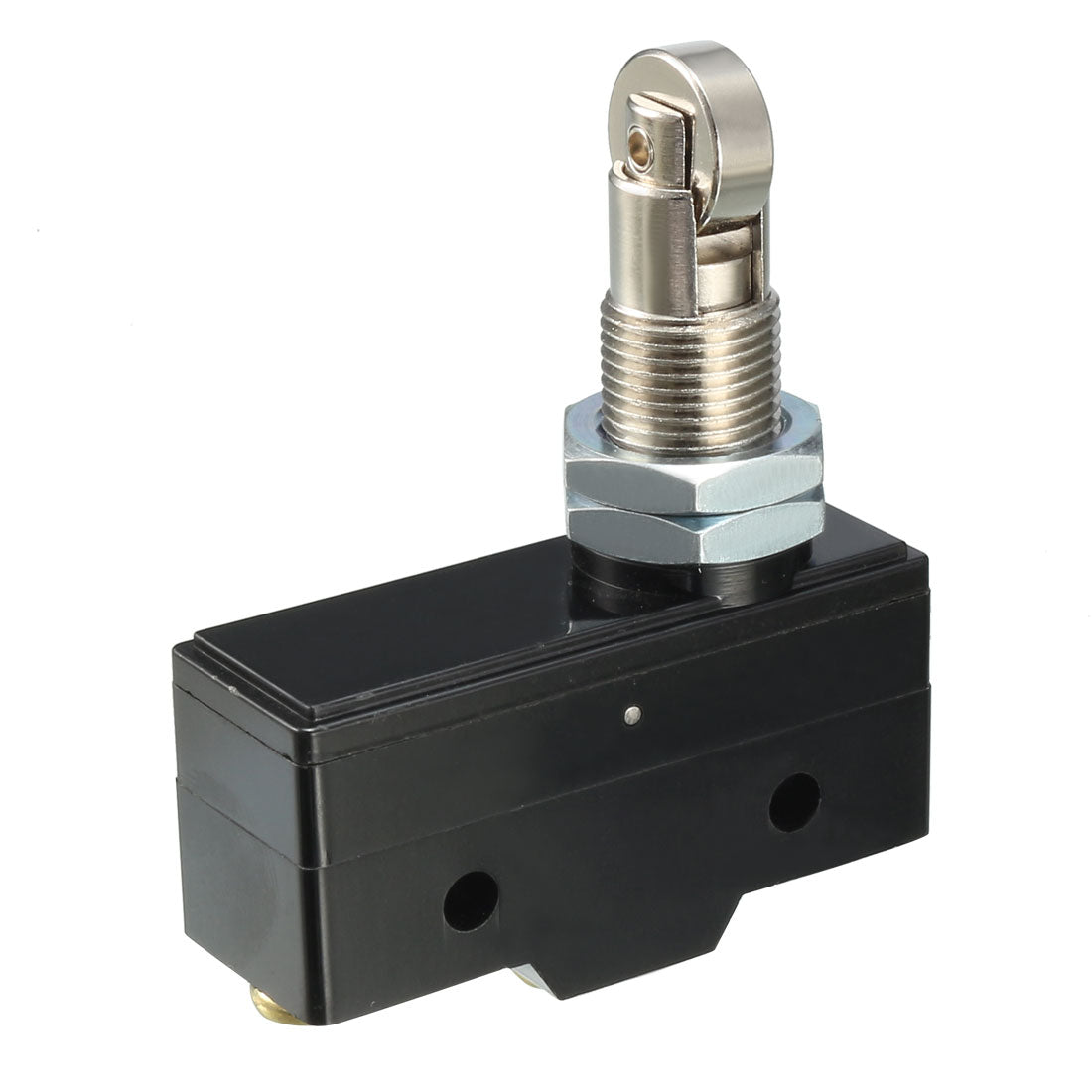

Harfington XZ-15GQ21-B Panel Mount Roller Plunger Type Micro Limit Switch

XZ-15GQ21-B Panel Mount Roller Plunger Type Micro Limit Switch

ID:
$9.33 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Rating: 15A 250VAC
  • OF max. 350-450g Force min. 114g PT max. 0.5mm OT min. 4.0mm Movement Differential max. 0.1mm Operating Position 32.1+/-1.2mm
  • Contact Form: SPDT NO+NC
  • Operation speed: 0.1mm-1m/s
  • Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool , etc.
  • In stock, ready to ship
Cart
Cart
About this item
  • Rating: 15A 250VAC
  • OF max. 350-450g Force min. 114g PT max. 0.5mm OT min. 4.0mm Movement Differential max. 0.1mm Operating Position 32.1+/-1.2mm
  • Contact Form: SPDT NO+NC
  • Operation speed: 0.1mm-1m/s
  • Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool , etc.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Features

Adopt phenolic plastic or thermoplastic;

Offers long service and operations life.

Small contact gap, snap action, high sensitivity and small operating travel

Widely used in appliance, electronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool , etc.



Specification

Rating: 15A 250VAC

OF max. 350-450g

Force min. 114g

PT max. 0.5mm

OT min. 4.0mm

Movement Differential max. 0.1mm

Operating Position 32.1+/-1.2mm

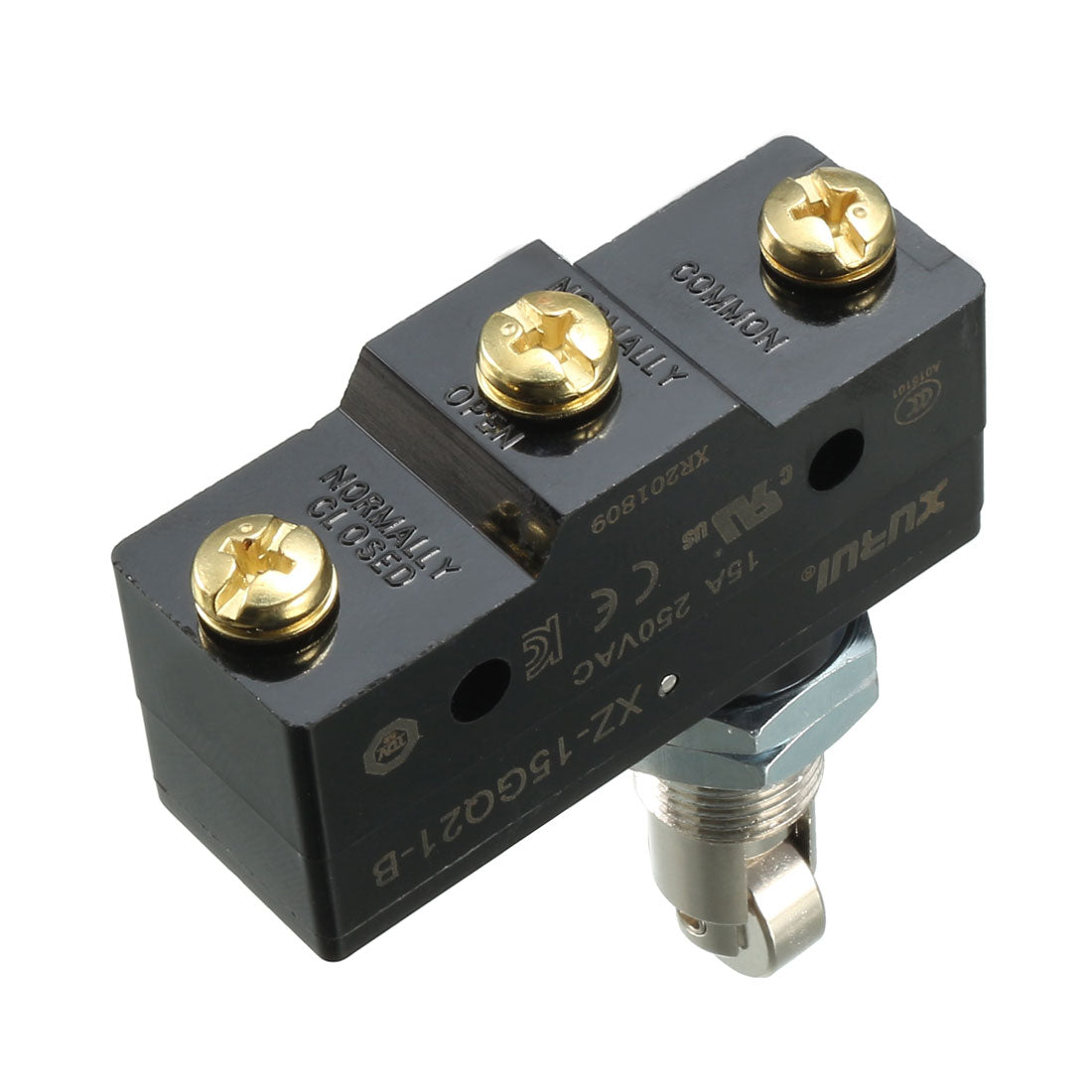

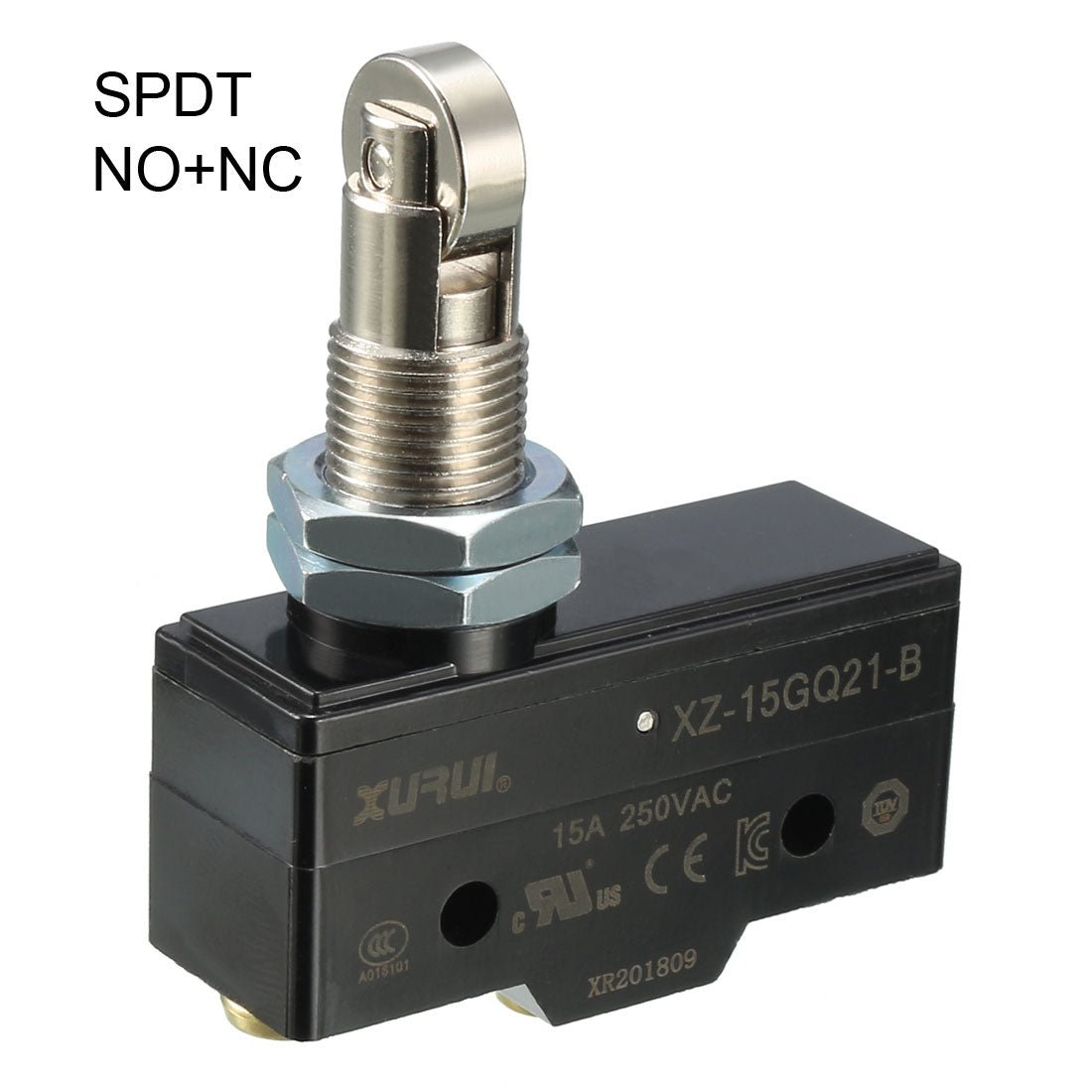

Contact Form: SPDT NO+NC

Terminal number: 3

Operation speed: 0.1mm-1m/s

Insulation resistance: 100m Ohm Above DC500V

Contact resistance: 25m Ohm initial value

Life: 100000 times above(Electrical); 1000000 times above(Mechanical)

Protection degree: IP40

Operating temperature: -25~+80°C

Certification: UL/CE/

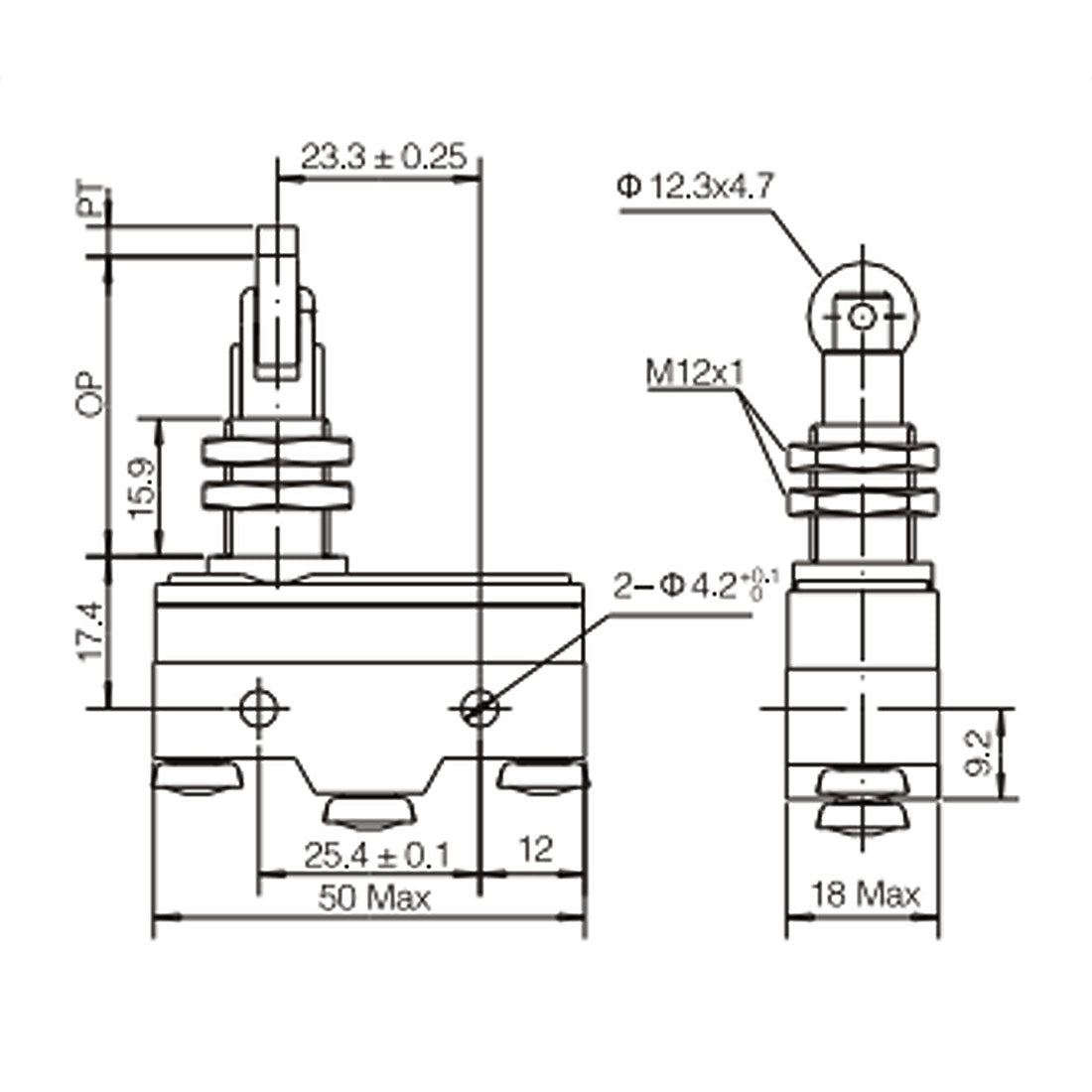

Overall size: 50x62x17mm/1.97x2.44x0.67inch(L*W*H)

Total weight: 58g



Package Content

1 x Micro Switch
