Harfington Uxcell 3 Pcs ZP4510 Vertical Liquid Water Level Control Sensor Straight Float Switch

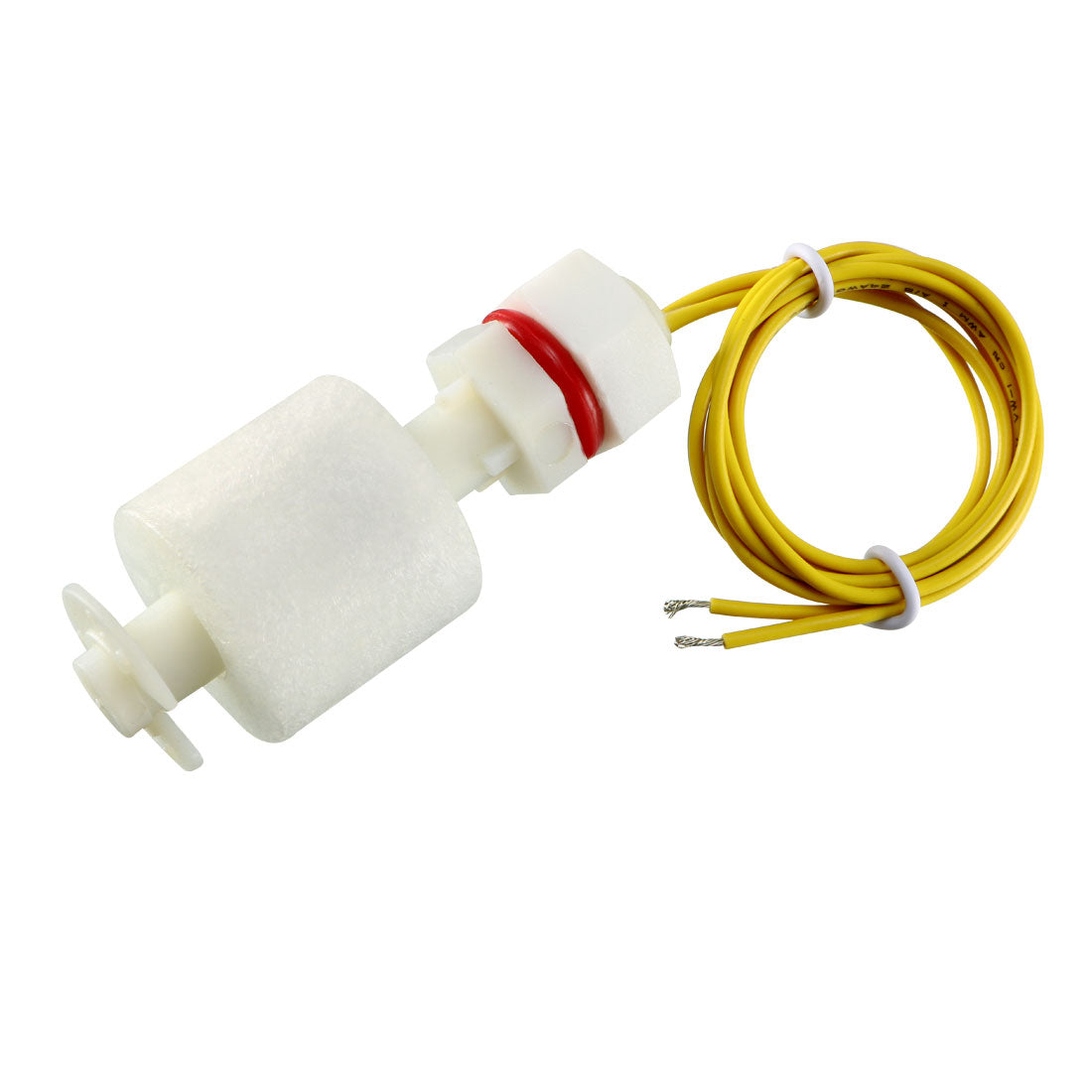

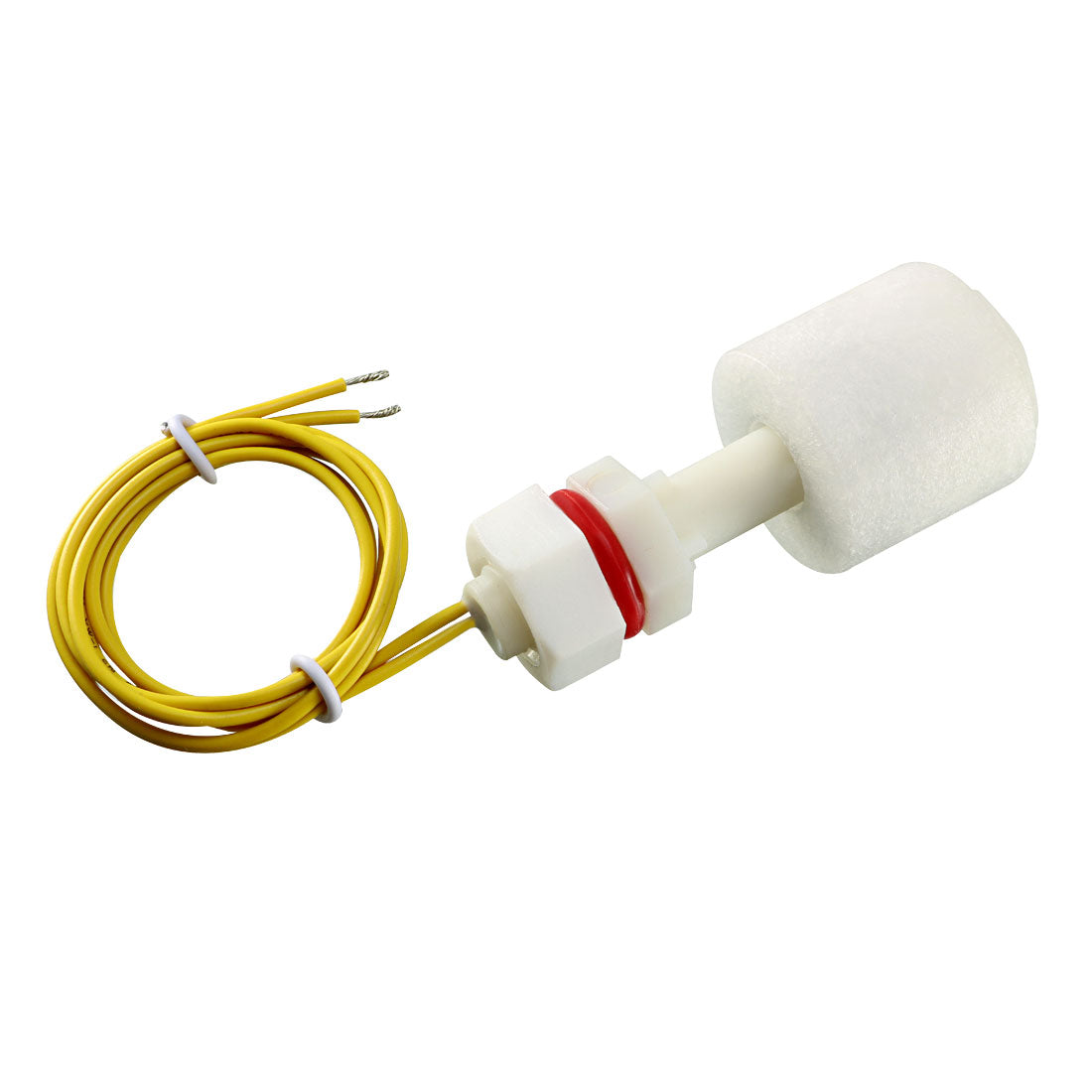

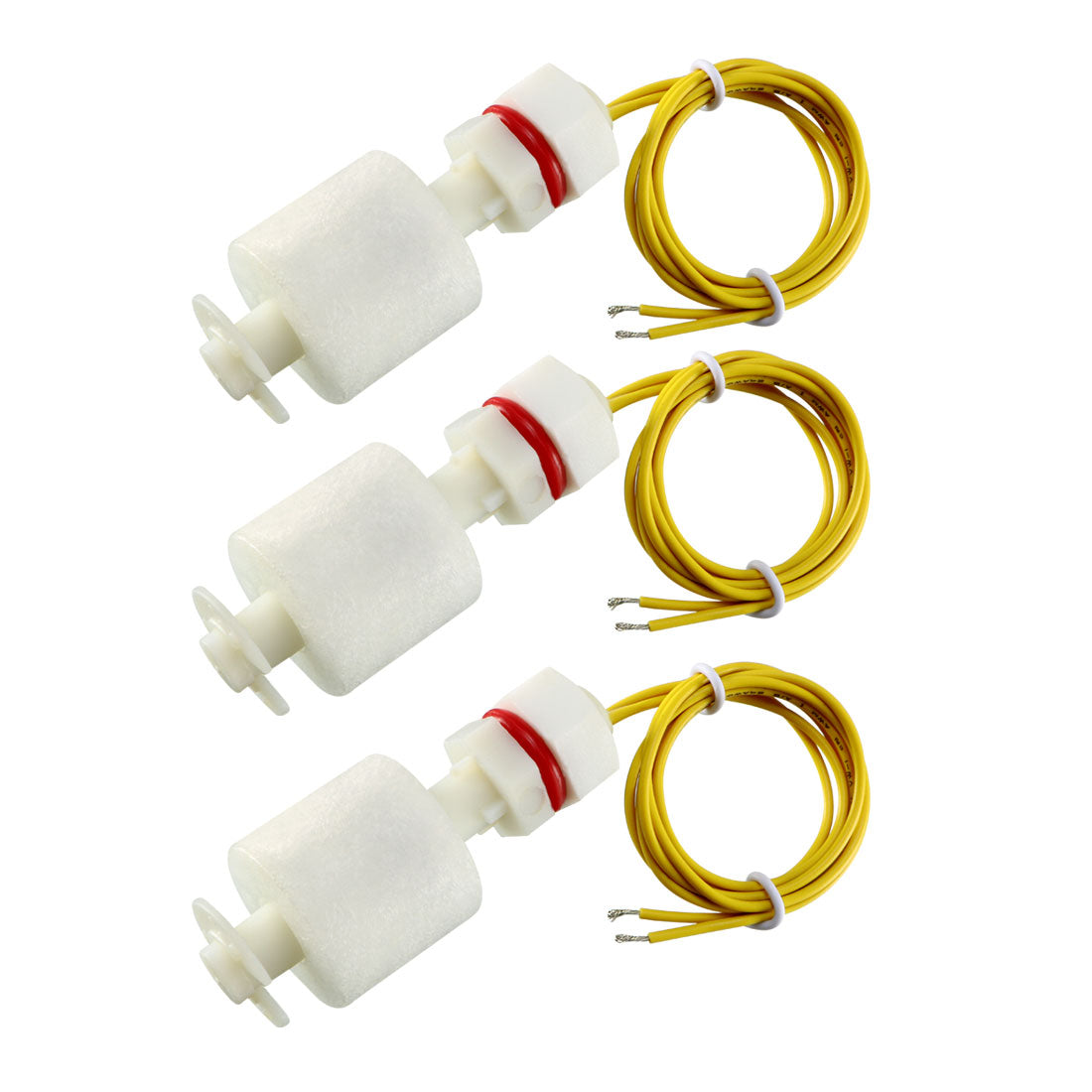

Uxcell 3 Pcs ZP4510 Vertical Liquid Water Level Control Sensor Straight Float Switch

ID:
$8.32 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

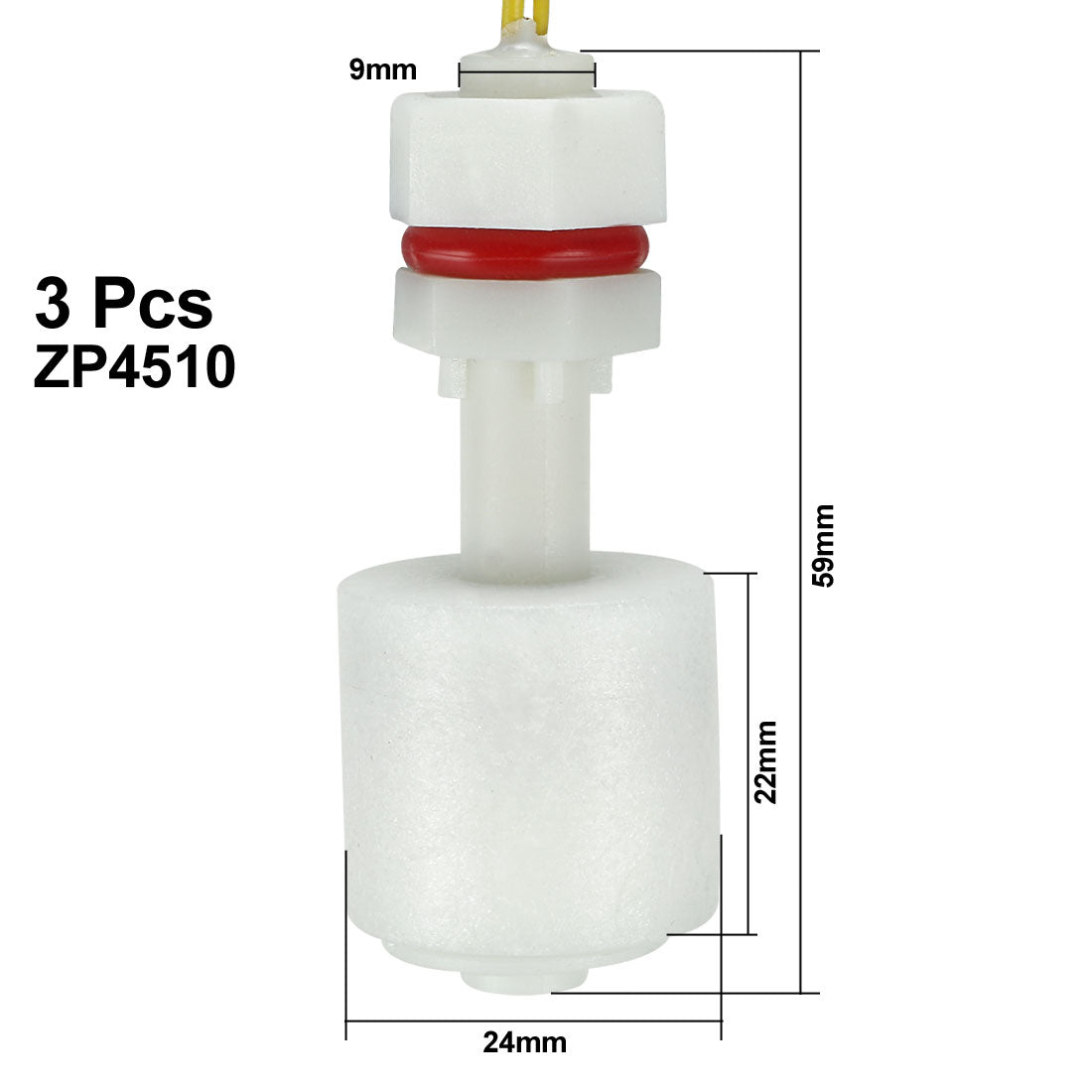

  • Float Ball Size(Approx): 22 x 24mm / 0.87" x 0.94" (L*D); Body Total Length: 59mm / 2.32"; Country of Manufacture: CHINA; Material: Metal,PP
  • Net Weight: 42g; Package Content: 3 Pcs x Float Switch, Some Installing Parts; Model: ZP4510; Main Color: Yellow, White
  • Max Power: 10W; Max Switching Voltage: AC/DC 220V; Max Switching Current: 1.5A; Max Breakdown Voltage: AC/DC 300V
  • Max Loading Current: 3A; Max Contact Resistance: 100m Ohm; Rated Temperature: -10~85C
  • Cable Length: 36cm/14.4"; Overall Size: 24 x 59mm/1" x 2.4"(Max.D*H); Screw Thread Diameter: 9mm / 0.35"
  • In stock, ready to ship
Cart
Cart
About this item
  • Float Ball Size(Approx): 22 x 24mm / 0.87" x 0.94" (L*D); Body Total Length: 59mm / 2.32"; Country of Manufacture: CHINA; Material: Metal,PP
  • Net Weight: 42g; Package Content: 3 Pcs x Float Switch, Some Installing Parts; Model: ZP4510; Main Color: Yellow, White
  • Max Power: 10W; Max Switching Voltage: AC/DC 220V; Max Switching Current: 1.5A; Max Breakdown Voltage: AC/DC 300V
  • Max Loading Current: 3A; Max Contact Resistance: 100m Ohm; Rated Temperature: -10~85C
  • Cable Length: 36cm/14.4"; Overall Size: 24 x 59mm/1" x 2.4"(Max.D*H); Screw Thread Diameter: 9mm / 0.35"
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:
A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
It can be easily converted from normally open to normally close by invertin the float.
Note: because the current that the switch can carry is much little(above 0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
