10pcs Black NBR70 O-Ring Washer Sealing Gasket for 63 x 2.5mm

ID:
$11.59 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

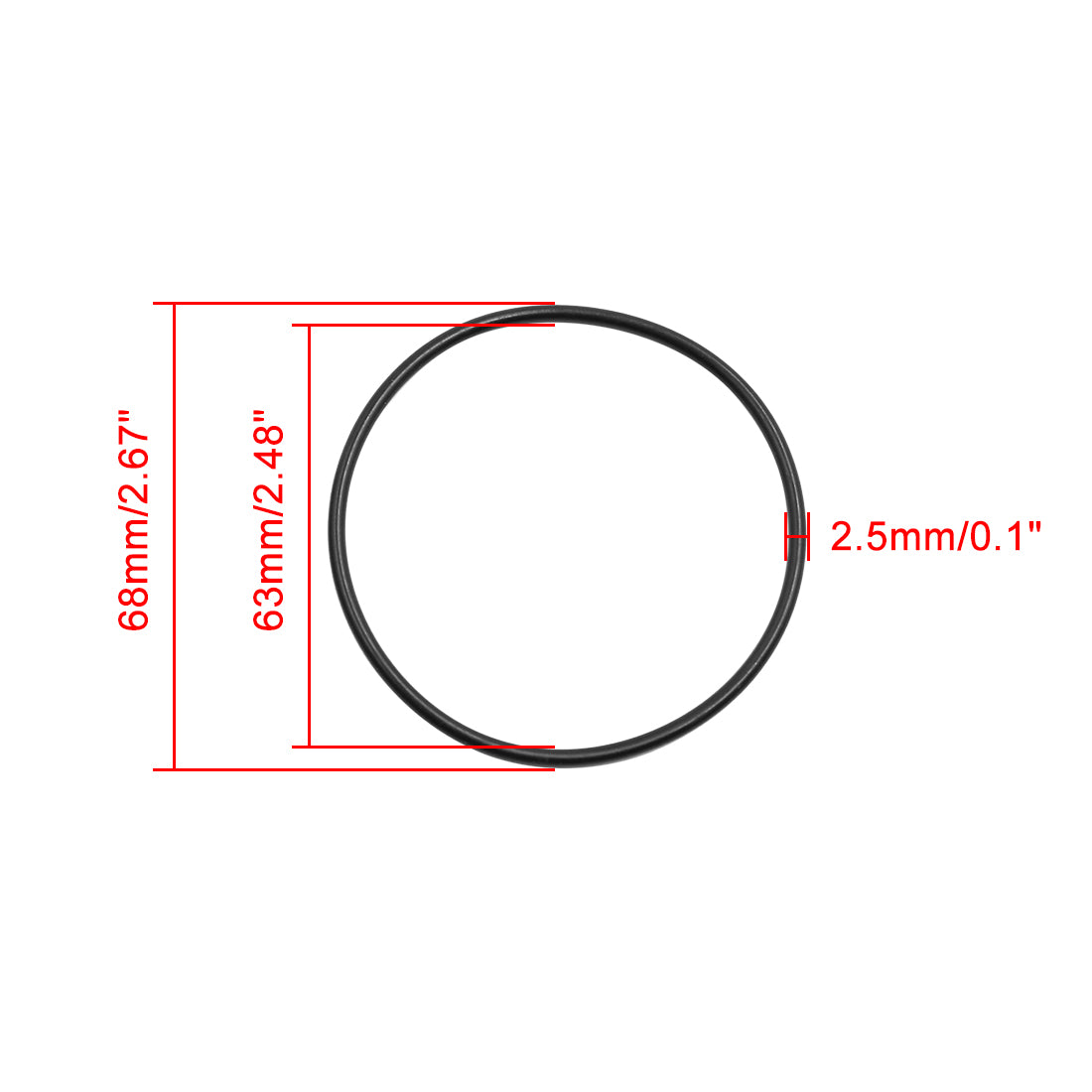

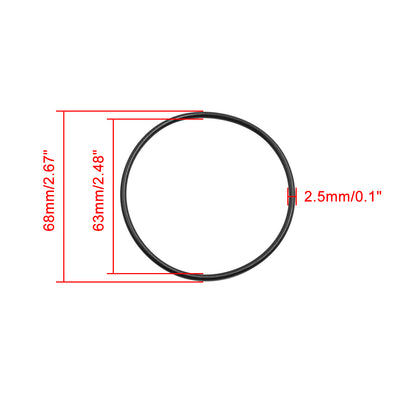

  • Outer Diameter: 68mm / 2.68", Inner Diameter: 63mm / 2.48", Wire Diameter: 2.5mm / 0.10", Tolerance Standard(Wire Diameter): +/-0.08mm, Tolerance Standard(Inner Diameter): +/-0.45mm
  • Oil Resistance Change for ASTM#3(Hardness): -1(Test Condition:100 Celsius,70 Hours), Oil Resistance Change for ASTM#3(Tensile Strength): 5%(Test Condition:100 Celsius,70 Hours), Oil Resistance Change for ASTM#3(Elongation Rate): -18%(Test Condition:100 Celsius,70 Hours)
  • Oil Resistance Change for ASTM#1(Hardness): +8(Test Condition:100 Celsius,70 Hours), Oil Resistance Change for ASTM#1(Tensile Strength): 8%(Test Condition:100 Celsius,70 Hours), Oil Resistance Change for ASTM#1(Elongation Rate): -21%(Test Condition:100 Celsius,70 Hours)
  • Hot Air Aging (Permanent Compression,Deformation): 13%(Test Condition:100 Celsius,70 Hours), Hot Air Aging(Hardness Change): +2 Degrees(Test Condition:100 Celsius,70 Hours)
  • Hardness(Shore A): 70, Tensile Strength: 18.5 Mpa, Elongation Rate: 350%, Brittle Temperature: -40 Celsius
  • In stock, ready to ship
Cart
Cart
About this item
  • Outer Diameter: 68mm / 2.68", Inner Diameter: 63mm / 2.48", Wire Diameter: 2.5mm / 0.10", Tolerance Standard(Wire Diameter): +/-0.08mm, Tolerance Standard(Inner Diameter): +/-0.45mm
  • Oil Resistance Change for ASTM#3(Hardness): -1(Test Condition:100 Celsius,70 Hours), Oil Resistance Change for ASTM#3(Tensile Strength): 5%(Test Condition:100 Celsius,70 Hours), Oil Resistance Change for ASTM#3(Elongation Rate): -18%(Test Condition:100 Celsius,70 Hours)
  • Oil Resistance Change for ASTM#1(Hardness): +8(Test Condition:100 Celsius,70 Hours), Oil Resistance Change for ASTM#1(Tensile Strength): 8%(Test Condition:100 Celsius,70 Hours), Oil Resistance Change for ASTM#1(Elongation Rate): -21%(Test Condition:100 Celsius,70 Hours)
  • Hot Air Aging (Permanent Compression,Deformation): 13%(Test Condition:100 Celsius,70 Hours), Hot Air Aging(Hardness Change): +2 Degrees(Test Condition:100 Celsius,70 Hours)
  • Hardness(Shore A): 70, Tensile Strength: 18.5 Mpa, Elongation Rate: 350%, Brittle Temperature: -40 Celsius
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Product Description:

Description:

  • Used to prevent leaks while working with plumbing,hydraulics,air and gas connections.
  • Rubber construction resists oil,gas,water and durable.
  • Suitable for car engine system,transmission,shock absorber etc.
  • Easy to store,low weight.

Storage Condition:

  • Materials should be stored at a temperature of 0 to 28 degree centigrade,relative humidity of not more than 80%, dust-free and properly ventilated environment,at least 1 meter away from the heat source.
  • Materials are not allowed to come into contact with acids,alkali,oils and various solvents during storage to avoid exposure to sunlight,arc light and otherS.

Installation:

  • Use tools without sharp edges.
  • Ensure that the O-ring is not twisted,and do not stretch the O-ring excessively.
  • Try to use an auxiliary tool to install O-ring,and ensure correct positioning.
  • For bonding with a sealing strip,the O-ring must not be stretched at the joint.
  • When the O-ring is stretched,the mounting mandrel must be used when passing screws, keyways, etc.The mandrel can be made of soft,smooth metal or plastic without glitch or sharp edges.
  • When installing the compression screws,tighten the screws symmetrically and do not tighten them in the direction.

Some Tips Before Installation(Please Check):

  • Whether the angle is machined according to the drawing.Whether the sharp edge is chamfered or rounded.
  • Whether the inner diameter removes the glitch surface or not.
  • Whether the seals and parts have been greased or lubricated.

Package Include:

  • 10 x Car O-Ring Seal Gaskets
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$11.59 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20 Free upgraded to UPS over $200
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:

  • Used to prevent leaks while working with plumbing,hydraulics,air and gas connections.
  • Rubber construction resists oil,gas,water and durable.
  • Suitable for car engine system,transmission,shock absorber etc.
  • Easy to store,low weight.

Storage Condition:

  • Materials should be stored at a temperature of 0 to 28 degree centigrade,relative humidity of not more than 80%, dust-free and properly ventilated environment,at least 1 meter away from the heat source.
  • Materials are not allowed to come into contact with acids,alkali,oils and various solvents during storage to avoid exposure to sunlight,arc light and otherS.

Installation:

  • Use tools without sharp edges.
  • Ensure that the O-ring is not twisted,and do not stretch the O-ring excessively.
  • Try to use an auxiliary tool to install O-ring,and ensure correct positioning.
  • For bonding with a sealing strip,the O-ring must not be stretched at the joint.
  • When the O-ring is stretched,the mounting mandrel must be used when passing screws, keyways, etc.The mandrel can be made of soft,smooth metal or plastic without glitch or sharp edges.
  • When installing the compression screws,tighten the screws symmetrically and do not tighten them in the direction.

Some Tips Before Installation(Please Check):

  • Whether the angle is machined according to the drawing.Whether the sharp edge is chamfered or rounded.
  • Whether the inner diameter removes the glitch surface or not.
  • Whether the seals and parts have been greased or lubricated.

Package Include:

  • 10 x Car O-Ring Seal Gaskets
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
