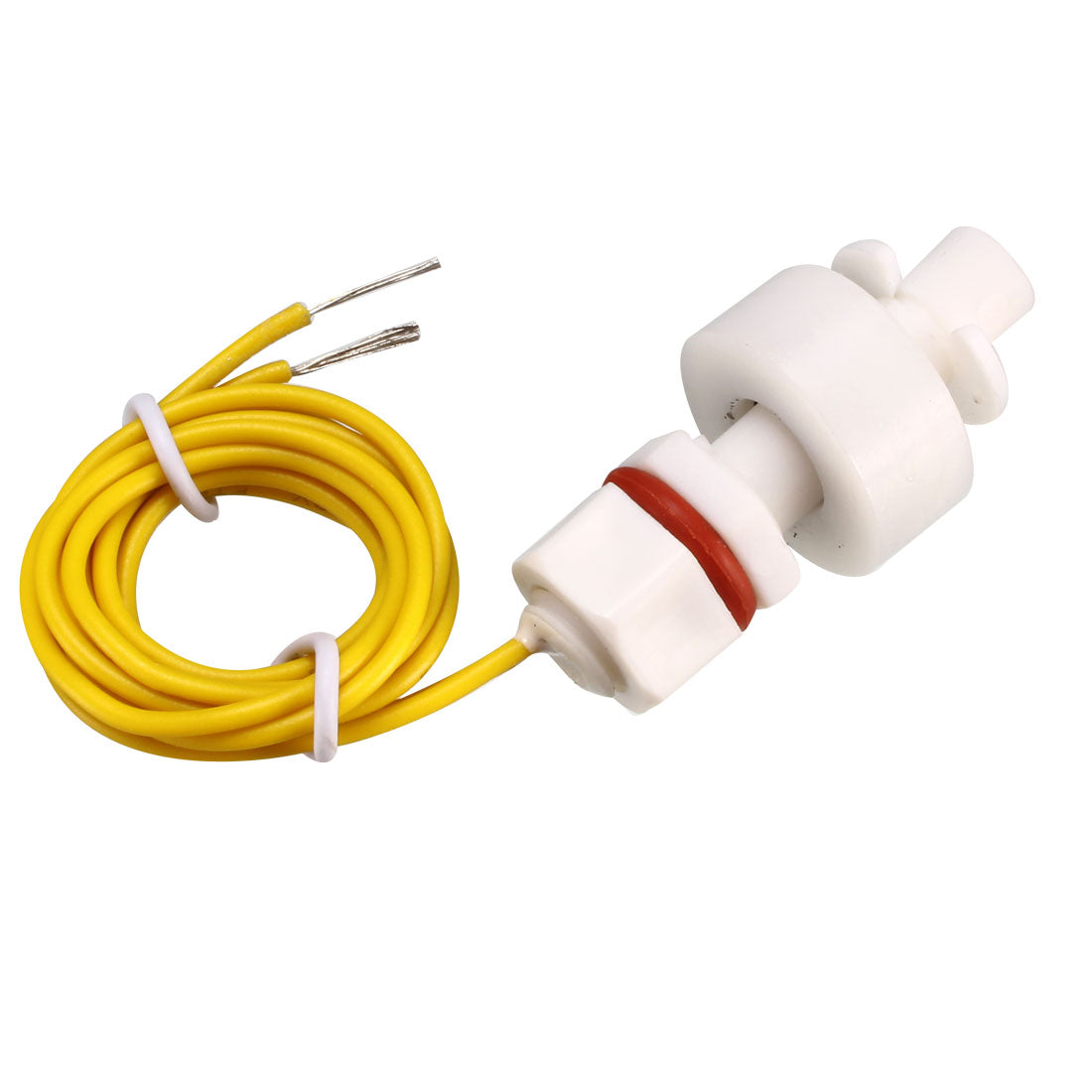

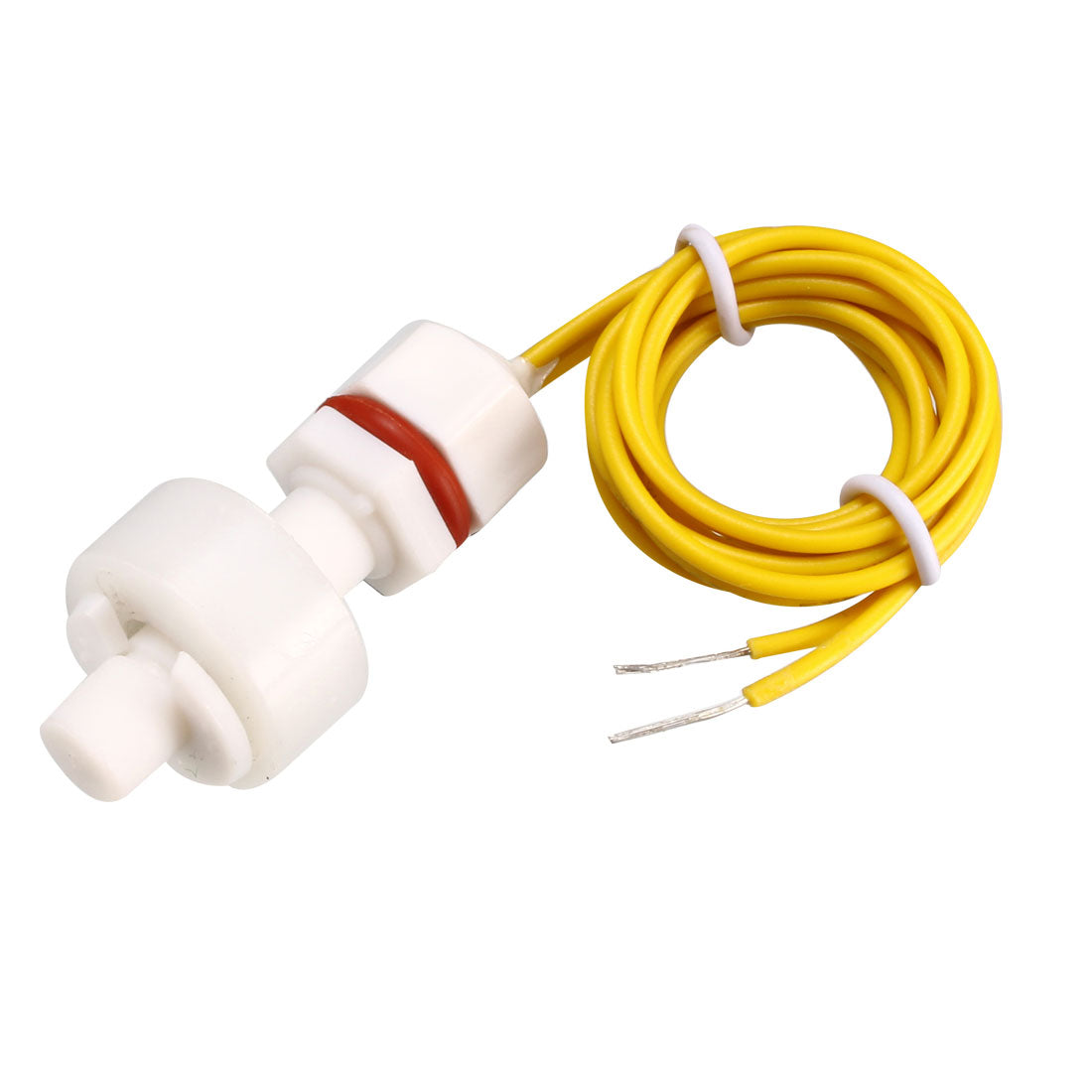

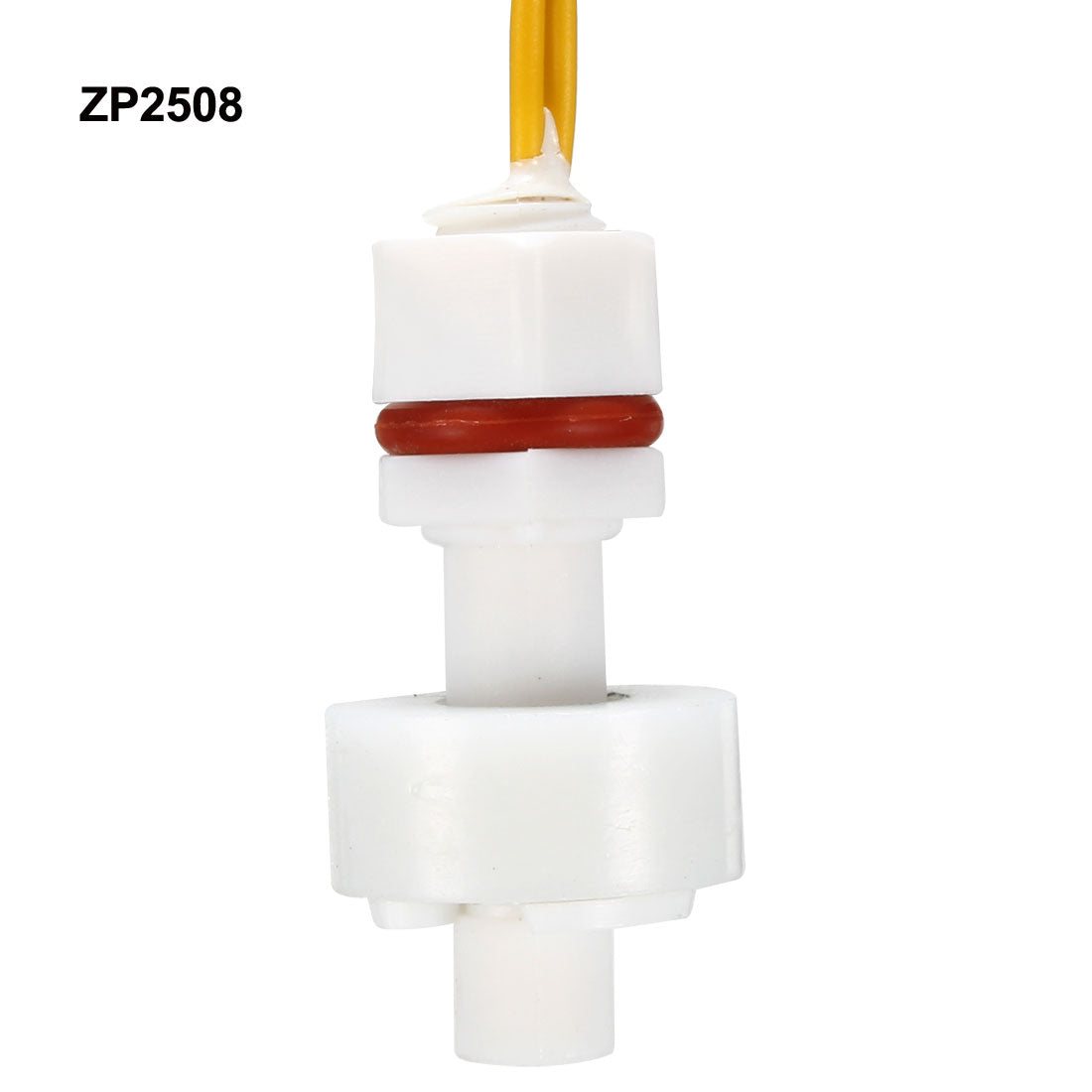

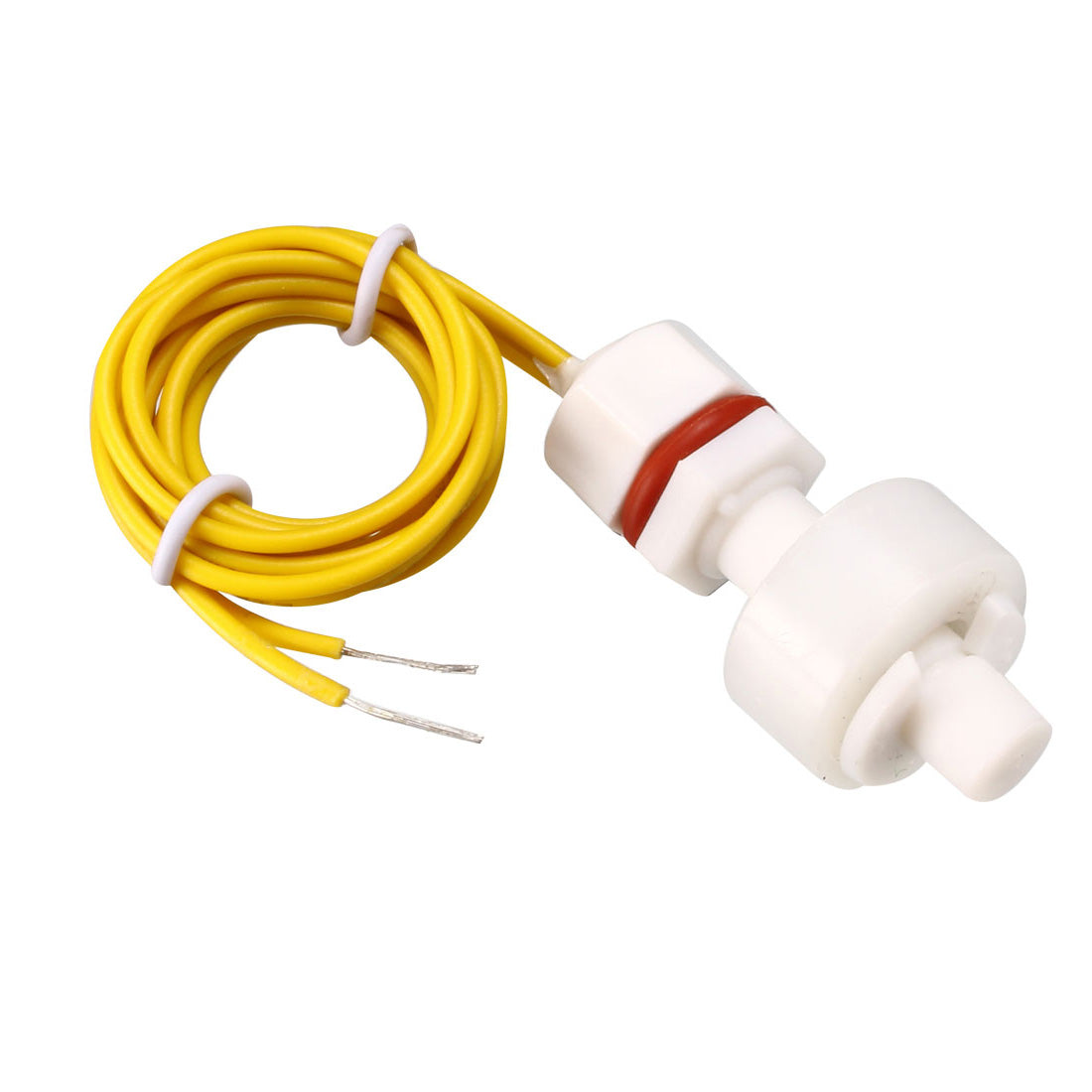

Harfington Uxcell PP Float Switch M8 37mm Fish Tank Vertical Liquid Water Level Control Sensor Plastic White

Uxcell PP Float Switch M8 37mm Fish Tank Vertical Liquid Water Level Control Sensor Plastic White

ID:1148064
ID:1148064
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Float Ball Size(Approx): 17.6 x 7.8mm / 0.69" x 0.31" (L*D) ; Thread Dia(Approx): 8mm / 0.31"; Cable Length: 36cm / 14.2"; Total Size: 37 x 17.6mm / 1.46" x 0.69" (L*D)
  • Max Switching Voltage/Current: 110V DC/0.5A
  • HOW TO WORK - By using a magnet to sense the reed switch. Float switch is mainly composed of a magnetic spring switch and a float. There are magnetic materials in the float. When the float moves up and down with the water level, it will touch the magnetic spring switch to detect the liquid position
  • WIDELY APPLICATION - Float switch can be used for water heating equipment such as water dispenser, water heater, humidifier, etc. It also can be used for water tower, drainage pool, water tank, culture pond, etc
  • PLEASE NOTE - Because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here.
About this item
  • Float Ball Size(Approx): 17.6 x 7.8mm / 0.69" x 0.31" (L*D) ; Thread Dia(Approx): 8mm / 0.31"; Cable Length: 36cm / 14.2"; Total Size: 37 x 17.6mm / 1.46" x 0.69" (L*D)
  • Max Switching Voltage/Current: 110V DC/0.5A
  • HOW TO WORK - By using a magnet to sense the reed switch. Float switch is mainly composed of a magnetic spring switch and a float. There are magnetic materials in the float. When the float moves up and down with the water level, it will touch the magnetic spring switch to detect the liquid position
  • WIDELY APPLICATION - Float switch can be used for water heating equipment such as water dispenser, water heater, humidifier, etc. It also can be used for water tower, drainage pool, water tank, culture pond, etc
  • PLEASE NOTE - Because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here.
Specification

Specification

SKU
a18050900ux0054
Product name
Float Switch
Max contact
Rating 10W
Max switching voltage
110V DC
Max switching current
0.5A
Max breakdown voltage
220V DC
Max carry current
1.0A
Max contact resistance
100mohm
Temperature rating
-10 ~ +60 C / 85 C
Float ball material
PP
Float body material
PP
Float ball size(approx)
17.6 x 7.8mm(L*D)
Thread dia(approx)
M8
Body total length
37mm
Cable length
36cm
Color
White
Net weight
10g
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specifications:Product Name: Float Switch
Max Contact: Rating 10W
Max Switching Voltage: 110V DC
Max Switching Current: 0.5A
Max Breakdown Voltage: 220V DC
Max Carry Current: 1.0A
Max Contact Resistance: 100mohm
Temperature Rating: -10 ~ +60 C / 85 C
Float Ball Material: PP
Float Body Material: PP
Float Ball Size(Approx): 17.6 x 7.8mm(L*D)
Thread Dia(Approx): M8
Body Total Length: 37mm
Cable Length: 36cm
Color: White;Yellow
Net Weight: 10g

Package Content

1 x Float Switch


Description:A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.


Note:
because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.

 Feature:This float switch is a simple structure,easy installation liquid level controller.It does not have a complex circuit,will not be disturbed,as long as the material selection,liquid,pressure or temperture can be used in any environment.
Light weight and simple working principle,high reliability.
The float level switch is widely used in electronic,electrical,chemical,water treatment,drainage and other walks of life level control and alarm.
