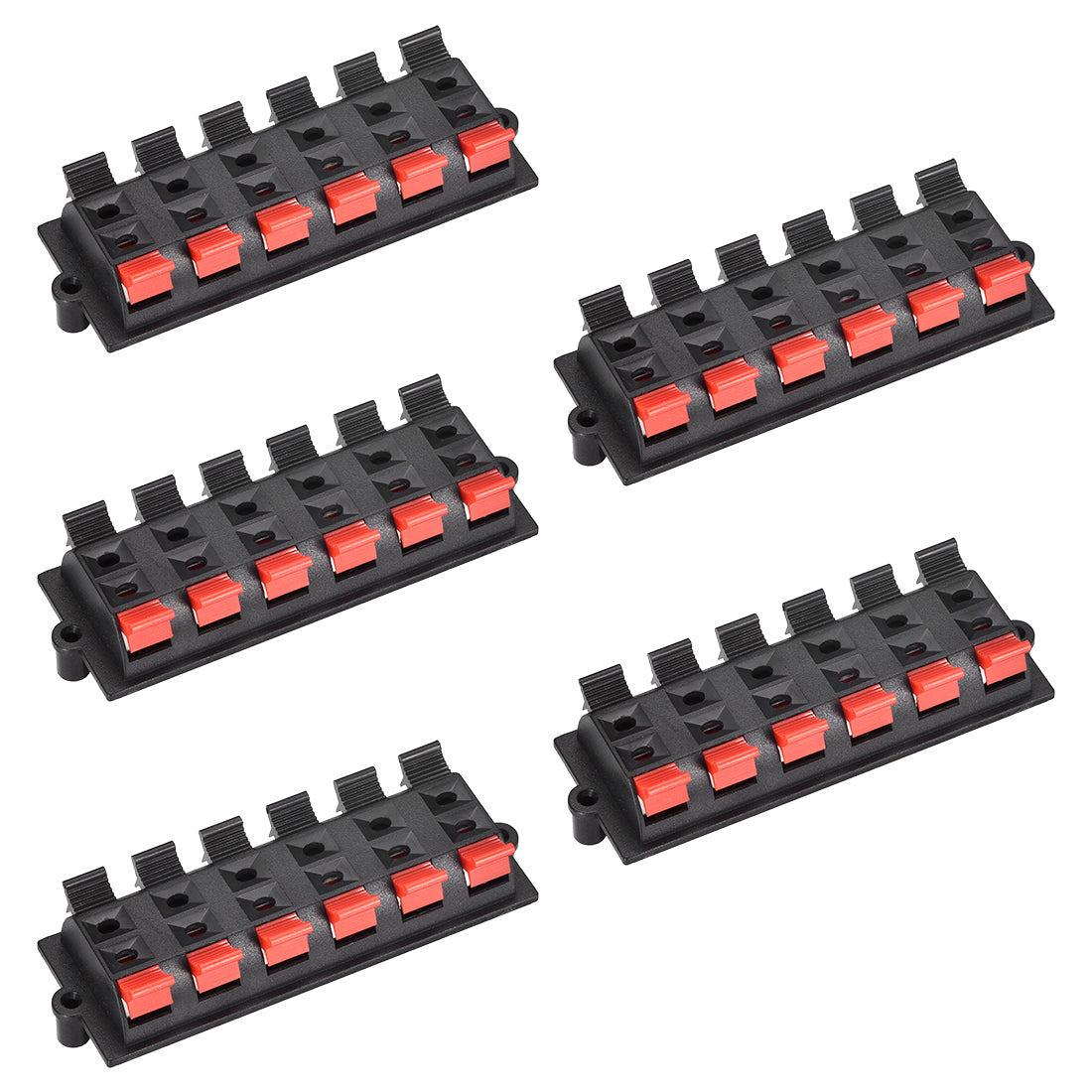

uxcell Uxcell 2 Row 12 Way Spring Speaker Terminal Clip Push Release Connector Audio Cable Terminals Strip Block WP12-03B 5Pcs
/ 0
Harfington Uxcell 2 Row 12 Way Spring Speaker Terminal Clip Push Release Connector Audio Cable Terminals Strip Block WP12-03B 5Pcs

Uxcell 2 Row 12 Way Spring Speaker Terminal Clip Push Release Connector Audio Cable Terminals Strip Block WP12-03B 5Pcs

ID:1147866
ID:1147866
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Rated Load: AC 50V / 3A; Actuating Force: 1 Kgf.
  • Color Polarity Coding: Red/Black; Fit Cable: AWG24-16.
  • Features: 12 pins, 12 ways, spring load design, push type speaker terminal board.
  • This spring loaded terminals ensure a solid connection and make wire hookups a put.
  • Specilized design to your custom speakers or speaker upgrades for speaker cable connecting.
About this item
  • Rated Load: AC 50V / 3A; Actuating Force: 1 Kgf.
  • Color Polarity Coding: Red/Black; Fit Cable: AWG24-16.
  • Features: 12 pins, 12 ways, spring load design, push type speaker terminal board.
  • This spring loaded terminals ensure a solid connection and make wire hookups a put.
  • Specilized design to your custom speakers or speaker upgrades for speaker cable connecting.
Specification

Specification

SKU
a19012500ux0058
Rated load
AC 50V / 3A
Contact resistance
<= 0.03 Ohm
Insulation resistance
>= 100M Ohm
Actuating force
1 Kgf
Fit cable
AWG24-16
Color polarity coding
Red/Black

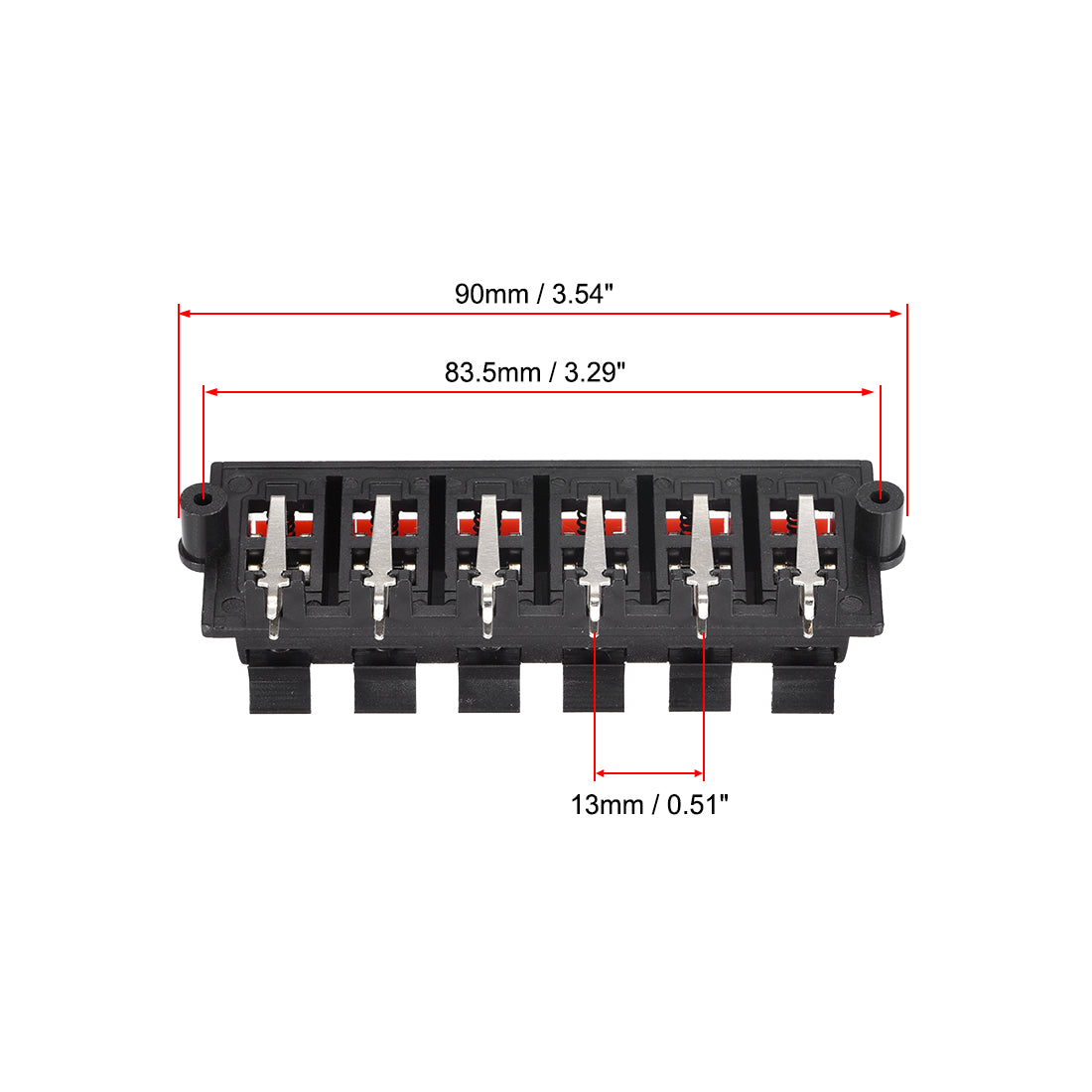

Size
90mm x 35.5mm x 24mm / 3.54" x 1.4" x 0.94"(L*W*H)
Mounting hole distance
83.5mm / 3.29 inch
Pin distance
13mm / 0.51 inch
Pin width
1.2mm
Package content
5Pcs x Speaker Terminals
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Features:

12 pins, 12 ways, spring load design, push type speaker terminal board.

This spring loaded terminals ensure a solid connection and make wire hookups a put.

Specilized design to your custom speakers or speaker upgrades for speaker cable connecting.



Specifications:

Rated Load: AC 50V / 3A

Contact Resistance: <= 0.03 Ohm

Insulation Resistance: >= 100M Ohm

Actuating Force: 1 Kgf

Fit Cable: AWG24-16

Color Polarity Coding: Red/Black

Size: 90mm x 35.5mm x 24mm / 3.54" x 1.4" x 0.94"(L*W*H)

Mounting Hole Distance: 83.5mm / 3.29"

Pin Distance: 13mm / 0.51"

Pin Width: 1.2mm



Package Contents:

5Pcs x Speaker Terminals

US$9.33 Regular price
US/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • Low stock, 2 items left, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell 2 Row 12 Way Spring Speaker Terminal Clip Push Release Connector Audio Cable Terminals Strip Block WP12-03B 5Pcs 1147866 US$9.33
Products Title ID Price Qty
Uxcell 2 Row 12 Way Spring Speaker Terminal Clip Push Release Connector Audio Cable Terminals Strip Block WP12-03B 5Pcs 1147866 US$9.33
Uxcell 2 Row 12 Way Spring Speaker Terminal Clip Push Release Connector Audio Cable Terminals Strip Block WP12-03B 2Pcs 1067574 US$6.84
Qty: 0 Item(s)
Total Price: US$0.00

Description

Description

Features:

12 pins, 12 ways, spring load design, push type speaker terminal board.

This spring loaded terminals ensure a solid connection and make wire hookups a put.

Specilized design to your custom speakers or speaker upgrades for speaker cable connecting.



Specifications:

Rated Load: AC 50V / 3A

Contact Resistance: <= 0.03 Ohm

Insulation Resistance: >= 100M Ohm

Actuating Force: 1 Kgf

Fit Cable: AWG24-16

Color Polarity Coding: Red/Black

Size: 90mm x 35.5mm x 24mm / 3.54" x 1.4" x 0.94"(L*W*H)

Mounting Hole Distance: 83.5mm / 3.29"

Pin Distance: 13mm / 0.51"

Pin Width: 1.2mm



Package Contents:

5Pcs x Speaker Terminals
