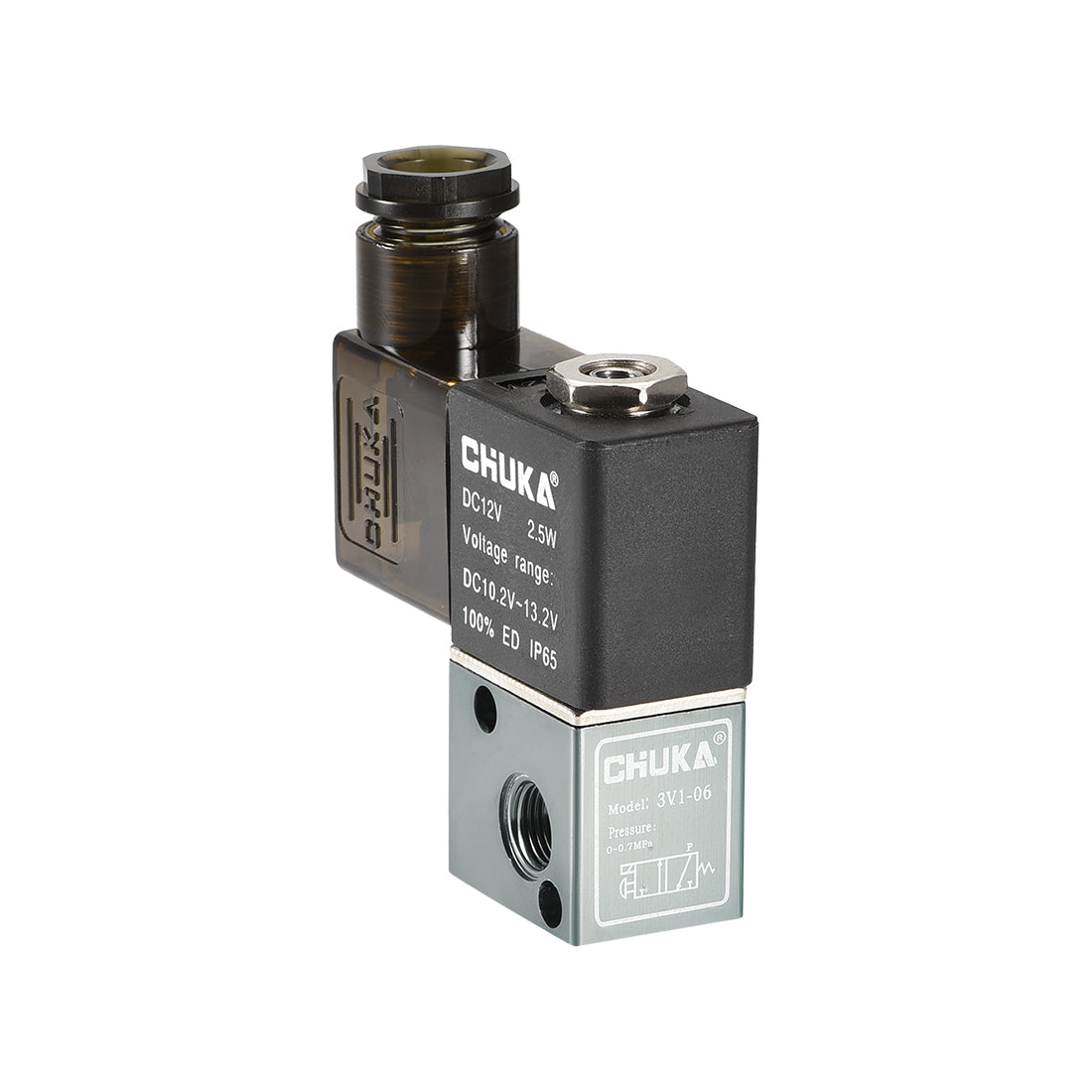

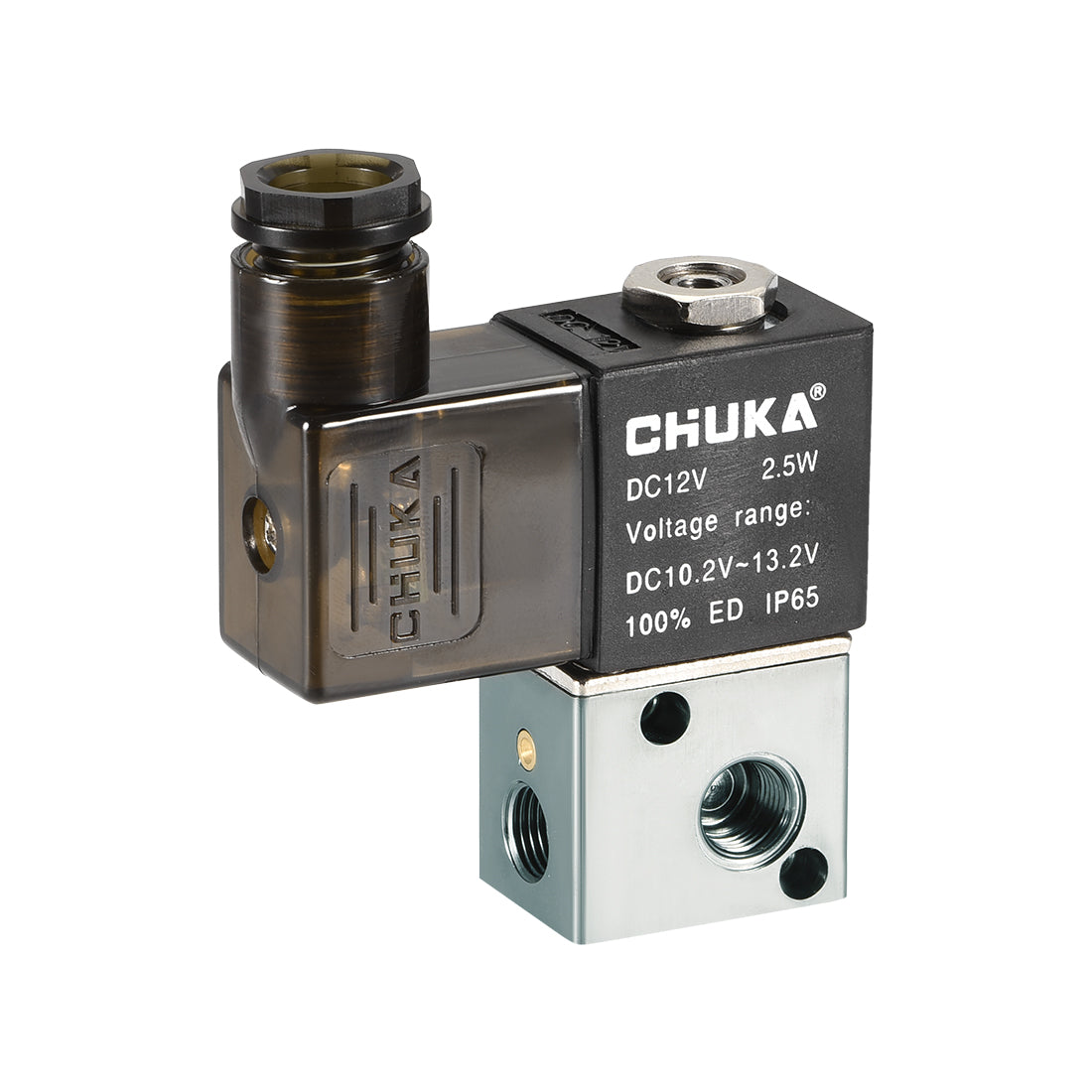

Harfington Uxcell 3V1-06 Pneumatic Air NC Single Electrical Control Solenoid Valve DC 12V 3 Way 2 Position 1/8" PT Thread Internally Acting Type

Uxcell 3V1-06 Pneumatic Air NC Single Electrical Control Solenoid Valve DC 12V 3 Way 2 Position 1/8" PT Thread Internally Acting Type

ID:
$11.45 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
About This Item
  • UNIVERSAL DESIGN - Pneumatic Solenoid Valve Type: 3 Port 2 Position Normally closed type ; Voltage : DC 12V ; Air Flow In Hole Size : 1/8" PT
  • ATTENTION- The manual button tests the status of the product when it is powered up.Two air intake holes cannot be used at the same time. When using, you need to block one side with a plug.
  • APPLICATION - Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
  • ADVANTAGE - Guide head made of excellent conductor material with high strength and high frequency response for smoother operation
  • MATERIAL - The valve body is made of aluminum alloy and has strong pressure resistance. The inner hole is machined by a special process, with low frictional resistance, low starting air pressure and long service life.
  • In stock, ready to ship
Cart
Cart
About This Item
  • UNIVERSAL DESIGN - Pneumatic Solenoid Valve Type: 3 Port 2 Position Normally closed type ; Voltage : DC 12V ; Air Flow In Hole Size : 1/8" PT
  • ATTENTION- The manual button tests the status of the product when it is powered up.Two air intake holes cannot be used at the same time. When using, you need to block one side with a plug.
  • APPLICATION - Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
  • ADVANTAGE - Guide head made of excellent conductor material with high strength and high frequency response for smoother operation
  • MATERIAL - The valve body is made of aluminum alloy and has strong pressure resistance. The inner hole is machined by a special process, with low frictional resistance, low starting air pressure and long service life.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:
Specification:
Product Name : Solenoid Valve
Model: 3V1-06
Net Weight: 151g
Color : Black,Silver Tone
CV values: 0.23
Control Type: Power Ups
Voltage : DC 12V
Valve Type: 3 Port 2 Position
Fit Screw Size : 3.2mm / 0.13"

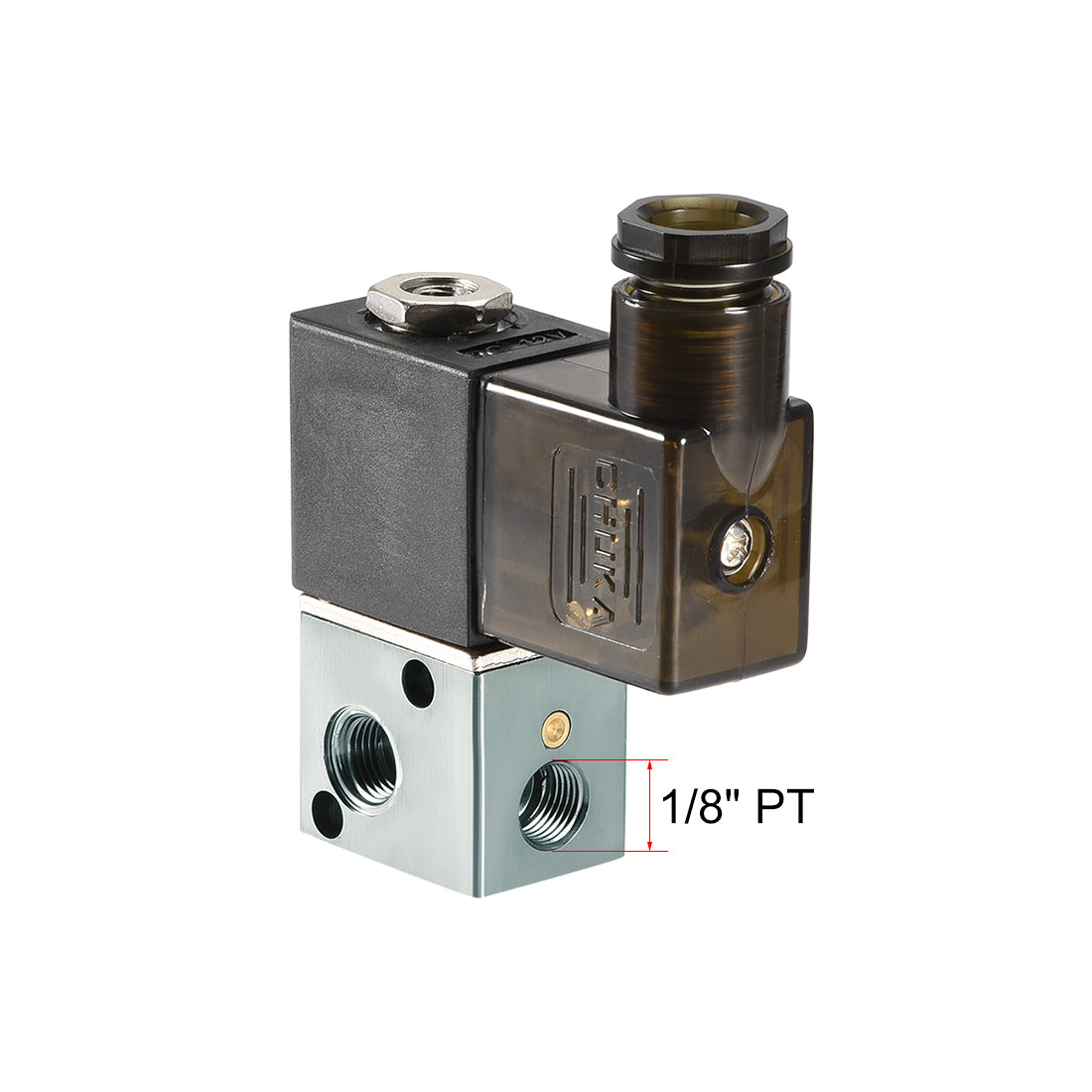

Air Flow In and Out Hole Size : 1/8" PT
Main parts material: Aluminum alloy
Working pressure: 0 ~ 0.7mpa
Operating temperature: -5~60 Degree Celsius
Total Size : 76mm x 63mm x 22mm / 3" x 2.48" x 0.87" (L x W x H)

 Package Included:
1 x Solenoid Valve

Description:
1.The valve body is made of aluminum alloy and has strong pressure resistance. The inner hole is machined by a special process, with low frictional resistance, low starting air pressure and long service life.
2.Using electronic components,copper full-size coils, transparent and excellent in quality.
3.Guide head made of excellent conductor material with high strength and high frequency response for smoother operation
4.The female thread is clear and smooth. The threaded holes can be seamlessly combined with the joints. There are filters in the threads to filter out particulates.
5.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.

Note:
The manual button tests the status of the product when it is powered up.
The valve is N / C (normally closed), meaning it will shut down when not powered.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products title ID Price Qty
Products title ID Price Qty
{[item.title]} {[item.id]} {['$' + item.price]}
Qty: {[total.qty]} Item(s)
Total Price: ${[total.price]}
View More

Description

Description

Specification:
Product Name : Solenoid Valve
Model: 3V1-06
Net Weight: 151g
Color : Black,Silver Tone
CV values: 0.23
Control Type: Power Ups
Voltage : DC 12V
Valve Type: 3 Port 2 Position
Fit Screw Size : 3.2mm / 0.13"
Air Flow In and Out Hole Size : 1/8" PT
Main parts material: Aluminum alloy
Working pressure: 0 ~ 0.7mpa
Operating temperature: -5~60 Degree Celsius
Total Size : 76mm x 63mm x 22mm / 3" x 2.48" x 0.87" (L x W x H)

 Package Included:
1 x Solenoid Valve

Description:
1.The valve body is made of aluminum alloy and has strong pressure resistance. The inner hole is machined by a special process, with low frictional resistance, low starting air pressure and long service life.
2.Using electronic components,copper full-size coils, transparent and excellent in quality.
3.Guide head made of excellent conductor material with high strength and high frequency response for smoother operation
4.The female thread is clear and smooth. The threaded holes can be seamlessly combined with the joints. There are filters in the threads to filter out particulates.
5.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.

Note:
The manual button tests the status of the product when it is powered up.
The valve is N / C (normally closed), meaning it will shut down when not powered.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
