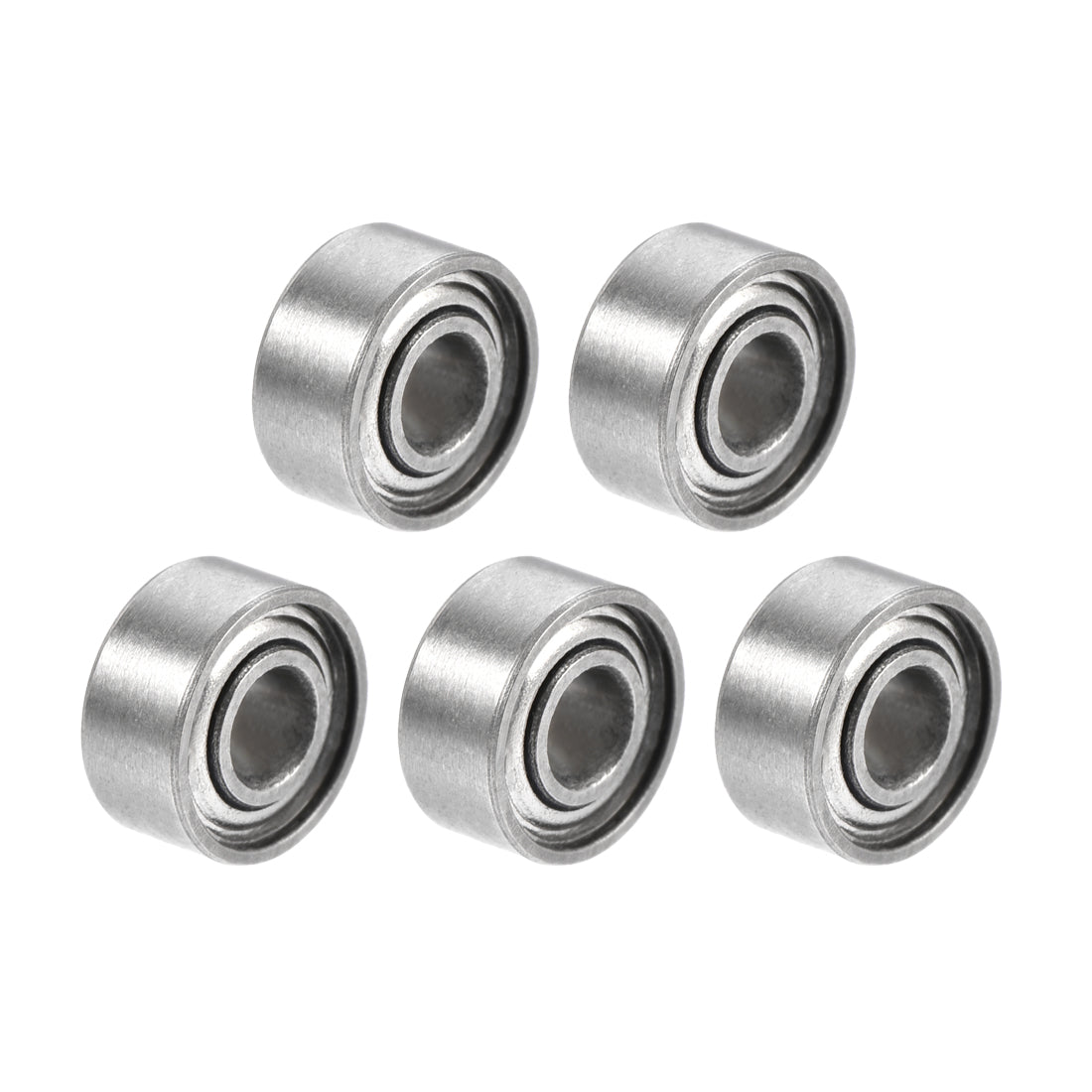

Harfington Uxcell S682ZZ Stainless Steel Ball Bearing 2x5x2.3mm Double Shielded S682 Bearings 5pcs

Uxcell S682ZZ Stainless Steel Ball Bearing 2x5x2.3mm Double Shielded S682 Bearings 5pcs

ID:1126487
ID:1126487
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • S682ZZ (I.D.=2mm, O.D.=5mm, Thickness=2.3mm)
  • S682ZZ bearings are shielded on both sides to keep lubricant in
  • Stainless steel races for durability and corrosion resistance
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
  • Static load rating of 36 newtons and dynamic load rating of 129.6 newtons
About this item
  • S682ZZ (I.D.=2mm, O.D.=5mm, Thickness=2.3mm)
  • S682ZZ bearings are shielded on both sides to keep lubricant in
  • Stainless steel races for durability and corrosion resistance
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
  • Static load rating of 36 newtons and dynamic load rating of 129.6 newtons
Specification

Specification

SKU
a19111800ux0844
Model
S682ZZ
I.D.
2mm
O.D.
5mm
Thickness
2.3mm
Material
Stainless steel
Type
Double Shielded
Dynamic Load Rating
129.6N
Static Load Rating
36N
Accuracy Class
P0(ABEC-1)
Pkg.Qty.
5
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Note:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

-Single-row, pre-lubricated, normal accuracy.

-Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.

-With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.

-Stainless steel bearing features stronger rust and corrosion resistance ability to withstand destruction caused by humidity and some other media.

-Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

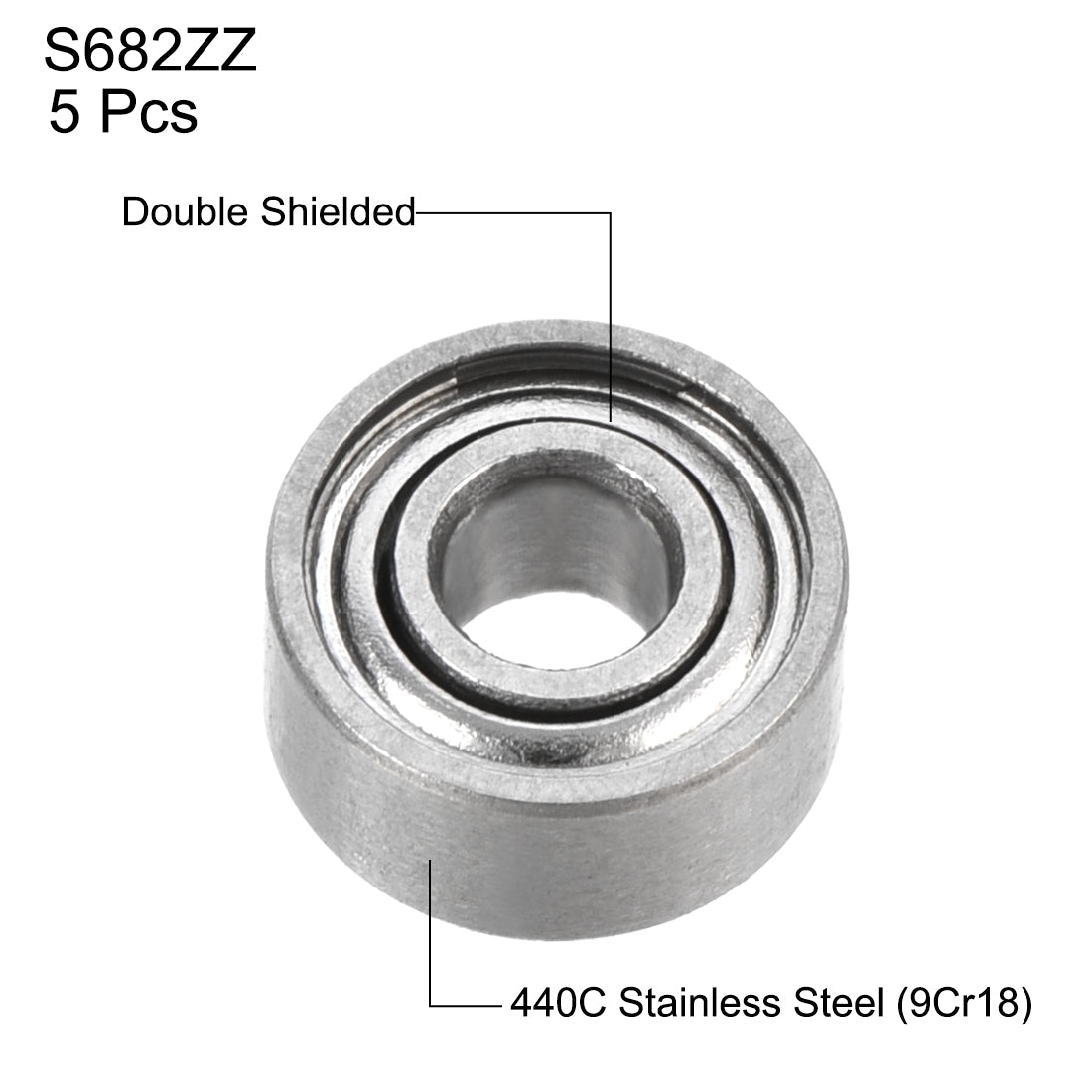

Model: S682ZZ

Shield Type: Double Shielded

Inner Race/Outer Race Material: 440C Stainless Steel (9Cr18)

Cage Material: Stamping Steel

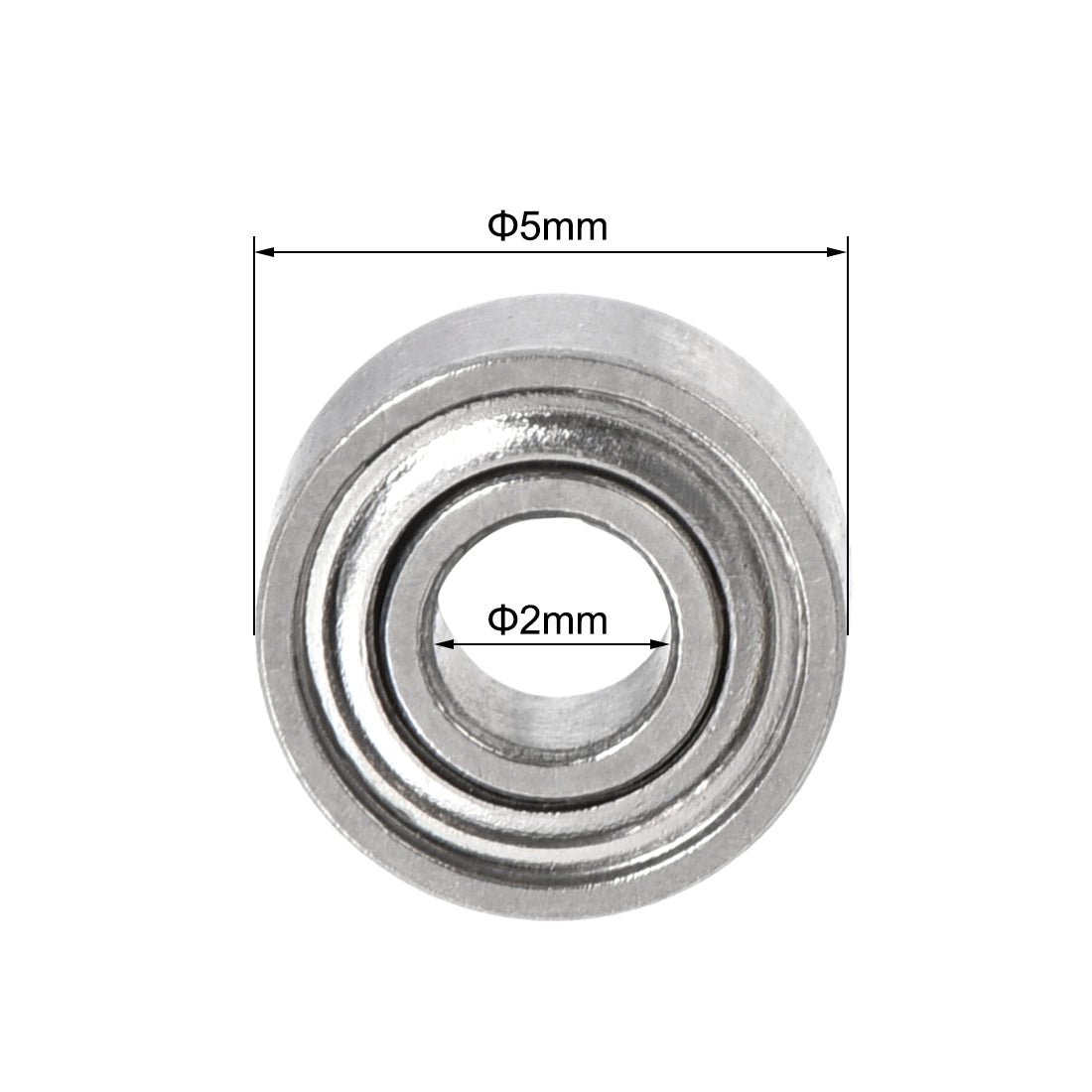

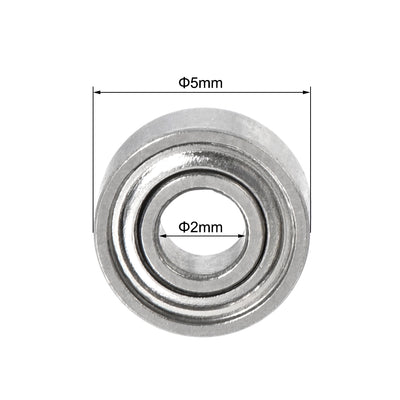

Inner Diameter (d): 2mm

Outer Diameter (D): 5mm

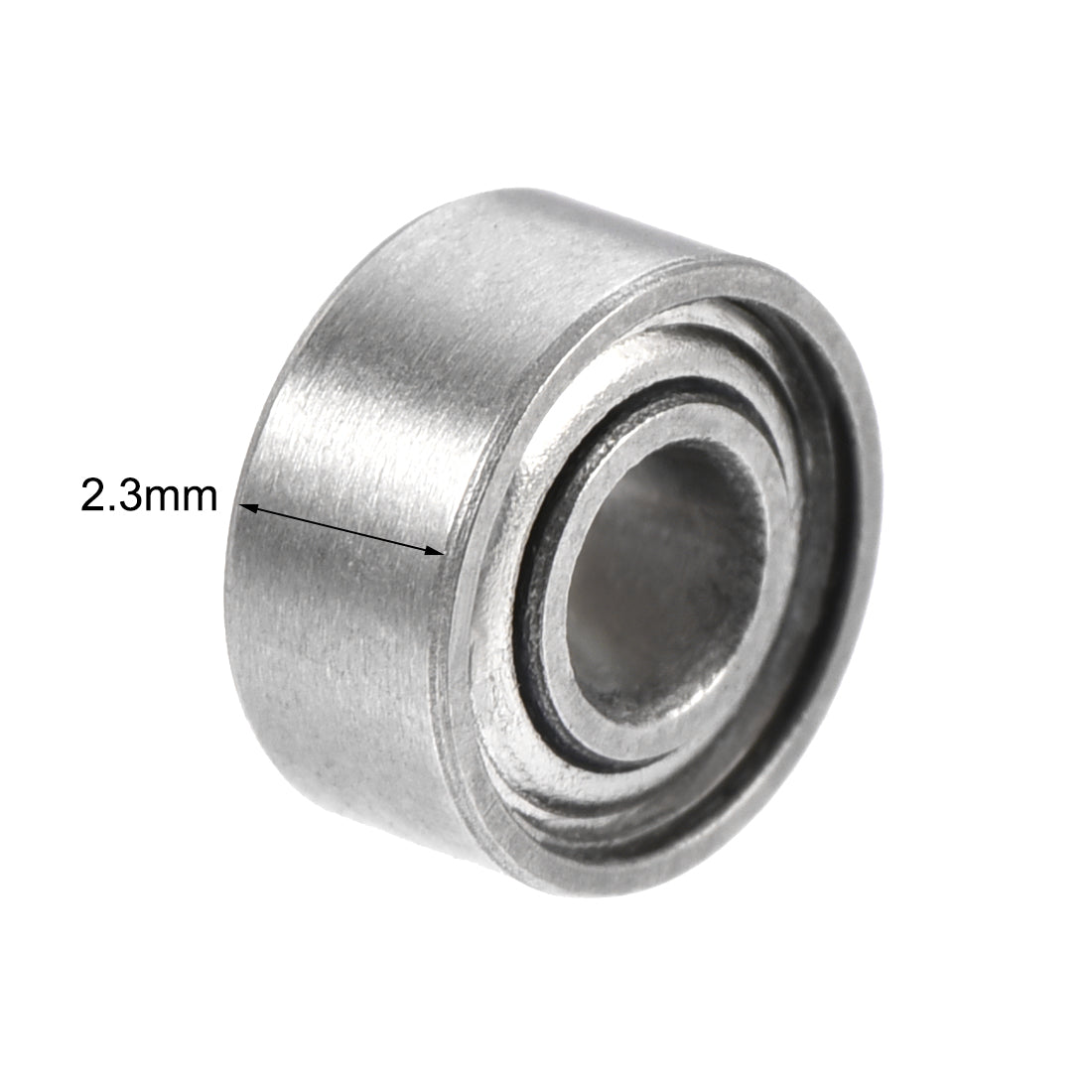

Thickness (B): 2.3mm

Dynamic Load Rating (Cr): 129.6 N

Static Load Rating (Cor): 36 N

Accuracy Class: P0 (ABEC1)

Noise Level: Z2

Number of Pack: 5 Pcs

US$8.24 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell S682ZZ Stainless Steel Ball Bearing 2x5x2.3mm Double Metal Shielded S682 Bearings 5pcs 1126487 US$8.24
Products Title ID Price Qty
Uxcell S682ZZ Stainless Steel Ball Bearing 2x5x2.3mm Double Metal Shielded S682 Bearings 5pcs 1126487 US$8.24
Uxcell S696ZZ Stainless Steel Ball Bearing 6x15x5mm Double Shielded S682 Bearings 2pcs 1126486 US$6.00
Uxcell S694ZZ Stainless Steel Ball Bearing 4x11x4mm Double Shielded S682 Bearings 5pcs 1123477 US$7.11
Uxcell S699ZZ Stainless Steel Ball Bearing 9x20x6mm Double Shielded S682 Bearings 5pcs 1041662 US$7.97
Uxcell S696ZZ Stainless Steel Ball Bearing 6x15x5mm Double Metal Shielded S682 Bearings 10pcs 1041664 US$9.48
Qty: 0 Item(s)
Total Price: US$0.00

Description

Description

Note:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

-Single-row, pre-lubricated, normal accuracy.

-Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.

-With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.

-Stainless steel bearing features stronger rust and corrosion resistance ability to withstand destruction caused by humidity and some other media.

-Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

Model: S682ZZ

Shield Type: Double Shielded

Inner Race/Outer Race Material: 440C Stainless Steel (9Cr18)

Cage Material: Stamping Steel

Inner Diameter (d): 2mm

Outer Diameter (D): 5mm

Thickness (B): 2.3mm

Dynamic Load Rating (Cr): 129.6 N

Static Load Rating (Cor): 36 N

Accuracy Class: P0 (ABEC1)

Noise Level: Z2

Number of Pack: 5 Pcs
