Harfington Analog Current Panel Meter DC 0-100A 85C1 with 75mV Shunt for Circuit Testing Ampere Tester Gauge, 1 Set

Analog Current Panel Meter DC 0-100A 85C1 with 75mV Shunt for Circuit Testing Ampere Tester Gauge, 1 Set

ID:
$13.67 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • [Main Parameter] - Model: 85C1; Measurement Range: 0-100A, Accuracy of Class: 2.5
  • [Material] - Transparent plastic shell is convenient for you to read scale quickly
  • [Size] - Meter Panel Size(Approx) : 2.52x2.2 Inch / 64x56(LxW); Mount Size : 1.5x1.34 Inch / 38x34mm(LxW)
  • [Appalication] - Needle ampere panel meter is great for replacing broken meter, monitoring circuits, measuring current, or other voltage measurement devices
  • [Shunt Features] - Voltage Drop: 75mV; Shunt Overall Size: 2.17x0.87x0.31 Inch / 55x22x8mm(LxWxH); Shunt Accuracy: 0.5
  • In stock, ready to ship
Cart
Cart
About this item
  • [Main Parameter] - Model: 85C1; Measurement Range: 0-100A, Accuracy of Class: 2.5
  • [Material] - Transparent plastic shell is convenient for you to read scale quickly
  • [Size] - Meter Panel Size(Approx) : 2.52x2.2 Inch / 64x56(LxW); Mount Size : 1.5x1.34 Inch / 38x34mm(LxW)
  • [Appalication] - Needle ampere panel meter is great for replacing broken meter, monitoring circuits, measuring current, or other voltage measurement devices
  • [Shunt Features] - Voltage Drop: 75mV; Shunt Overall Size: 2.17x0.87x0.31 Inch / 55x22x8mm(LxWxH); Shunt Accuracy: 0.5
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specifications:
Model: 85C1
Measuring Range: DC 0-100A
Accuracy: Class 2.5

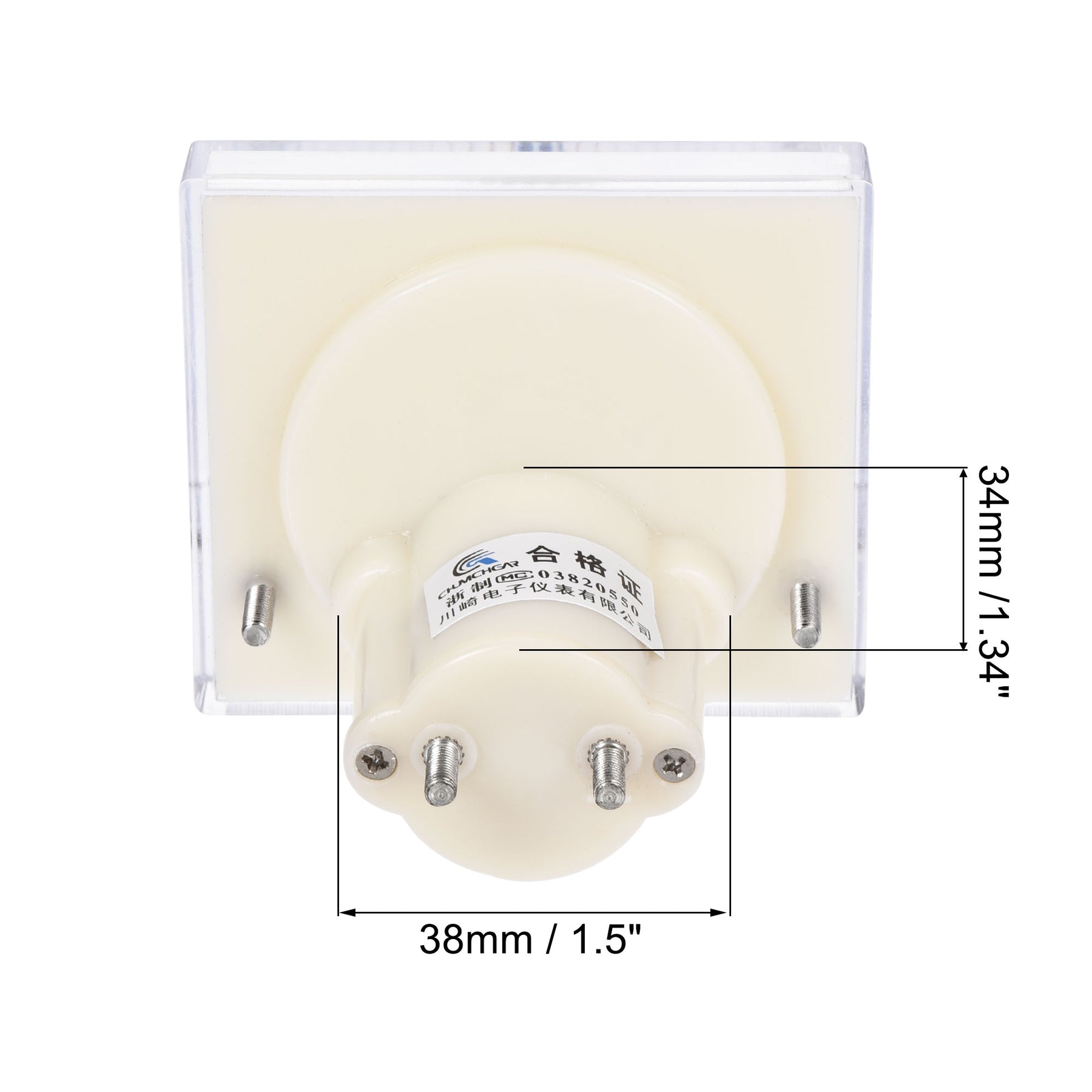

Mount Size : 1.5x1.34 Inch / 38x34mm(LxW)

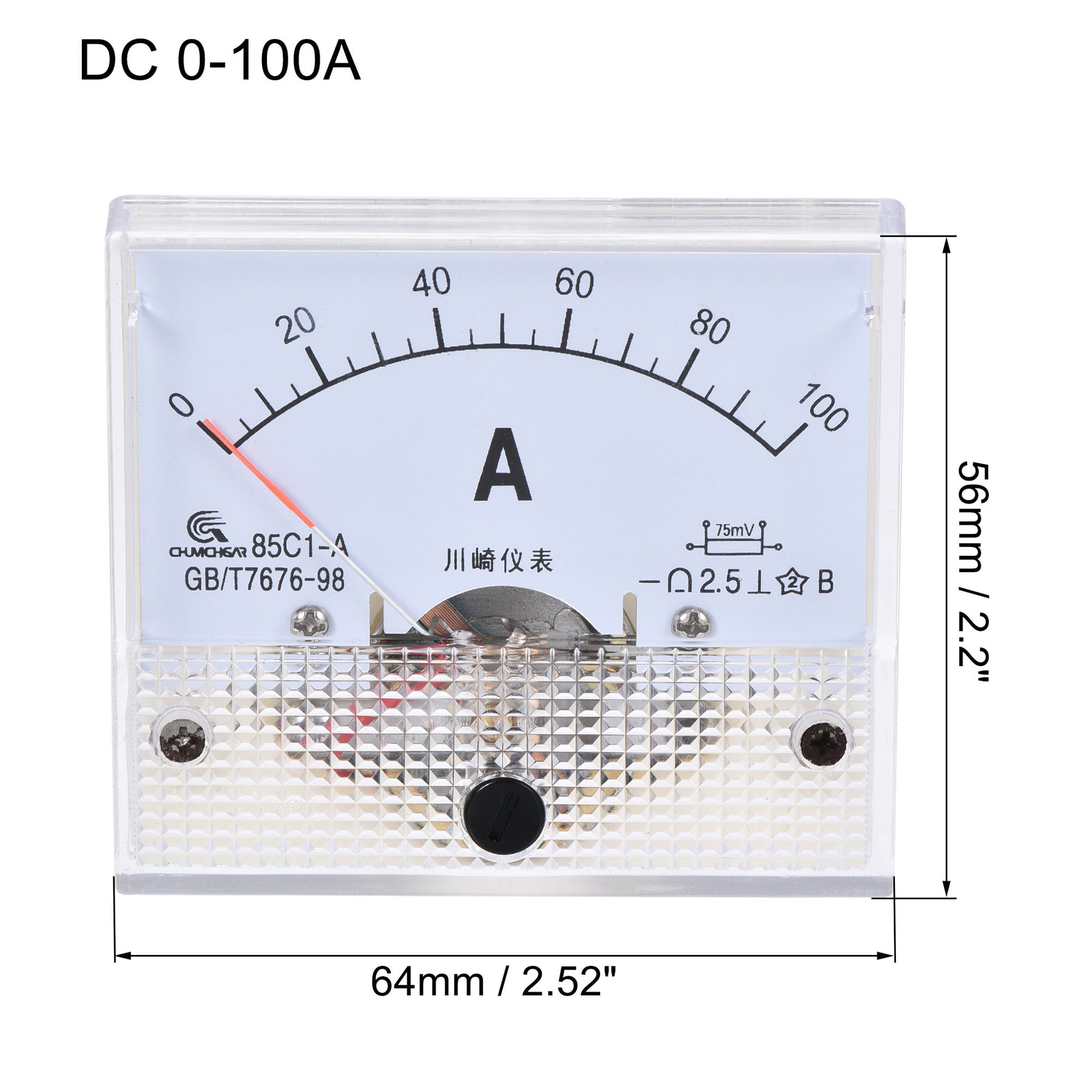

Meter Panel Size(Approx) : 2.52x2.2 Inch / 64x56(LxW)

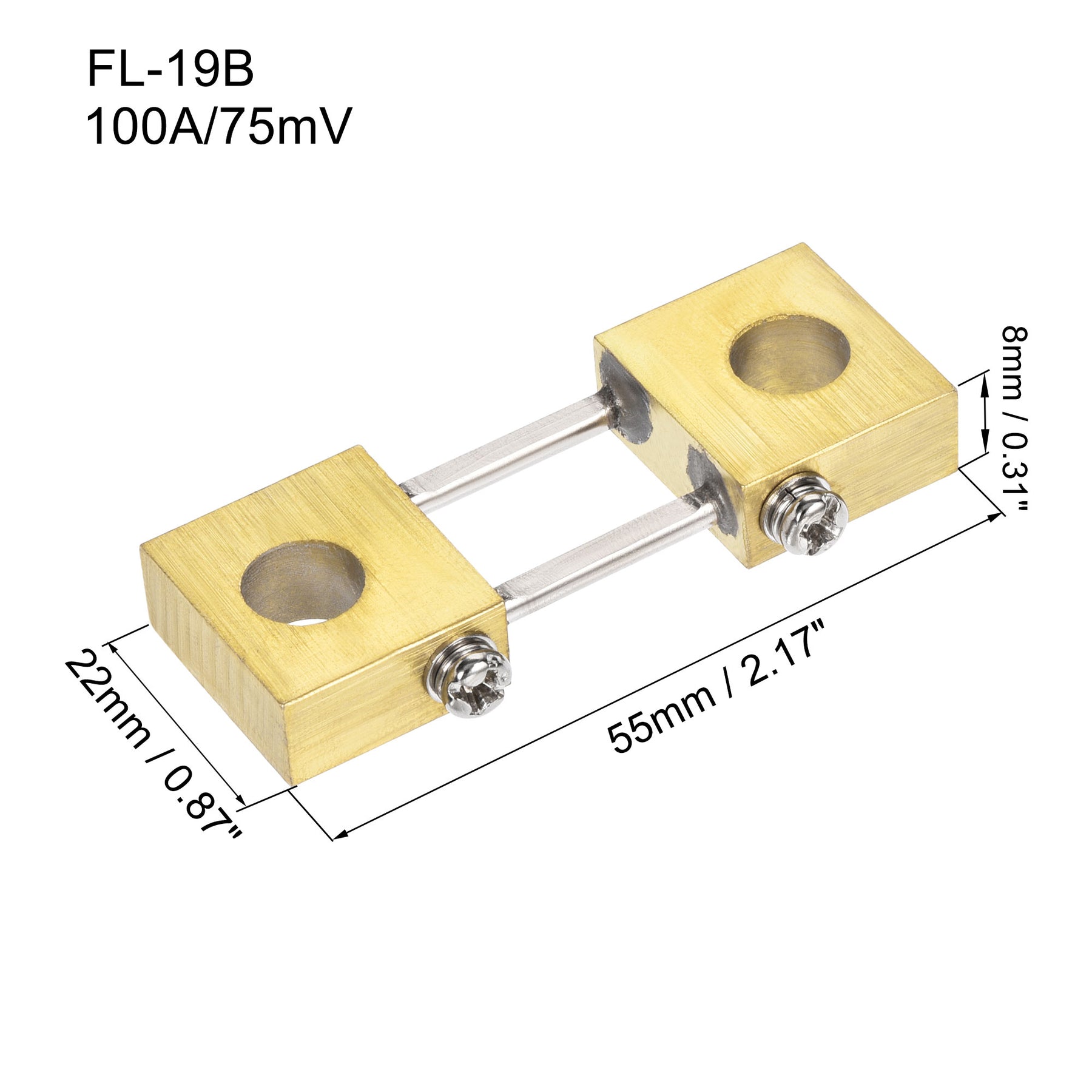

Shunt Overall Size: 2.17x0.87x0.31 Inch / 55x22x8mm(LxWxH)
Shunt Overall Material: Copper, manganese copper

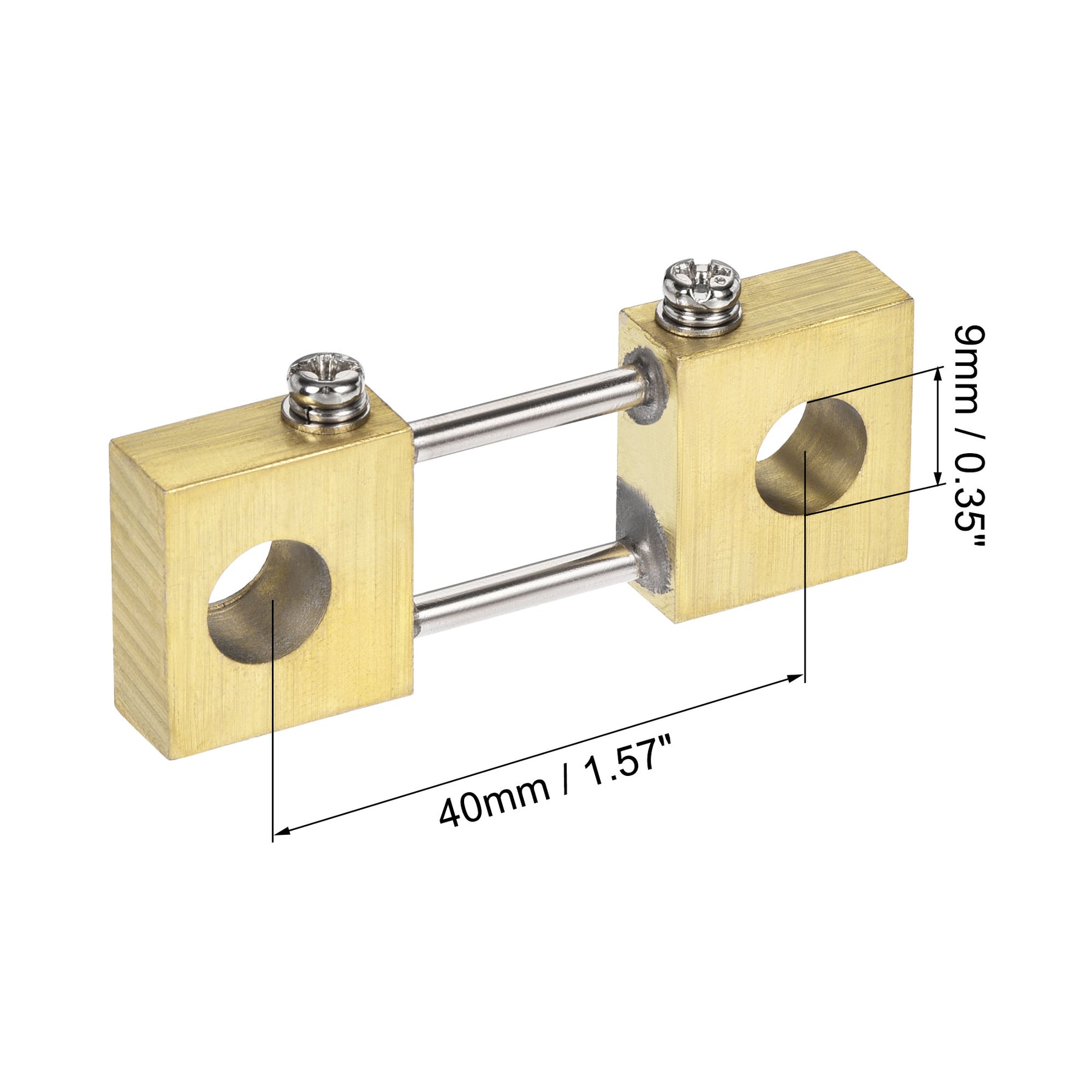

Shunt Mounting Distance: 1.57 Inch / 40mm
Shunt Mounting Hole Diameter: 0.35 Inch / 9mm
Number of Connection Bolts: 2
Voltage Drop: 75mV
Shunt  Accuracy: 0.5

Features:
An ammeter shunt allows the measurement of current values too large to be directly measured by a particular ammeter.
This ampere panel meter is great for replacing broken meter, monitoring circuits, measuring current, or other voltage measurement devices

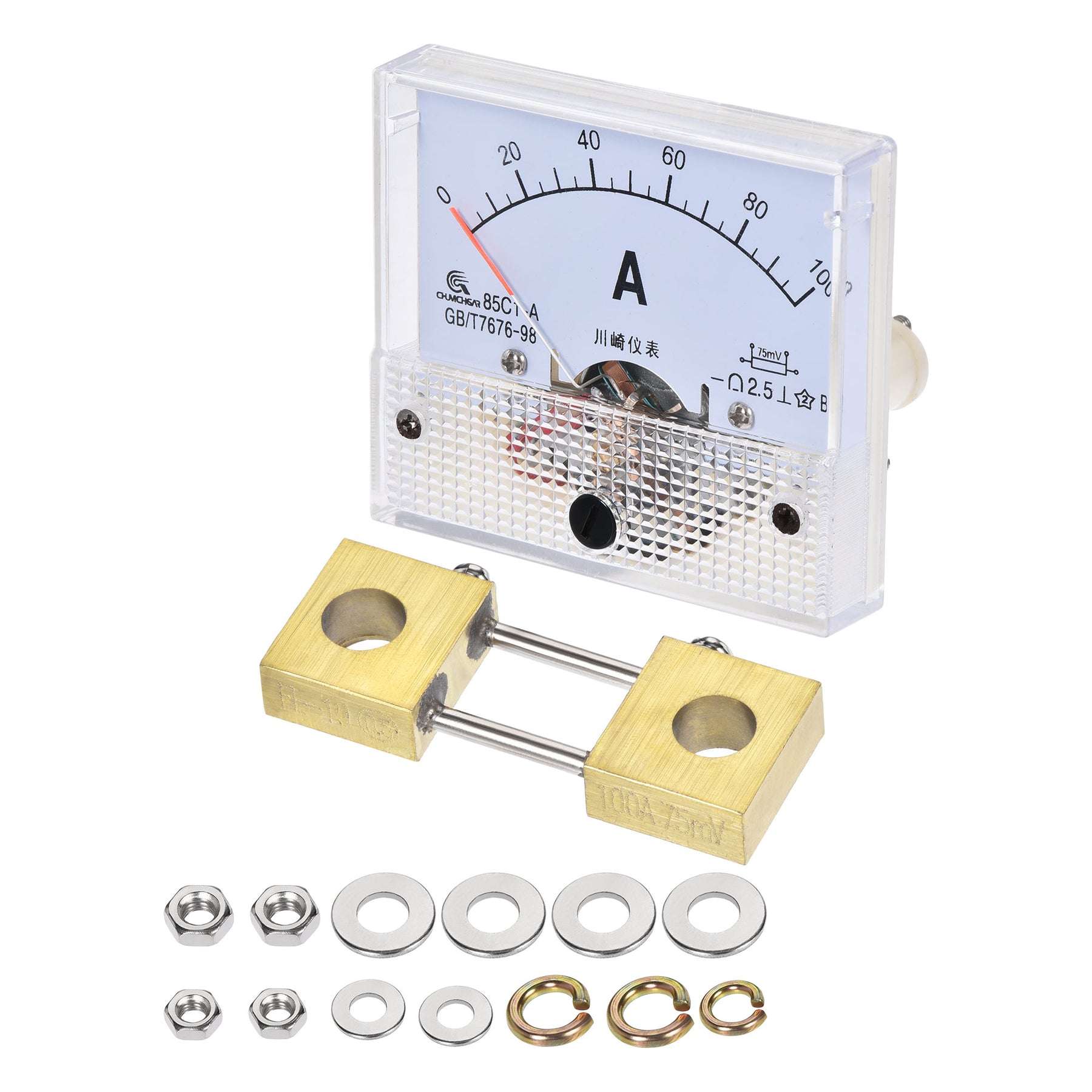

Package Includes:
1 x Shunt
1 x Analog Ammeter
Several Installing Parts
