Harfington DC48V  to DC12V 20A 240W Waterproof Power Converter Regulator Transformer

DC48V to DC12V 20A 240W Waterproof Power Converter Regulator Transformer

ID:
$22.26 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Convert unstable voltage DC 48V(38V ~ 60V) to stable DC 12V 20A 240W output.
  • Si-Fe Cores magnetic loop, high temperature resistance and super stability.
  • IP67 Protection grade, waterproof, moisture-proof and anti-shock protection.
  • Built-in over/under voltage input, overload, overheat, and short circuit protection. Widely used in buses, large trucks, motor, solar generate electricity, the display screen of bus and taxi, audio device.
  • Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
  • In stock, ready to ship
Cart
Cart
About this item
  • Convert unstable voltage DC 48V(38V ~ 60V) to stable DC 12V 20A 240W output.
  • Si-Fe Cores magnetic loop, high temperature resistance and super stability.
  • IP67 Protection grade, waterproof, moisture-proof and anti-shock protection.
  • Built-in over/under voltage input, overload, overheat, and short circuit protection. Widely used in buses, large trucks, motor, solar generate electricity, the display screen of bus and taxi, audio device.
  • Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Descriptions:
-Our Waterproof Power Converter Regulator adopts synchronous voltage regulator technology, fully import original components, can convert unstable voltage DC 48V to stable DC 12V 20A output.
-The import high heat conduction organic silica gel filling and sealing technology-Widely used in LED screen, MP3, MP4, DVD, hard disk player, stereo.
-Aluminium alloy shell with good heat conduction, waterproof.
-IP67 Protection grade, waterproof and anti-shock protection.
-More than 96% power conversion efficiency.
-Si-Fe Cores magnetic loop, high-temperature resistance, and super stability.

Instructional Manual
1. The load connected to the output end of the power regulator should not be more than MAX LISTED LOAD POWER, any higher rated load will cause broken to the power regulator.
2. Can not use a long time Under the MAX. LISTED LOAD POWER

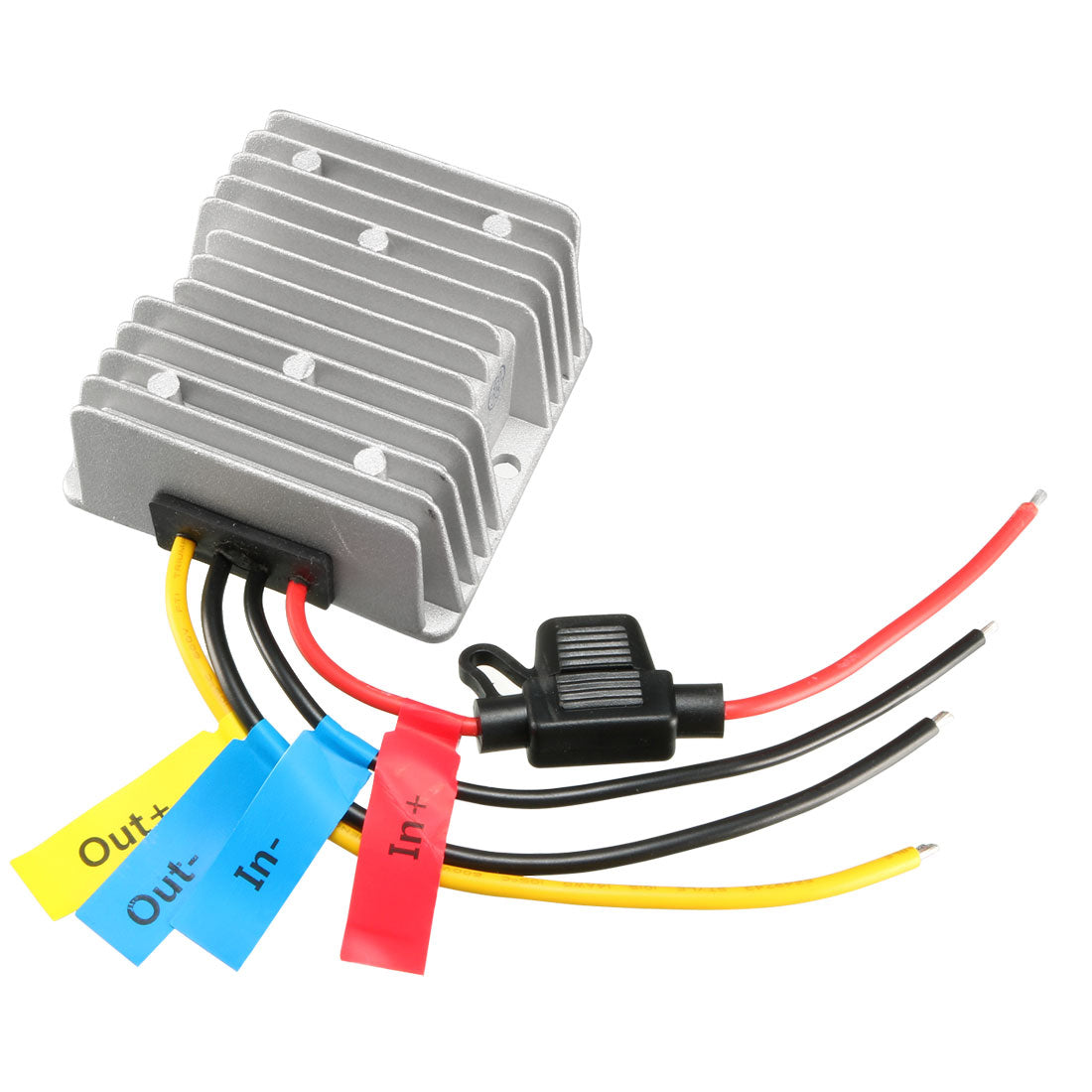

3. Please connect the converter and your device as the wiring diagram provided in the above picture

Specifications:
Product Name: Waterproof Power Converter Regulator
Input: DC 48V
Input Voltage Range: DC 38V ~ 60V
Output: DC 12V 20A 240W
Conversion Efficiency: More Than 96%
Over temperature Protection: 150C
Protection Grade: IP67

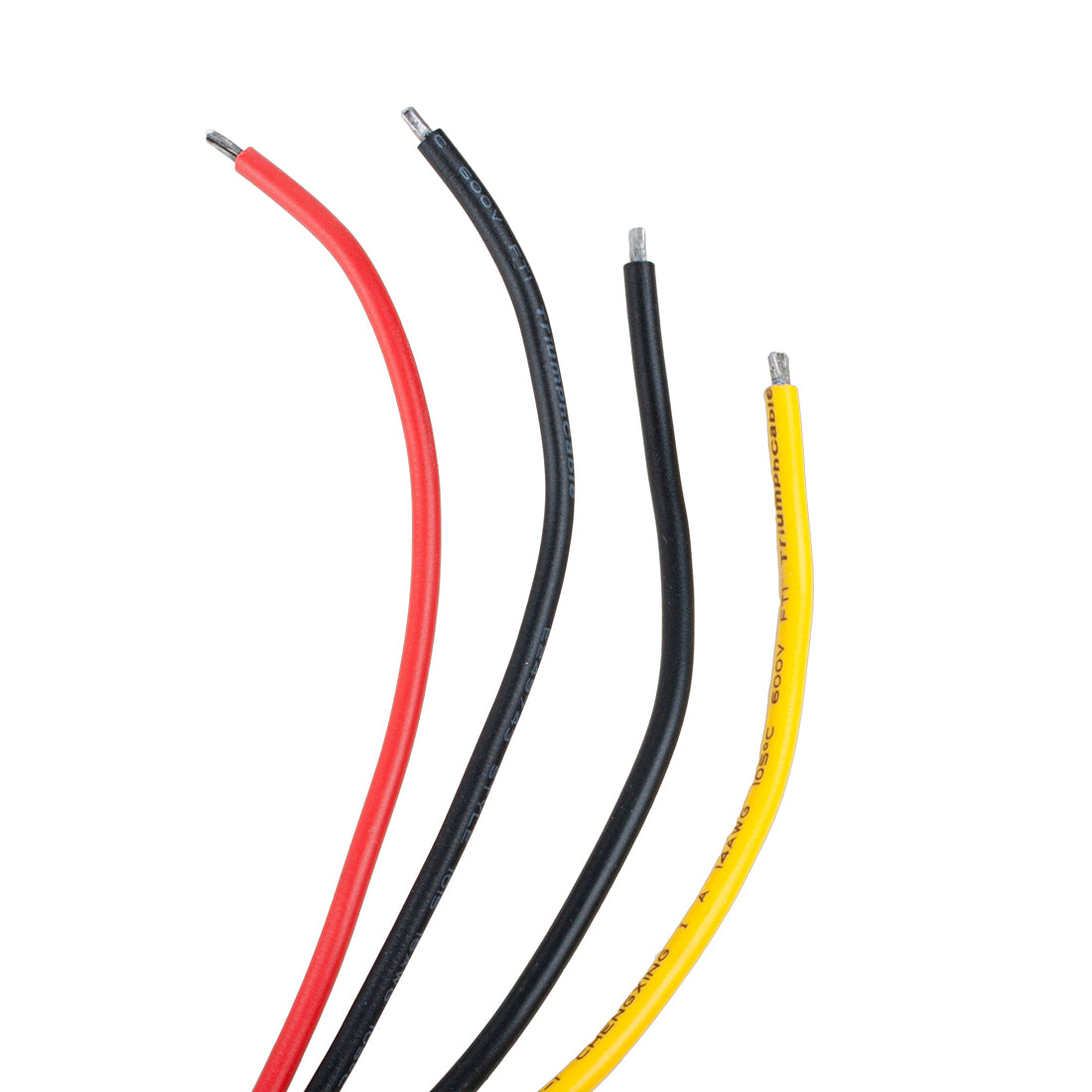

Connection Wire Length: 12cm(4.7 inches)
Mounting Hole Diameter: 5mm(0.2 inch)
Mounting Hole Distance: 65mm(2.56 inches)

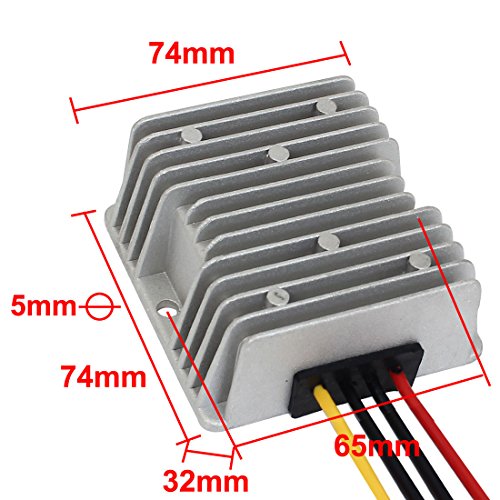

Body Size: 74mm x 74mm x 32mm(L*W*H)
Net Weight: 246g

Package Content:
1 x Waterproof Power Converter Regulator

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
