Harfington Uxcell 1K Ohm Adjustable Resistors Wire Wound Multi Turn Precision Potentiometer Pots 5pcs

Uxcell 1K Ohm Adjustable Resistors Wire Wound Multi Turn Precision Potentiometer Pots 5pcs

ID:1109352
ID:1109352
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Model: WXD3-13,Can be used as a voltage divider, rheostat, current controller
  • Resistance Value: 1K Ohm Tolerance:+/-5%
  • The role of potentiometers - regulating voltage (including DC voltage and signal voltage) is mainly used in potentiometer instruments, post and telecommunications, power equipment, railway signals, aerospace, aviation
  • , easy to weld alloy pins, nickel-plated alloy shaft, flame retardant
  • Knurled shaft with split design for push-on knob.(this item do not include Knobs)
About this item
  • Model: WXD3-13,Can be used as a voltage divider, rheostat, current controller
  • Resistance Value: 1K Ohm Tolerance:+/-5%
  • The role of potentiometers - regulating voltage (including DC voltage and signal voltage) is mainly used in potentiometer instruments, post and telecommunications, power equipment, railway signals, aerospace, aviation
  • , easy to weld alloy pins, nickel-plated alloy shaft, flame retardant
  • Knurled shaft with split design for push-on knob.(this item do not include Knobs)
Specification

Specification

SKU
a18081300ux0519
Color
Blue,Black
Nominal Resistance
1 K
Rated Power
2 W
Number Of Pin
5
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
  • Product Name: Potentiometer
  • Model:WXD3-13
  • Resistance Value: 1K ohm
  • Power: 2W
  • Tolerance:+/-5%
  • Type: Wire Wound Multi Turn
  • Terminals Number:5
  • Features:Round Shaft
  • Total Size:20.5mm x 57.9mm/0.8 x 2.28 inch (D * H)
  • Screw Thread Dia.:7.8mm/0.3 inch
  • Shaft Diameter:4mm/0.16 inch
  • Shaft Length(do not include the Screw Thread parts): 12mm/0.47 inch
  • Shaft Total Length:20mm/0.79 inch
  • Package Content:5 x Potentiometer
  • Features: 1K ohm, 5 Terminals, Single Linear, Suits Most Standard Knobs.( this item do not include Knobs)
  • Main used to control electrical devices such as volume controls on audio equipment.
  • Knurled shaft with split design for push-on knob.



US$11.69 Regular price
US/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Description

Description

  • Product Name: Potentiometer
  • Model:WXD3-13
  • Resistance Value: 1K ohm
  • Power: 2W
  • Tolerance:+/-5%
  • Type: Wire Wound Multi Turn
  • Terminals Number:5
  • Features:Round Shaft

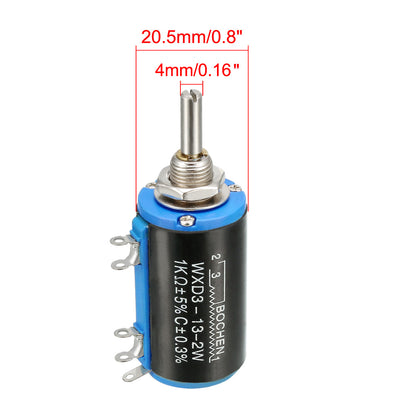

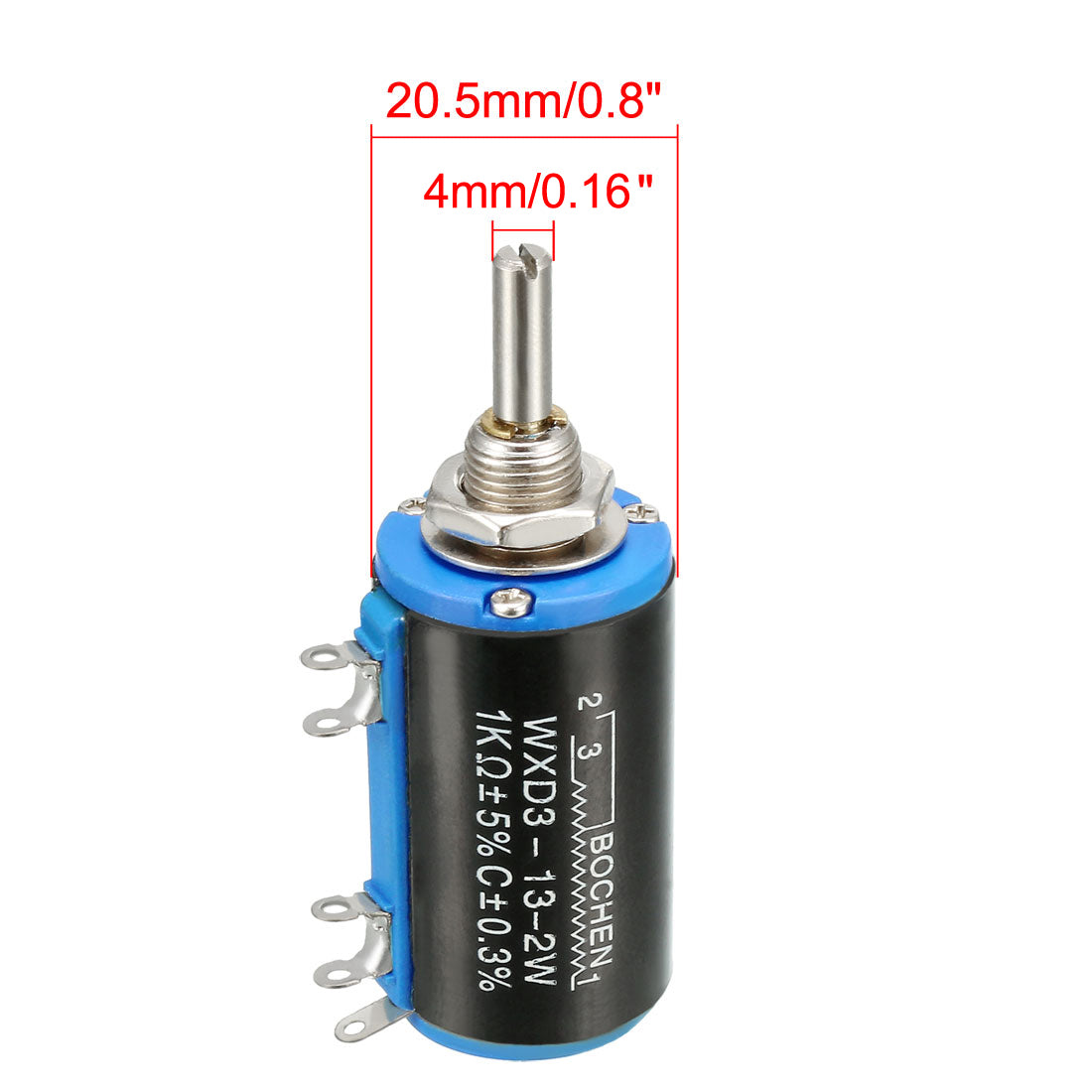

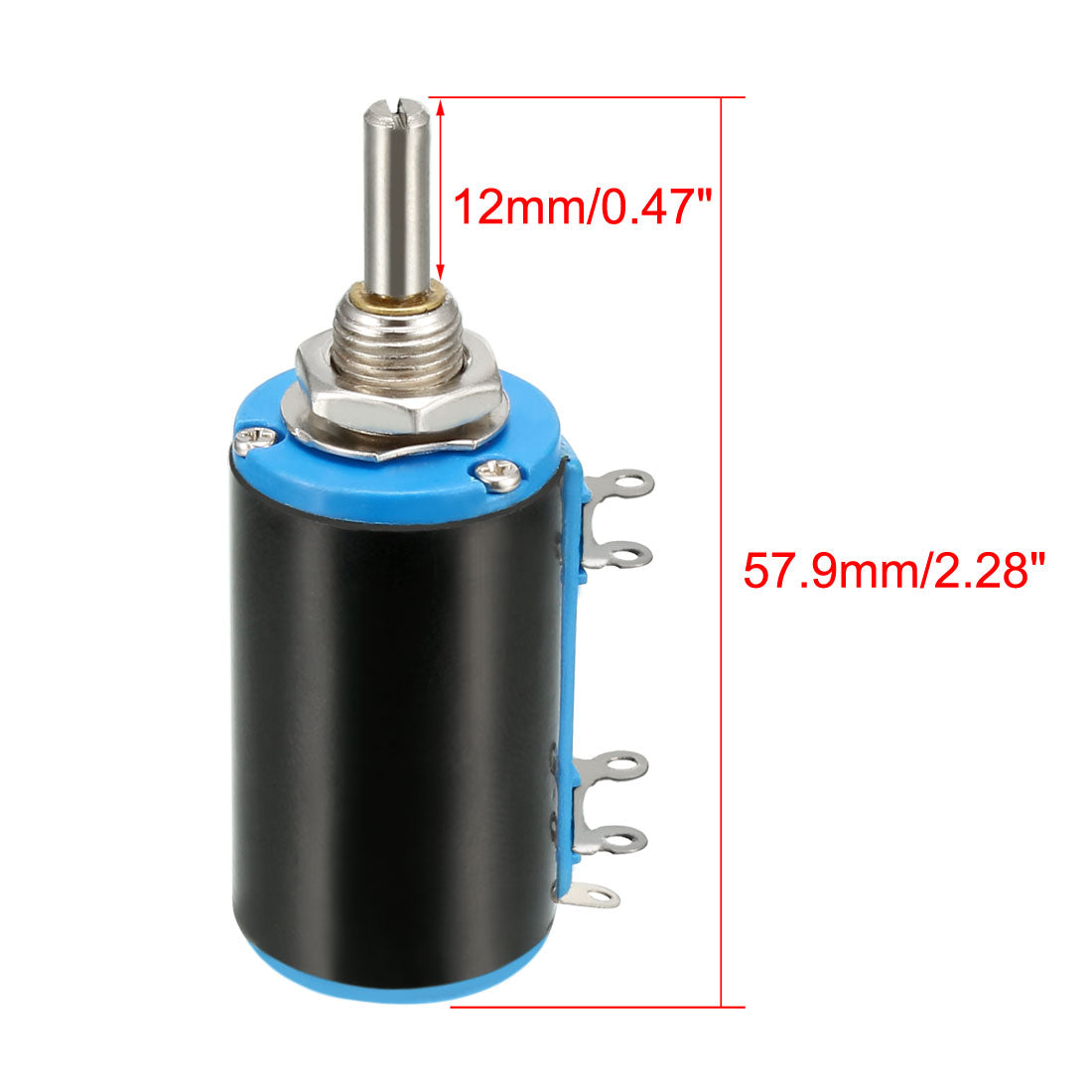

  • Total Size:20.5mm x 57.9mm/0.8 x 2.28 inch (D * H)
  • Screw Thread Dia.:7.8mm/0.3 inch
  • Shaft Diameter:4mm/0.16 inch
  • Shaft Length(do not include the Screw Thread parts): 12mm/0.47 inch
  • Shaft Total Length:20mm/0.79 inch
  • Package Content:5 x Potentiometer
  • Features: 1K ohm, 5 Terminals, Single Linear, Suits Most Standard Knobs.( this item do not include Knobs)
  • Main used to control electrical devices such as volume controls on audio equipment.
  • Knurled shaft with split design for push-on knob.
