Harfington Uxcell F688Z Flange Ball Bearing 8mmx16mmx5mm Double Metal Shielded (GCr15) Chrome Steel Bearings 10pcs

Uxcell F688Z Flange Ball Bearing 8mmx16mmx5mm Double Metal Shielded (GCr15) Chrome Steel Bearings 10pcs

ID:1107760
ID:1107760
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

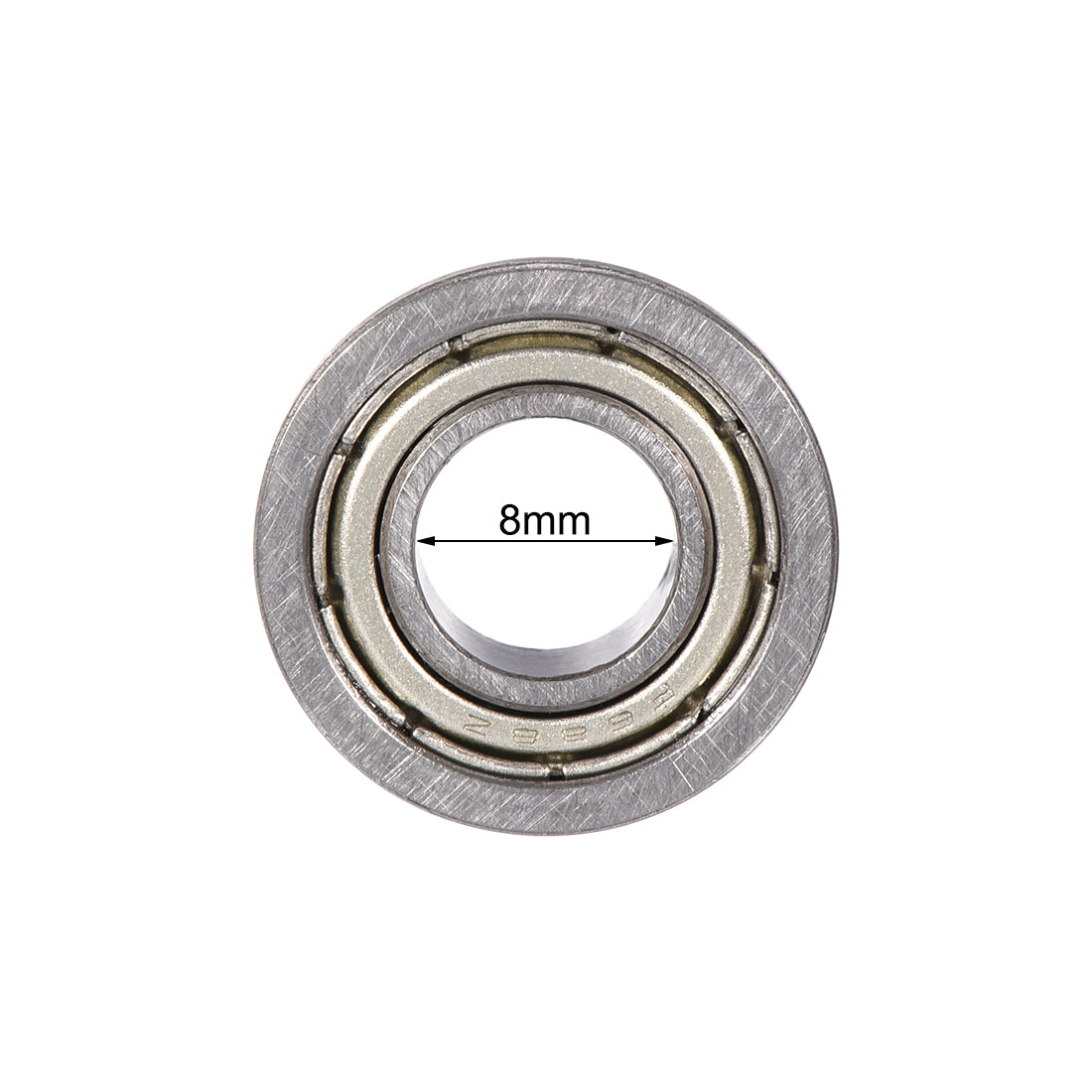

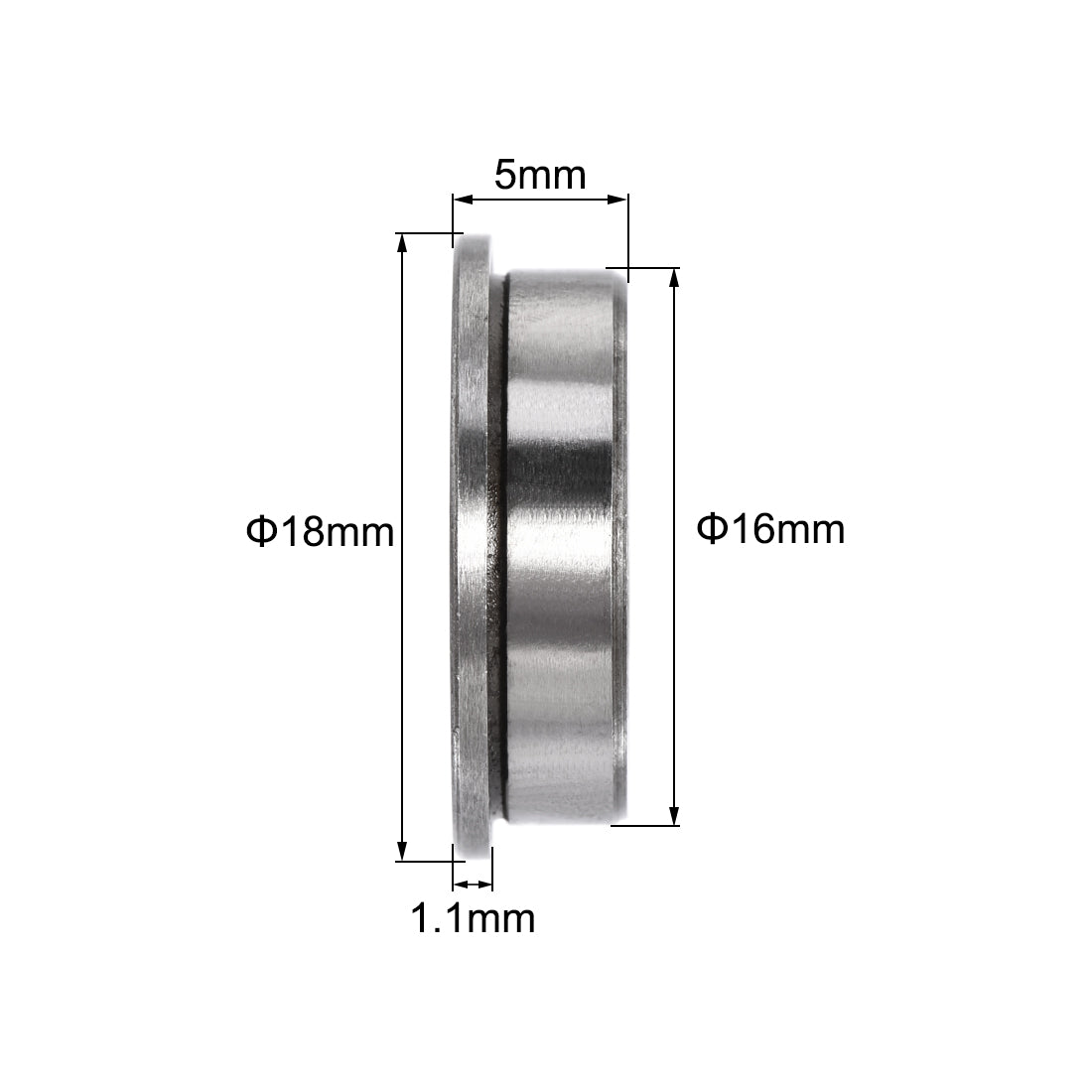

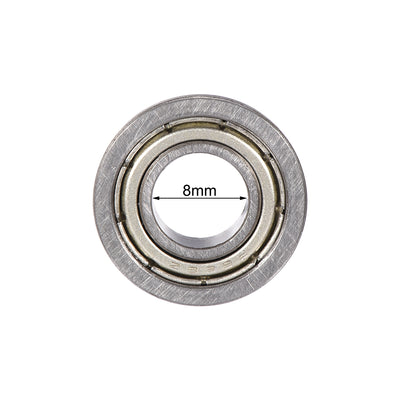

  • [Size] - F688Z ABEC1 bearing (I.D.=8mm, O.D.=16mm, Thickness=5mm, Flange Dia: 18mm).
  • [Durable] - Chrome Steel (GCr15) races offer high hardness and great wear resistance, thus extend bearings' service life.
  • [Load & Speed] - Dynamic load rating of 1064N and static load rating of 474N. The limiting speed is 36000 RPM under grease lubricating.
  • [Easy to Maintain] - Shields on both sides to keep lubricant in. Z2 noise level for most general use.
  • [Application] - Commonly used for glider/rocker arm, wheel of the cart, lawnmower, printers, fax machines, power tools, and other homemade projects.
About this item
  • [Size] - F688Z ABEC1 bearing (I.D.=8mm, O.D.=16mm, Thickness=5mm, Flange Dia: 18mm).
  • [Durable] - Chrome Steel (GCr15) races offer high hardness and great wear resistance, thus extend bearings' service life.
  • [Load & Speed] - Dynamic load rating of 1064N and static load rating of 474N. The limiting speed is 36000 RPM under grease lubricating.
  • [Easy to Maintain] - Shields on both sides to keep lubricant in. Z2 noise level for most general use.
  • [Application] - Commonly used for glider/rocker arm, wheel of the cart, lawnmower, printers, fax machines, power tools, and other homemade projects.
Specification

Specification

SKU
a19091200ux0128
Model
F688Z
Shielded type
Double Shielded
Cage material
Stamping Steel
Inner diameter (d)
8mm
Outer diameter (d)
16mm
Thickness (b)
5mm
Flange dia
18mm
Flange thickness
1.1mm
Dynamic load rating (cr)
1064 N
Static load rating (cor)
474 N
Accuracy class
P0 (ABEC1)
Noise level
Z2

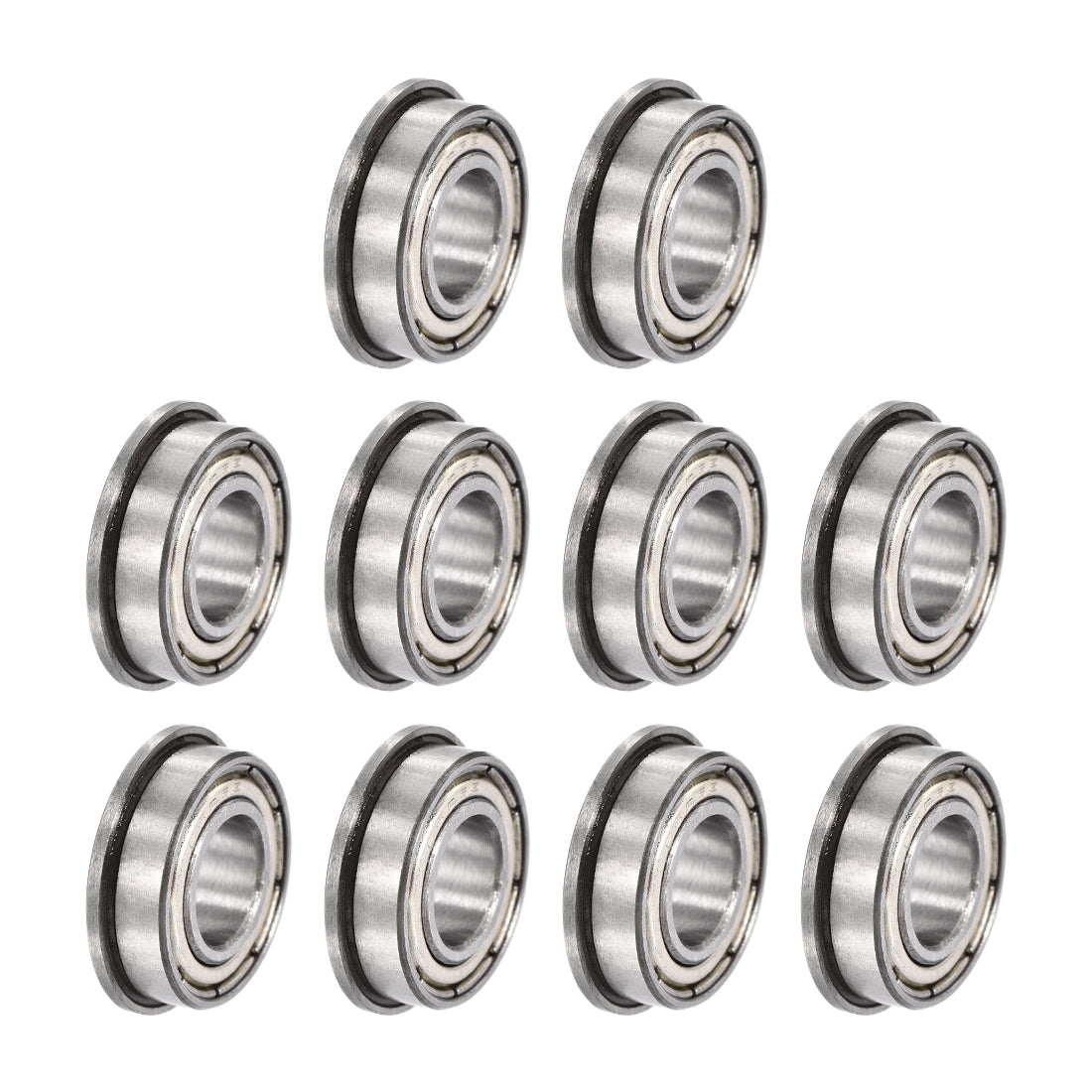

Number of pack
10 Pcs
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Note:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.


Description:

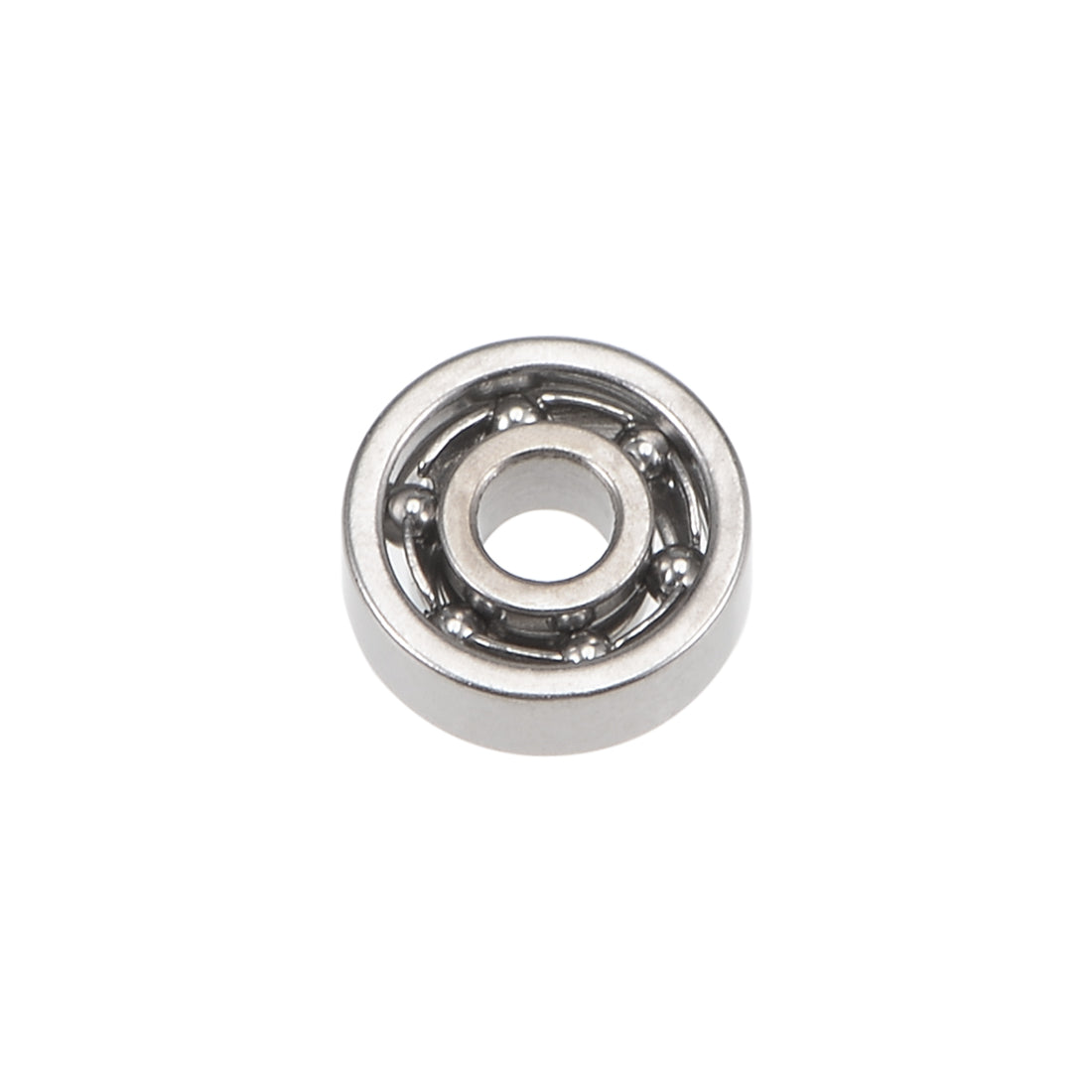

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



Specification:

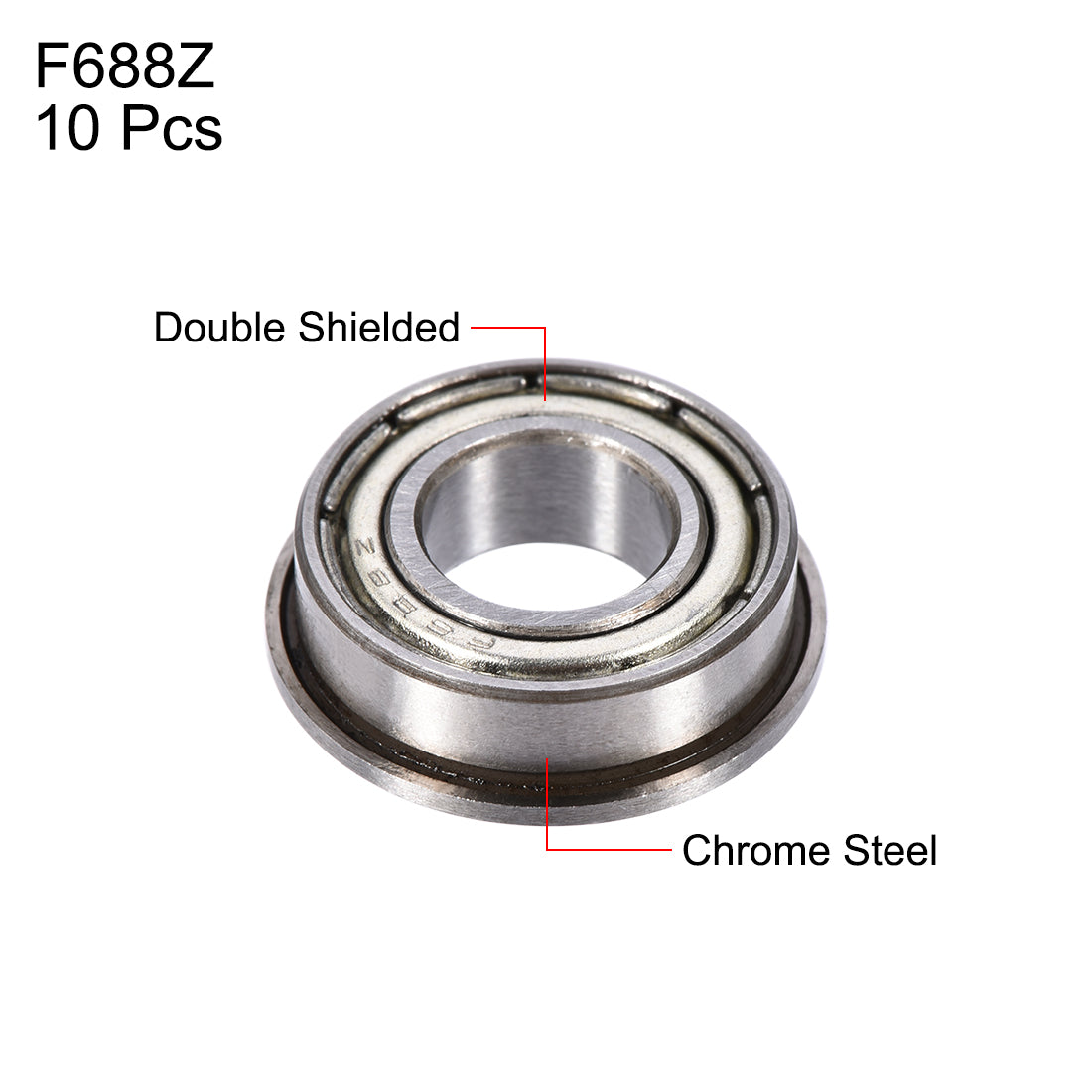

Model: F688Z

Shielded Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 8mm

Outer Diameter (D): 16mm

Thickness (B): 5mm

Flange Dia.: 18mm

Flange Thickness: 1.1mm

Dynamic Load Rating (Cr): 1064 N

Static Load Rating (Cor): 474 N

Accuracy Class: P0 (ABEC1)

Noise Level: Z2

Number of Pack: 10 Pcs

US$9.08 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Description

Description

Note:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on Both or Single side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.


Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



Specification:

Model: F688Z

Shielded Type: Double Shielded

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 8mm

Outer Diameter (D): 16mm

Thickness (B): 5mm

Flange Dia.: 18mm

Flange Thickness: 1.1mm

Dynamic Load Rating (Cr): 1064 N

Static Load Rating (Cor): 474 N

Accuracy Class: P0 (ABEC1)

Noise Level: Z2

Number of Pack: 10 Pcs
