Harfington Power Converter Regulator DC 12V Step-Up to DC 48V 1A 48W Waterproof

Power Converter Regulator DC 12V Step-Up to DC 48V 1A 48W Waterproof

ID:
$12.96 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Waterproof IP68 Voltage Converter Regulator DC 12V to DC 48V 1A 48W.
  • Protections: Over-load, Over-current, Over-temperature, Over-voltage.
  • Auto-recovery when device is back to normal operating; high transfer efficiency of 95% max..
  • Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability. Widely used in solar generate electricity, the display screen of bus and taxi device.
  • Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
  • In stock, ready to ship
Cart
Cart
About this item
  • Waterproof IP68 Voltage Converter Regulator DC 12V to DC 48V 1A 48W.
  • Protections: Over-load, Over-current, Over-temperature, Over-voltage.
  • Auto-recovery when device is back to normal operating; high transfer efficiency of 95% max..
  • Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability. Widely used in solar generate electricity, the display screen of bus and taxi device.
  • Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Product Name: Waterproof Voltage Converter Regulator DC 12V to DC 48V 1A 48W

Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry grade DC12V to DC 48V step-up converter,  efficiency up to 95%.
4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.

6. Protections: Over-current, Over-voltage, Over-temperature, Over-load and auto-recovery when device is back to normal operating.

Specifications:
* Input Rated Voltage: DC 12V
* Input Voltage Range: 10-16V DC
* Output voltage: DC48V 1A
* Output Rated Power: 48W
* Efficiency: 95% (half load); 94% (full load)
* Output Peak Power: 60W
* Ripple(full load test): Less Than 150mV
* No-load Current: 25mA

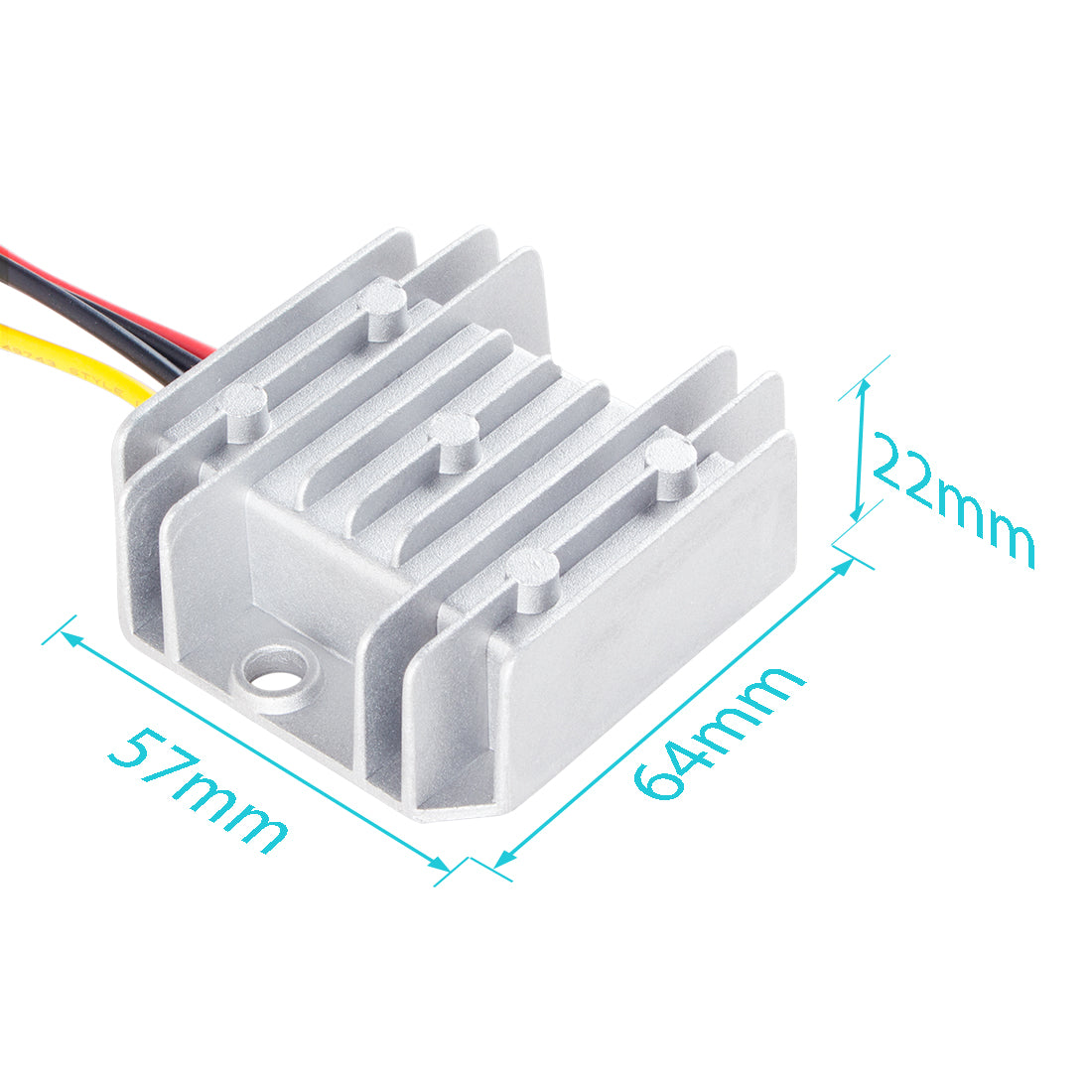

* Total Size: 57*64*22mm(L*W*H)
* Weight: 135g

Package included:
1 x DC 12V to DC 48V 1A Voltage Converter
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$12.96 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Product Name: Waterproof Voltage Converter Regulator DC 12V to DC 48V 1A 48W

Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry grade DC12V to DC 48V step-up converter,  efficiency up to 95%.
4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.

6. Protections: Over-current, Over-voltage, Over-temperature, Over-load and auto-recovery when device is back to normal operating.

Specifications:
* Input Rated Voltage: DC 12V
* Input Voltage Range: 10-16V DC
* Output voltage: DC48V 1A
* Output Rated Power: 48W
* Efficiency: 95% (half load); 94% (full load)
* Output Peak Power: 60W
* Ripple(full load test): Less Than 150mV
* No-load Current: 25mA
* Total Size: 57*64*22mm(L*W*H)
* Weight: 135g

Package included:
1 x DC 12V to DC 48V 1A Voltage Converter
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
