Harfington SMA Extension Cable SMA Male to SMA Female Antenna RF Coax Cable RG174 33 ft

SMA Extension Cable SMA Male to SMA Female Antenna RF Coax Cable RG174 33 ft

ID:
$10.83 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

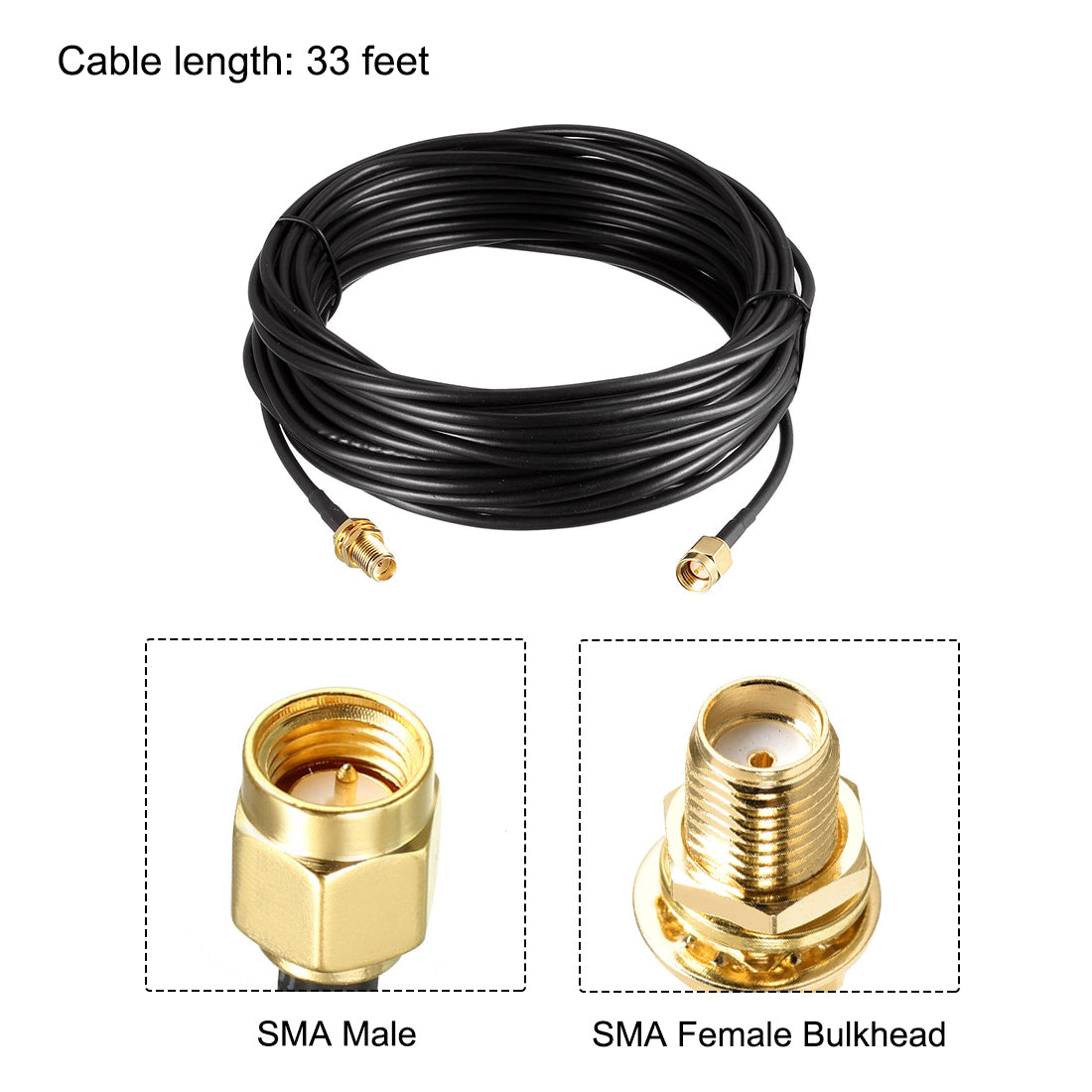

  • 【BASE INFO】Cable Type: RG174; Cable Length: 33ft/10meter; Connector 1: SMA Male; Connector 2: SMA Female Bulkhead; Impedance: 50 ohm.The male connector length is 9.5mm and the female connector length is 13mm.

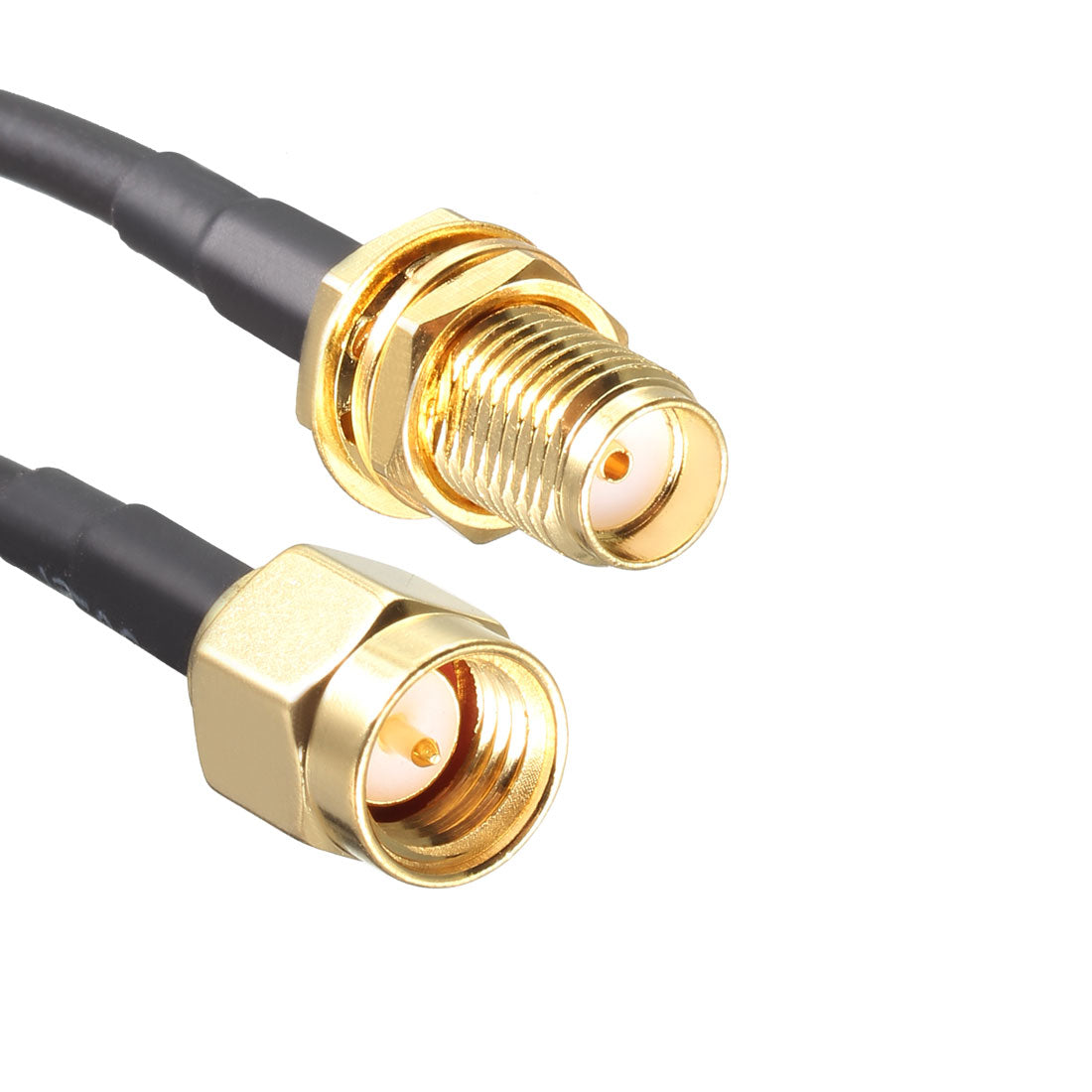

  • 【MATERIAL】With gold plated brass body and contacts, great connectivity.
  • 【APPLICATION】For wireless network signal transmission. Widely used for signal amplifier, routers, GSM, boosters,wireless module and WLAN antenna conversion.
  • 【FEATURES】High frequency and low transmission loss, low voltage standing wave rate, physical foaming flame-retardant, good weather resistant, durable use indoors and outdoors.
  • 【ADVANTAGE】RG174 coaxial cable has good anti-electromagnetic interference, with the characteristics of high temperature resistance, moisture resistance, corrosion resistance, etc. Shielding, attenuation, standing wave and other indicators have excellent electrical properties.
  • In stock, ready to ship
Cart
Cart
About this item
  • 【BASE INFO】Cable Type: RG174; Cable Length: 33ft/10meter; Connector 1: SMA Male; Connector 2: SMA Female Bulkhead; Impedance: 50 ohm.The male connector length is 9.5mm and the female connector length is 13mm.
  • 【MATERIAL】With gold plated brass body and contacts, great connectivity.
  • 【APPLICATION】For wireless network signal transmission. Widely used for signal amplifier, routers, GSM, boosters,wireless module and WLAN antenna conversion.
  • 【FEATURES】High frequency and low transmission loss, low voltage standing wave rate, physical foaming flame-retardant, good weather resistant, durable use indoors and outdoors.
  • 【ADVANTAGE】RG174 coaxial cable has good anti-electromagnetic interference, with the characteristics of high temperature resistance, moisture resistance, corrosion resistance, etc. Shielding, attenuation, standing wave and other indicators have excellent electrical properties.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Advantage:

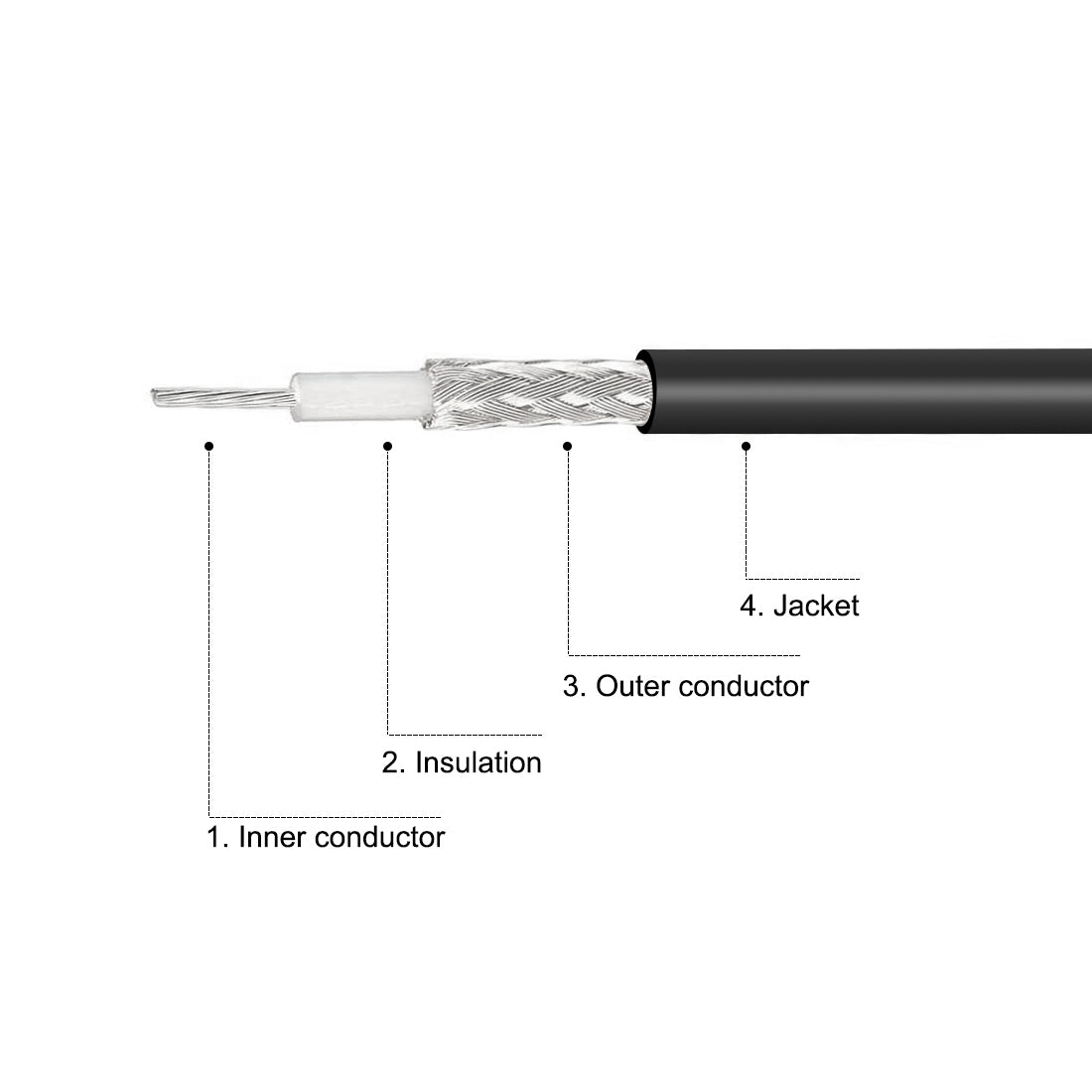

Composition: full copper gold-plated connector, thickened PVC layer, full copper braided shielding layer, solid shielding layer, pure copper wire core;

The joint has passed the 48h test of a professional salt spray testing machine, with strong anti-oxidation ability and good workmanship;

Using RG174 wire 64 density braided pure copper shielding layer, the signal is good and the attenuation is small;

The inner conductor is a full copper core multi-strand wire, with high conductivity, low resistance, low loss, and fast and stable transmission;

Professional machine cutting, standard workmanship;

Long transmission, good flexibility, easy to bend, easy to use, and compact;

Application:

wireless network card cable, router cable, antenna extension cable, network communication, smart home, property networking. For a wireless network, router, wireless module, GSM, signal amplifier, etc.

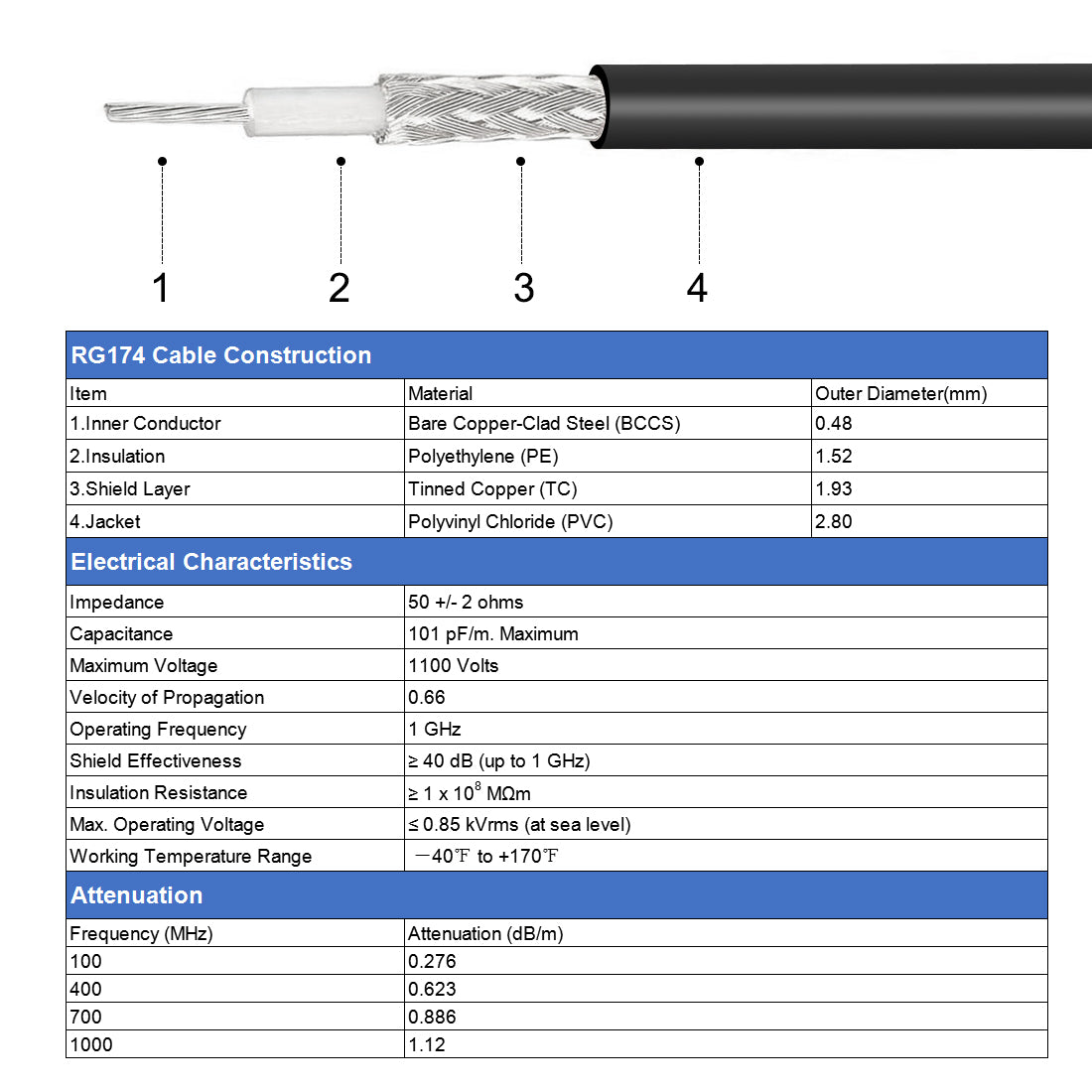

Attenuation parameter:

Normal. Attenuation(dB/m):0.276 (100MHz)

Normal. Attenuation(dB/m):0.623(400MHz)

Normal. Attenuation(dB/m):1.12(1000MHz)



Description:

RG-174 Pure Copper Coaxial Cable Low Loss for Wi-Fi Router, PCI Card, Access Point. Ultra Low Loss Extension Cable for antenna, Made from low attenuation thin RG174 Cables.



Specification:

Type: SMA Male to SMA Female

Impedance: 50 ohm

Cable length: 33 feet

Cable diameter: 0.11 inch



Package Includes:

1 x SMA Male to SMA Female Coaxial Cable
