Harfington G1/4 Mist Nozzle - 0.7mm Orifice Dia Brass Fine Atomizing Spray Tip

G1/4 Mist Nozzle - 0.7mm Orifice Dia Brass Fine Atomizing Spray Tip

ID:
$8.04 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • [Screen] - Nozzle inlet is equipped with stainless steel Screen.
  • [SIZE] - G1/4 thread diameter, 0.028" (0.7mm) Orifice Diameter.
  • [MATERIAL] - Made of brass, anti-rust, durable and have a long lifetime.
  • [Coverage Area] - No wind or breeze under the condition of a nozzle 1-3 meters height cover about 1-2 square feet.
  • [WIDELY USED] - Widely apply for garden, patio, lawn misting system, outdoor cooling, greenhouse, humidification, small fountain, etc.
  • In stock, ready to ship
Cart
Cart
About this item
  • [Screen] - Nozzle inlet is equipped with stainless steel Screen.
  • [SIZE] - G1/4 thread diameter, 0.028" (0.7mm) Orifice Diameter.
  • [MATERIAL] - Made of brass, anti-rust, durable and have a long lifetime.
  • [Coverage Area] - No wind or breeze under the condition of a nozzle 1-3 meters height cover about 1-2 square feet.
  • [WIDELY USED] - Widely apply for garden, patio, lawn misting system, outdoor cooling, greenhouse, humidification, small fountain, etc.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
  1. Made of brass, rust resistance, good thermal conductivity and heat resistance, can ensure long time using.
  2. Coverage area: no wind or breeze under the condition of a nozzle 1-3 meters height cover about 1-2 square feet.
  3. Screen: nozzle inlet is equipped with stainless steel Screen.
  4. Pattern: solid cone / conical.
  5. When the liquid in the 2-10bar pressure is medium, the pressure reaches 10-20bar, the atomization particle is about 50um, 20bar can reach the suspended fog.The greater the pressure, the better atomization effect, the maximum pressure 50-70bar.
  6. The normal spray angle is 60-80 degrees.
  7. Widely used in humidification cooling, dust cooling, fog test, artificial fog, atomized fuel, evaporation, cleaning and , and landscape fog and so on.



Specification:

Material: Brass

Thread size: G1/4

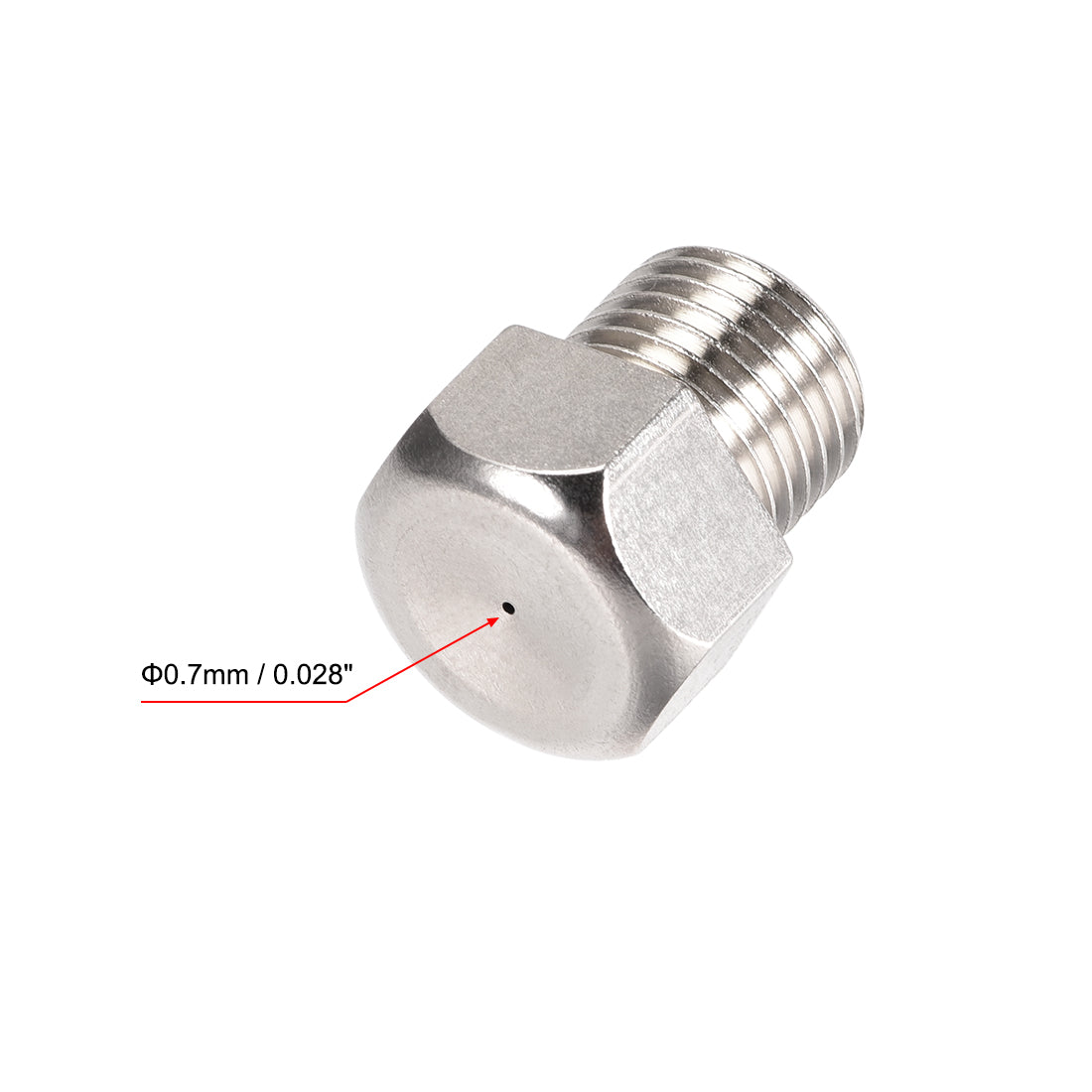

Orifice Diameter: 0.7mm / 0.028"

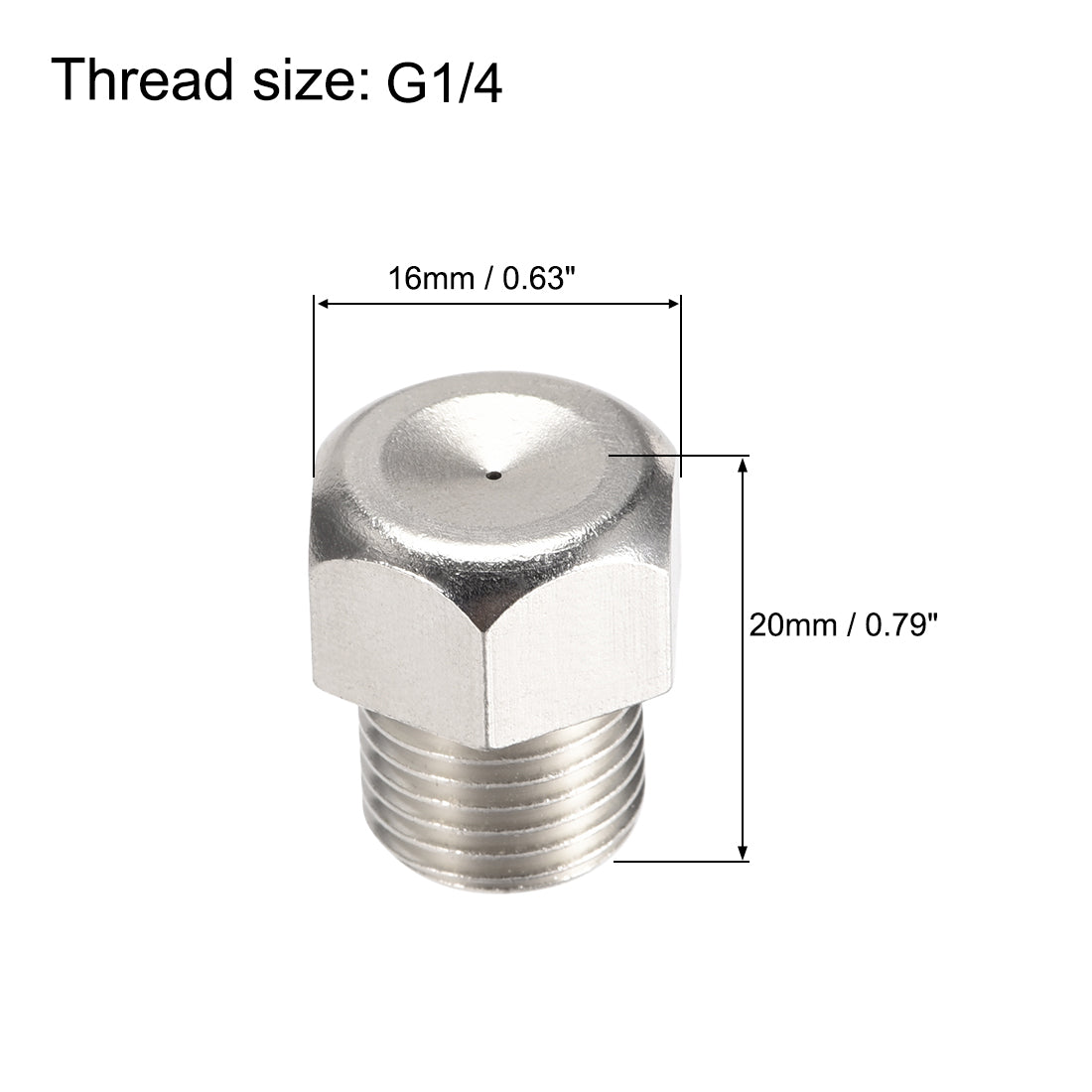

Total Size: 16mm x 20mm / 0.63" x 0.79" (Hex.Width*H)



Package Content:

1 x Misting Nozzle

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$8.04 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

  1. Made of brass, rust resistance, good thermal conductivity and heat resistance, can ensure long time using.
  2. Coverage area: no wind or breeze under the condition of a nozzle 1-3 meters height cover about 1-2 square feet.
  3. Screen: nozzle inlet is equipped with stainless steel Screen.
  4. Pattern: solid cone / conical.
  5. When the liquid in the 2-10bar pressure is medium, the pressure reaches 10-20bar, the atomization particle is about 50um, 20bar can reach the suspended fog.The greater the pressure, the better atomization effect, the maximum pressure 50-70bar.
  6. The normal spray angle is 60-80 degrees.
  7. Widely used in humidification cooling, dust cooling, fog test, artificial fog, atomized fuel, evaporation, cleaning and , and landscape fog and so on.



Specification:

Material: Brass

Thread size: G1/4

Orifice Diameter: 0.7mm / 0.028"

Total Size: 16mm x 20mm / 0.63" x 0.79" (Hex.Width*H)



Package Content:

1 x Misting Nozzle

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
