Harfington MC-51 NO Alarm Security Rolling Garage Door Contact, Magnetic Reed Switch 2Set

MC-51 NO Alarm Security Rolling Garage Door Contact, Magnetic Reed Switch 2Set

ID:
$17.65 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 10~15mm
  • [Dimension] - Cable Length: 25cm/9.8"; Total Size: 31mm x 14mm x 8mm / 1.22" x 0.55" x 0.31"(L*W*H)
  • [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance
  • [Normally Open] - N.O. means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ). When make order, pls check carefully!
  • [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.
  • In stock, ready to ship
Cart
Cart
About this item
  • [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 10~15mm
  • [Dimension] - Cable Length: 25cm/9.8"; Total Size: 31mm x 14mm x 8mm / 1.22" x 0.55" x 0.31"(L*W*H)
  • [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance
  • [Normally Open] - N.O. means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ). When make order, pls check carefully!
  • [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Description:
1.Actuation Distance:10-15mm.Silver gray zinc alloy housing.
2.The reed switch is an electrical switch operated by an applied magnetic field.
3.Designed for use with alarm systems. Great for use in family and factory window, door. etc.
4.Screw Mounted for easily install.
5.NO means Normally Open: when the magnet separate, the circuit is conductive( light on );When the magnet together, the circuit is not conductive ( light off ).When make order,pls check carefully!

Specification:
Product Name: Magnetic Door Switch
Model: MC-51
Contact Type: NO
Actuation Distance: 10-15mm
Max. Current: 0.5A
Max. Power: 10W
Working Voltage: DC100V

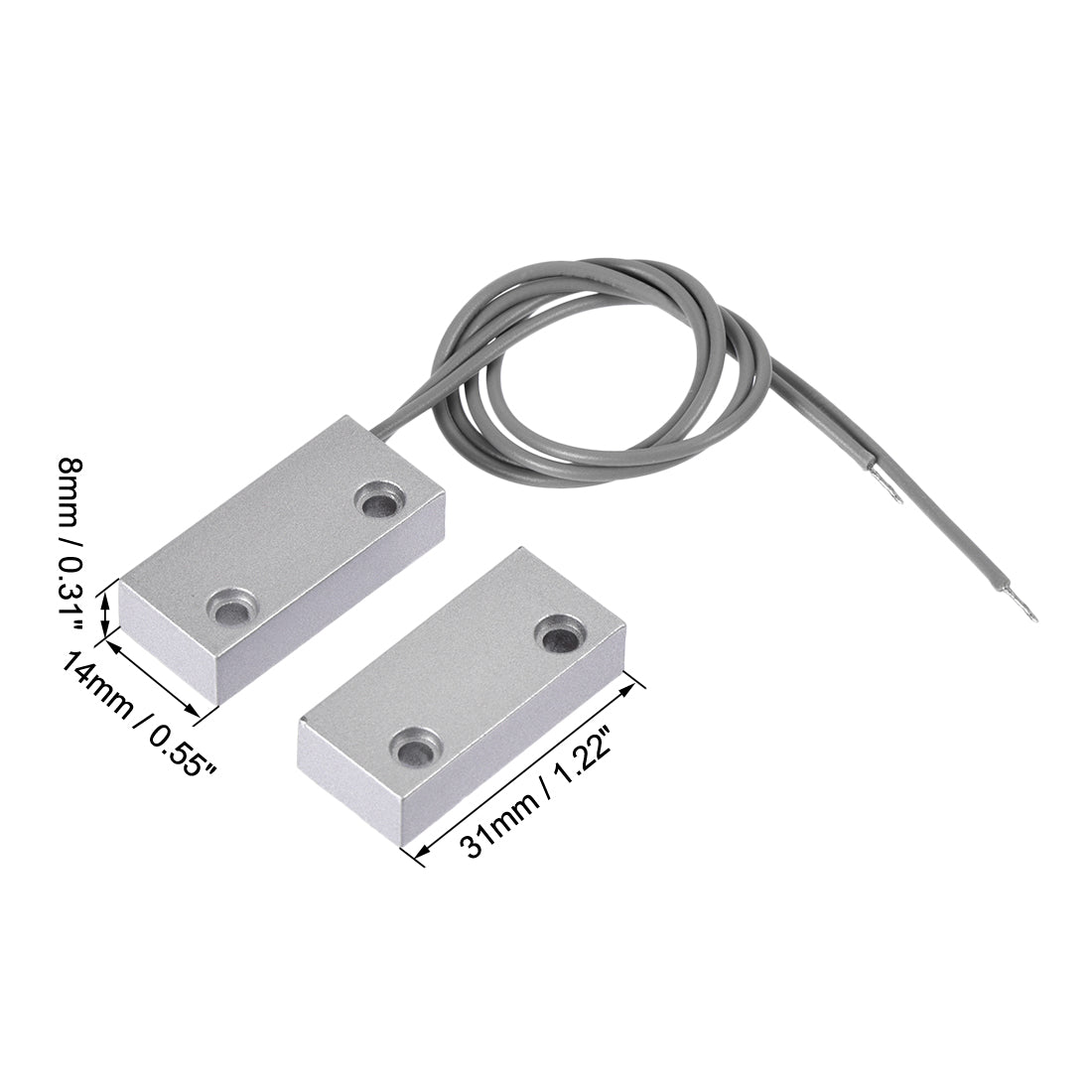

Size(Approx): 31mm x 14mm x 8mm / 1.22" x 0.55" x 0.31"(L*W*H)
Hole Dia.: 3.5mm
Cable Length(Each): 25cm / 9.8-inch
Material: Zinc Alloy (Housing)
Wire Type: 1007UL#22AWG
Color: Silver Gray
Net Weight: 91g

Package Content:

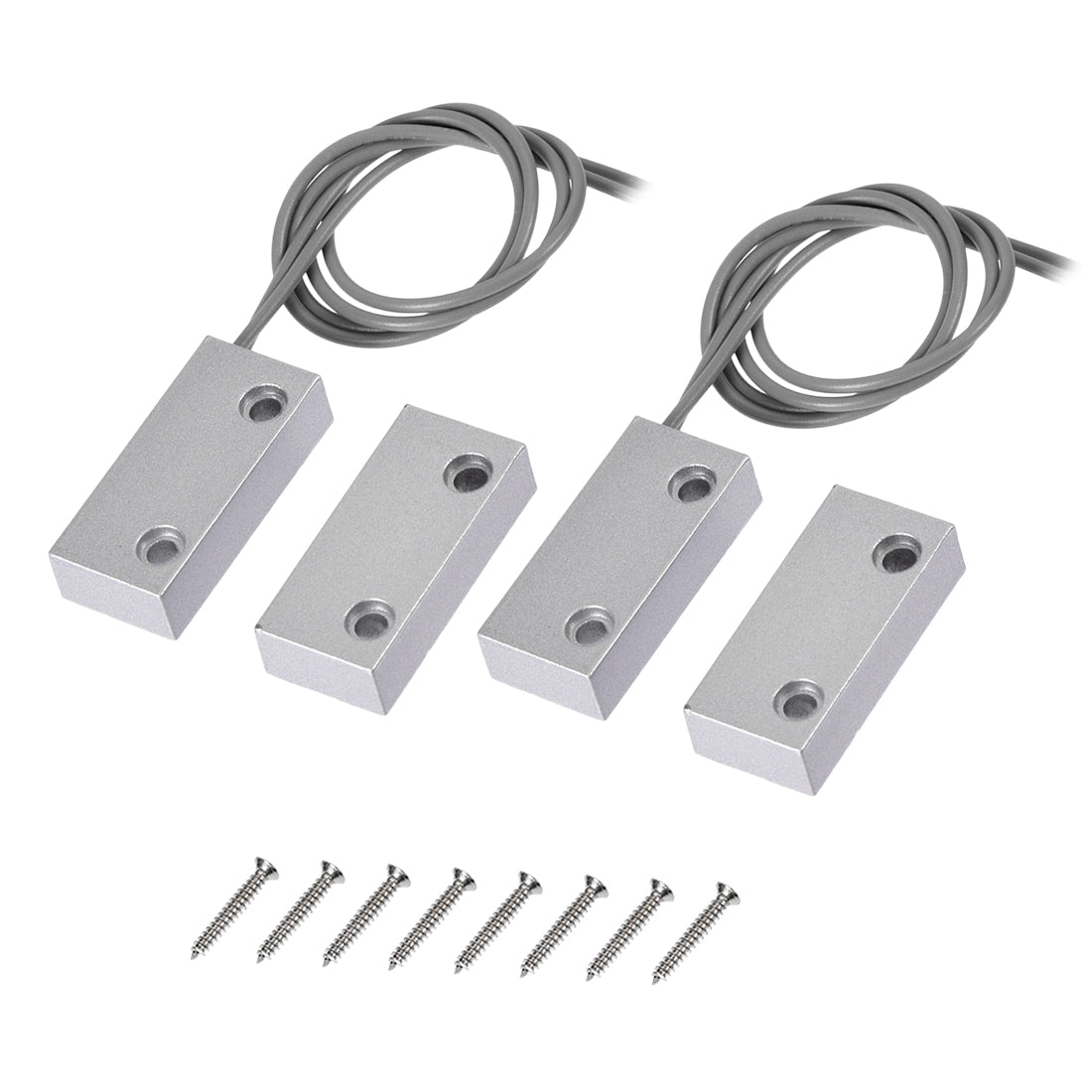

2Set x Magnetic Door Switch

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$17.65 Regular price
/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:
1.Actuation Distance:10-15mm.Silver gray zinc alloy housing.
2.The reed switch is an electrical switch operated by an applied magnetic field.
3.Designed for use with alarm systems. Great for use in family and factory window, door. etc.
4.Screw Mounted for easily install.
5.NO means Normally Open: when the magnet separate, the circuit is conductive( light on );When the magnet together, the circuit is not conductive ( light off ).When make order,pls check carefully!

Specification:
Product Name: Magnetic Door Switch
Model: MC-51
Contact Type: NO
Actuation Distance: 10-15mm
Max. Current: 0.5A
Max. Power: 10W
Working Voltage: DC100V
Size(Approx): 31mm x 14mm x 8mm / 1.22" x 0.55" x 0.31"(L*W*H)
Hole Dia.: 3.5mm
Cable Length(Each): 25cm / 9.8-inch
Material: Zinc Alloy (Housing)
Wire Type: 1007UL#22AWG
Color: Silver Gray
Net Weight: 91g

Package Content:
2Set x Magnetic Door Switch

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
