Harfington 30 Pcs M12 M18 M20 M22 M24 M25 Waterproof IP68 Nylon Cable Gland Joint Adjustable Locknut for 3mm-18mm Dia Cable Wire

30 Pcs M12 M18 M20 M22 M24 M25 Waterproof IP68 Nylon Cable Gland Joint Adjustable Locknut for 3mm-18mm Dia Cable Wire

ID:
$14.51 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Type: M12, M18, M20, M22, M24, M25, six models.
  • Thread Diameter: 0.47"(M12), 0.71"(M18), 0.79"(M20), 0.87"(M22), 0.94"(M24), 0.98"(M25).
  • Thread Length: 0.35"(M12), 0.35"(M18), 0.39"(M20), 0.39"(M22), 0.39"(M24), 0.43"(M25).
  • Fit for Cable Diameter: 0.12"-0.25"(M12), 0.2"-0.39"(M18), 0.24"-0.47"(M20), 0.39"-0.55"(M22), 0.47"-0.59"(M24), 0.51"-0.71"(M25).
  • Waterproof rated up to IP68; Waterproof, Dust-proof, Anti-acid, Anti-alcohol and so on; Package includes 30 pieces Cable Glands.
  • In stock, ready to ship
Cart
Cart
About this item
  • Type: M12, M18, M20, M22, M24, M25, six models.
  • Thread Diameter: 0.47"(M12), 0.71"(M18), 0.79"(M20), 0.87"(M22), 0.94"(M24), 0.98"(M25).
  • Thread Length: 0.35"(M12), 0.35"(M18), 0.39"(M20), 0.39"(M22), 0.39"(M24), 0.43"(M25).
  • Fit for Cable Diameter: 0.12"-0.25"(M12), 0.2"-0.39"(M18), 0.24"-0.47"(M20), 0.39"-0.55"(M22), 0.47"-0.59"(M24), 0.51"-0.71"(M25).
  • Waterproof rated up to IP68; Waterproof, Dust-proof, Anti-acid, Anti-alcohol and so on; Package includes 30 pieces Cable Glands.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Features:

* Made from nylon material.

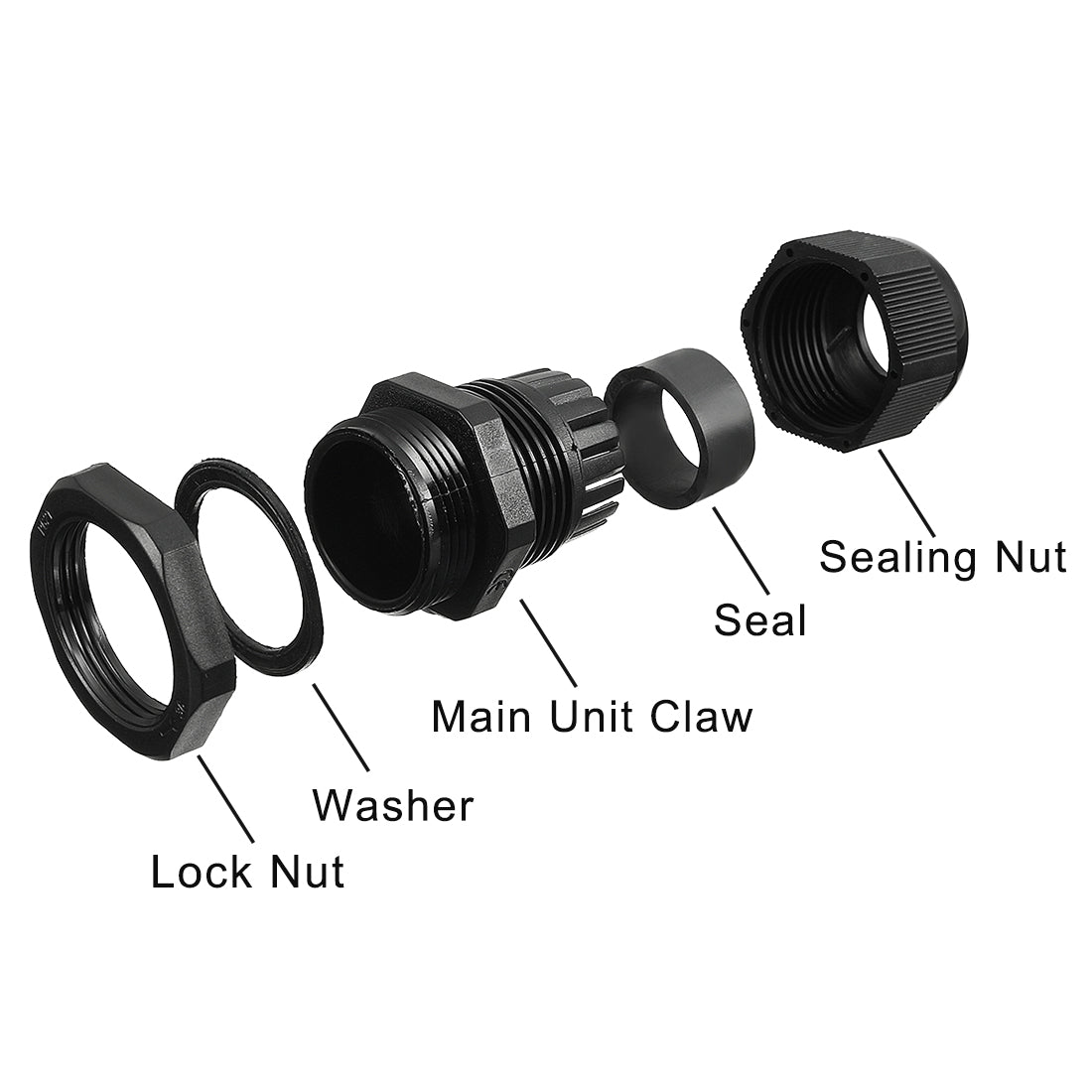

* Complete With Locknut and Washer.

* Waterproof rated up to IP68.

* Waterproof, Dust-proof, Anti-acid, Anti-alcohol and so on.

* Easy to install, and help you clamping cable.

* Ideal accessory for junction boxes etc or anything where inserting a cable could cause water to enter into live electrics, using the correct IP68 rated cable compression gland will ensure the item stays waterproof.



Specifications:

- Product Name: Cable Gland

- Material: Nylon + Rubber

- Color: Black

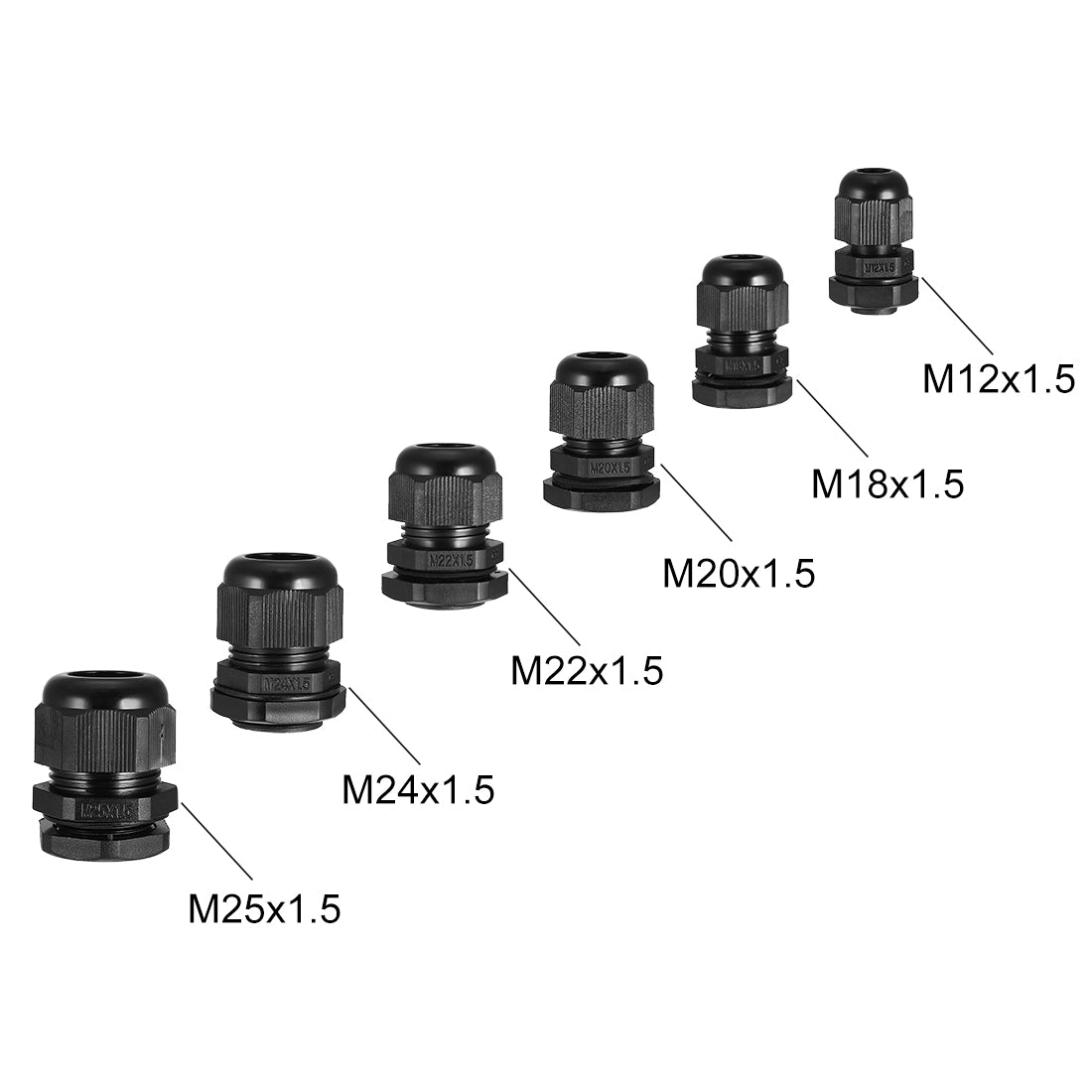

- Type: M12, M18, M20, M22, M24, M25

- Thread Diameter:

 12mm/ 0.47 inch(M12)

  18mm/ 0.71 inch(M18)

  20mm/ 0.79 inch(M20)

  22mm/ 0.87 inch(M22)

  24mm/ 0.94 inch(M24)

  25mm/ 0.98 inch(M25)

- Thread Length:

 9mm/ 0.35 inch(M12)

 9mm/ 0.35 inch(M18)

 10mm/ 0.39 inch(M20)

 10mm/ 0.39 inch(M22)

 10mm/ 0.39 inch(M24)

 11mm/ 0.43 inch(M25)

- Thread Pitch: 1.5

- Fit for Cable Diameter:

 3mm - 6.5mm/ 0.12 inch - 0.25 inch(M12)

 5mm - 10mm/ 0.2 inch - 0.39 inch(M18)

 6mm - 12mm/ 0.24 inch - 0.47 inch(M20)

 10mm - 14mm/ 0.39 inch - 0.55 inch(M22)

 12mm - 15mm/ 0.47 inch - 0.59 inch(M24)

 13mm - 18mm/ 0.51inch - 0.71 inch(M25)

- Net Weight: 358g

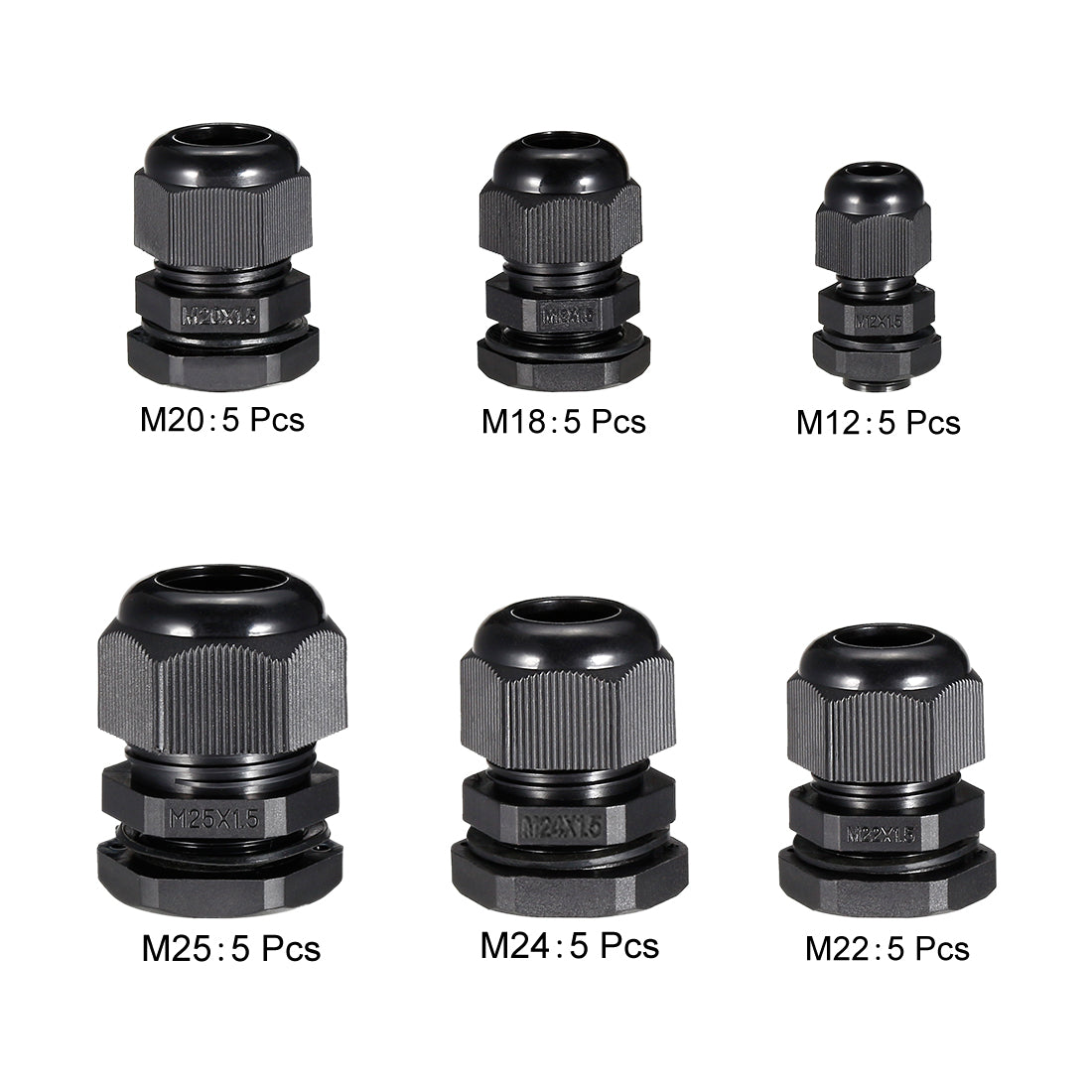

Packing Included:

5 Pcs x M12 Cable Gland

5 Pcs x M18 Cable Gland

5 Pcs x M20 Cable Gland

5 Pcs x M22 Cable Gland

5 Pcs x M24 Cable Gland

5 Pcs x M25 Cable Gland

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
