Harfington Uxcell 53mm Aquarium Tank Pool Liquid Water Level Sensor Right Angle Floating Switch White

Uxcell 53mm Aquarium Tank Pool Liquid Water Level Sensor Right Angle Floating Switch White

ID:
$6.00 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About This Item
  • Product Name : Float Switch;Max Contact Rating : Max Contact Rating;10W : 10W;Max Switching Voltage : 100V DC
  • Max Switching Current : 0.5A;Max Breakdown Voltage : 220V DC;Max Carry Current : 1.0A;Max Contact Resistance : 100mohm
  • Temperature Rating : -10 ~ +60 C / +85 C;Float Ball Material : PP;Float Body Material : PP;Float Ball Size(Approx) : 10 x 25mm / 0.4" x 1"(L*D)

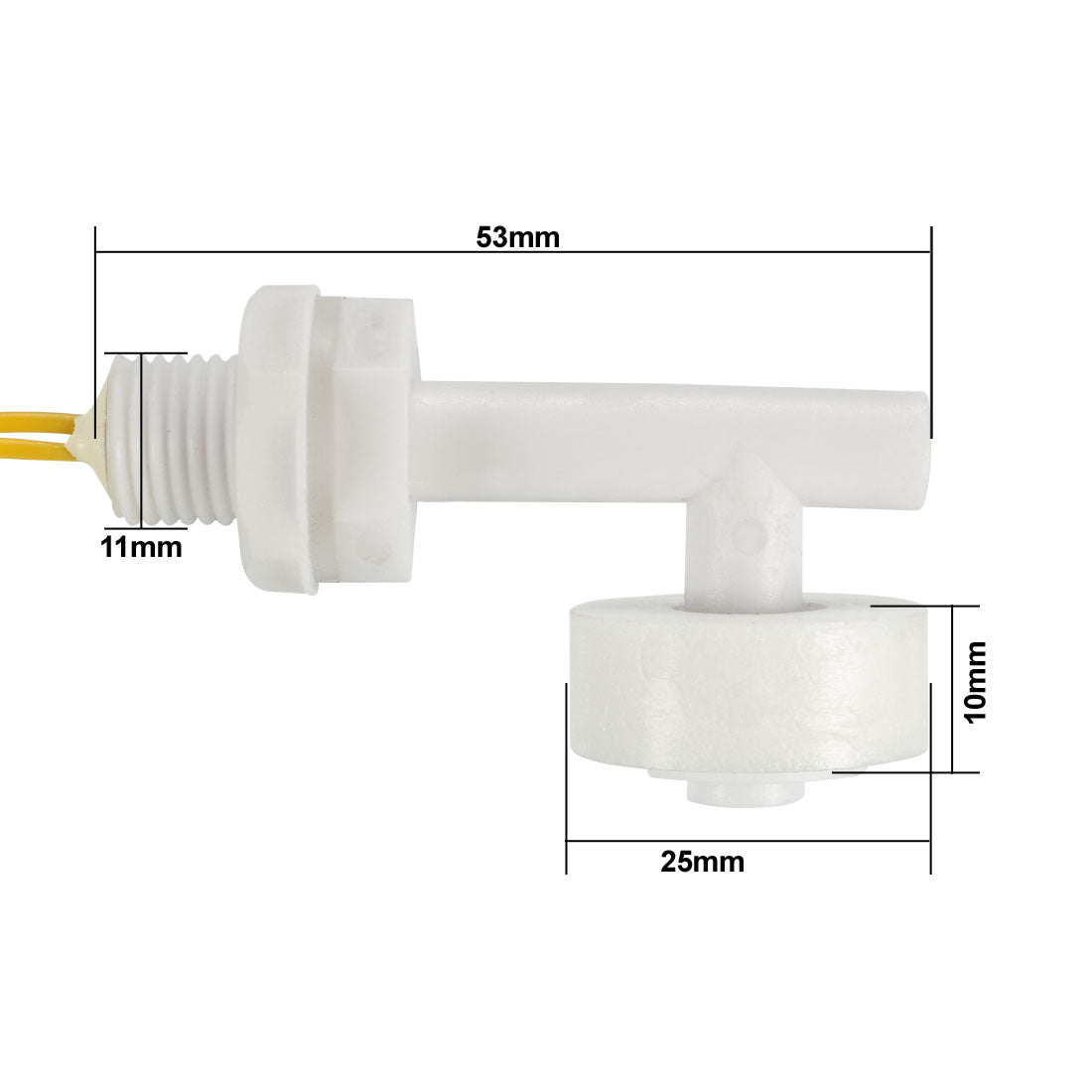

  • Thread Dia(Approx) : 11mm / 0.4";Hex Nut Diameter : 19mm / 0.7";Bottom Clip Dia(Approx) : 20mm / 0.8";Body Total Size : 53 x 33mm / 2.1" x 1.1"(L*W)
  • Cable Length : 36cm / 14.2";Color : White, Yellow;Net Weight : 12g;Package Content : 1 x Float Switch
  • In stock, ready to ship
Cart
Cart
About This Item
  • Product Name : Float Switch;Max Contact Rating : Max Contact Rating;10W : 10W;Max Switching Voltage : 100V DC
  • Max Switching Current : 0.5A;Max Breakdown Voltage : 220V DC;Max Carry Current : 1.0A;Max Contact Resistance : 100mohm
  • Temperature Rating : -10 ~ +60 C / +85 C;Float Ball Material : PP;Float Body Material : PP;Float Ball Size(Approx) : 10 x 25mm / 0.4" x 1"(L*D)
  • Thread Dia(Approx) : 11mm / 0.4";Hex Nut Diameter : 19mm / 0.7";Bottom Clip Dia(Approx) : 20mm / 0.8";Body Total Size : 53 x 33mm / 2.1" x 1.1"(L*W)
  • Cable Length : 36cm / 14.2";Color : White, Yellow;Net Weight : 12g;Package Content : 1 x Float Switch
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:
Description:
1.A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
2.Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products title ID Price Qty
Products title ID Price Qty
{[item.title]} {[item.id]} {['$' + item.price]}
Qty: {[total.qty]} Item(s)
Total Price: ${[total.price]}
View More

Description

Description

Description:
1.A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
2.Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
