Harfington Uxcell Fish Tank Liquid Water Level Sensor Vertical Float Switch Blue

Uxcell Fish Tank Liquid Water Level Sensor Vertical Float Switch Blue

ID:
$8.34 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About This Item
  • Product Name : Water Level Sensor;Contacts : NO+NC;Max Contact Rating : Max Contact Rating: 10W;Max Switching Voltage : 100V DC
  • Max Switching Current : 0.5A;Max Breakdown Voltage : 220V DC;Max Carry Current : 1.0A;Max Contact Resistance : 100m
  • Temperature Rating : -10 ~ +60 / 85 ;Float Ball Material : PP;Float Body Material : PP;Float Ball Size(Approx) : 24x 25mm / 0.953" x 1"(L*D)

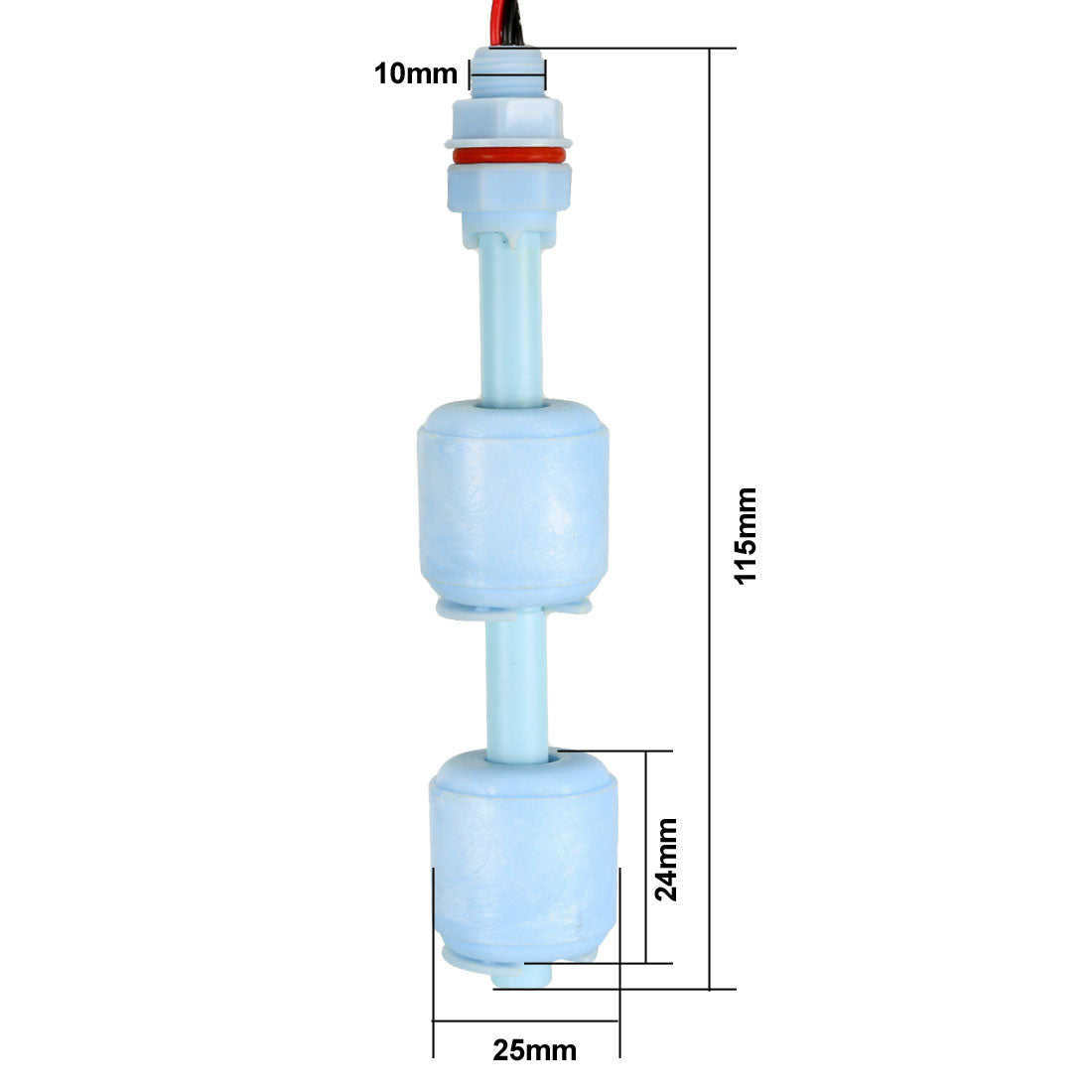

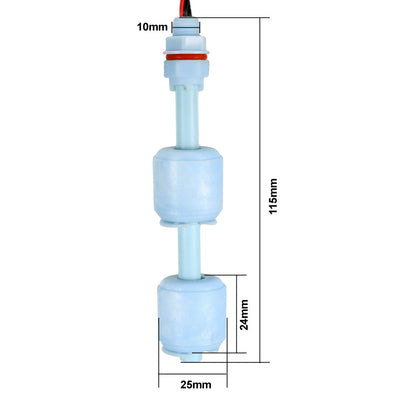

  • Thread Dia(Approx) : 10mm / 0.4";Nut Dia(Approx) : 14mm / 0.55";Bottom Clip Dia(Approx) : 20mm / 0.8";Body Total Length : 115mm / 4.5"
  • Cable Length : 40cm / 15.7";Color : Blue;Net Weight : 28g;Package Content : 1 x Water Level Sensor
  • In stock, ready to ship
Cart
Cart
About This Item
  • Product Name : Water Level Sensor;Contacts : NO+NC;Max Contact Rating : Max Contact Rating: 10W;Max Switching Voltage : 100V DC
  • Max Switching Current : 0.5A;Max Breakdown Voltage : 220V DC;Max Carry Current : 1.0A;Max Contact Resistance : 100m
  • Temperature Rating : -10 ~ +60 / 85 ;Float Ball Material : PP;Float Body Material : PP;Float Ball Size(Approx) : 24x 25mm / 0.953" x 1"(L*D)
  • Thread Dia(Approx) : 10mm / 0.4";Nut Dia(Approx) : 14mm / 0.55";Bottom Clip Dia(Approx) : 20mm / 0.8";Body Total Length : 115mm / 4.5"
  • Cable Length : 40cm / 15.7";Color : Blue;Net Weight : 28g;Package Content : 1 x Water Level Sensor
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:
Description:
A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
It can be easily converted from normally open to normally close by inverting the float.
Note:
because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products title ID Price Qty
Products title ID Price Qty
{[item.title]} {[item.id]} {['$' + item.price]}
Qty: {[total.qty]} Item(s)
Total Price: ${[total.price]}
View More

Description

Description

Description:
A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
It can be easily converted from normally open to normally close by inverting the float.
Note:
because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
