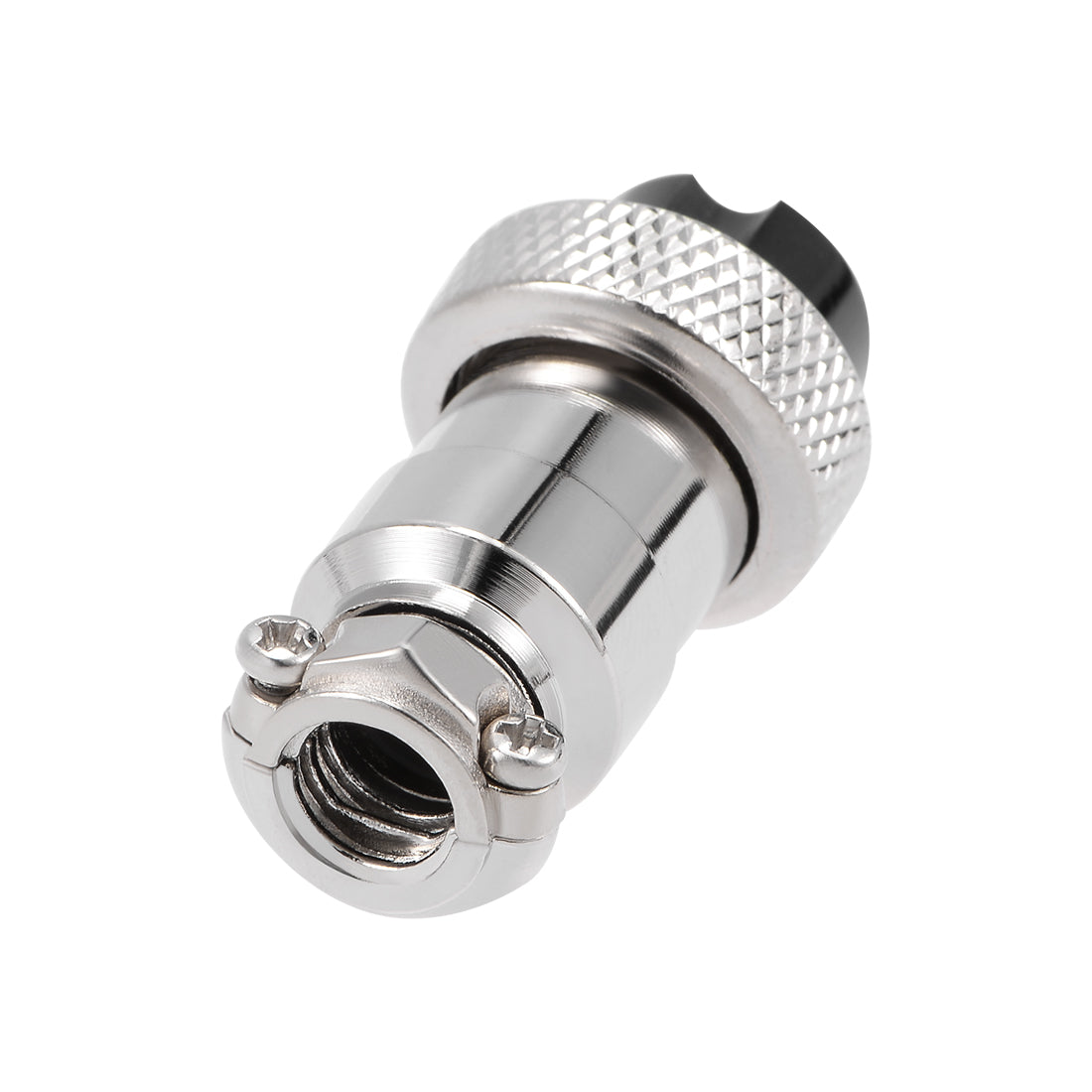

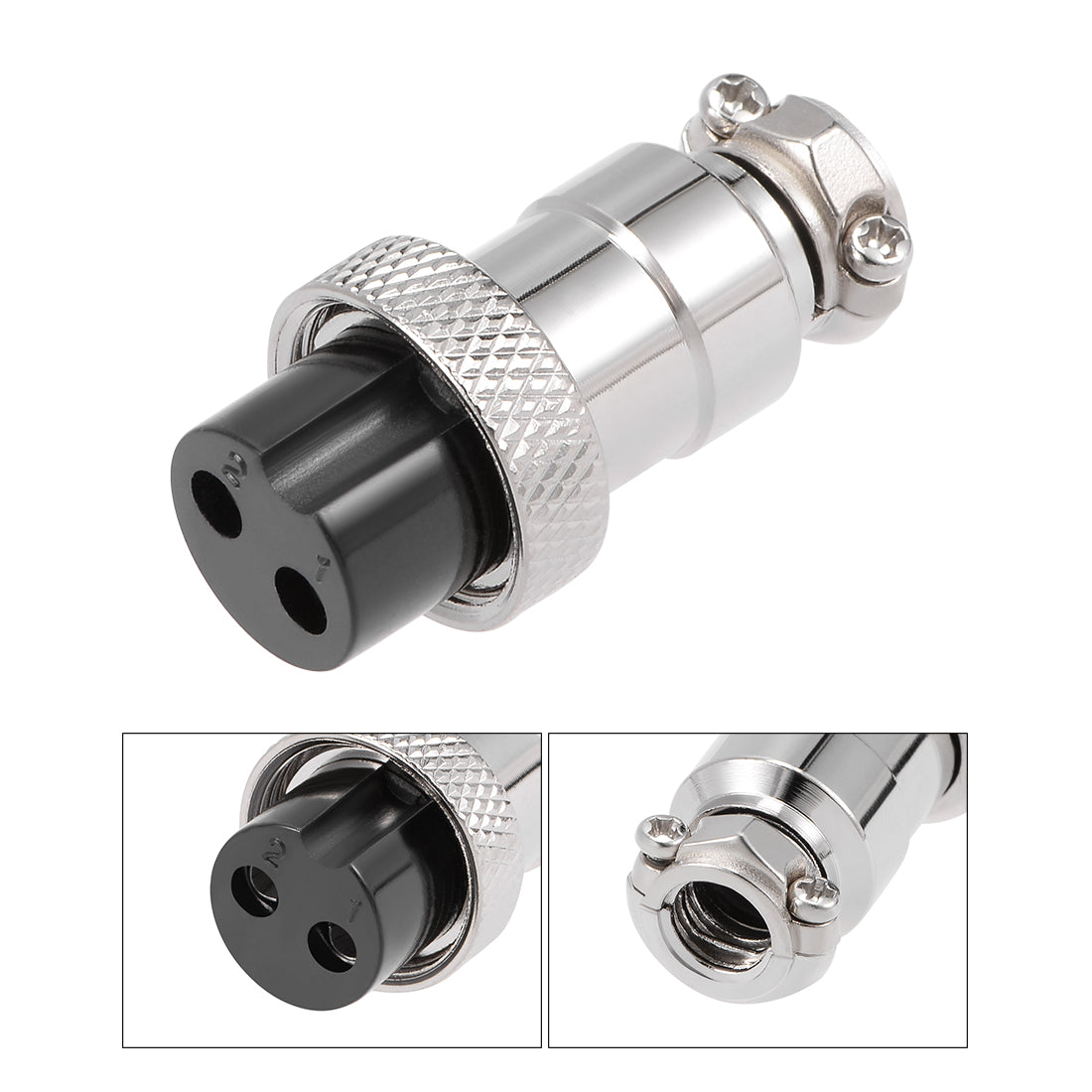

Harfington Uxcell 10PCS Aviation Connector 16mm 2P 7A 125V DF16 Waterproof Female Wire Panel Power Chassis Metal Fittings Connector Aviation Silver Tone

Uxcell 10PCS Aviation Connector 16mm 2P 7A 125V DF16 Waterproof Female Wire Panel Power Chassis Metal Fittings Connector Aviation Silver Tone

ID:
$9.85 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About This Item
  • Terminal Number: 2 Terminals; Contact Material: Brass with silver plating; Net Weight: 103g; Opening size: 16mm / 0.63"
  • Color: Silver Tone,Black; Qualification: CE; Model: DF16
  • Contact Resistance: <0.01ohm; Insulation Resistance: >2000Mohm; Temperature Range: -25~80C

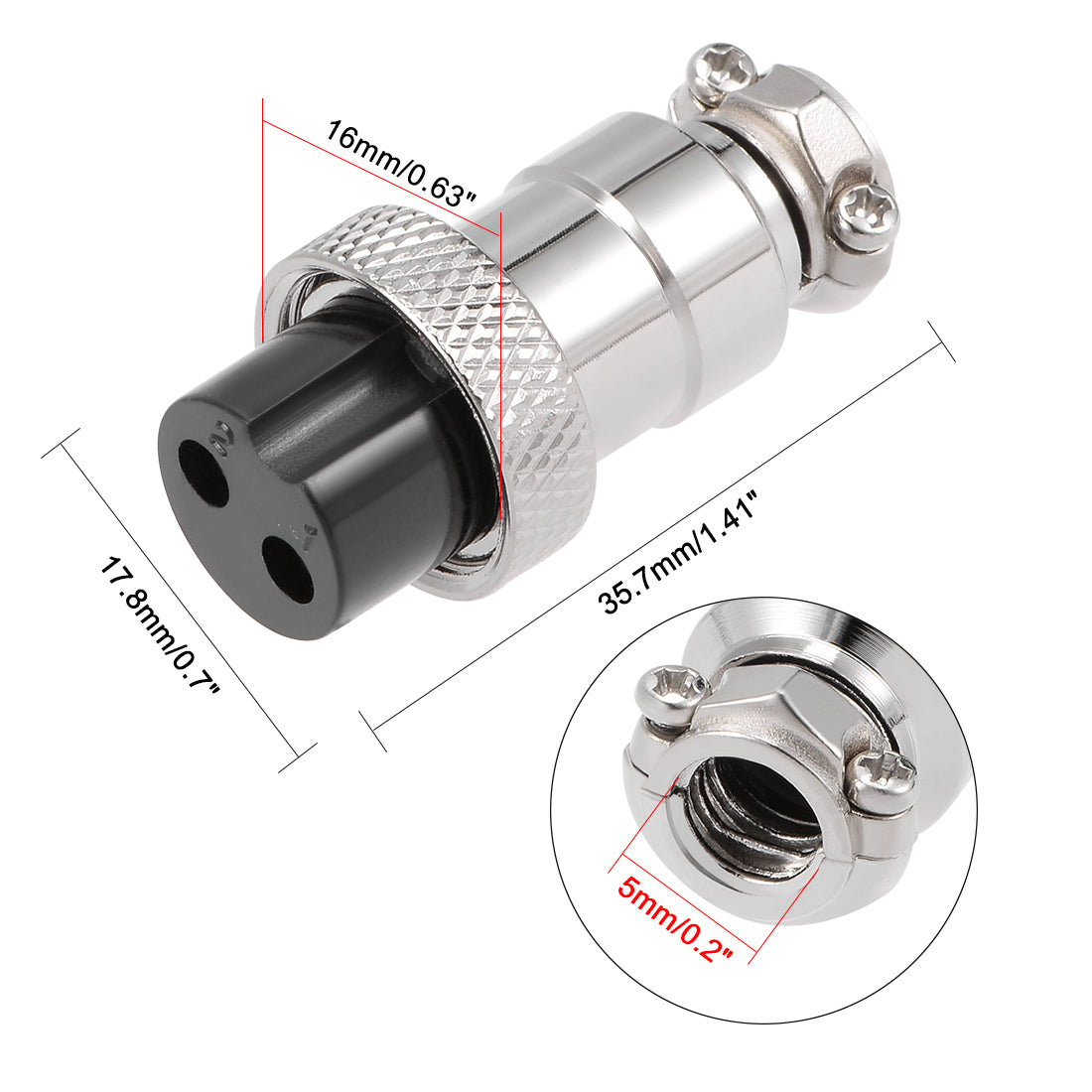

  • Size: 16mm 2P 7A 125V; Total Size: 35.7 x 17.8mm / 1.41" x 0.7" (L*D); Rated Current: 7A
  • Fit Terminal Diameter: 3mm / 0.12"; The Wire Hole Diameter: 5mm / 0.2"; Rated Voltage: 125V
  • In stock, ready to ship
Cart
Cart
About This Item
  • Terminal Number: 2 Terminals; Contact Material: Brass with silver plating; Net Weight: 103g; Opening size: 16mm / 0.63"
  • Color: Silver Tone,Black; Qualification: CE; Model: DF16
  • Contact Resistance: <0.01ohm; Insulation Resistance: >2000Mohm; Temperature Range: -25~80C
  • Size: 16mm 2P 7A 125V; Total Size: 35.7 x 17.8mm / 1.41" x 0.7" (L*D); Rated Current: 7A
  • Fit Terminal Diameter: 3mm / 0.12"; The Wire Hole Diameter: 5mm / 0.2"; Rated Voltage: 125V
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:

Description:

Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipment.

Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.

Waterproof and really a great apparatus electronic Connector.

Product Name:Aviation Connector

Model: DF16

Terminal Number: 2 Terminals

Thread Dia: 16mm/0.63inch

Rated Voltage:125V

Rated Current: 7A

Net Weight:103g

Coupling: Thread Coupling

Shell Material: Zinc alloy with chrome plating

Contact Material: Brass with gold plating

Color: Silver Tone,Black

Contact Resistance: <0.01ohm

Insulation Resistance: >2000Mohm

Temperature Range: -25~80C

Qualification: CE

Package Include:

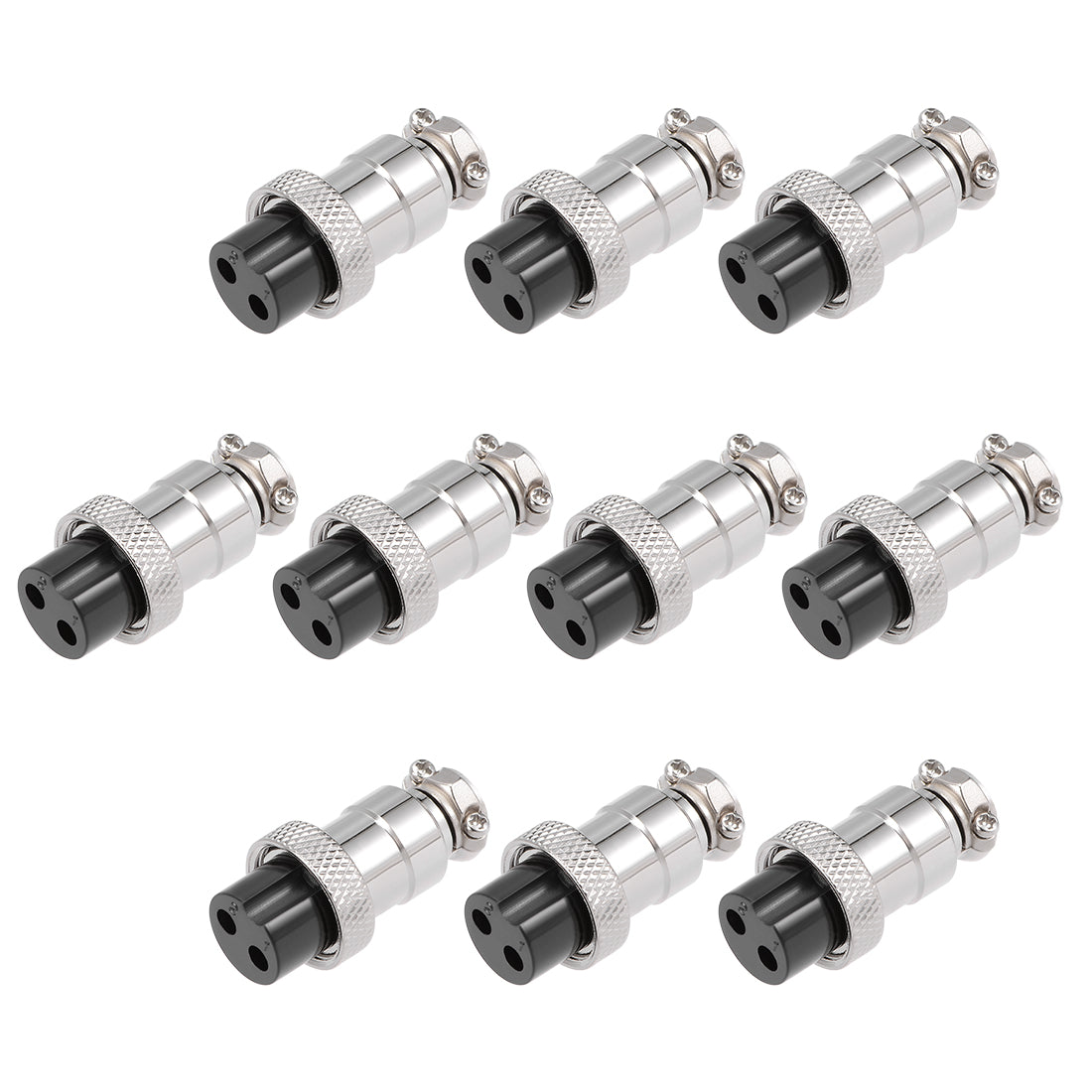

Package Content: 10 x Aviation Connector

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products title ID Price Qty
Products title ID Price Qty
{[item.title]} {[item.id]} {['$' + item.price]}
Qty: {[total.qty]} Item(s)
Total Price: ${[total.price]}
View More

Description

Description

Description:

Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipment.

Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.

Waterproof and really a great apparatus electronic Connector.

Product Name:Aviation Connector

Model: DF16

Terminal Number: 2 Terminals

Thread Dia: 16mm/0.63inch

Rated Voltage:125V

Rated Current: 7A

Net Weight:103g

Coupling: Thread Coupling

Shell Material: Zinc alloy with chrome plating

Contact Material: Brass with gold plating

Color: Silver Tone,Black

Contact Resistance: <0.01ohm

Insulation Resistance: >2000Mohm

Temperature Range: -25~80C

Qualification: CE

Package Include:

Package Content: 10 x Aviation Connector

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
