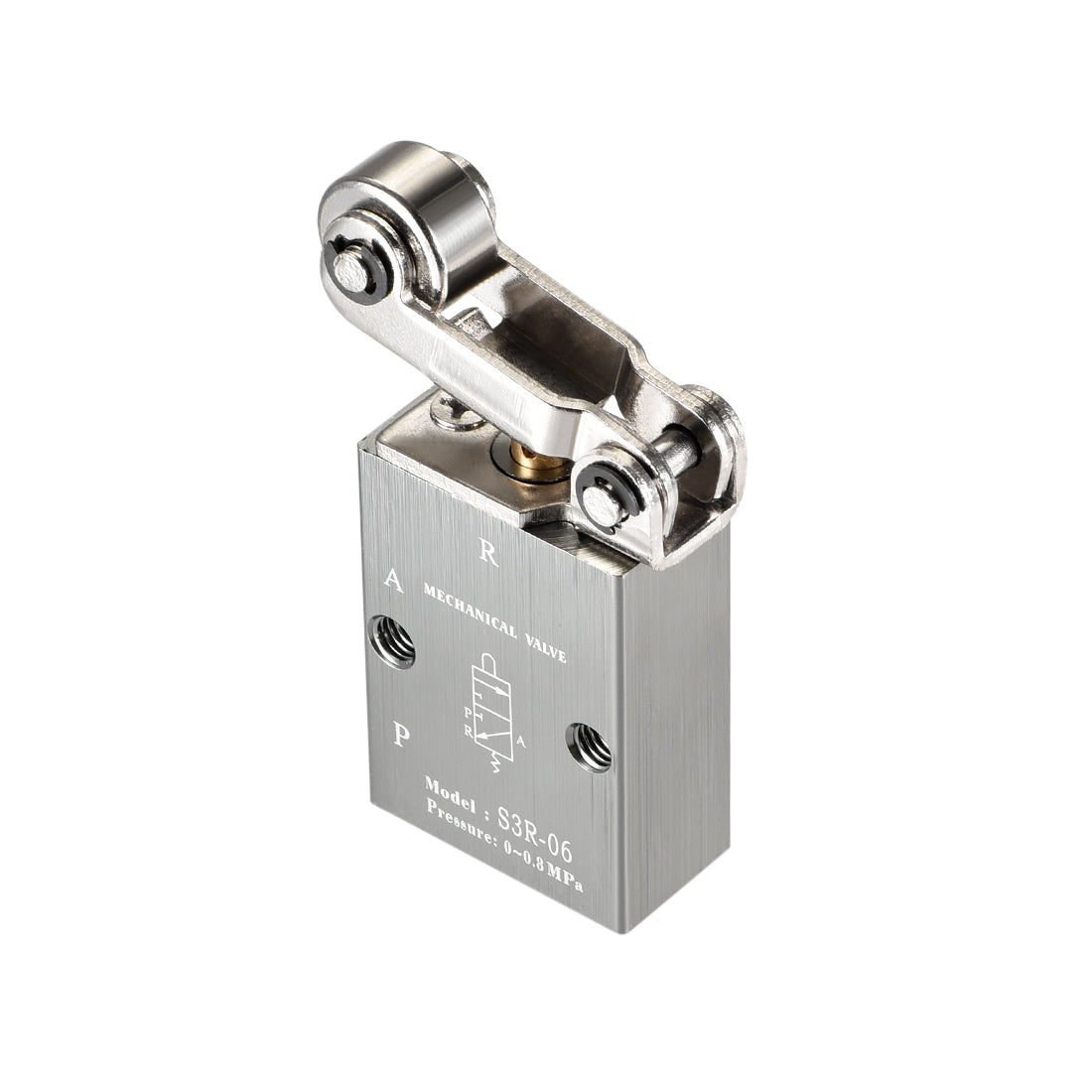

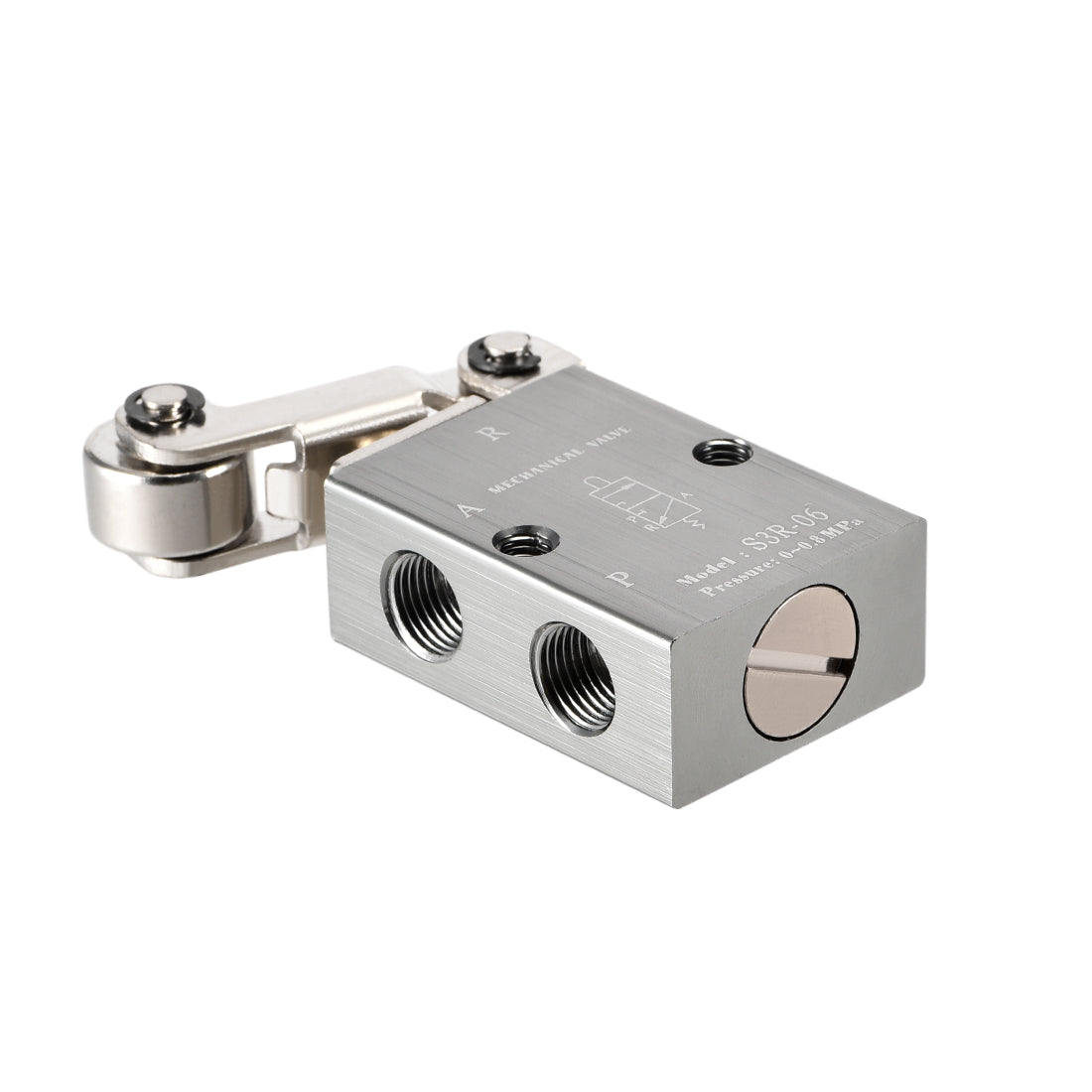

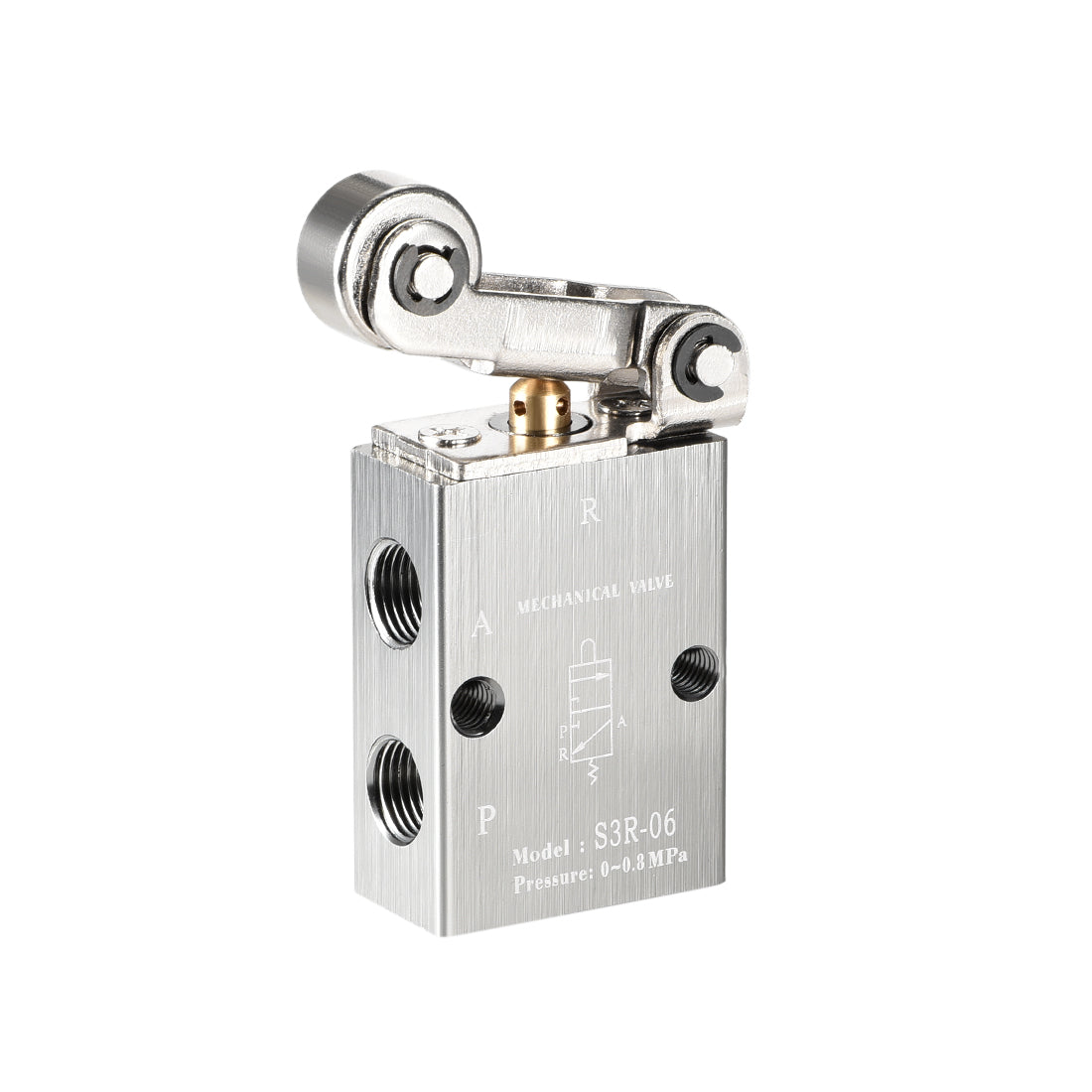

Uxcell S3R-06 2 Position 3 Way 1/8" PT Manual Hand Pull Pneumatic Solenoid Mechanical Valve

Questions & Answers |
$9.92 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
*Hardware Mixed Wholesale Price. Free Shipping on orders over $200(by UPS/DHL Air Express).
About This Item
  • UNIVERSAL DESIGN - Button Type : Handle ; Control Type : Extenal Control ; Number of Position : 2 ; Joint Pipe Size: 1/8"PT
  • ATTENTION- The Three-port two-position manual reset type manual valve adopts spring steel ball positioning, which is Responsive and easy to switch. Please pay attention to excessive force and control position error caused by mistake.
  • APPLICATION - Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
  • ADVANTAGE - The stem sealing ring has strong air tightness, good insulation, corrosion resistance, heat resistance .The inside of the valve body is smooth and burrfree, smooth and easy to use, and has a long life.
  • MATERIAL - It adopts pure aluminum valve body, fully automatic machining center processing, surface frosting treatment, strong wear resistance and long service life.
  • In stock, ready to ship
Cart
Cart
About This Item
  • UNIVERSAL DESIGN - Button Type : Handle ; Control Type : Extenal Control ; Number of Position : 2 ; Joint Pipe Size: 1/8"PT
  • ATTENTION- The Three-port two-position manual reset type manual valve adopts spring steel ball positioning, which is Responsive and easy to switch. Please pay attention to excessive force and control position error caused by mistake.
  • APPLICATION - Single Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
  • ADVANTAGE - The stem sealing ring has strong air tightness, good insulation, corrosion resistance, heat resistance .The inside of the valve body is smooth and burrfree, smooth and easy to use, and has a long life.
  • MATERIAL - It adopts pure aluminum valve body, fully automatic machining center processing, surface frosting treatment, strong wear resistance and long service life.
Free Shipping to the {[currentShipping.abbr]} over {[currentShipping.price]}
Estimated shipping time will be within {[currentShipping.days]} days
Shipping Method

Ship to

Total Delivery Time = Processing Time + Shipping Time
30 Day Free Return
Wholesale Inquiry
* Product Name
* Quantity(Each)
* Email Address
Customer Name
Expected Arrival Time
Customer Note
0/990
If you want to consult the bulk order, you can submit a inquiry or contact us .
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:

Specification:

Product Name : Mechanical Valve

Model: S3R-06

Weight: 98g

Color : Silver Tone

CV values: 8mm2

Button Type : Handle

Number of Position : 2

Joint Pipe Size: 1/8"PT

Control Type : Extenal Control

Mounting hole Size :4.5mm / 0.18"

Seal material: NBR

Main parts material: Aluminum alloy

Working pressure: 0~0.8mpa

Operating temperature: -5~60 Degree Celsius

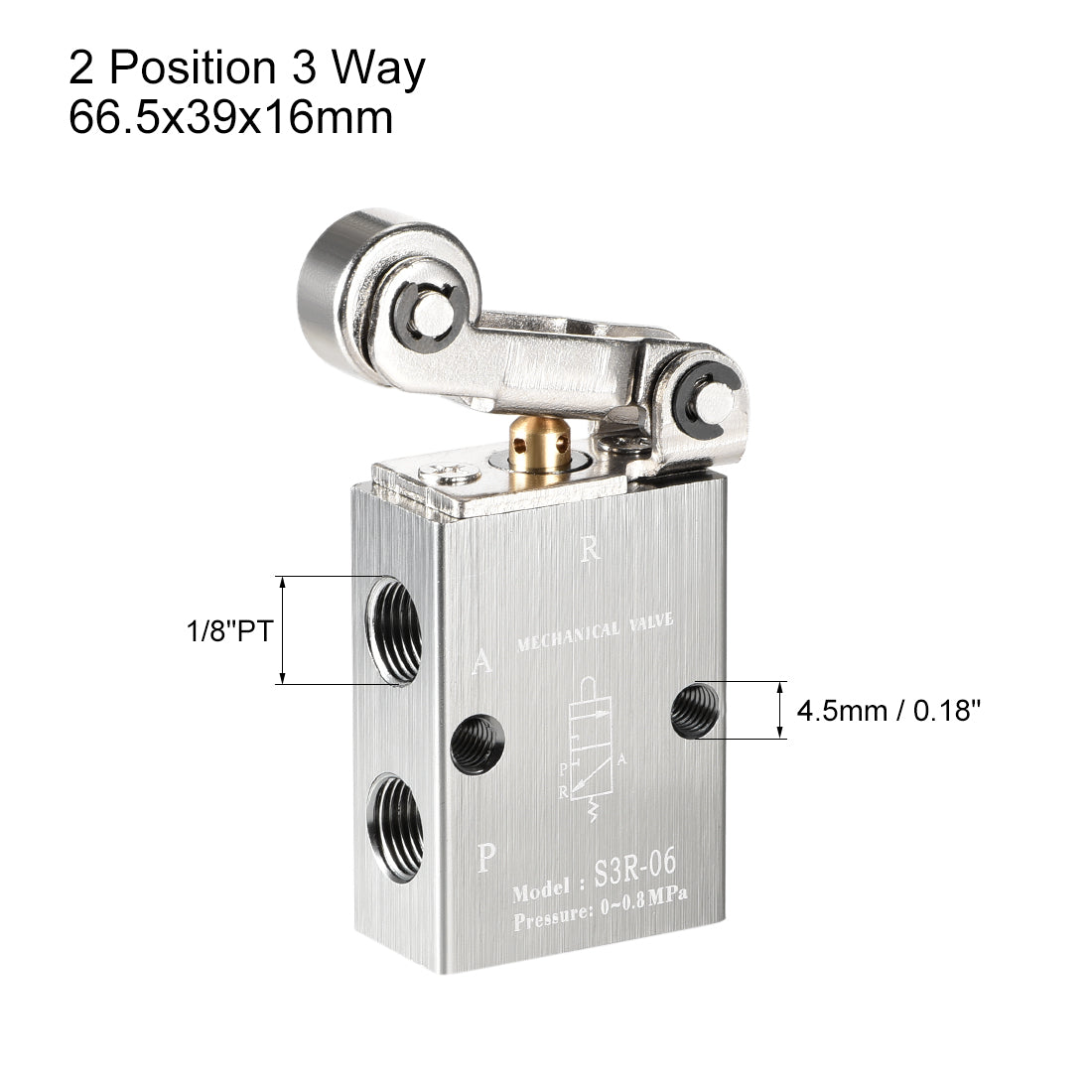

Total Size : 66.5 x 39 x 16mm /2.62" x 1.54" x 0.63" (L x W x H)



Package Included:1 x Mechanical Valve



Description:

1.Double-head solenoid valve with memory function, low power consumption

2.It is made of aluminum body and has fine surface treatment. It has high durability and is not easy to leak.

3.The handle shaft and the valve body have small resistance and accurate positioning

4.High-precision valve stem imported from Germany, seal design to ensure closure

5.The special process of the valve body hole, low resistance, long service life.

6.The Three-port two-position manual reset type manual valve adopts spring steel ball positioning, which is sensitive and easy to switch. Please pay attention to excessive force and control position error caused by mistake.

7.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specification

Description

Description

Specification:

Product Name : Mechanical Valve

Model: S3R-06

Weight: 98g

Color : Silver Tone

CV values: 8mm2

Button Type : Handle

Number of Position : 2

Joint Pipe Size: 1/8"PT

Control Type : Extenal Control

Mounting hole Size :4.5mm / 0.18"

Seal material: NBR

Main parts material: Aluminum alloy

Working pressure: 0~0.8mpa

Operating temperature: -5~60 Degree Celsius

Total Size : 66.5 x 39 x 16mm /2.62" x 1.54" x 0.63" (L x W x H)



Package Included:1 x Mechanical Valve



Description:

1.Double-head solenoid valve with memory function, low power consumption

2.It is made of aluminum body and has fine surface treatment. It has high durability and is not easy to leak.

3.The handle shaft and the valve body have small resistance and accurate positioning

4.High-precision valve stem imported from Germany, seal design to ensure closure

5.The special process of the valve body hole, low resistance, long service life.

6.The Three-port two-position manual reset type manual valve adopts spring steel ball positioning, which is sensitive and easy to switch. Please pay attention to excessive force and control position error caused by mistake.

7.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
