Harfington 5V 50N Electric Lifting Magnet Electromagnet Solenoid Lift Holding

5V 50N Electric Lifting Magnet Electromagnet Solenoid Lift Holding

ID:
$9.06 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Input Voltage: 5V DC; Peak Force: 50N; Holding Force:37N; Duty-cycle: 50%; Power-on time: Less than 7 minutes; Thread size: M4*6; Material: Pure Iron
  • Overall Size : 25 x 20 mm / 1 x 0.8 inch(Dia. *T); Wire Length : 24cm/9. 5 inch
  • Powerful and compact

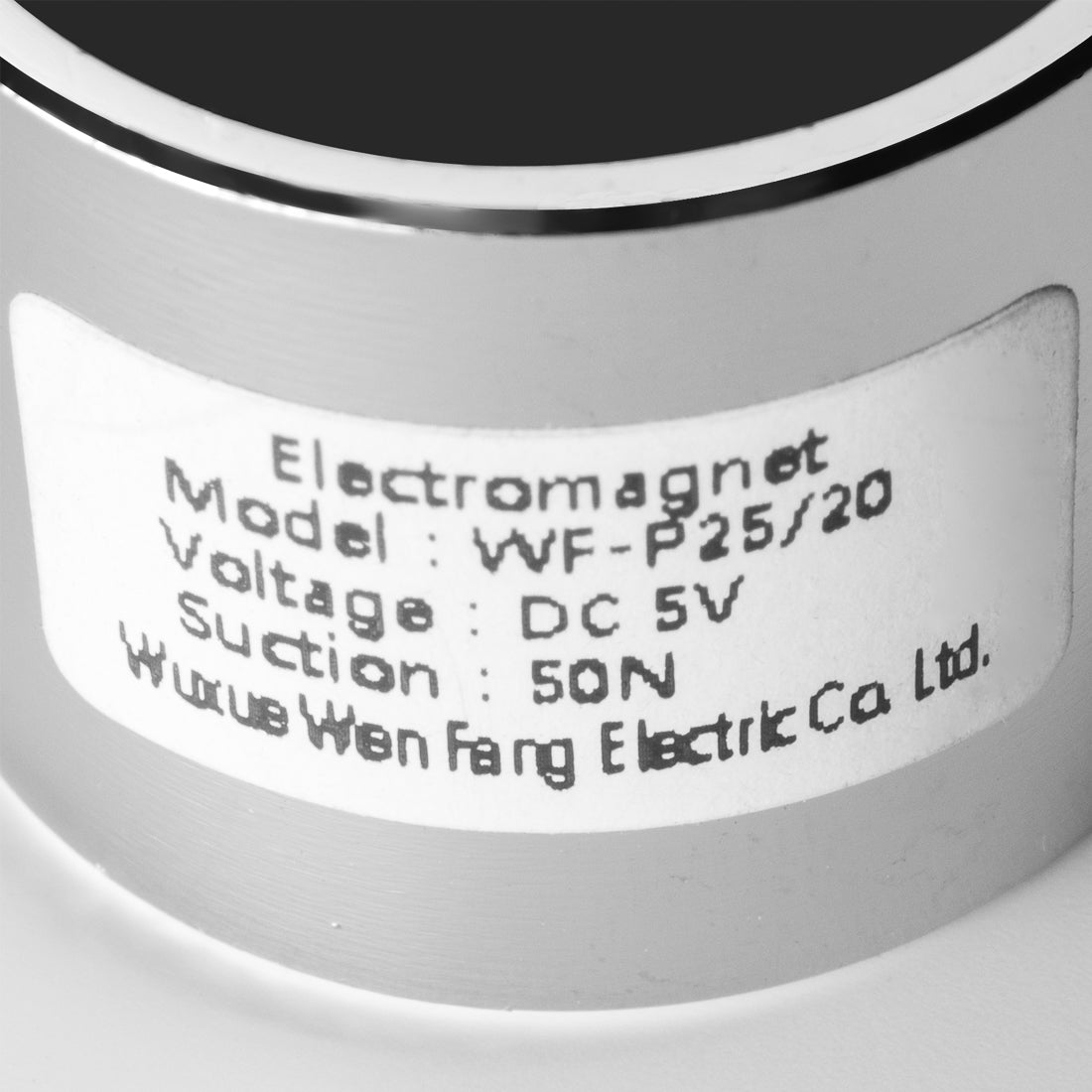

  • Note: The Force will be decreased due to long-term use, lower voltage, and improper suction object, among other factors. It is recommended that the actual force is less than 80% of the sucked force on the name plate. Electromagnetic conversion will generate a certain amount of heat when the electromagnet is working. The more frequently the power is turned on, the higher the temperature rise will be. This is a normal phenomenon. It is recommended to use the ambient temperature within 130 degrees
  • Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc
  • In stock, ready to ship
Cart
Cart
About this item
  • Input Voltage: 5V DC; Peak Force: 50N; Holding Force:37N; Duty-cycle: 50%; Power-on time: Less than 7 minutes; Thread size: M4*6; Material: Pure Iron
  • Overall Size : 25 x 20 mm / 1 x 0.8 inch(Dia. *T); Wire Length : 24cm/9. 5 inch
  • Powerful and compact
  • Note: The Force will be decreased due to long-term use, lower voltage, and improper suction object, among other factors. It is recommended that the actual force is less than 80% of the sucked force on the name plate. Electromagnetic conversion will generate a certain amount of heat when the electromagnet is working. The more frequently the power is turned on, the higher the temperature rise will be. This is a normal phenomenon. It is recommended to use the ambient temperature within 130 degrees
  • Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Feature:

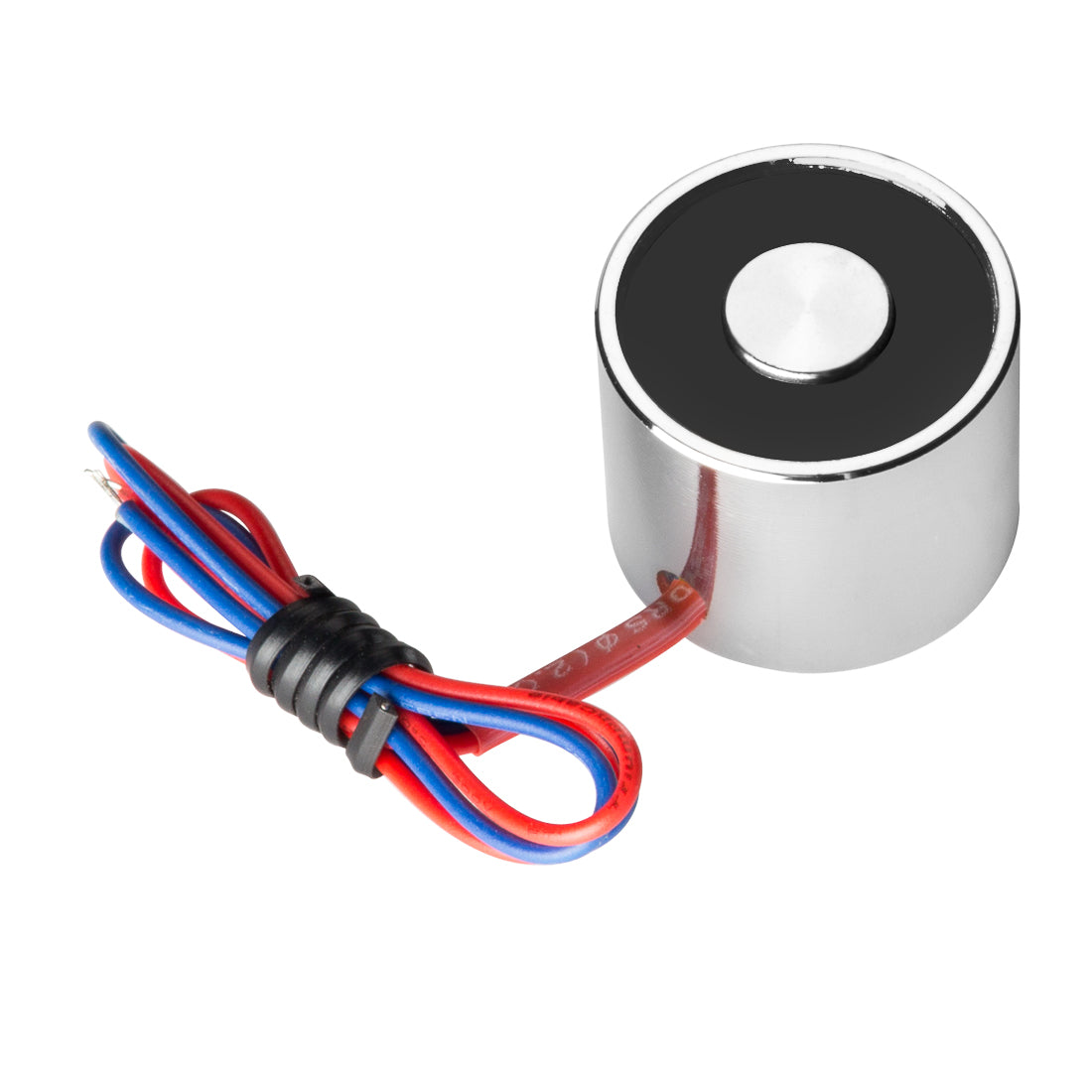

Electric lifting magnet

Powerful and compact

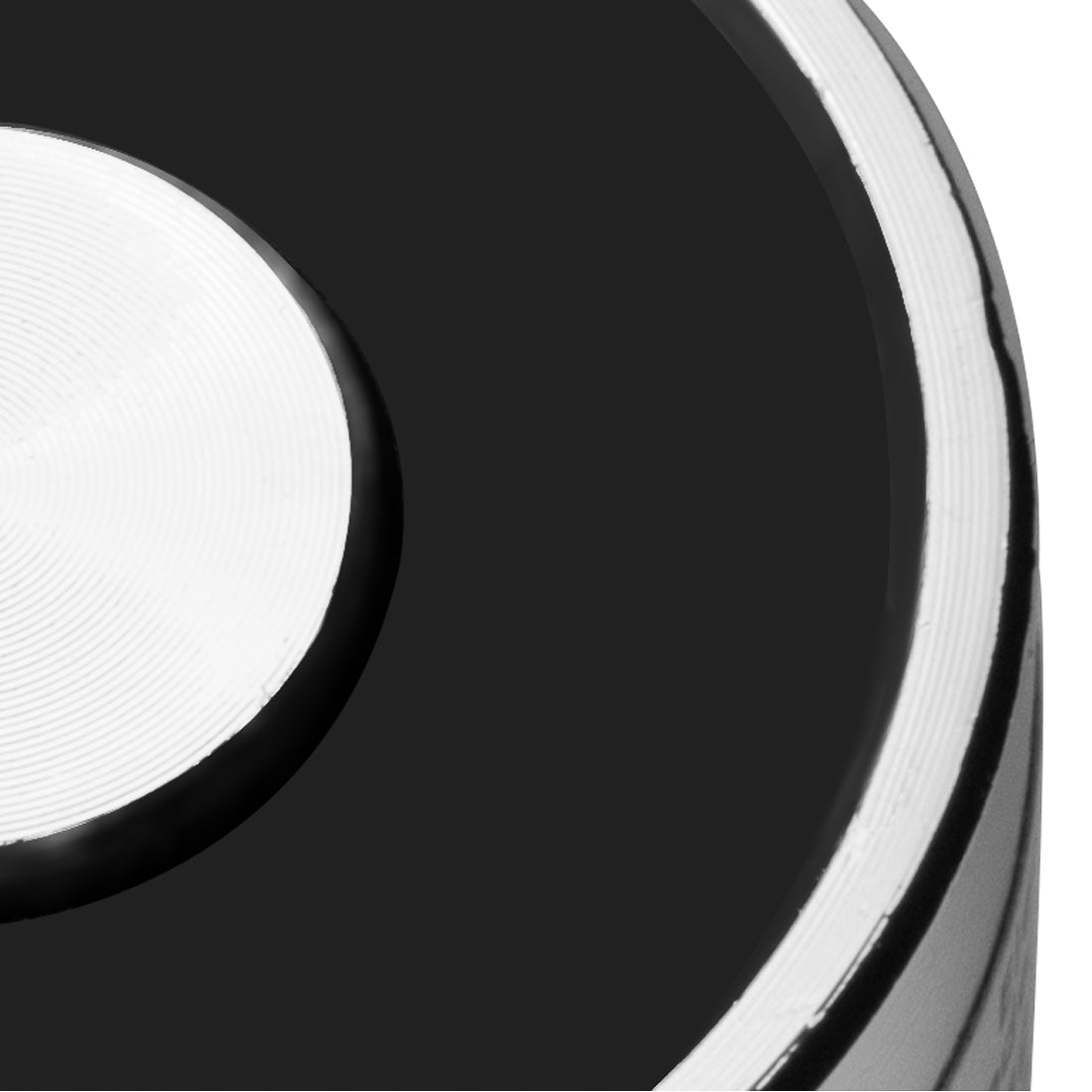

Smooth and flat surface

Low consumption and reliable

Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Note: The Force will be decreased due to long-term use, lower voltage, and improper suction object, among other factors. It is recommended that the actual force is less than 80% of the sucked force on the name plate.  Electromagnetic conversion will generate a certain amount of heat when the electromagnet is working. The more frequently the power is turned on, the higher the temperature rise will be. This is a normal phenomenon. It is recommended to use the ambient temperature within 130 degrees.

Cautions for the use of electromagnets:
1.The object absorbed must be a good magnetic material.
2.The suction surface of the electromagnet must be smooth and clean.
3.The thickness of the object is 5mm best.
4.The contact surface of the object must be larger than the adsorption surface of the electromagnet

Specification:

Material: Metal

Input Voltage: 5V DC

Peak Force: 50N

Holding Force: 37N

Duty-cycle: 50%

Power-on time: Less than 7 minutes

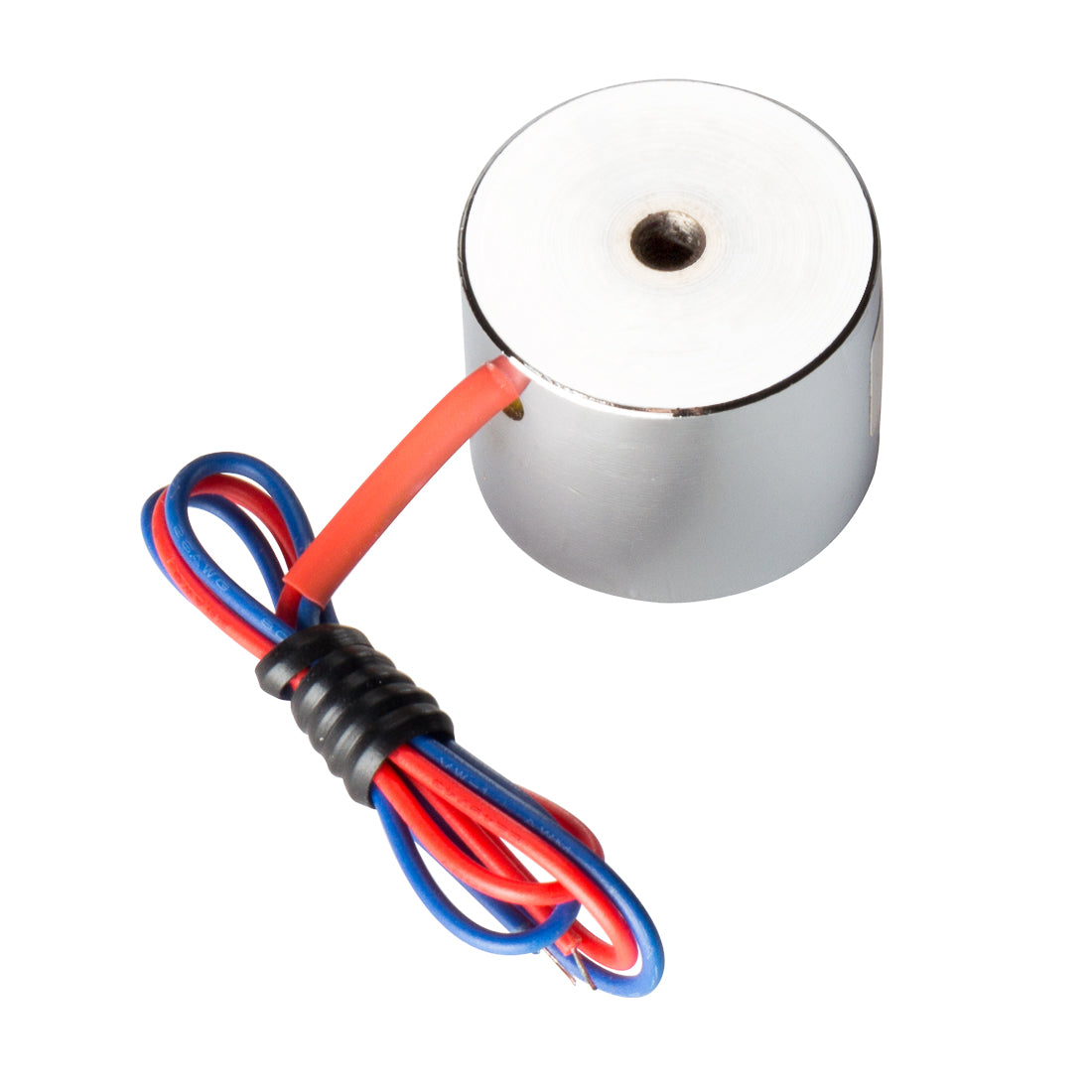

Overall Size: 25 x 20 mm / 1 x 0.8 inch(Dia. *T)

Thread Dia: 4mm

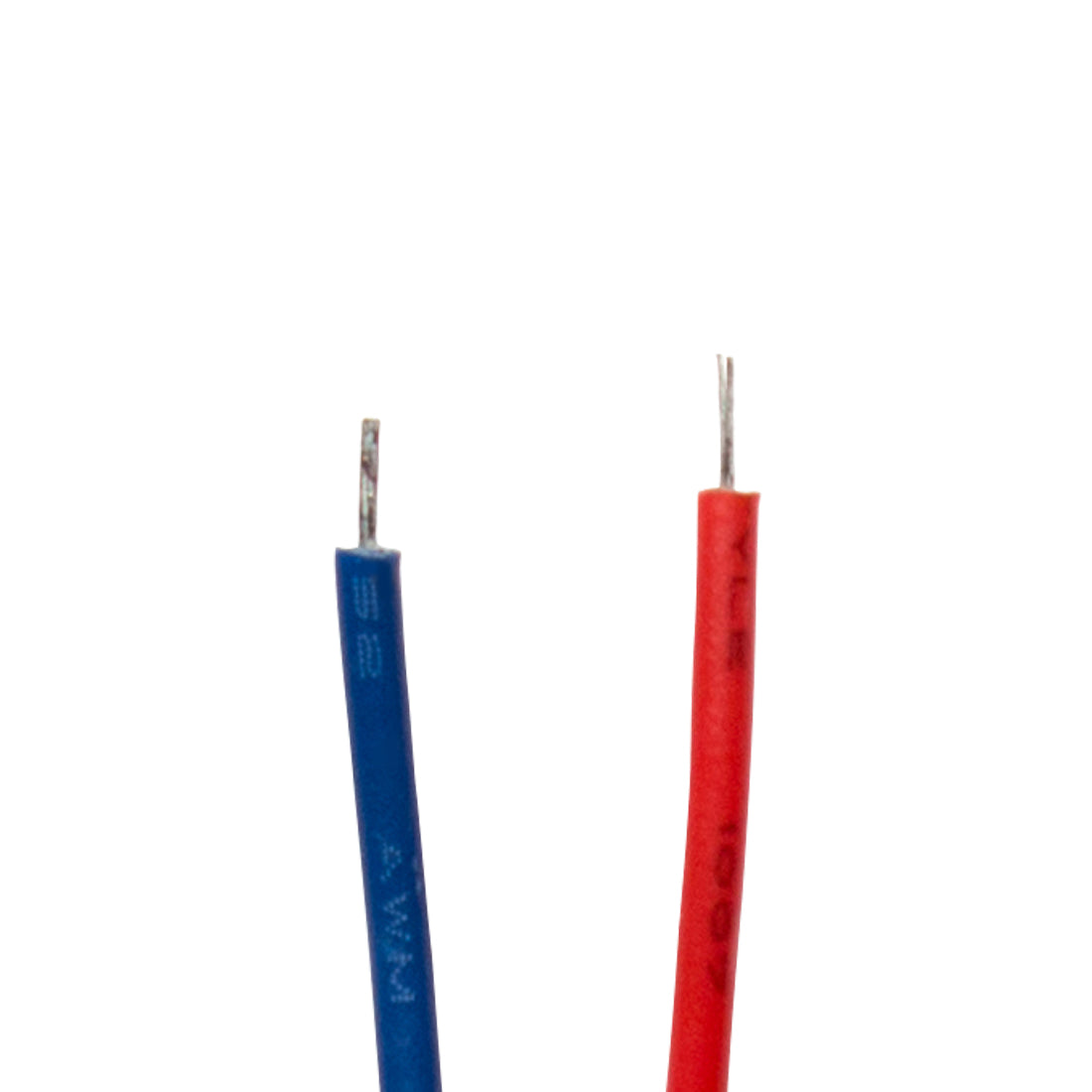

Wire Length: 24cm/9. 5 inch



Package Includes:

1 x Holding Electromagnet

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$9.06 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Feature:

Electric lifting magnet

Powerful and compact

Smooth and flat surface

Low consumption and reliable

Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Note: The Force will be decreased due to long-term use, lower voltage, and improper suction object, among other factors. It is recommended that the actual force is less than 80% of the sucked force on the name plate.  Electromagnetic conversion will generate a certain amount of heat when the electromagnet is working. The more frequently the power is turned on, the higher the temperature rise will be. This is a normal phenomenon. It is recommended to use the ambient temperature within 130 degrees.

Cautions for the use of electromagnets:
1.The object absorbed must be a good magnetic material.
2.The suction surface of the electromagnet must be smooth and clean.
3.The thickness of the object is 5mm best.
4.The contact surface of the object must be larger than the adsorption surface of the electromagnet

Specification:

Material: Metal

Input Voltage: 5V DC

Peak Force: 50N

Holding Force: 37N

Duty-cycle: 50%

Power-on time: Less than 7 minutes

Overall Size: 25 x 20 mm / 1 x 0.8 inch(Dia. *T)

Thread Dia: 4mm

Wire Length: 24cm/9. 5 inch



Package Includes:

1 x Holding Electromagnet

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
