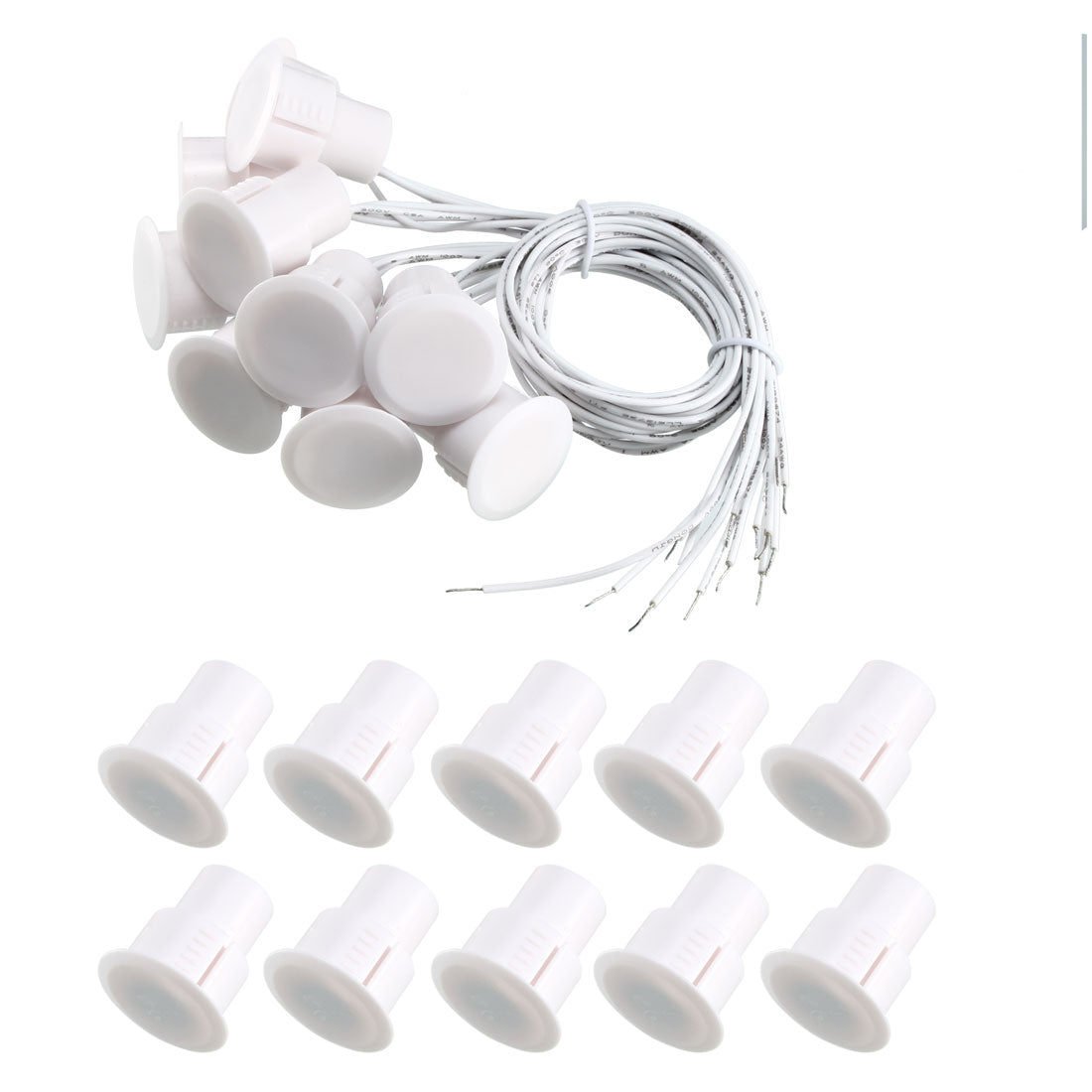

Uxcell 10pcs RC-36 NC Recessed Wired Security Window Door Contact Sensor Alarm Magnetic Reed Switch White

Questions & Answers |
$17.57 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
*Electric Mixed Wholesale Price. Free Shipping on orders over $200(by UPS/DHL Air Express).
About This Item
  • Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 10mm
  • Cable Length: 25cm/9.8"; Total Size: 25mm x 23.5mm/0.98" x 0.93" (L*D)
  • This Recessed Door Contact Sensor works with any access control or burglar alarm system available
  • N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ).
  • The Magnetic Door Switch must be installed according to the sensing distance. It can only provide a switch signal to the transmitter. It cannot directly load the power, nor directly connect the lamp!
  • In stock, ready to ship
Cart
Cart
About This Item
  • Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 10mm
  • Cable Length: 25cm/9.8"; Total Size: 25mm x 23.5mm/0.98" x 0.93" (L*D)
  • This Recessed Door Contact Sensor works with any access control or burglar alarm system available
  • N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ).
  • The Magnetic Door Switch must be installed according to the sensing distance. It can only provide a switch signal to the transmitter. It cannot directly load the power, nor directly connect the lamp!
Free Shipping to the {[currentShipping.abbr]} over {[currentShipping.price]}
Estimated shipping time will be within {[currentShipping.days]} days
Shipping Method

Ship to

Total Delivery Time = Processing Time + Shipping Time
30 Day Free Return
Wholesale Inquiry
* Product Name
* Quantity(Each)
* Email Address
Customer Name
Expected Arrival Time
Customer Note
0/990
If you want to consult the bulk order, you can submit a inquiry or contact us .
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:

Description:

1.NC means Normally Closed:When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ). When make order,pls check carefully!

2.These are the door contact sensors that are in use with any and all commercial or residential card access systems as well as all security burglar alarm system.

3.Work as an anti-theft alarm, perfect for metal door and window.



Specification:

Product Name: Magnetic Door Switch

Model: RC-36

Contact Type: NC (Normally Closed)

Max. Actuation Distance: 10mm

Max. Current: 0.5A

Max. Contact Power: 10W

Working Voltage: DC100V

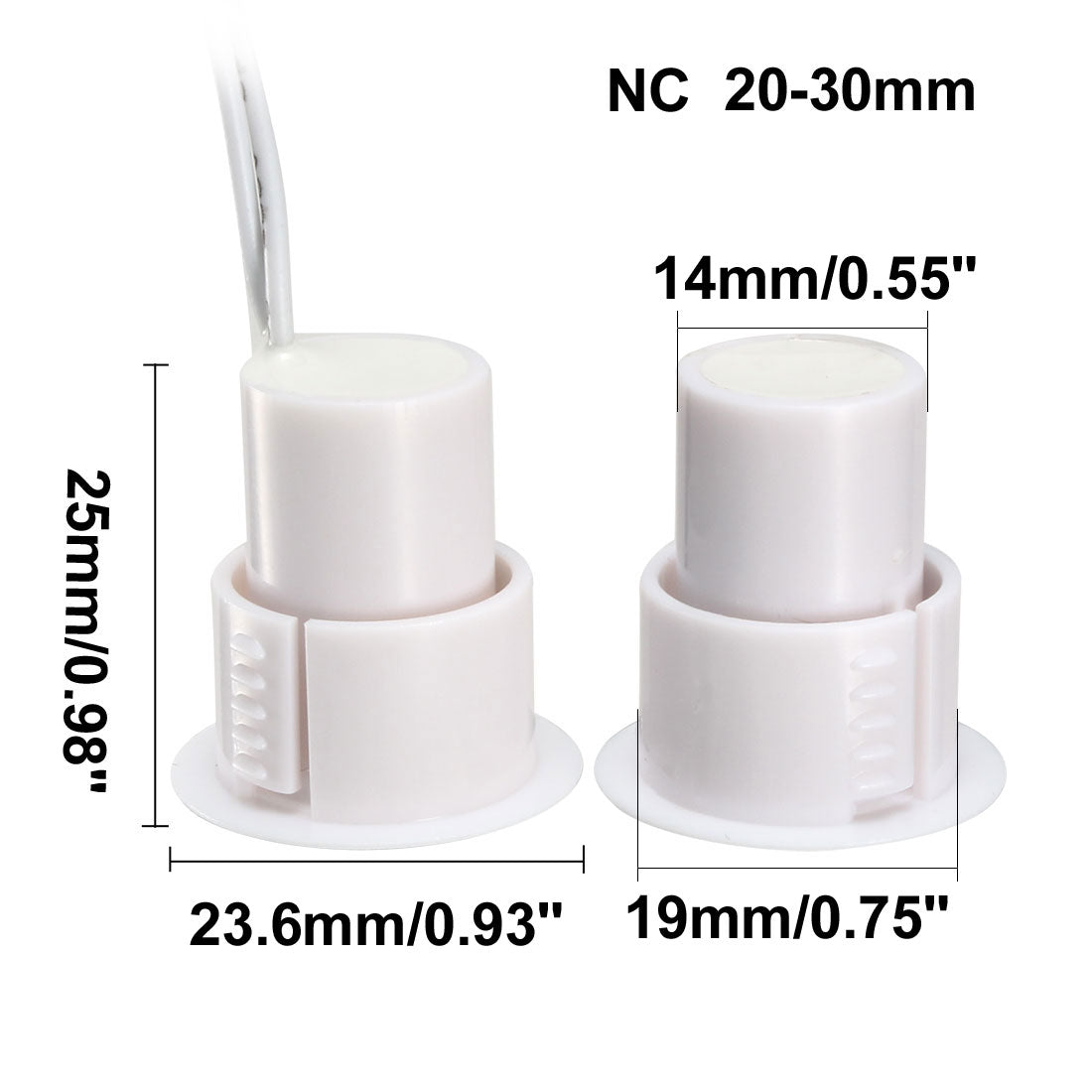

Each Size(Approx): 25 x 23.6mm / 0.98 x 0.93-inch (H*MaxD)

Mounting Hole Diameter:19mm/0.74inch

Cable Length(Each): 25cm / 9.8-inch

Material: ABS (Housing)

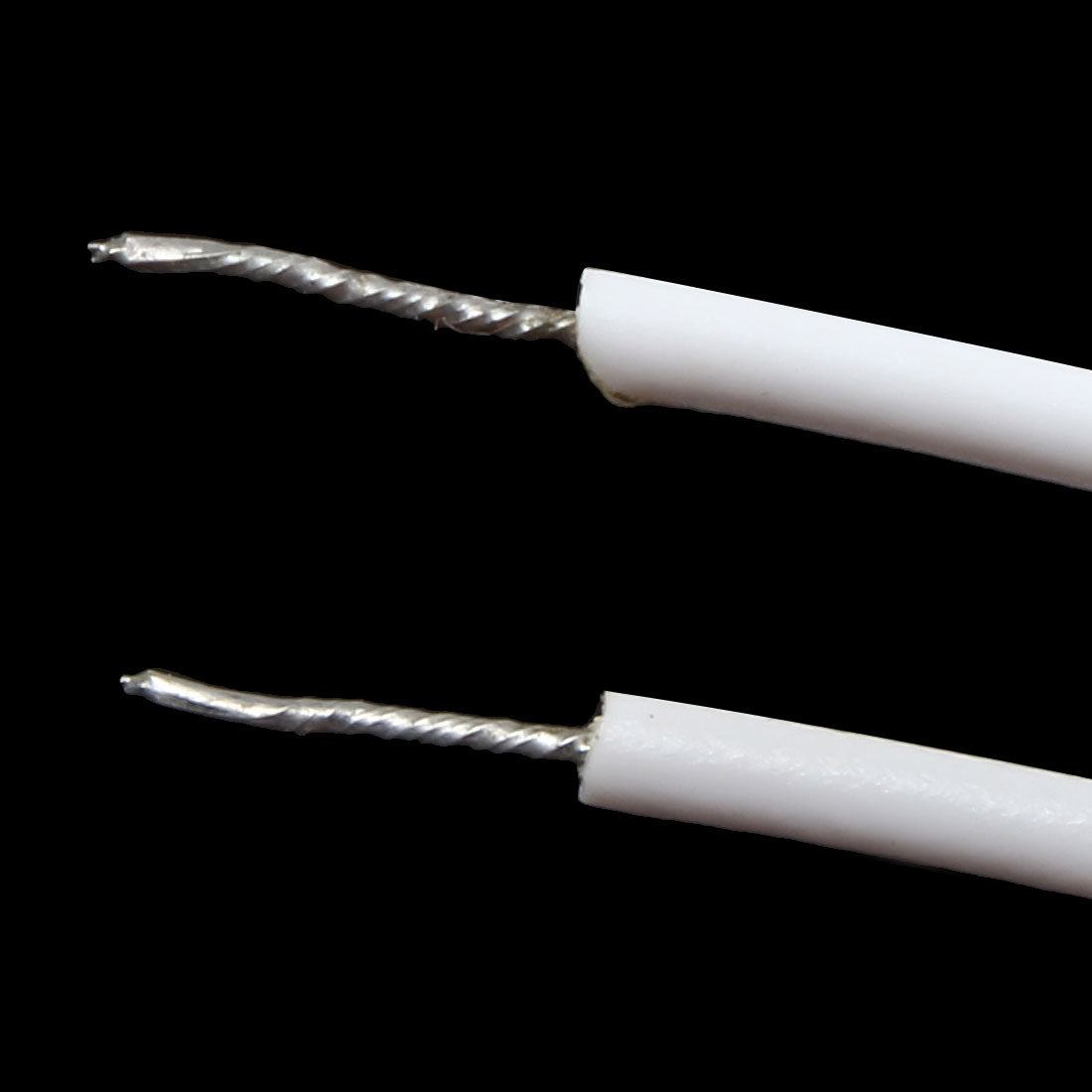

Wire Type: 1007UL#24AWG

Color: White

Net Weight: 244g



Package Content:

10pcs x Magnetic Door Switch



Note: Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp!

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specification

Description

Description

Description:

1.NC means Normally Closed:When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ). When make order,pls check carefully!

2.These are the door contact sensors that are in use with any and all commercial or residential card access systems as well as all security burglar alarm system.

3.Work as an anti-theft alarm, perfect for metal door and window.



Specification:

Product Name: Magnetic Door Switch

Model: RC-36

Contact Type: NC (Normally Closed)

Max. Actuation Distance: 10mm

Max. Current: 0.5A

Max. Contact Power: 10W

Working Voltage: DC100V

Each Size(Approx): 25 x 23.6mm / 0.98 x 0.93-inch (H*MaxD)

Mounting Hole Diameter:19mm/0.74inch

Cable Length(Each): 25cm / 9.8-inch

Material: ABS (Housing)

Wire Type: 1007UL#24AWG

Color: White

Net Weight: 244g



Package Content:

10pcs x Magnetic Door Switch



Note: Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp!

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
