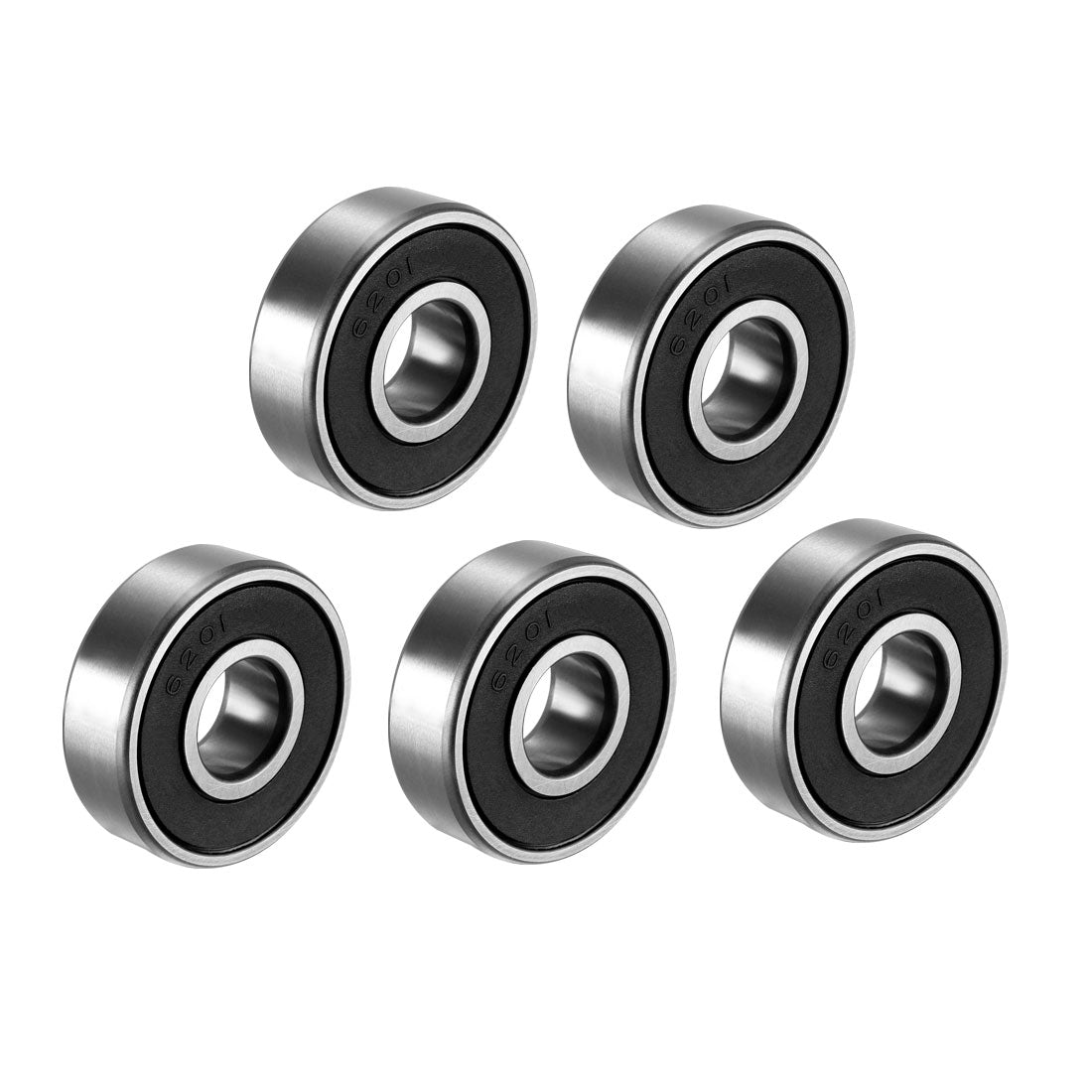

Harfington Uxcell Deep Groove Ball Bearing 6201RZ Single Sealed, 12mm x 32mm x 10mm Chrome Steel Bearings 5Pcs

Uxcell Deep Groove Ball Bearing 6201RZ Single Sealed, 12mm x 32mm x 10mm Chrome Steel Bearings 5Pcs

ID:
$11.55 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
About This Item
  • Size: 6201RZ (Inner Dia.=12mm, Outer Dia.=32mm, Thickness=10mm)
  • Sealed on SINGLE SIDE of the bearing for easy lubrication and maintenance while protecting from dirt. Suitable for vertical installation
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
  • Pre-Lubricated, Easy to maintain
  • In stock, ready to ship
Cart
Cart
About This Item
  • Size: 6201RZ (Inner Dia.=12mm, Outer Dia.=32mm, Thickness=10mm)
  • Sealed on SINGLE SIDE of the bearing for easy lubrication and maintenance while protecting from dirt. Suitable for vertical installation
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
  • Pre-Lubricated, Easy to maintain
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.





Description:

  • Deep Groove Ball Bearings are one of the most widely used rolling bearings.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
  • With small friction and high-limit speed, Deep Groove Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
  • Single-row, pre-lubricated, normal accuracy.





Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model: 6201RZ

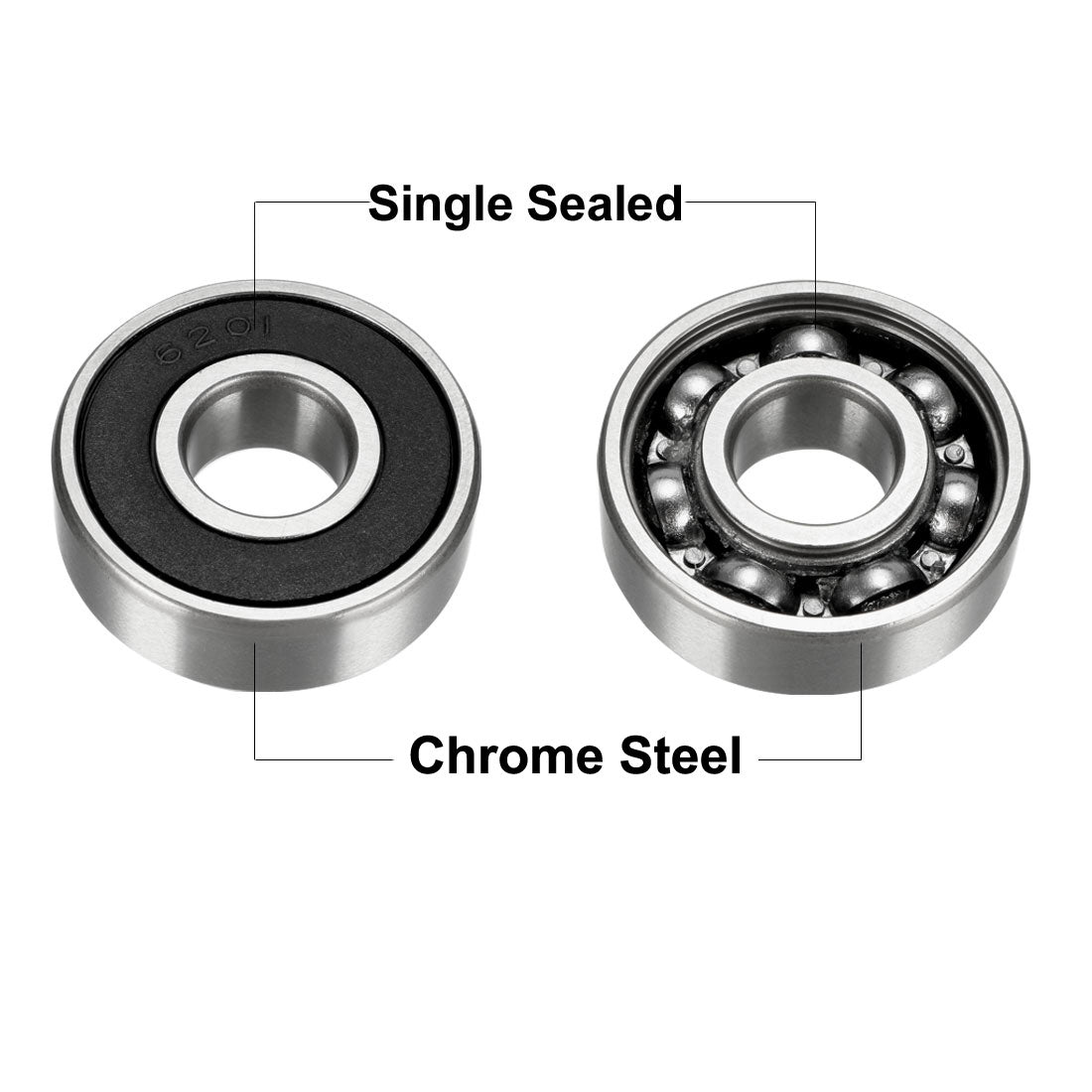

Sealed Type: Single Sealed

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

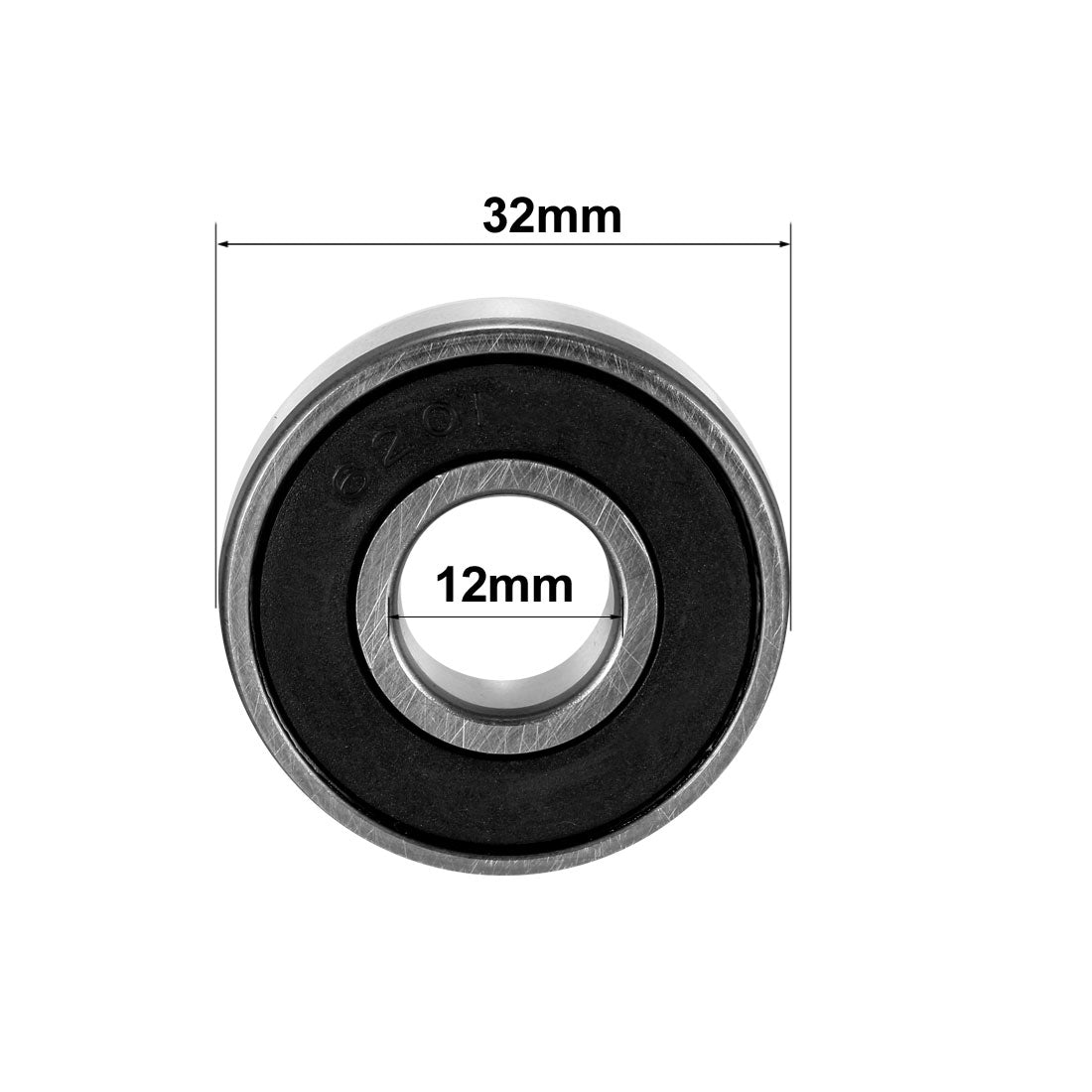

Inner Diameter (d): 12mm

Outer Diameter (D): 32mm

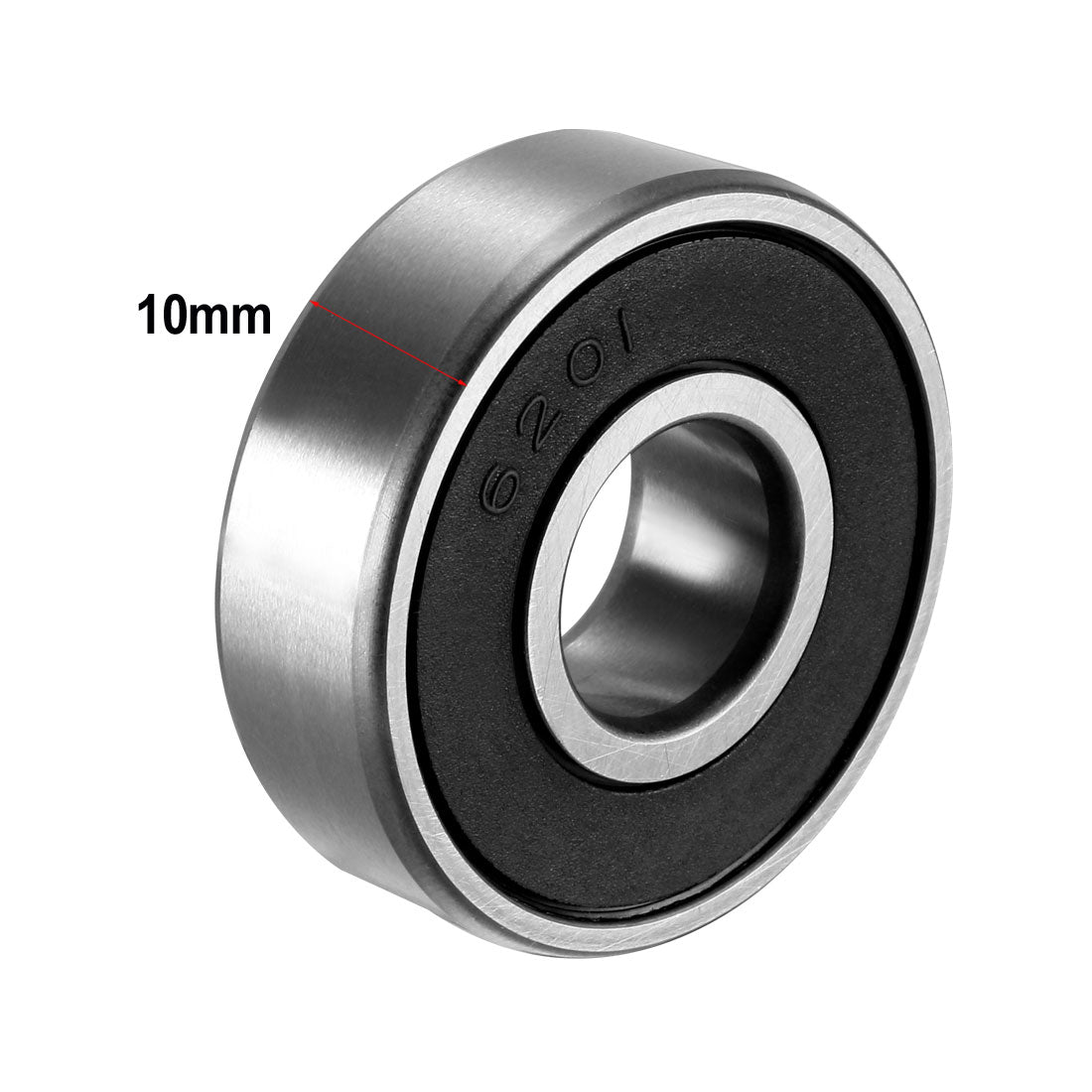

Thickness (B): 10mm

Dynamic Load Rating (Cr): 6.82kN

Static Load Rating (Cor): 3.05kN

Accuracy Class: P0 (ABEC1)

Number of Pack: 5 Pcs

Weight: 169g

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products title ID Price Qty
Products title ID Price Qty
{[item.title]} {[item.id]} {['$' + item.price]}
Qty: {[total.qty]} Item(s)
Total Price: ${[total.price]}
View More

Description

Description

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.





Description:

  • Deep Groove Ball Bearings are one of the most widely used rolling bearings.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
  • With small friction and high-limit speed, Deep Groove Ball Bearings are cost-effective and require little maintenance.
  • Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance.
  • Single-row, pre-lubricated, normal accuracy.





Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model: 6201RZ

Sealed Type: Single Sealed

Inner Race/Outer Race Material: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 12mm

Outer Diameter (D): 32mm

Thickness (B): 10mm

Dynamic Load Rating (Cr): 6.82kN

Static Load Rating (Cor): 3.05kN

Accuracy Class: P0 (ABEC1)

Number of Pack: 5 Pcs

Weight: 169g

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
