Harfington Uxcell 100 Ohm Adjustable Resistors Wire Wound Multi Turn Precision Potentiometer Pots 1pcs

Uxcell 100 Ohm Adjustable Resistors Wire Wound Multi Turn Precision Potentiometer Pots 1pcs

ID:
$5.96 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    10%OFF
  • Order $800+
    15%OFF
  • Order $2000+
    25%OFF
  • Order $5000+
    35%OFF
Wholesale Price
About This Item
  • Model: WXD3-13,Can be used as a voltage divider, rheostat, current controller
  • Resistance Value: 100 Ohm Tolerance:+/-5%
  • The role of potentiometers - regulating voltage (including DC voltage and signal voltage) is mainly used in potentiometer instruments, post and telecommunications, power equipment, railway signals, aerospace, aviation
  • , easy to weld alloy pins, nickel-plated alloy shaft, flame retardant
  • Knurled shaft with split design for push-on knob.(this item do not include Knobs)
  • In stock, ready to ship
Cart
Cart
About This Item
  • Model: WXD3-13,Can be used as a voltage divider, rheostat, current controller
  • Resistance Value: 100 Ohm Tolerance:+/-5%
  • The role of potentiometers - regulating voltage (including DC voltage and signal voltage) is mainly used in potentiometer instruments, post and telecommunications, power equipment, railway signals, aerospace, aviation
  • , easy to weld alloy pins, nickel-plated alloy shaft, flame retardant
  • Knurled shaft with split design for push-on knob.(this item do not include Knobs)
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:
  • Product Name: Potentiometer w Knob
  • Model: WXD3-13
  • Resistance Value: 100 ohm
  • Power: 2W
  • Tolerance: +/-5%
  • Type: Wire Wound Multi Turn
  • Terminals Number: 5
  • Features: Round Shaft

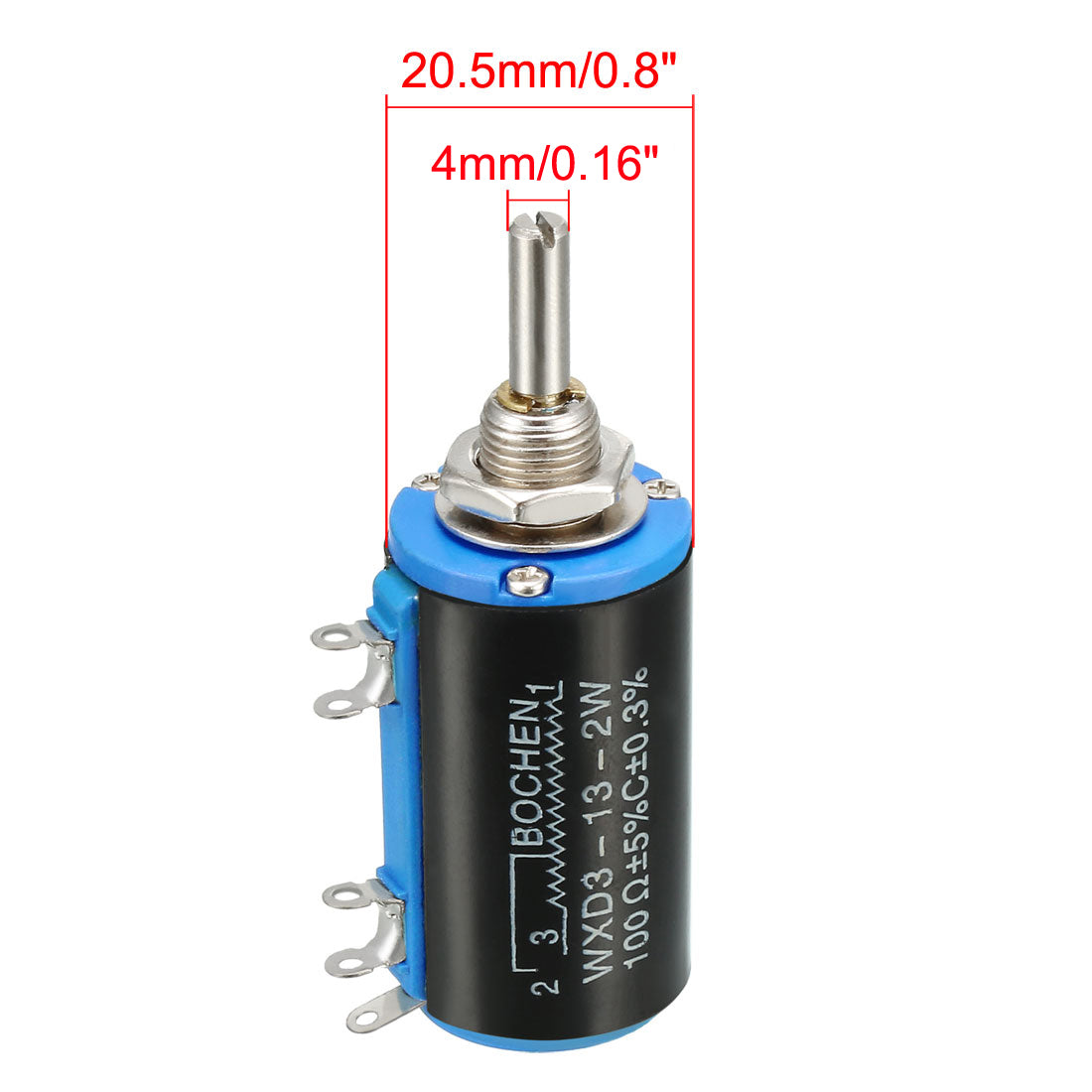

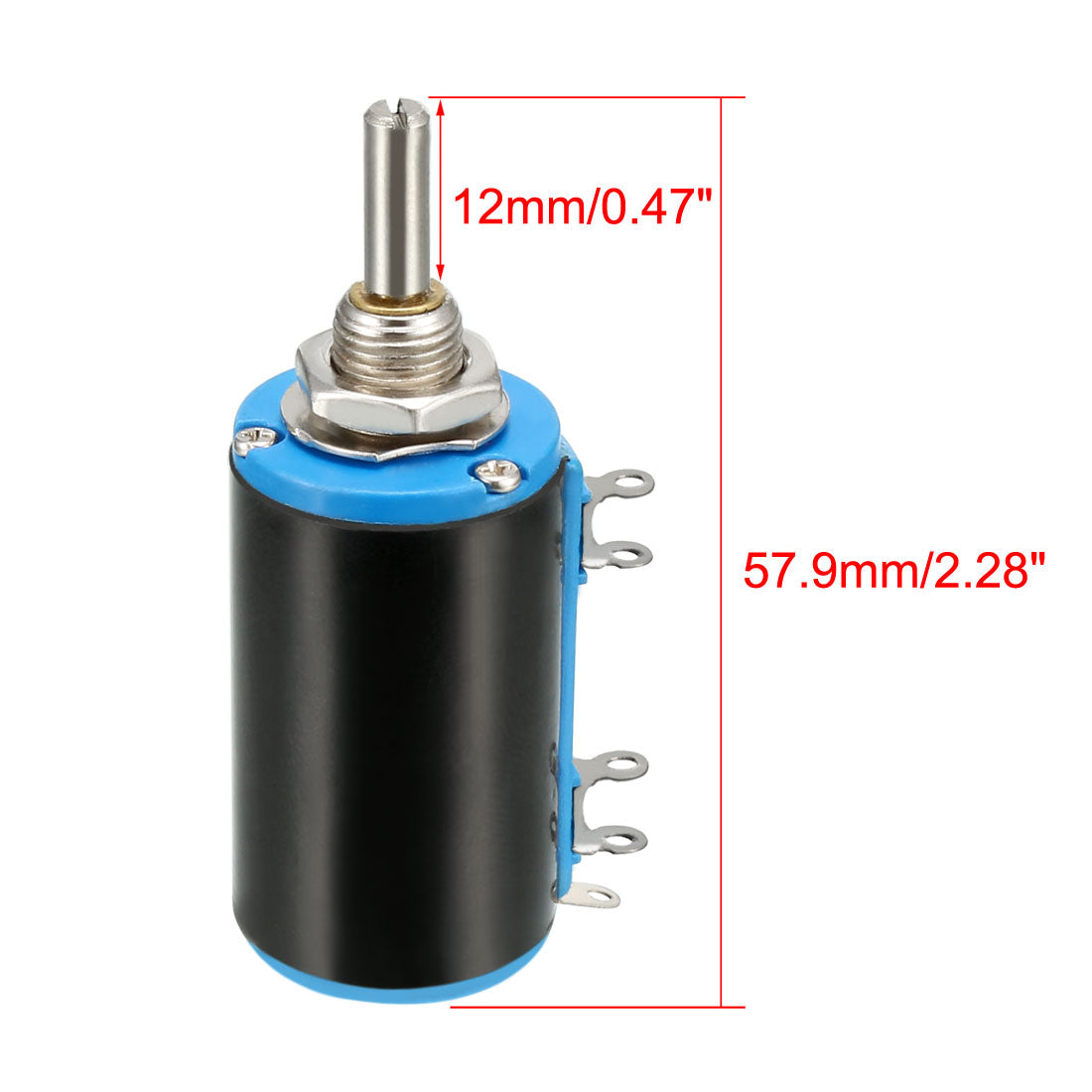

  • Total Size: 20.5mm x 57.9mm/0.8 x 2.28 inch (D * H)
  • Screw Thread Dia.: 7.8mm/0.3 inch
  • Shaft Diameter: 4mm/0.16 inch
  • Shaft Length(do not include the Screw Thread parts): 12mm/0.47 inch
  • Shaft Total Length: 20mm/0.79 inch
  • Package Content: 1 x Potentiometer
  • Features: 100 ohm, 5 Terminals, Single Linear, Suits Most Standard Knobs.( this item do not include Knobs)
  • Main used to control electrical devices such as volume controls on audio equipment.
  • Knurled shaft with split design for push-on knob.



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Variants

Products title ID Price Qty
Products title ID Price Qty
{[item.title]} {[item.id]} {['$' + item.price]}
Qty: {[total.qty]} Item(s)
Total Price: ${[total.price]}
View More

Description

Description

  • Product Name: Potentiometer w Knob
  • Model: WXD3-13
  • Resistance Value: 100 ohm
  • Power: 2W
  • Tolerance: +/-5%
  • Type: Wire Wound Multi Turn
  • Terminals Number: 5
  • Features: Round Shaft
  • Total Size: 20.5mm x 57.9mm/0.8 x 2.28 inch (D * H)
  • Screw Thread Dia.: 7.8mm/0.3 inch
  • Shaft Diameter: 4mm/0.16 inch
  • Shaft Length(do not include the Screw Thread parts): 12mm/0.47 inch
  • Shaft Total Length: 20mm/0.79 inch
  • Package Content: 1 x Potentiometer
  • Features: 100 ohm, 5 Terminals, Single Linear, Suits Most Standard Knobs.( this item do not include Knobs)
  • Main used to control electrical devices such as volume controls on audio equipment.
  • Knurled shaft with split design for push-on knob.



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
