Harfington Uxcell Temperature Control Switch, Thermostat 145°C 10A N.C 6.3mm Pin 2pcs

Uxcell Temperature Control Switch, Thermostat 145°C 10A N.C 6.3mm Pin 2pcs

ID:1088828
ID:1088828
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

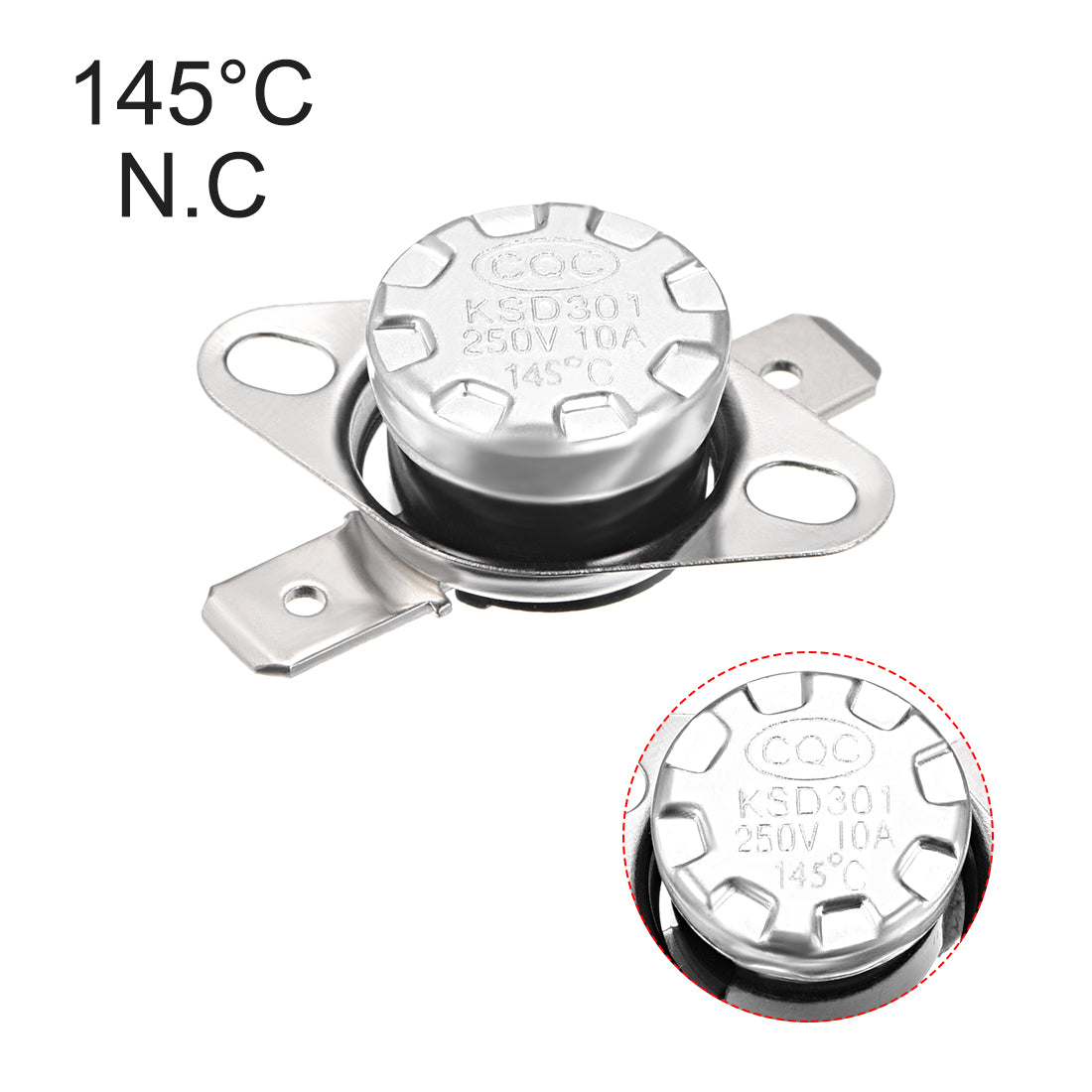

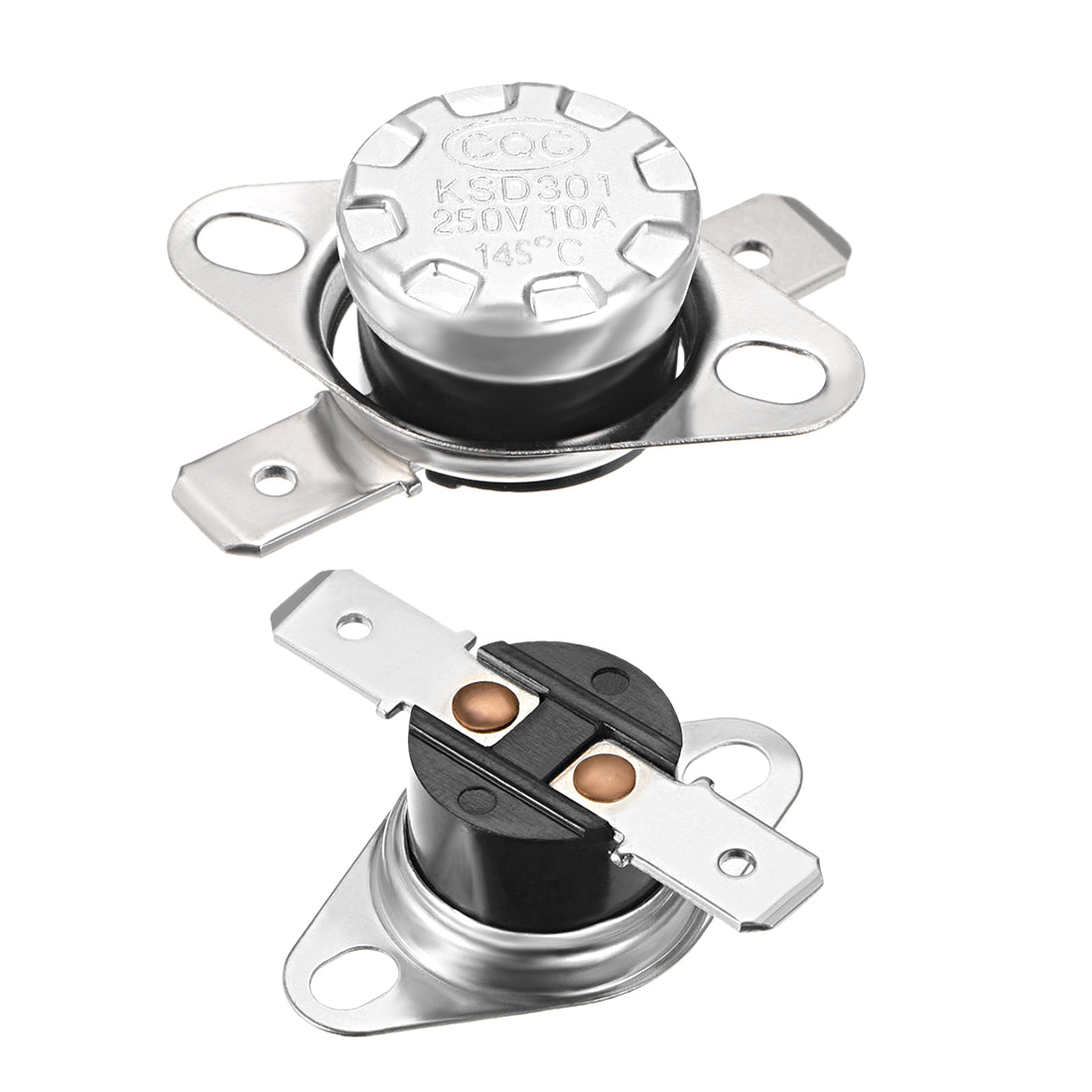

  • Type: KSD301 145 degrees Celsius Thermal Control Switch 110V/120V/250V 10A NC (Normal Close), 6.3mm pin
  • Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature 145 Celsius degree
  • Advantage: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon.

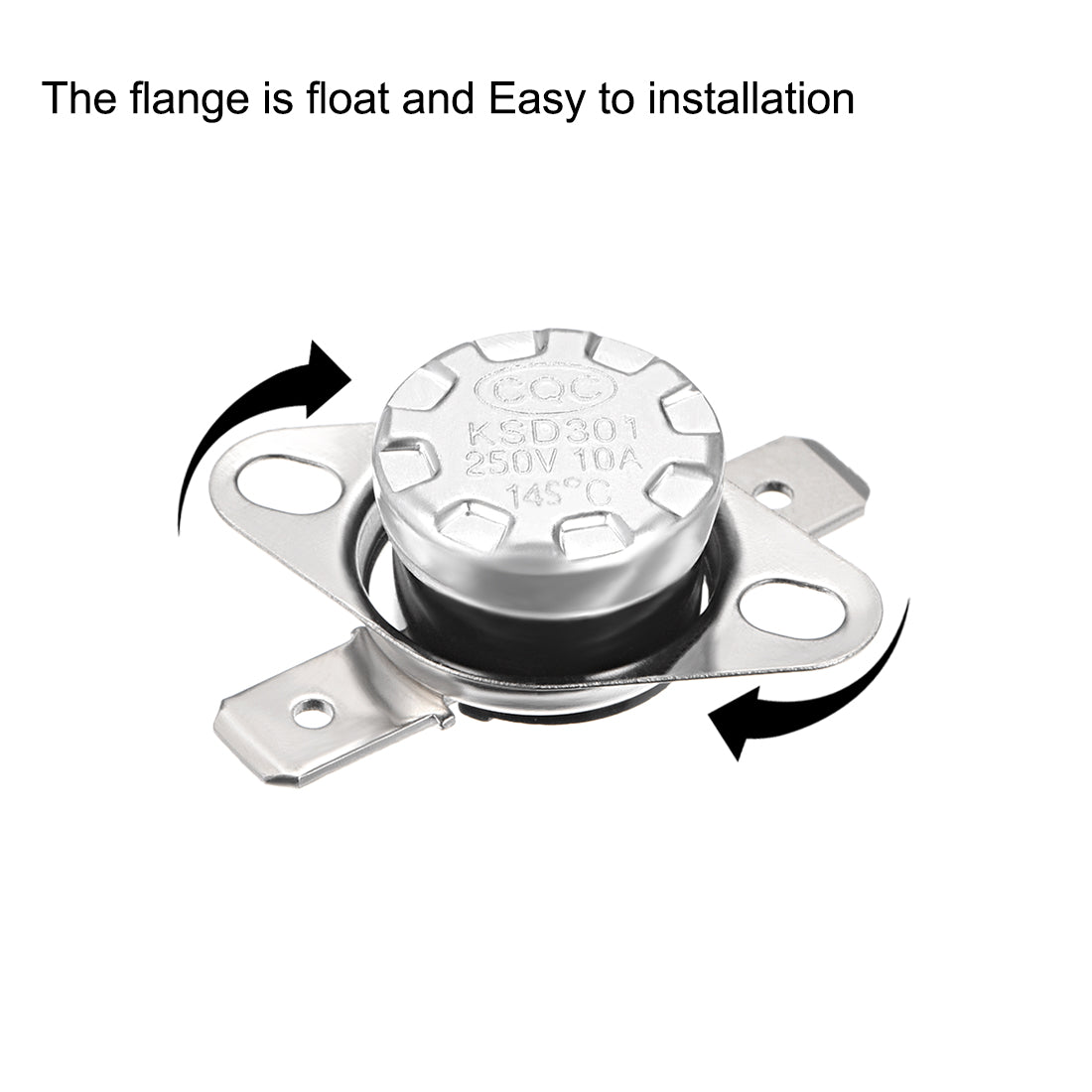

  • Easy to installation : The flange on the switch is float and easy to installation.The pin width is 6.3mm
  • Application: Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
About this item
  • Type: KSD301 145 degrees Celsius Thermal Control Switch 110V/120V/250V 10A NC (Normal Close), 6.3mm pin
  • Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature 145 Celsius degree
  • Advantage: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon.
  • Easy to installation : The flange on the switch is float and easy to installation.The pin width is 6.3mm
  • Application: Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
Specification

Specification

SKU
a18110700ux0284
Product name
Temperature Control Switch
Model
KSD301
Action temperature
145°C
Action type
N.C (Normal Close)
Rated voltage/current
250V/10A

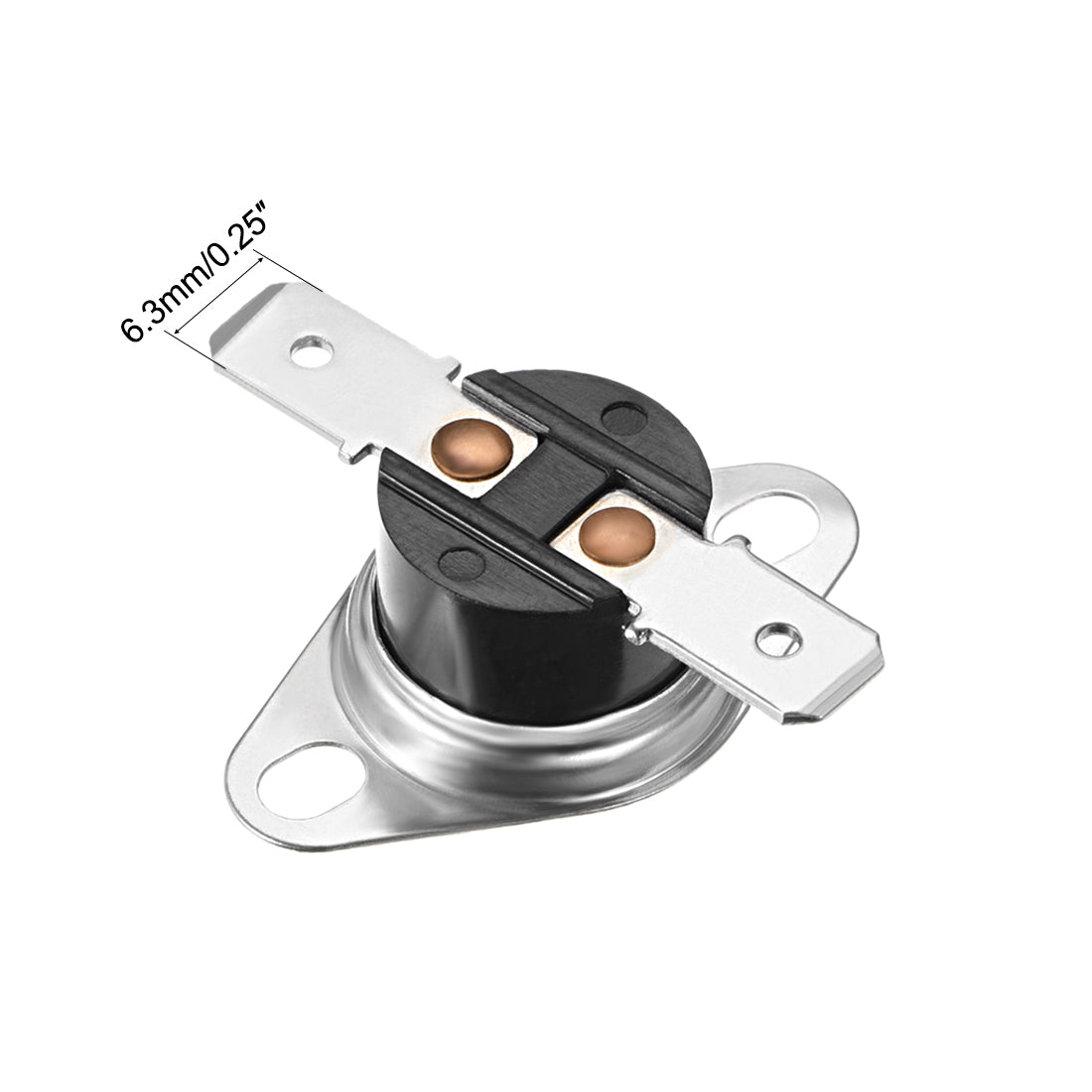

Pin width
6.3mm/0.25inch
Contact life
More than 50,000 times (action times)
Electrical strength
AC50Hz, 2000V/min no breakdown and arc phenomenon
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Specification:

Product Name : Temperature Control Switch

Model: KSD301

Action Temperature: 145°C

Action Type: N.C (Normally Closed)

Rated Voltage/Current : 110V/120V/250V 10A

Pin Width : 6.3mm/0.25inch

Contact Life: More than 50,000 times (action times)

Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon



Package Content :

2pcs x Temperature Control Switch



Description :

1.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.

2.Feature: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon.

3.Advantage: General purpose, automatic reset, low cost, large capacity, minute current thermostats.

4.Application: Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
