Harfington Uxcell R4-2RS Ball Bearing 1/4"x5/8"x0.196" Double Sealed Carbon Steel Bearings 2pcs

Uxcell R4-2RS Ball Bearing 1/4"x5/8"x0.196" Double Sealed Carbon Steel Bearings 2pcs

ID:1088617
ID:1088617
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • R4-2RS (I.D.=1/4", O.D.=5/8", Thickness=0.196")
  • r4rs bearings are sealed on BOTH SIDES to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • Static load rating of 615 newtons and dynamic load rating of 1480 newtons
About this item
  • R4-2RS (I.D.=1/4", O.D.=5/8", Thickness=0.196")
  • r4rs bearings are sealed on BOTH SIDES to keep lubricant in
  • Chromium Steel long-life bearings, smooth and low noise
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • Static load rating of 615 newtons and dynamic load rating of 1480 newtons
Specification

Specification

SKU
a19032200ux0065
Type
Double Sealed
Model
R4-2RS
Dynamic Load Rating(KN)
1.48
Accuracy Class
ABEC-1
Pkg.Qty.
2
I.D.
6.35mm
O.D.
15.875mm
Thickness
4.978mm
Static Load Rating(KN)
0.615
Noise Level
Z1
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Carbon Steel bearings are better in toughness than chrome steel bearings after quenching. These cost-effective bearings are widely used in areas with low requirements for Mohs hardness.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.



Selecting Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



Specification:

Model: R4-2RS

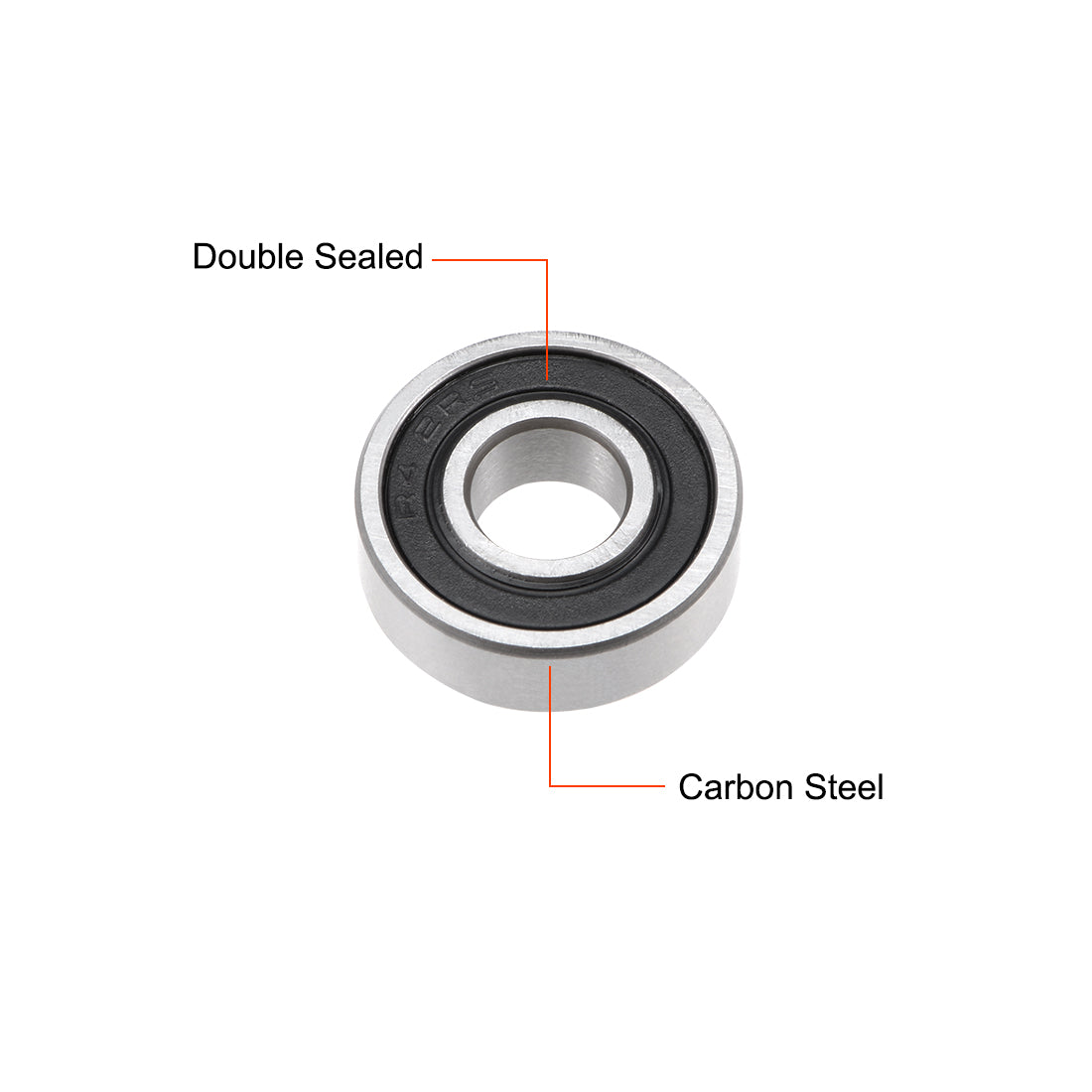

Seal Type: Double Sealed

Inner Race/Outer Race Material: Carbon Steel

Cage Material: Stamping Steel

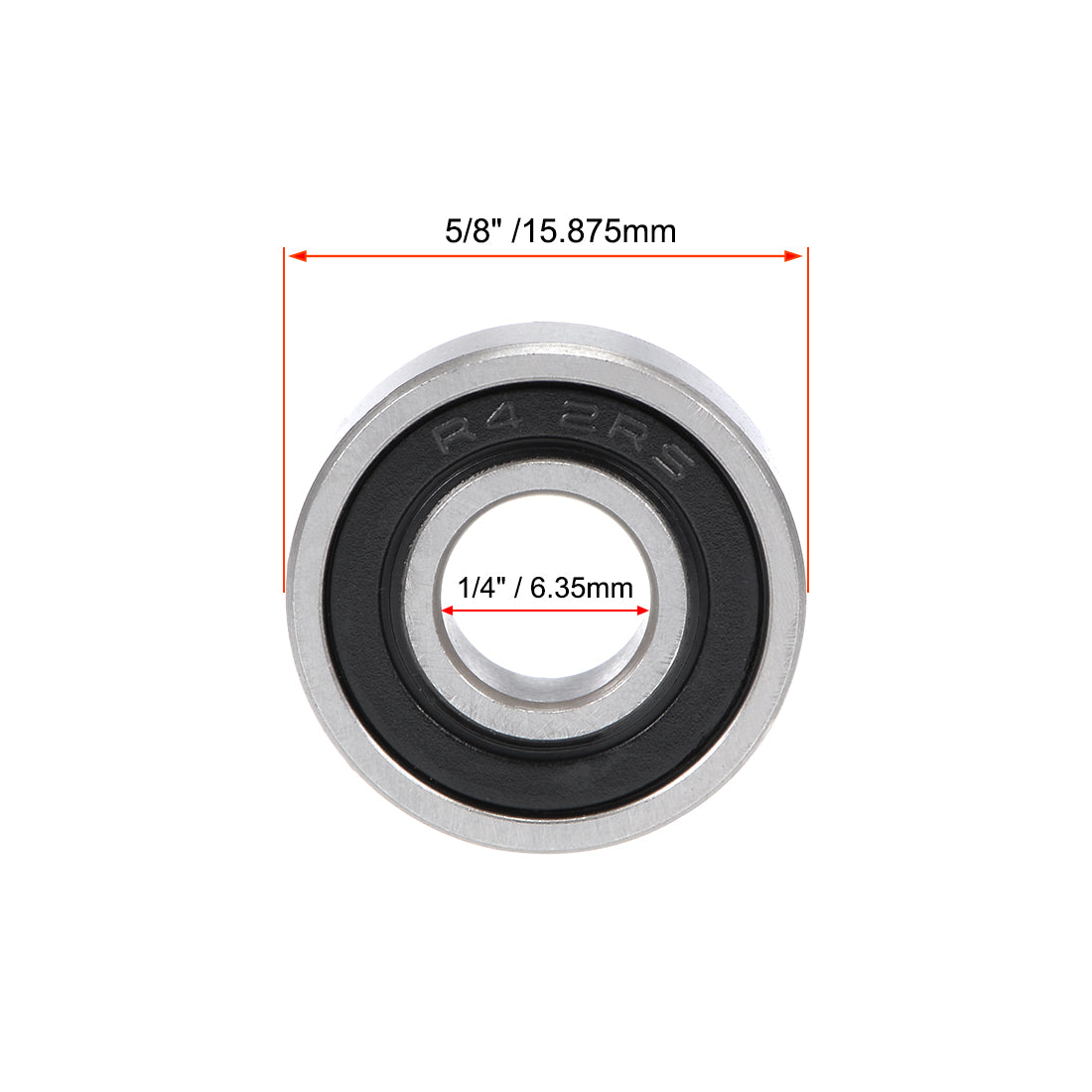

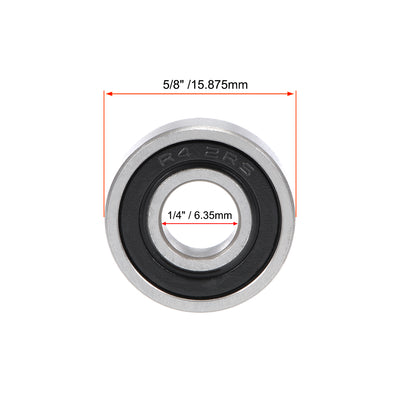

Inner Diameter (d): 1/4" /6.35mm

Outer Diameter (D): 5/8" /15.875mm

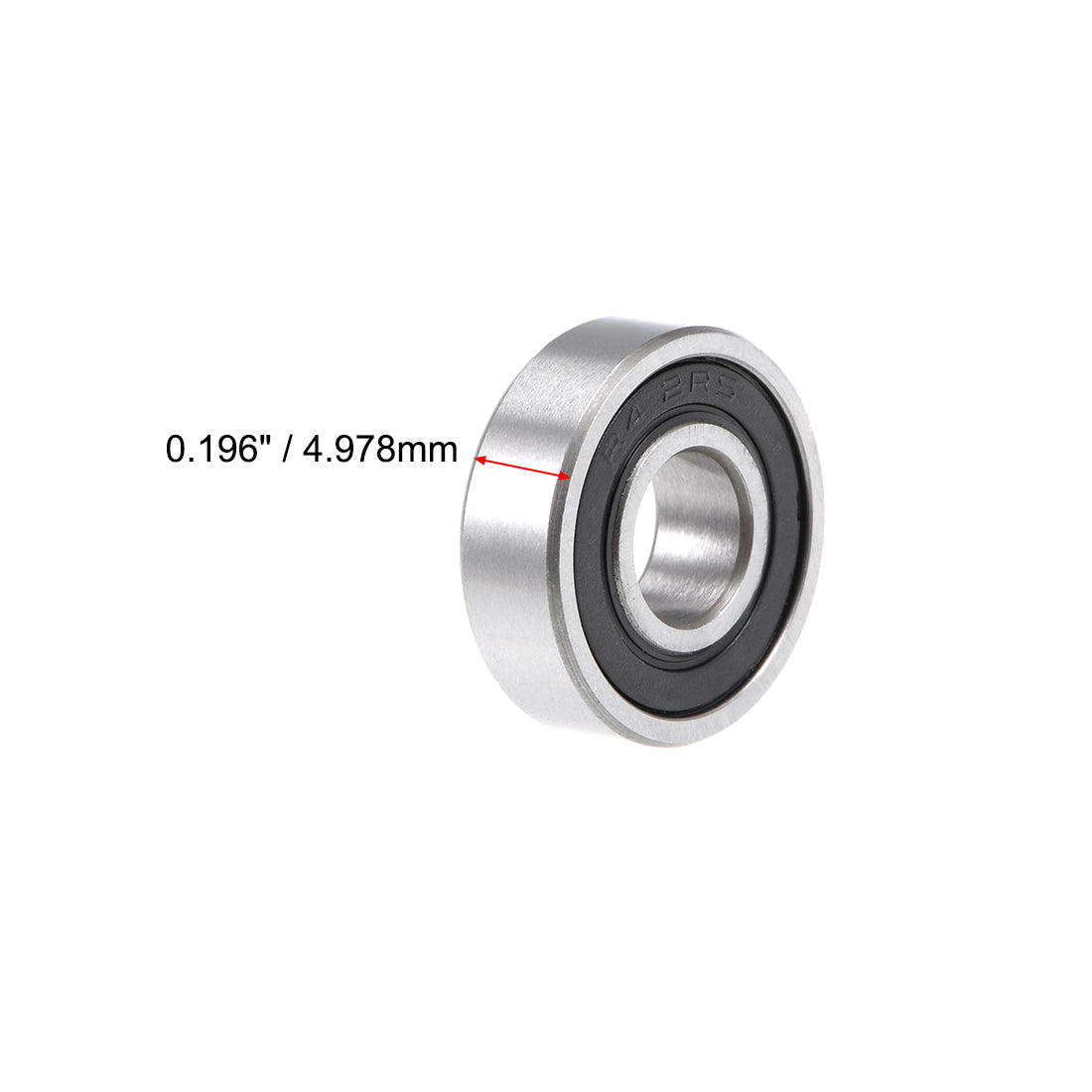

Thickness (B): 0.196" /4.978mm

Dynamic Load Rating (Cr): 1.48kN

Static Load Rating (Cor): 0.615kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

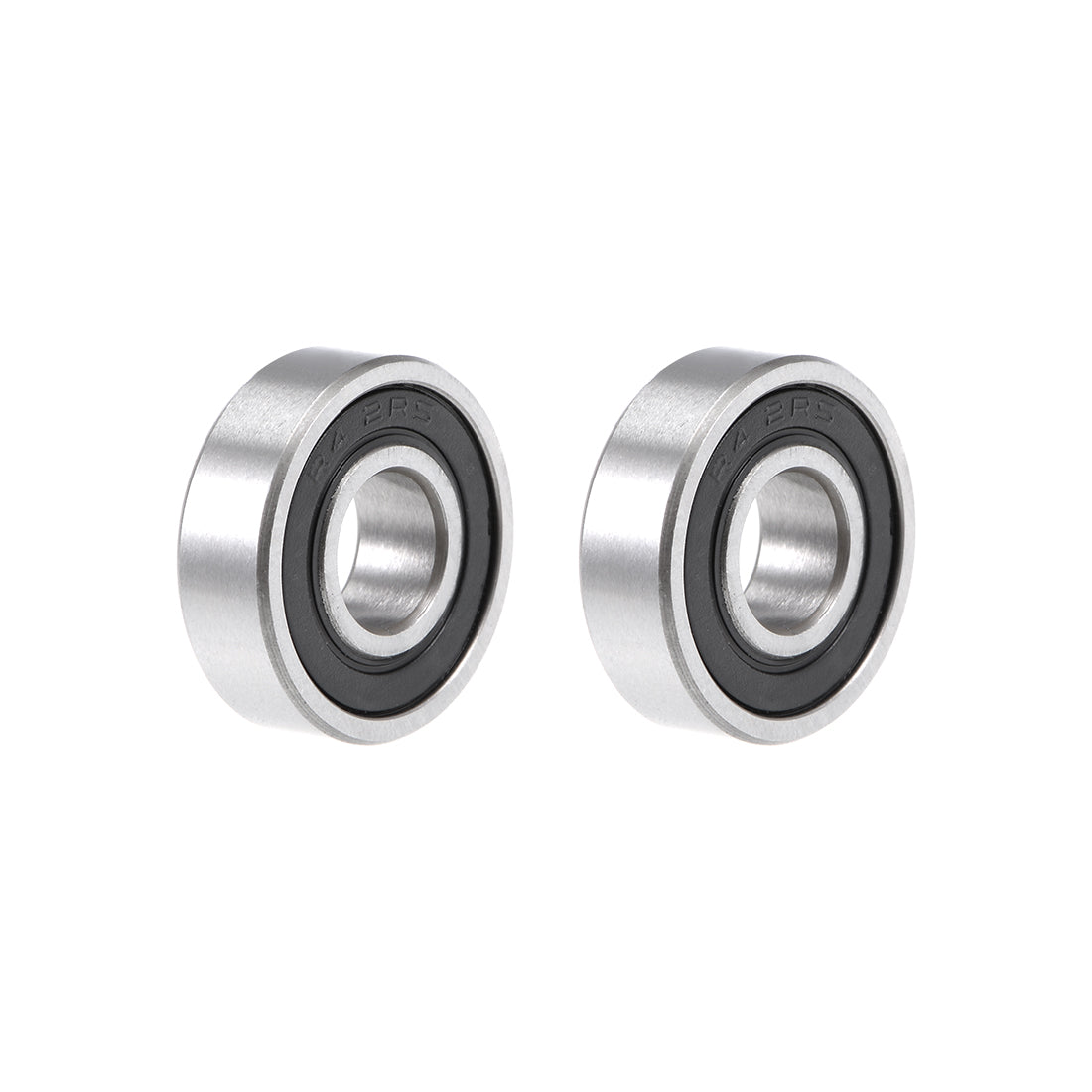

Number of Pack: 2 Pcs

US$5.42 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Model Accuracy Class Dynamic Load Rating (Cr)(KN) I.D. Noise Level O.D. Pkg.Qty. Static Load Rating (Cor)((KN) Static Load Rating(KN) Thickness Type Dynamic Load Rating(KN) ID Price Qty
R4-2RS ABEC-1 / 6.35mm Z1 15.875mm 2 / 0.615 4.978mm Double Sealed 1.48 1088617 US$5.42
Products Model Accuracy Class Dynamic Load Rating (Cr)(KN) I.D. Noise Level O.D. Pkg.Qty. Static Load Rating (Cor)((KN) Static Load Rating(KN) Thickness Type Dynamic Load Rating(KN) ID Price Qty
R4-2RS ABEC-1 / 6.35mm Z1 15.875mm 2 / 0.615 4.978mm Double Sealed 1.48 1088617 US$5.42
R8-2RS ABEC-1 / 12.7mm Z1 28.575mm 2 / 2.415 7.938mm Double Sealed 2.108 1046036 US$5.19
R8-2RS ABEC-3 / 12.7mm Z1 28.575mm 5 / 2.415 7.938mm Double Sealed 2.108 1059865 US$7.81
6903-2RS ABEC-1 / 17mm / 30mm 8 / 2.6 7mm Double Sealed 4.6 1089348 US$8.97
6905-2RS ABEC-1 / 25mm Z1 42mm 1 / 4.55 9mm Double Sealed 7 1040693 US$5.41
6905-2RS ABEC-1 / 25mm Z2 42mm 1 / 4.5 9mm Double Sealed 7 1055794 US$5.60
16008-2RS ABEC-1 / 40mm Z1 68mm 1 / 9.6 9mm Double Sealed 12.6 1058623 US$8.08
6910-2RS ABEC-1 / 50mm Z1 72mm 1 / 11.7 12mm Double Sealed 14.5 1058632 US$7.75
6902-2RS ABEC-1 / 15mm Z2 28mm 5 / 2.3 7mm / 4.3 1059345 US$7.24
6902-2RS ABEC-1 4.3 15mm Z1 28mm 2 2.3 2.3 7mm Double Sealed / 1055765 US$5.48
6906-2RS ABEC-1 / 30mm Z1 47mm 5 / 5 9mm Double Sealed 7.25 1059686 US$11.29
6001-2RS ABEC-3 / 12mm Z1 28mm 5 / 2.38 8mm Double Sealed 5.1 1059690 US$8.14
MR128-2RS ABEC-3 / 8mm Z1 12mm 2 / 0.274 3.5mm Double Sealed 0.543 1059826 US$5.89
MR126-2RS ABEC-3 / 6mm Z1 12mm 2 / 0.295 4mm Double Sealed 0.716 1059841 US$5.94
MR74-2RS ABEC-3 / 4mm Z1 7mm 10 / 0.106 2.5mm Double Sealed 0.252 1059848 US$9.79
MR84-2RS ABEC-3 / 4mm Z1 8mm 10 / 0.129 3mm Double Sealed 0.376 1059869 US$9.79
S6000-2RS ABEC-1 / 10mm Z1 26mm 1 / 1.98 8mm Double Sealed 4.58 1108827 US$5.84
205PP ABEC-1 / 25mm Z1 52mm 2 / 7.88 15mm Double Sealed 14 1061883 US$10.49
203PP ABEC-1 / 17mm Z1 40mm 1 / 4.78 12mm Double Sealed 9.58 1061884 US$6.77
695-2RS ABEC-3 / 5mm Z1 13mm 2 / 0.432 4mm Double Sealed 1.077 1015456 US$5.72
S6205-2RS ABEC-1 / 25mm Z1 52mm 1 / 7.85 15mm Double Sealed 14 1029278 US$9.21
606-2RS ABEC-1 1.95 6mm Z1 17mm 20 0.72 0.72 6mm Double Sealed / 1034247 US$9.83
626-2RS ABEC-1 / 6mm / 19mm 4 / / 6mm Double Sealed 2.6 1034300 US$5.89
626-2RS ABEC-1 2.6 6mm Z2 19mm 2 1.05 1.05 6mm Double Sealed / 1055695 US$5.79
6204-2RS ABEC-3 / 20mm Z1 47mm 2 / 6.65 14mm Double Sealed 12.8 1035188 US$8.73
6305-2RS ABEC-3 / 25mm Z1 62mm 2 / 11.3 17mm Double Sealed 20.6 1035222 US$12.89
6302-2RS ABEC-3 / 15mm Z1 42mm 2 / 5.42 13mm Double Sealed 11.5 1035225 US$8.33
6702-2RS ABEC-3 / 15mm Z1 21mm 2 / 0.578 4mm Double Sealed 0.941 1028784 US$6.71
608-2RS ABEC-1 3.3 8mm Z1 22mm 10 1.35 1.35 7mm Double Sealed / 1055731 US$7.14
6901-2RS ABEC-1 2.9 12mm Z1 24mm 10 1.5 1.5 6mm Double Sealed / 1055764 US$7.76
627-2RS ABEC-1 / 7mm / 22mm 4 / 1.35 7mm Double Sealed 3.3 1055963 US$6.18
Qty: 0 Item(s)
Total Price: US$0.00
View more

Description

Description

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.



Description:

  • Single-row, pre-lubricated, normal accuracy.
  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
  • With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
  • Carbon Steel bearings are better in toughness than chrome steel bearings after quenching. These cost-effective bearings are widely used in areas with low requirements for Mohs hardness.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.



Selecting Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.



Specification:

Model: R4-2RS

Seal Type: Double Sealed

Inner Race/Outer Race Material: Carbon Steel

Cage Material: Stamping Steel

Inner Diameter (d): 1/4" /6.35mm

Outer Diameter (D): 5/8" /15.875mm

Thickness (B): 0.196" /4.978mm

Dynamic Load Rating (Cr): 1.48kN

Static Load Rating (Cor): 0.615kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 2 Pcs
