Harfington 5pcs RC-35 NO Recessed Wire Door Contact Sensor Alarm Magnetic Reed Switch White

5pcs RC-35 NO Recessed Wire Door Contact Sensor Alarm Magnetic Reed Switch White

ID:
$20.38 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Current: 0.1A ; Voltage: 200V ; Power Rating: 2W; Action Distance: 15mm
  • Cable Length: 27cm/10.6"; Total Size: 32mm x 11mm/1.26" x 0.43" (L*D)
  • This Recessed Door Contact Sensor works with any access control or burglar alarm system available
  • NO means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ).
  • The Magnetic Door Switch must be installed according to the sensing distance. It can only provide a switch signal to the transmitter. It cannot directly load the power, nor directly connect the lamp!
  • In stock, ready to ship
Cart
Cart
About this item
  • Current: 0.1A ; Voltage: 200V ; Power Rating: 2W; Action Distance: 15mm
  • Cable Length: 27cm/10.6"; Total Size: 32mm x 11mm/1.26" x 0.43" (L*D)
  • This Recessed Door Contact Sensor works with any access control or burglar alarm system available
  • NO means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ).
  • The Magnetic Door Switch must be installed according to the sensing distance. It can only provide a switch signal to the transmitter. It cannot directly load the power, nor directly connect the lamp!
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

1.NO means Normally Open: when the magnet separate, the circuit is conductive( light on );When the magnet together, the circuit is not conductive ( light off ).When make order,pls check carefully!

2.These are the door contact sensors that are in use with any and all commercial or residential card access systems as well as all security burglar alarm system.

3.Work as an anti-theft alarm, perfect for metal door and window.



Specification:

Product Name: Magnetic Door Switch

Model: RC-35

Contact Type: NO (Normally Open)

Max.Actuation Distance: 15mm

Max. Current: 0.1A

Max. Contact Power: 2W

Working Voltage: DC200V

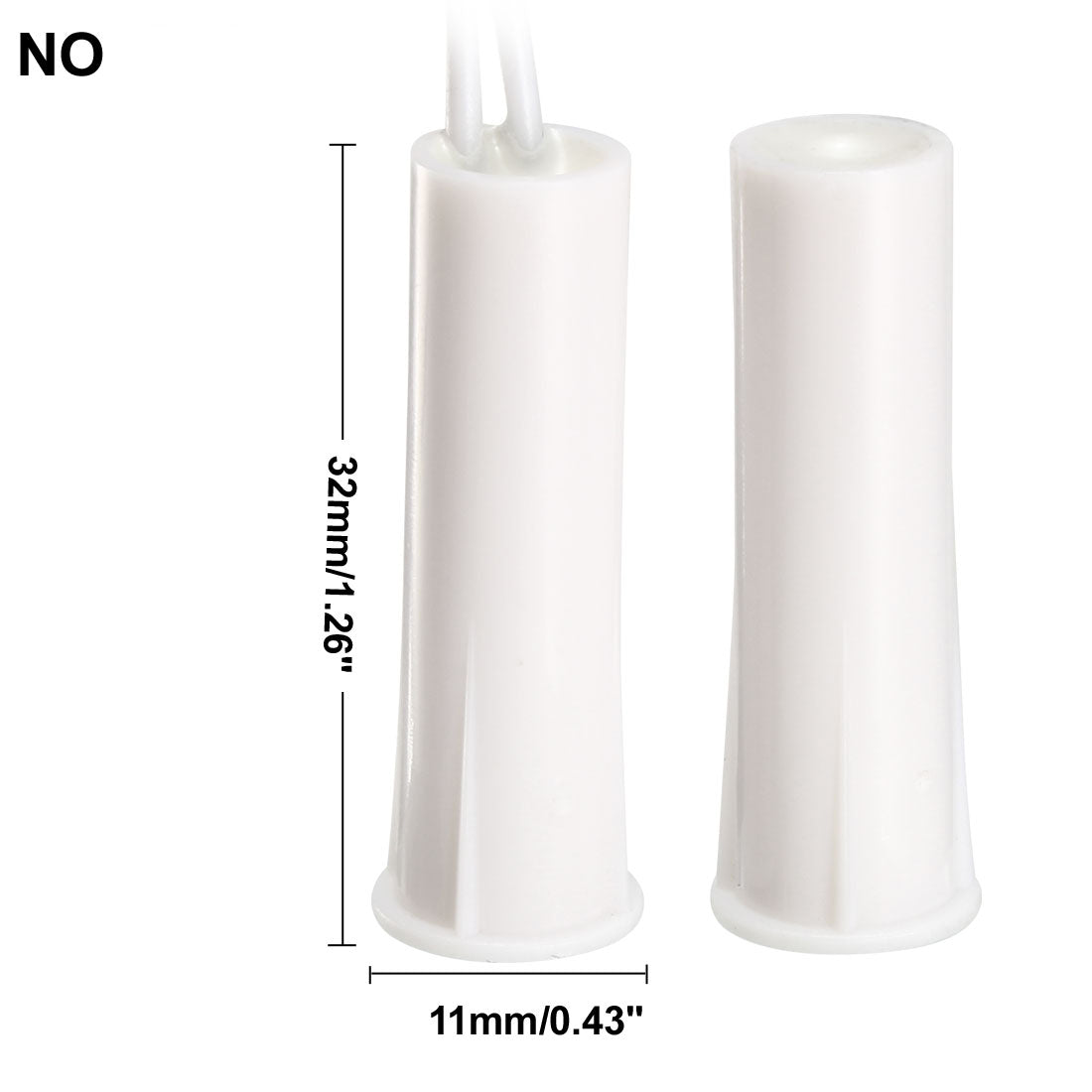

Each Size(Approx): 32 x 11mm / 1.26 x 0.43-inch (H*D)

Cable Length(Each): 27cm / 10.6-inch

Material: ABS (Housing)

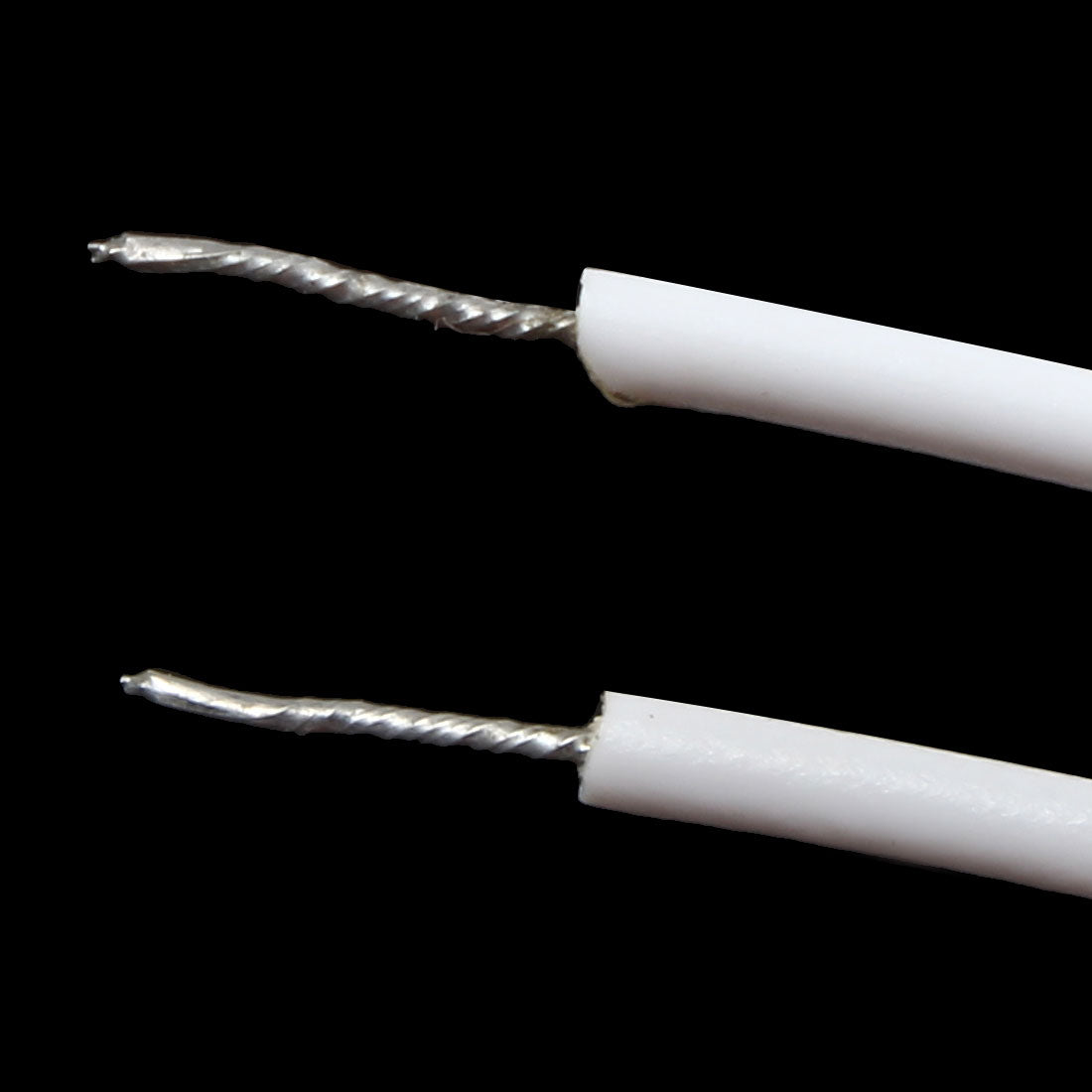

Wire Type: 1007UL#24AWG

Color: White

Net Weight: 56g



Package Content:

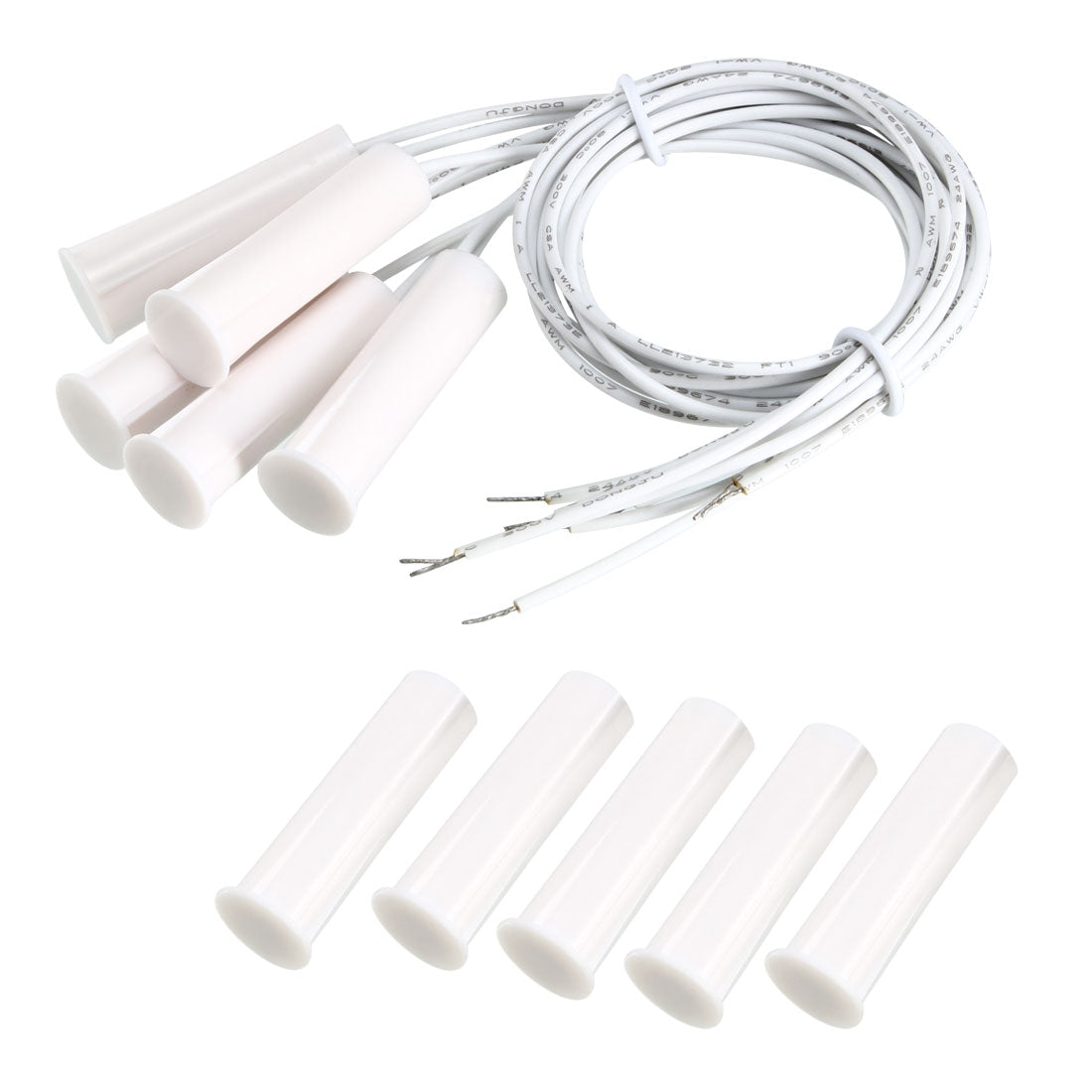

5pcs x Magnetic Door Switch

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
$20.38 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:

1.NO means Normally Open: when the magnet separate, the circuit is conductive( light on );When the magnet together, the circuit is not conductive ( light off ).When make order,pls check carefully!

2.These are the door contact sensors that are in use with any and all commercial or residential card access systems as well as all security burglar alarm system.

3.Work as an anti-theft alarm, perfect for metal door and window.



Specification:

Product Name: Magnetic Door Switch

Model: RC-35

Contact Type: NO (Normally Open)

Max.Actuation Distance: 15mm

Max. Current: 0.1A

Max. Contact Power: 2W

Working Voltage: DC200V

Each Size(Approx): 32 x 11mm / 1.26 x 0.43-inch (H*D)

Cable Length(Each): 27cm / 10.6-inch

Material: ABS (Housing)

Wire Type: 1007UL#24AWG

Color: White

Net Weight: 56g



Package Content:

5pcs x Magnetic Door Switch

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
