Uxcell Metric Thread Tap M10 x 1.5 H2 100mm Extra Long Straight Flute Tapping Tool

Questions & Answers |
$9.48 Regular price
/
  • Order $200+
    5%OFF
  • Order $500+
    7%OFF
  • Order $800+
    10%OFF
  • Order $2000+
    15%OFF
  • Order $5000+
    20%OFF
Wholesale Price
*Hardware Mixed Wholesale Price. Free Shipping on orders over $200(by UPS/DHL Air Express).
About This Item
  • Thread Size: M10; Pitch: 1.5; Accuracy: H2
  • Thread Length: 27mm / 1.06 inch; Shank Side Width: 6mm / 0.24 inch
  • Material: HSS (High Speed Steel); Total Length: 100mm / 3.94 inch

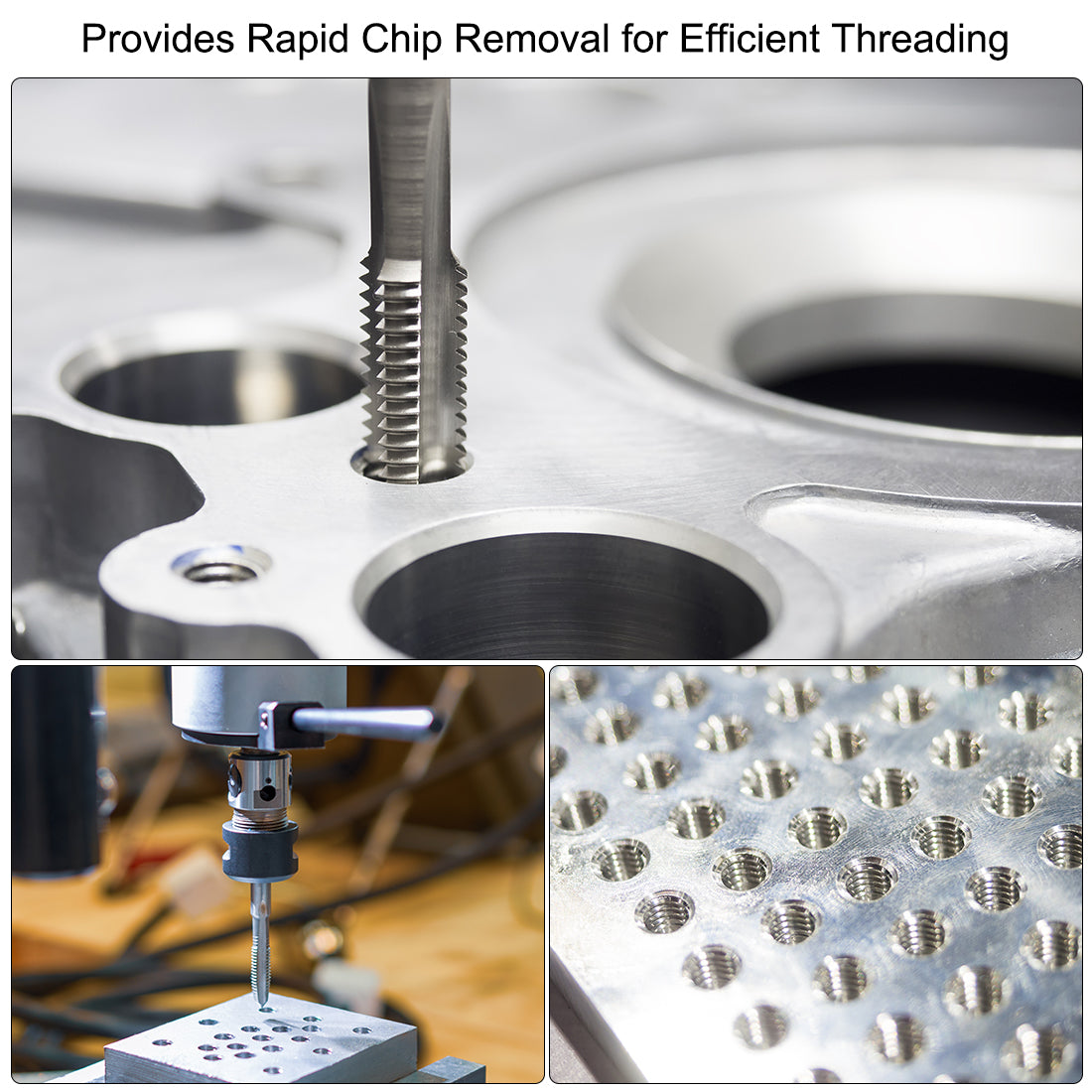

  • Straight 3 flutes are ground to provide rapid chip removal for efficient threading.
  • Suitable for drilling, tapping, cutting on soft metal, aluminum plate, iron.
  • In stock, ready to ship
Cart
Cart
About This Item
  • Thread Size: M10; Pitch: 1.5; Accuracy: H2
  • Thread Length: 27mm / 1.06 inch; Shank Side Width: 6mm / 0.24 inch
  • Material: HSS (High Speed Steel); Total Length: 100mm / 3.94 inch
  • Straight 3 flutes are ground to provide rapid chip removal for efficient threading.
  • Suitable for drilling, tapping, cutting on soft metal, aluminum plate, iron.
Free Shipping to the {[currentShipping.abbr]} over {[currentShipping.price]}
Estimated shipping time will be within {[currentShipping.days]} days
Shipping Method

Ship to

Total Delivery Time = Processing Time + Shipping Time
30 Day Free Return
Wholesale Inquiry
* Product Name
* Quantity(Each)
* Email Address
Customer Name
Expected Arrival Time
Customer Note
0/990
If you want to consult the bulk order, you can submit a inquiry or contact us .
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven’t received the reply by then, please check your spam. Thank you!
Product Description:

1pcs Metric Thread Taps:

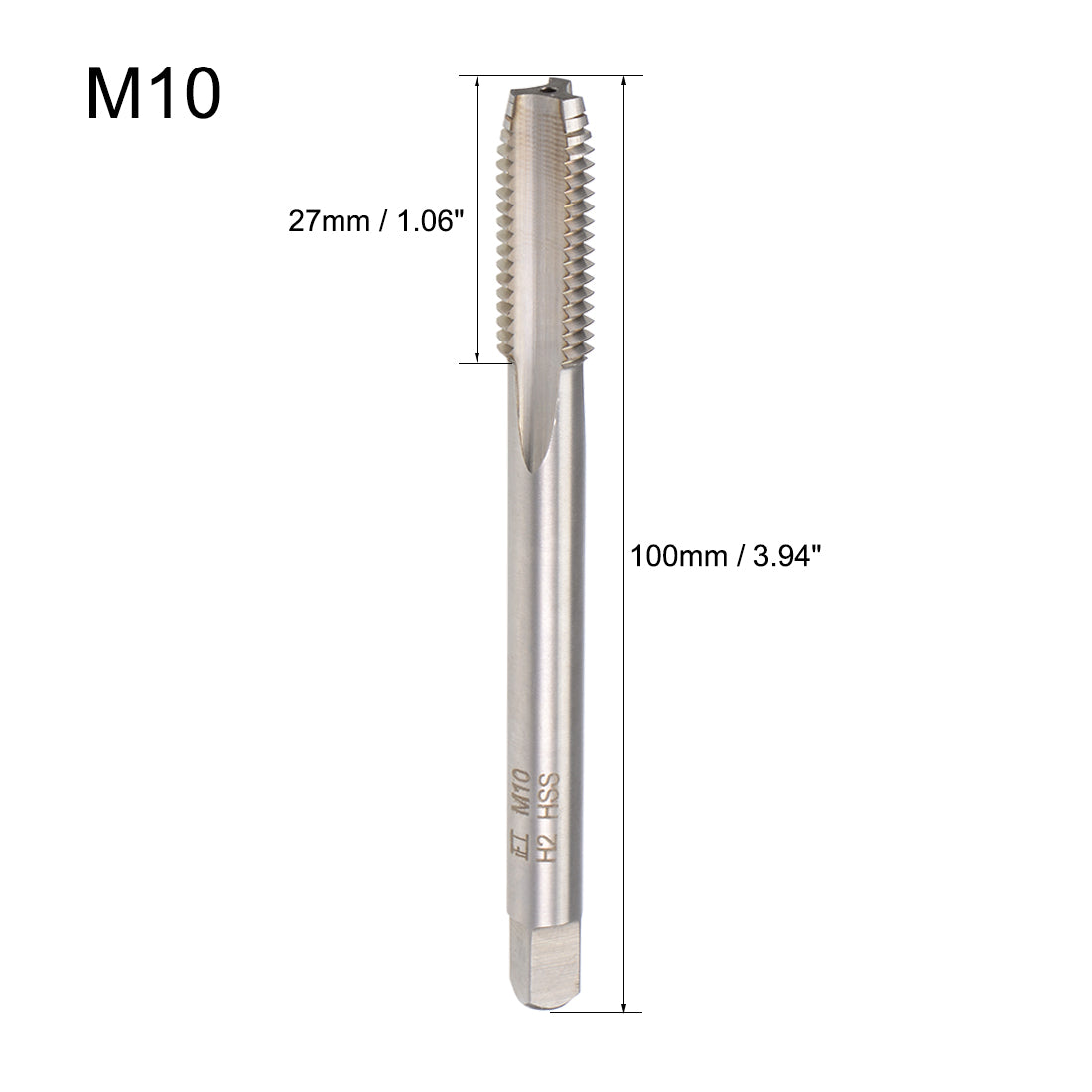

Thread Size: M10 x 1.5 (Right Hand)
Accuracy: H2
Total Length: 100mm / 3.94 inch (Extra Long)

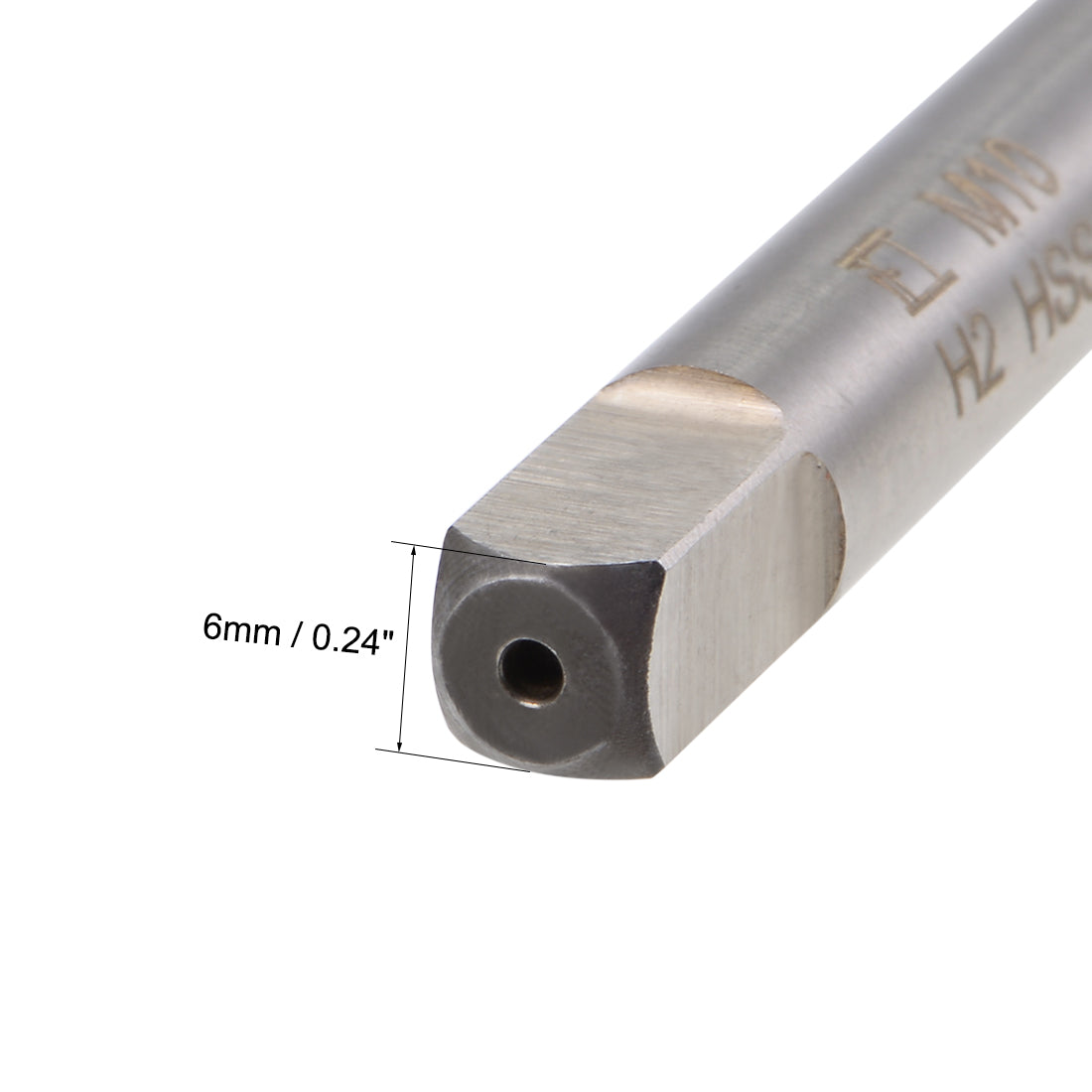

Shank Side Width: 6mm / 0.24 inch
Thread Length: 27mm / 1.06 inch
Number of Chip Flutes: 3 Flutes
Style: Straight Flute Tap
Material: High-Speed Steel 6542 (HSS 6542)
Finish: Uncoated

Descriptions:
1. Straight flute tap, clear threads without burrs, right hand tapping direction. Provides rapid downward chip removal to achieve efficient thread cutting, suitable for processing through holes or shallow holes.
2. Thread taps create new threads or re-thread damaged or jammed threads. Widely used for most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Add proper tapping oil for higher quality internal threads and more durable taps.
3. 6542 high-speed steel metric taps offer high hardness, good toughness, wear resistance, and excellent cutting performance. Uncoated taps feature just the base substrate without any additional coatings, great for a wide range of applications.
4. Machine taps are used with tapping machines, drilling machines, milling machines, CNC. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. NOT recommended for hand and electric drill tapping.

Tips:
1. Control speed according to material hardness. The higher the hardness, the slower the speed. Fast speed with small torque; slow speed with high torque. The force must be uniform in tapping operations.

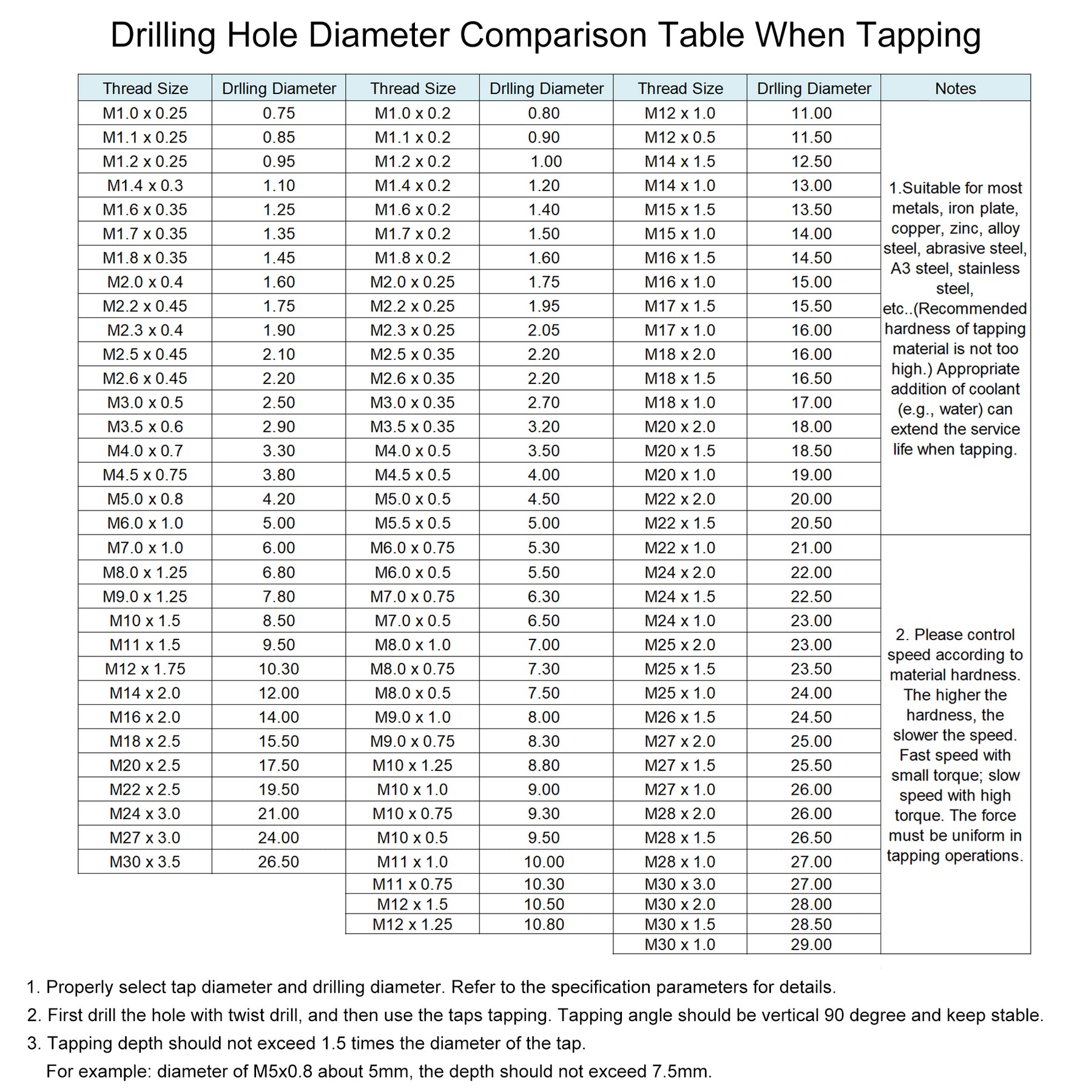

2. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable.
3. The tapping depth should not exceed 1.5 times the diameter of the tap (for example, diameter M5x0.8 is about 5mm, and the depth should not exceed 7.5mm.)

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specification

Description

Description

1pcs Metric Thread Taps:
Thread Size: M10 x 1.5 (Right Hand)
Accuracy: H2
Total Length: 100mm / 3.94 inch (Extra Long)
Shank Side Width: 6mm / 0.24 inch
Thread Length: 27mm / 1.06 inch
Number of Chip Flutes: 3 Flutes
Style: Straight Flute Tap
Material: High-Speed Steel 6542 (HSS 6542)
Finish: Uncoated

Descriptions:
1. Straight flute tap, clear threads without burrs, right hand tapping direction. Provides rapid downward chip removal to achieve efficient thread cutting, suitable for processing through holes or shallow holes.
2. Thread taps create new threads or re-thread damaged or jammed threads. Widely used for most metals, iron plate, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc.. Add proper tapping oil for higher quality internal threads and more durable taps.
3. 6542 high-speed steel metric taps offer high hardness, good toughness, wear resistance, and excellent cutting performance. Uncoated taps feature just the base substrate without any additional coatings, great for a wide range of applications.
4. Machine taps are used with tapping machines, drilling machines, milling machines, CNC. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. NOT recommended for hand and electric drill tapping.

Tips:
1. Control speed according to material hardness. The higher the hardness, the slower the speed. Fast speed with small torque; slow speed with high torque. The force must be uniform in tapping operations.
2. Drill the holes with a twist drill bit first, then tap with a thread tap. The tapping angle should be 90 degrees vertical and stable.
3. The tapping depth should not exceed 1.5 times the diameter of the tap (for example, diameter M5x0.8 is about 5mm, and the depth should not exceed 7.5mm.)

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
