Harfington Uxcell Machine Tap 1/4-32 UNEF Thread Pitch 2B Class 3 Flutes High Speed Steel

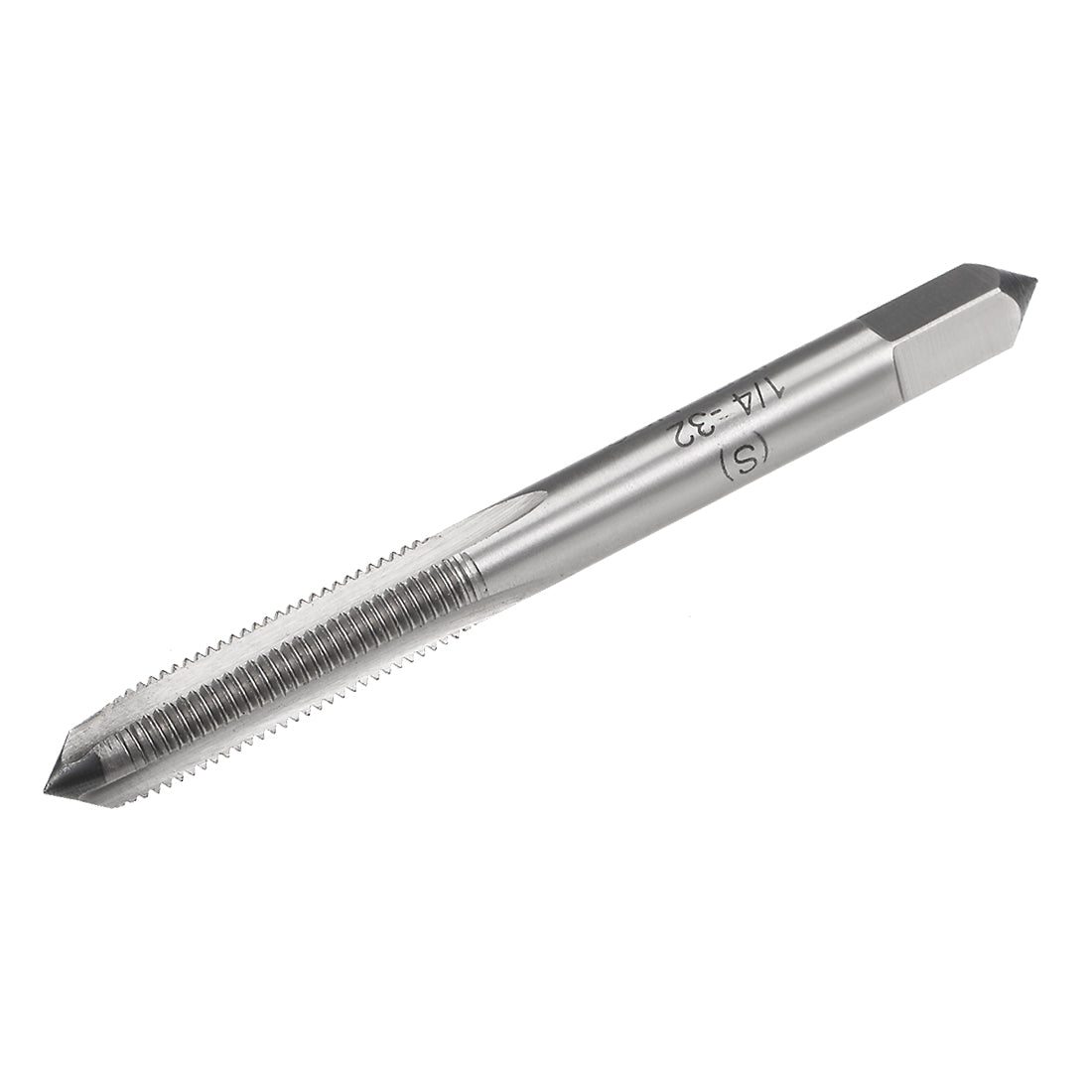

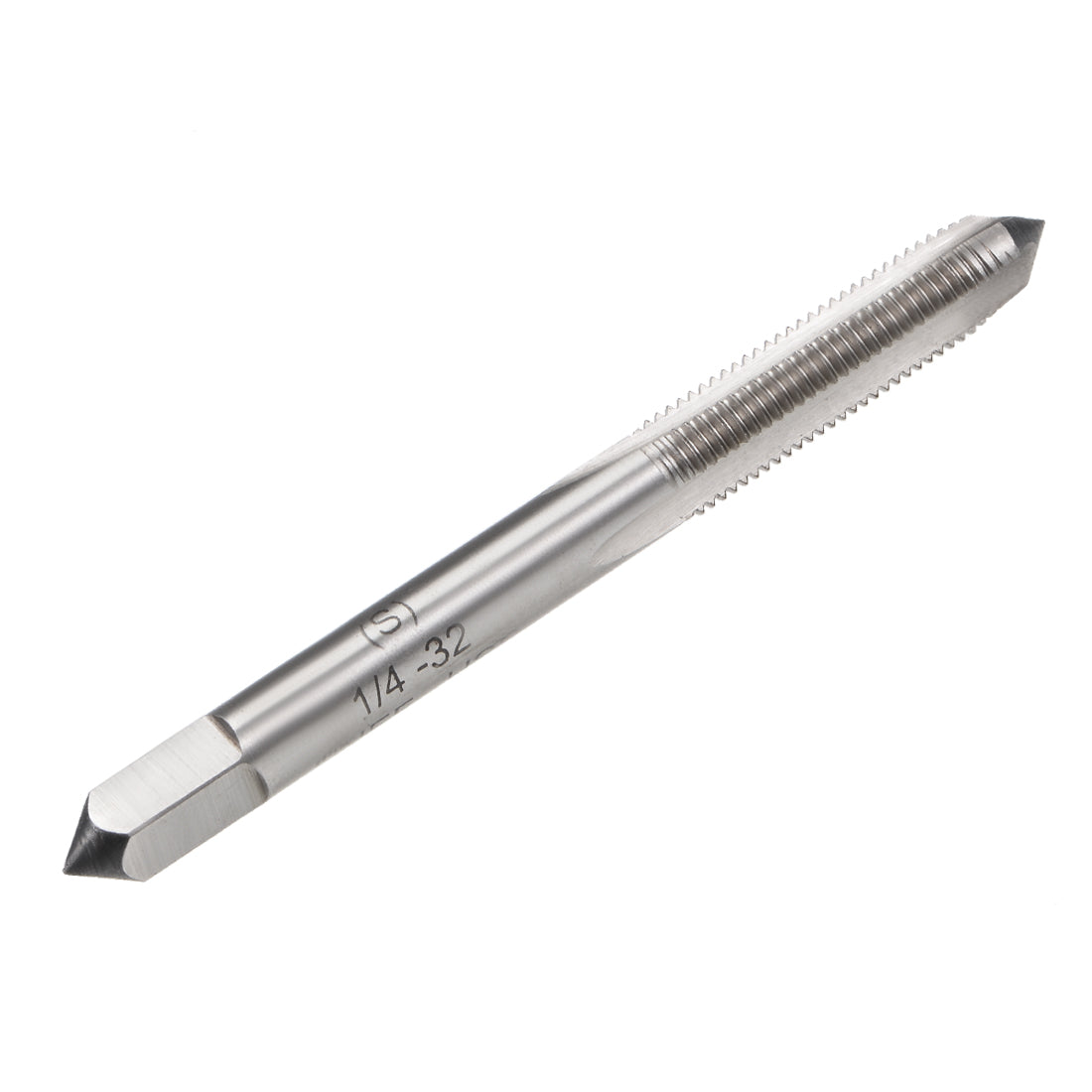

Uxcell Machine Tap 1/4-32 UNEF Thread Pitch 2B Class 3 Flutes High Speed Steel

ID:1084074
ID:1084074
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

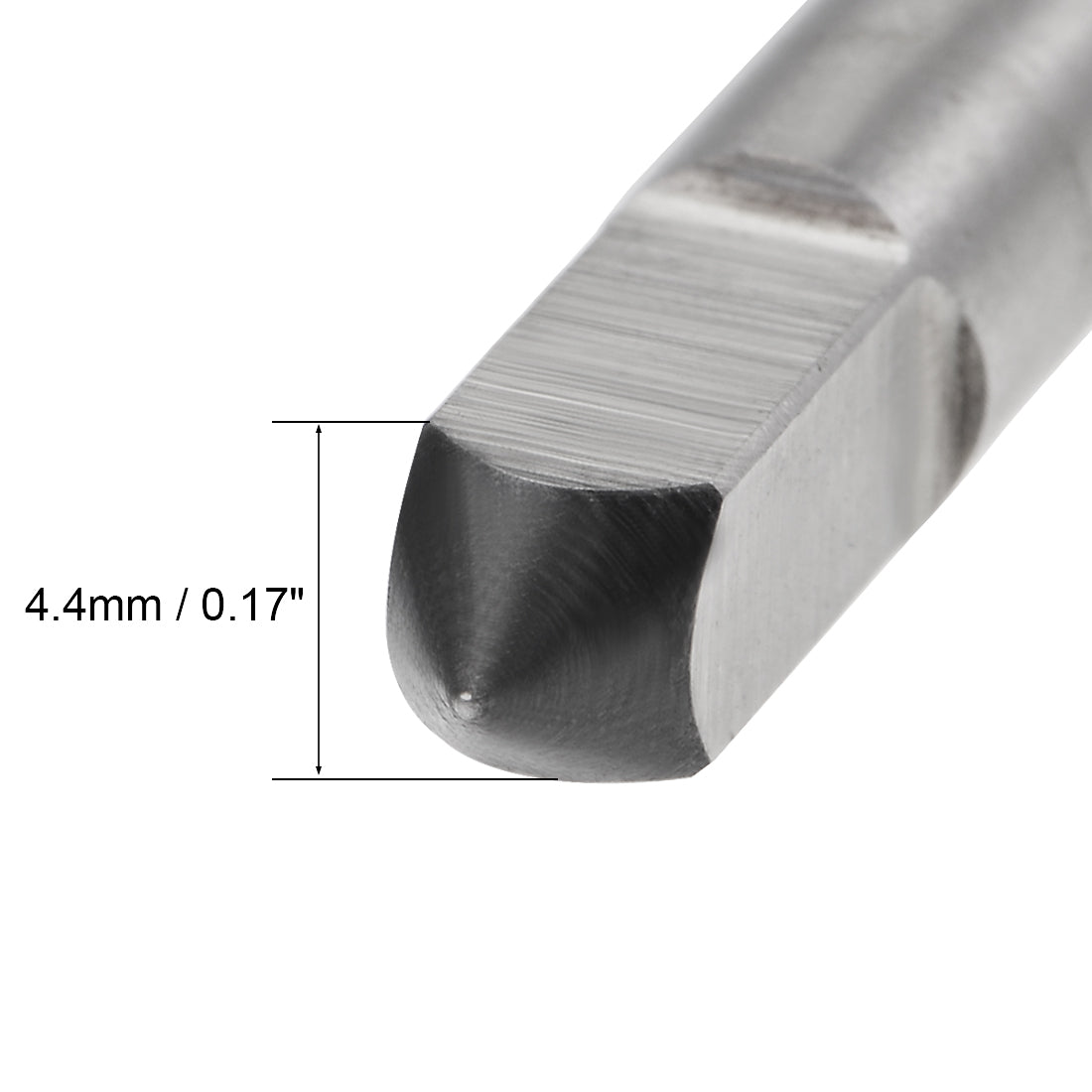

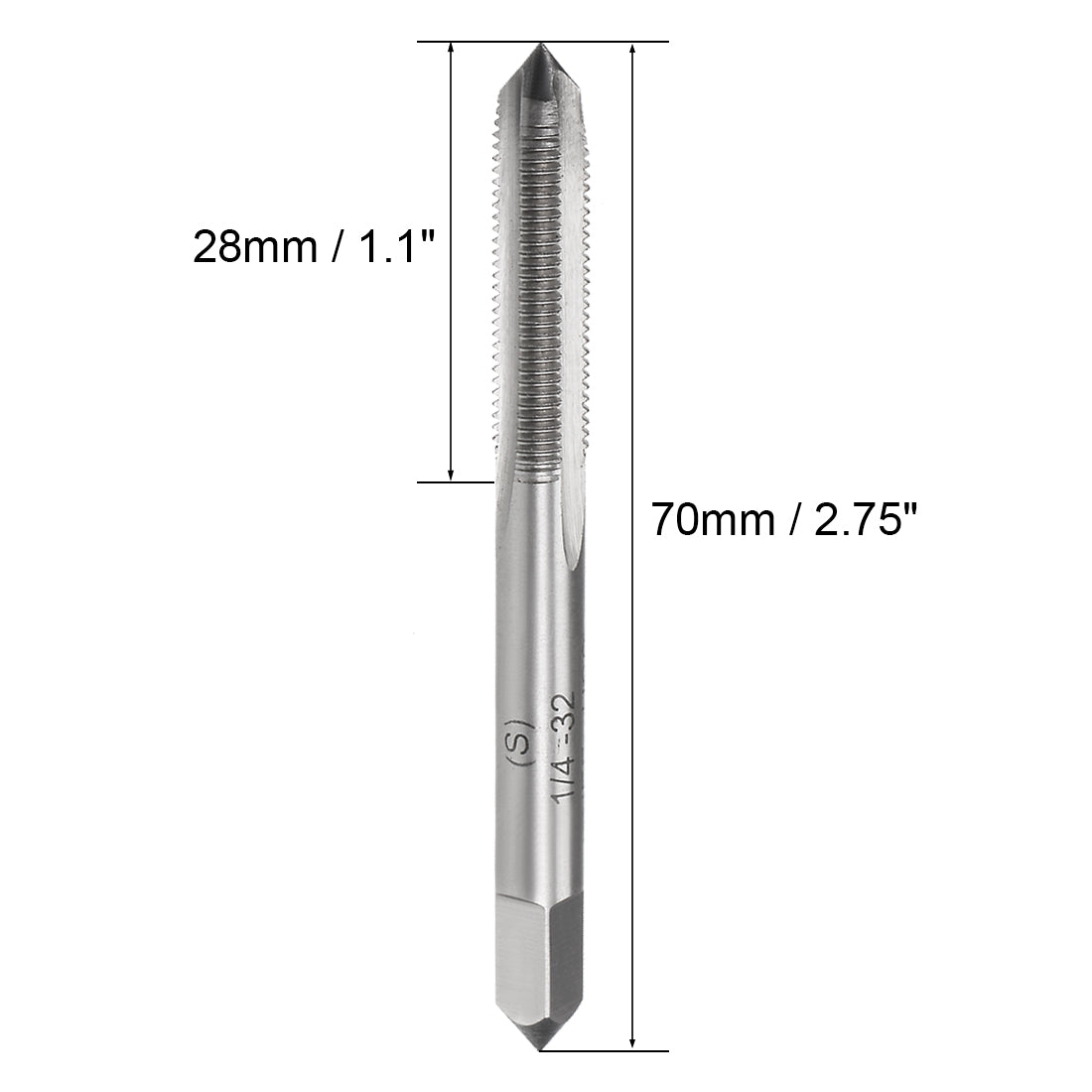

  • Thread Tap: Thread Size: 1/4-32 UNEF; Class: 2B; Shank Side Width: 4.4mm / 0.17 inch; Thread Length: 28mm / 1.1 inch; Total Length: 70mm / 2.75 inch
  • High Speed Steel Tap: The screw tap has high wear resistance, fast cutting speed, high strength and hardness, and long service life. With uncoated base substrate only, suitable for general purpose tapping.
  • Wide Applications: The thread tap is suitable for drilling mild steels, aluminum, iron, copper, stainless steel, hard plastic, processing through holes or shallow holes. Add appropriate tapping oil for higher quality internal threads and more durable taps.

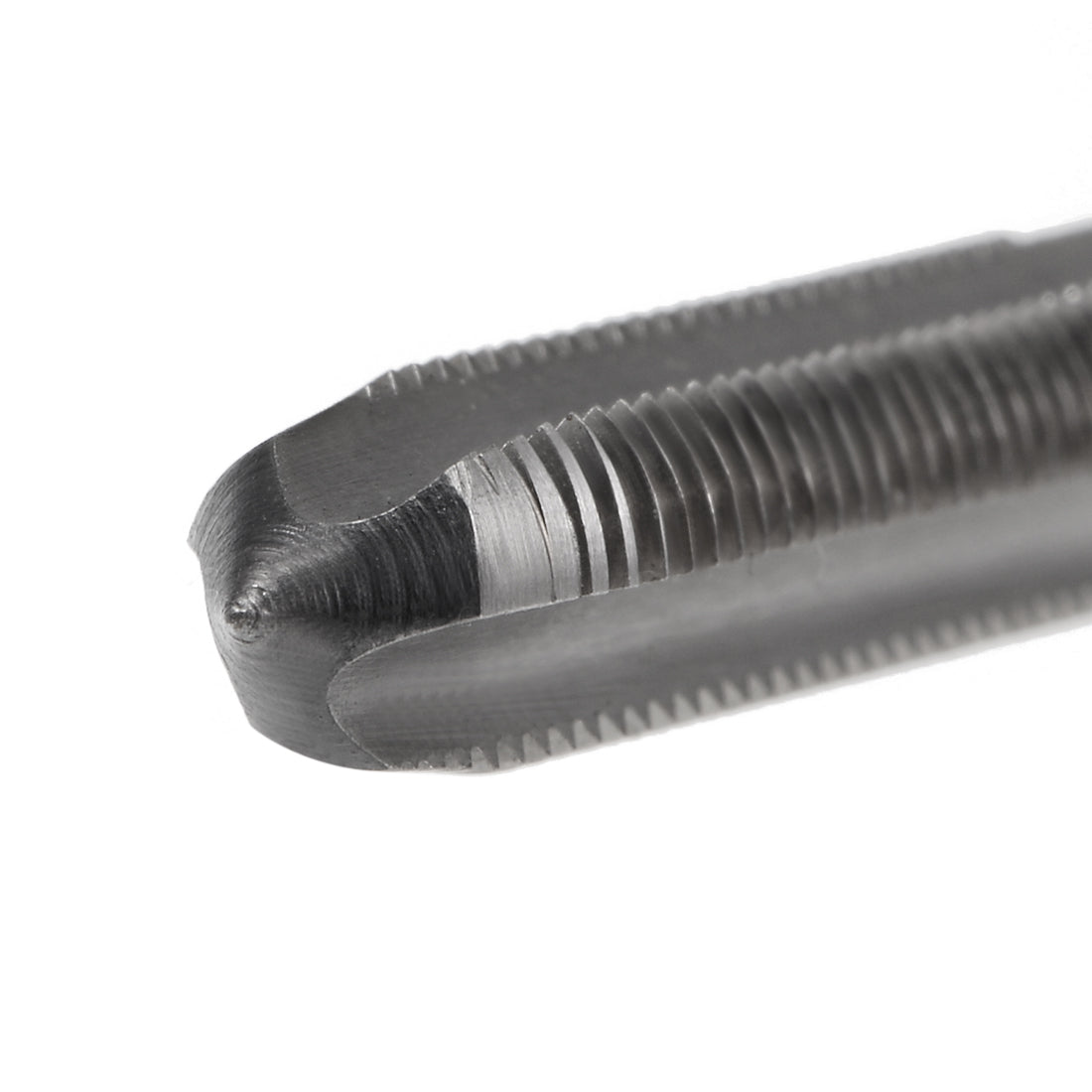

  • Straight Flute Tap: Straight 3 flutes are ground to provide rapid downward chip removal for efficient threading, clear threads without burrs, right hand tapping direction. Micro taps are mainly used in clocks and watches for machining holes in wood and soft metals with low hardness.
  • Machine Taps: Used in drilling machines, tapping machines, automatic machines, machining centers, CNC, milling machines, not recommended for hand and electric drill tapping. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.
About this item
  • Thread Tap: Thread Size: 1/4-32 UNEF; Class: 2B; Shank Side Width: 4.4mm / 0.17 inch; Thread Length: 28mm / 1.1 inch; Total Length: 70mm / 2.75 inch
  • High Speed Steel Tap: The screw tap has high wear resistance, fast cutting speed, high strength and hardness, and long service life. With uncoated base substrate only, suitable for general purpose tapping.
  • Wide Applications: The thread tap is suitable for drilling mild steels, aluminum, iron, copper, stainless steel, hard plastic, processing through holes or shallow holes. Add appropriate tapping oil for higher quality internal threads and more durable taps.
  • Straight Flute Tap: Straight 3 flutes are ground to provide rapid downward chip removal for efficient threading, clear threads without burrs, right hand tapping direction. Micro taps are mainly used in clocks and watches for machining holes in wood and soft metals with low hardness.
  • Machine Taps: Used in drilling machines, tapping machines, automatic machines, machining centers, CNC, milling machines, not recommended for hand and electric drill tapping. Recommended feed speed: ordinary steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.
Specification

Specification

SKU
a19051000ux0695
Material
HSS (High Speed Steel)
Class
2B
Thread size
1/4-32 UNEF
Shank side width
4.4mm / 0.17 inch
Thread length
28mm / 1.1 inch
Total length
70mm / 2.75 inch
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Feature:

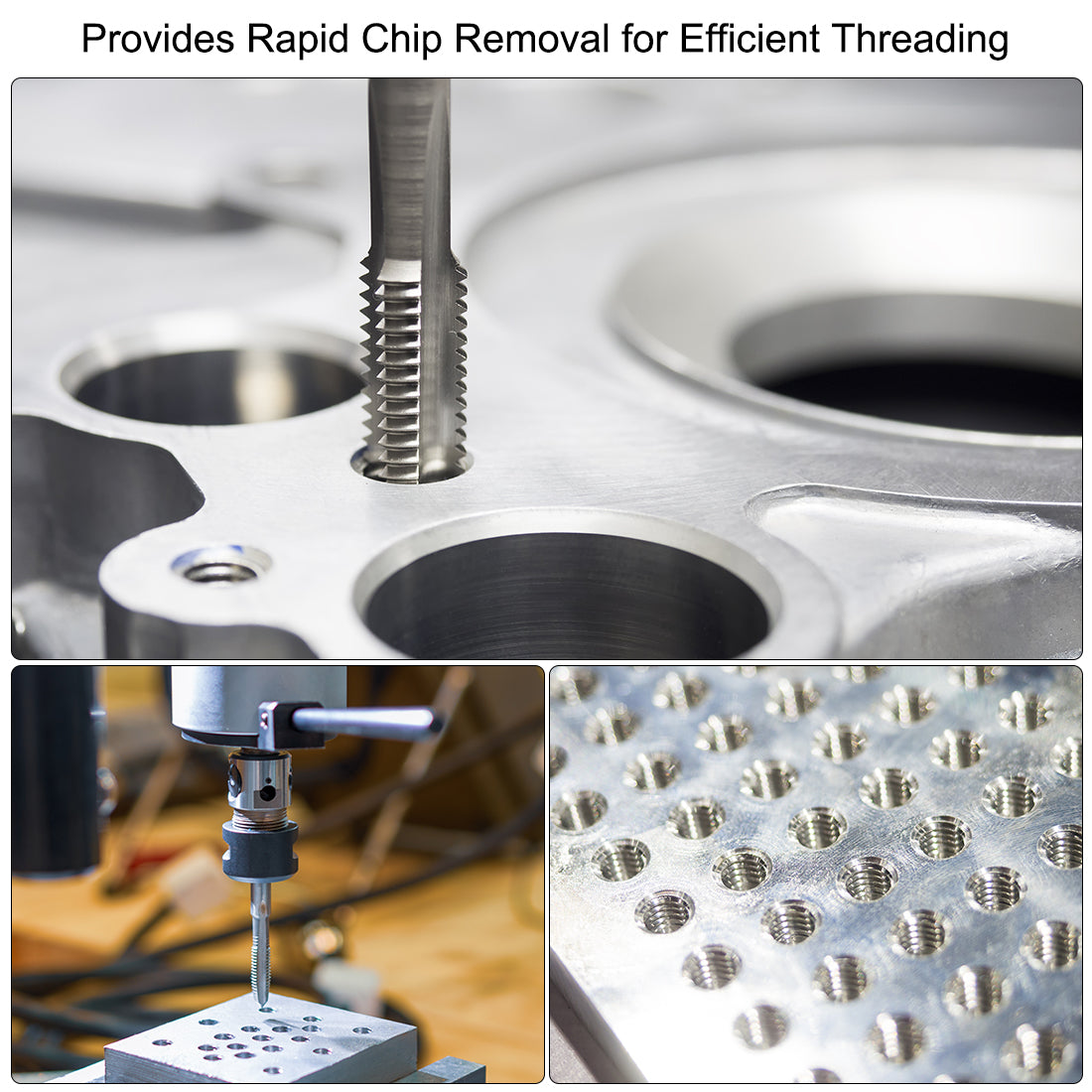

Straight 3 flutes are ground to provide rapid chip removal for efficient threading.

Used with some cutting fluid or keep it wet when tapping, the tap will last longer.

Suitable for drilling, tapping, cutting on soft metal, aluminum plate, iron.



Specification:

Material: HSS (High Speed Steel)

Class: 2B

Thread Size: 1/4-32 UNEF

Shank Side Width: 4.4mm / 0.17 inch

Thread Length: 28mm / 1.1 inch

Total Length: 70mm / 2.75 inch



Package Content:

1 x Machine Tap

US$7.79 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Product Variants

Products Title ID Price Qty
Uxcell Machine Tap 1/4-32 UNEF Thread Pitch 2B Class 3 Flutes High Speed Steel 1084074 US$7.79
Products Title ID Price Qty
Uxcell Machine Tap 1/4-32 UNEF Thread Pitch 2B Class 3 Flutes High Speed Steel 1084074 US$7.79
Uxcell Machine Tap 4-40UNC Thread Pitch 2B Class 3 Flutes High Speed Steel 2pcs 1035324 US$10.09
Uxcell Machine Tap, 1/4-20UNC 2B Class High Speed Steel Screw Thread Threading Milling Taps Tapping Tool 2pcs 1084073 US$10.06
Uxcell Machine Tap, 1/4-28 UNF 2B Class High Speed Steel Screw Thread Threading Milling Taps Tapping Tool 2pcs 1035325 US$10.79
Uxcell Machine Tap 2-56 UNC Thread Pitch 2B Class 3 Flutes High Speed Steel 1060319 US$7.63
Uxcell Machine Tap 8-32UNC Thread Pitch 2B Class 3 Flutes High Speed Steel 1060323 US$7.11
Uxcell Machine Tap 1/2-12 UNS Thread 2B Class 4 Flutes High Speed Steel 1079698 US$10.75
Uxcell Machine Tap 2-56 UNC Thread Pitch 2B Class 3 Flutes High Speed Steel 2pcs 1035323 US$10.44
Uxcell Machine Tap 10-24 UNC Thread Pitch 2B Class 3 Flutes High Speed Steel 1060325 US$7.63
Uxcell Machine Tap, #10-32 UNF 2B Class High Speed Steel Screw Thread Threading Milling Taps Tapping Tool 2pcs 1040782 US$10.41
Uxcell Machine Tap, #6-32 UNC 2B Class High Speed Steel Screw Thread Threading Milling Taps Tapping Tool 2pcs 1035326 US$10.44
Uxcell Machine Tap 3/8-24 UNF Thread Pitch 2B Class 3 Flutes High Speed Steel 1168543 US$9.35
Uxcell Machine Tap 1/4-32 UNEF Thread Pitch 2B Class 3 Flutes High Speed Steel 2pcs 1168544 US$10.79
Uxcell Machine Tap, #10-32 UNF 2B Class High Speed Steel Screw Thread Threading Milling Taps Tapping Tool 1084072 US$7.62
Uxcell Machine Tap 5/16-32 UNEF Thread Pitch 2B Class 3 Flutes High Speed Steel 1088347 US$9.50
Uxcell Machine Tap 5/16-18 UNC Thread 2B Class 3 Flutes High Speed Steel 1088348 US$8.88
Uxcell Machine Tap 6-32UNC Thread Pitch 2B Class 3 Flutes High Speed Steel 1060322 US$7.11
Uxcell Machine Tap 5/16-24 UNF Thread 2B Class 3 Flutes High Speed Steel 1168542 US$8.57
Uxcell Machine Tap 1/2-20 UNF Thread 2B Class 4 Flutes High Speed Steel 1141302 US$11.26
Uxcell Machine Tap 3/8-16 UNC Thread 2B Class 3 Flutes High Speed Steel 1141306 US$9.50
Qty: 0 Item(s)
Total Price: US$0.00

Description

Description

Feature:

Straight 3 flutes are ground to provide rapid chip removal for efficient threading.

Used with some cutting fluid or keep it wet when tapping, the tap will last longer.

Suitable for drilling, tapping, cutting on soft metal, aluminum plate, iron.



Specification:

Material: HSS (High Speed Steel)

Class: 2B

Thread Size: 1/4-32 UNEF

Shank Side Width: 4.4mm / 0.17 inch

Thread Length: 28mm / 1.1 inch

Total Length: 70mm / 2.75 inch



Package Content:

1 x Machine Tap
