Harfington Stainless Steel Float Switch Liquid Level Sensor with 310mm Rod

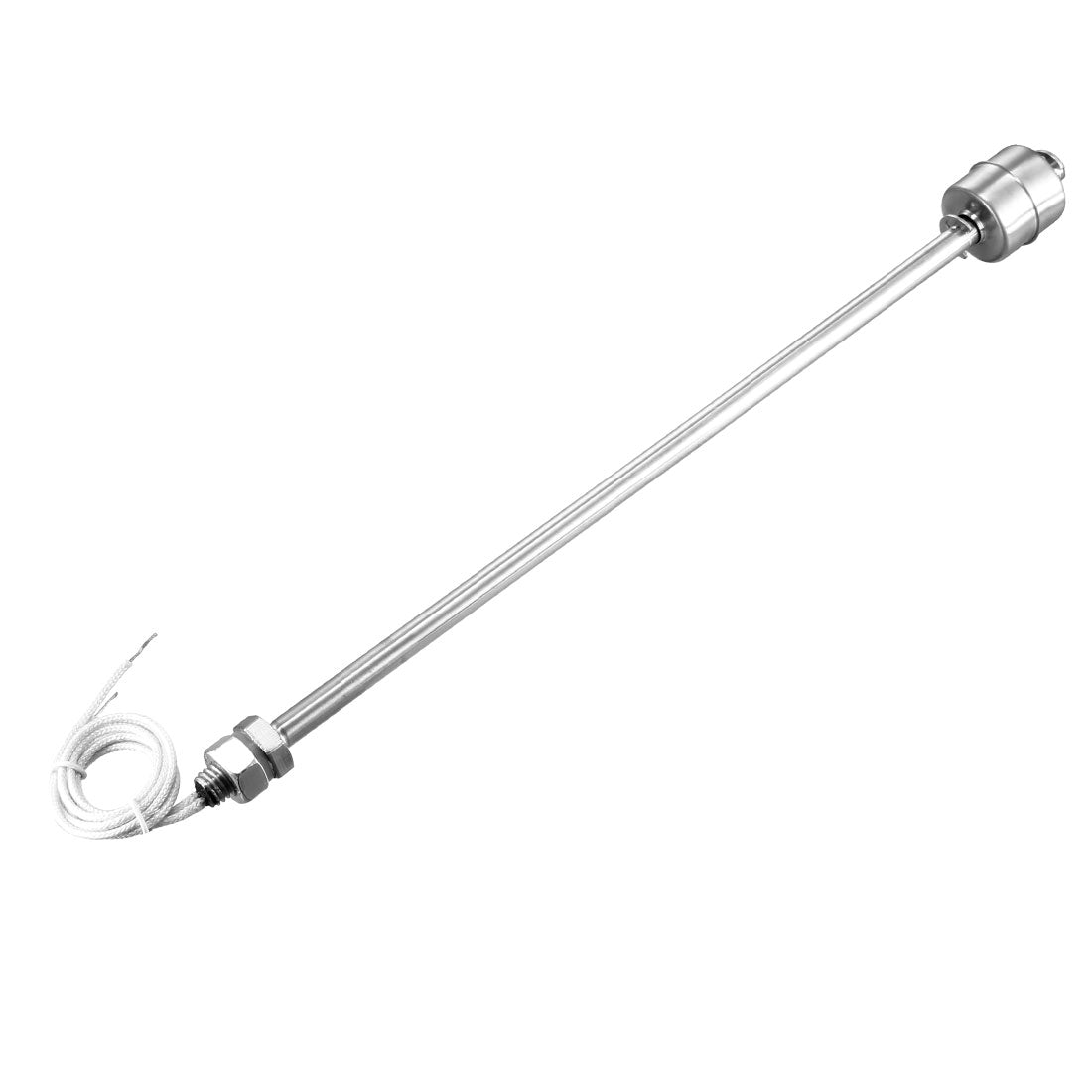

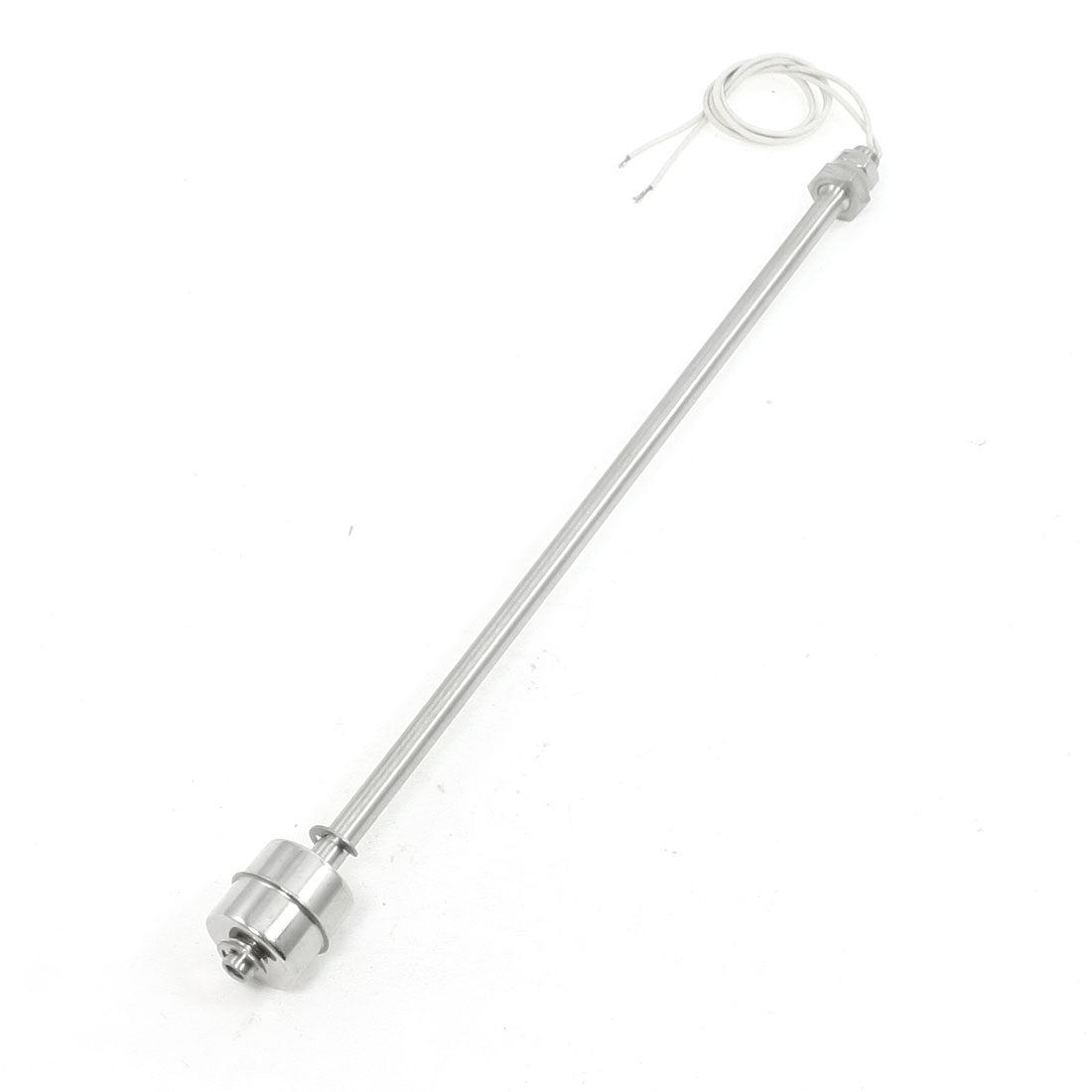

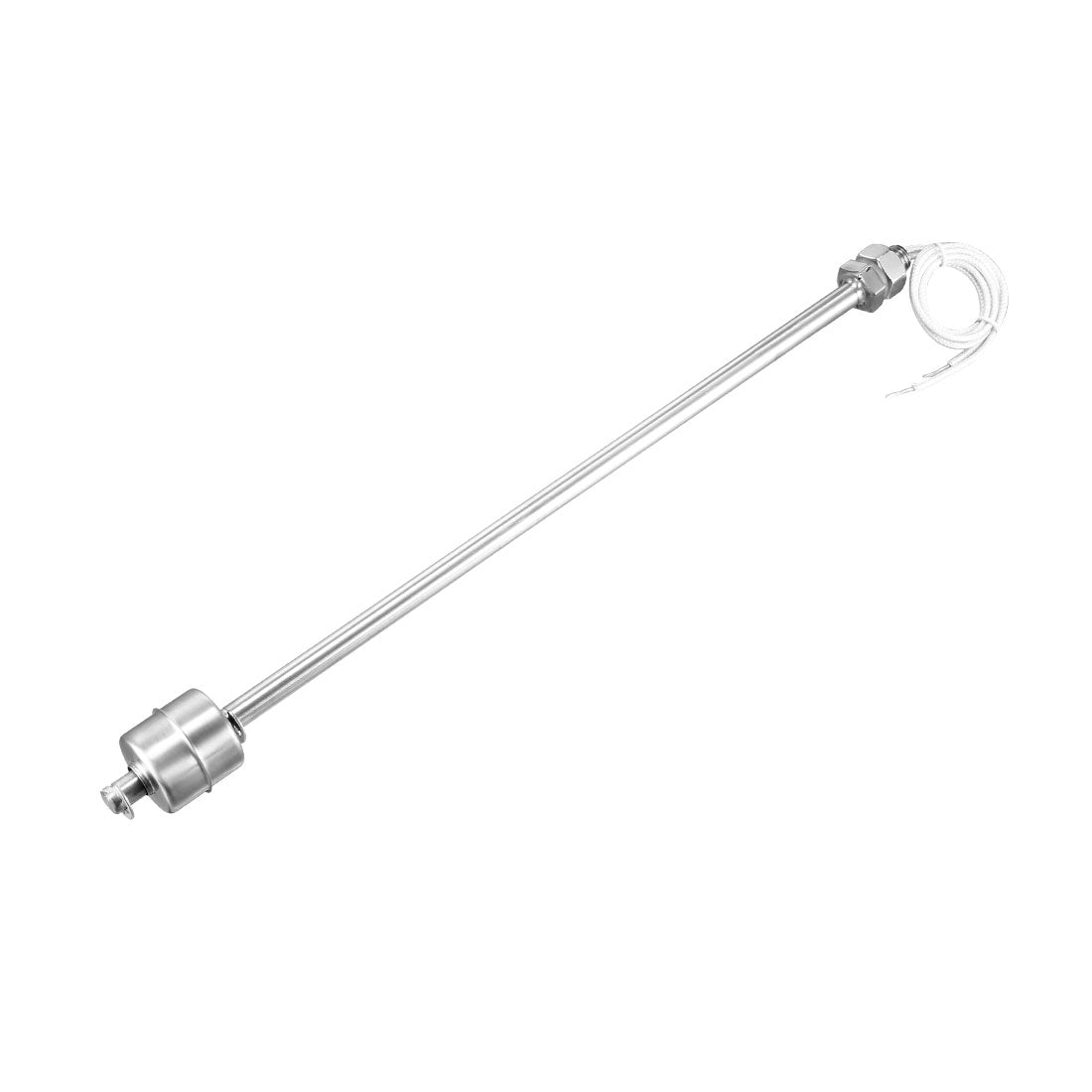

Stainless Steel Float Switch Liquid Level Sensor with 310mm Rod

ID:
$12.67 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Specification: Product Name: Stainless Steel Water Level Sensor Float Ball Material: Stainless Steel Float Body Material: Stainless Steel Voltage, Current, Power: DC100V, 0.5A, 10W Contacts: NO + NC Temperature Rating: -10 to +85 degrees Float Ball Size: 26 x 26mm / 1" x 1" (H*D) Screw Thread Diameter: 9.7mm/ 0.38" Bottom Diameter(Approx.): 8mm/ 0.3" Body Total Length: 310mm/ 12.2" Cable Length: 30cm/ 11.8" Color: Silver Package Content: 1 x Stainless Steel float switch
  • Multiple Uses: This stainless steel float switch is a liquid level sensor designed to detect and control water levels in various applications, suitable for fish tanks, water dispensers, agricultural systems, or other industrial containers where automatic liquid level monitoring is required. This Liquid Water Level Sensor is suitable for gardening, fish tanks, filtration, heating and so on
  • Advantage: Our float switch has a fine reed switch, which makes it more sensitive and accurate in measurement.Our stainless steel float switch features a compact long arm that allows for installation in deep containers. Our liquid level sensor is made of quality stainless steel, less prone to corrosion or deformation, and features a long life
  • Easy to use: Mount the switch vertically at the desired level detection point. Connect the two wires to your control circuit or alarm system. The float ball will rise and fall with liquid levels, automatically triggering the switch mechanism at the predetermined level
  • Notes: Avoid using with liquids that may damage the material or exceed the operating temperature range. Please install it in a standardized manner. Cut off the power supply during installation and pay attention to electrical safety. Avoid exceeding the maximum voltage
  • In stock, ready to ship
Cart
Cart
About this item
  • Specification: Product Name: Stainless Steel Water Level Sensor Float Ball Material: Stainless Steel Float Body Material: Stainless Steel Voltage, Current, Power: DC100V, 0.5A, 10W Contacts: NO + NC Temperature Rating: -10 to +85 degrees Float Ball Size: 26 x 26mm / 1" x 1" (H*D) Screw Thread Diameter: 9.7mm/ 0.38" Bottom Diameter(Approx.): 8mm/ 0.3" Body Total Length: 310mm/ 12.2" Cable Length: 30cm/ 11.8" Color: Silver Package Content: 1 x Stainless Steel float switch
  • Multiple Uses: This stainless steel float switch is a liquid level sensor designed to detect and control water levels in various applications, suitable for fish tanks, water dispensers, agricultural systems, or other industrial containers where automatic liquid level monitoring is required. This Liquid Water Level Sensor is suitable for gardening, fish tanks, filtration, heating and so on
  • Advantage: Our float switch has a fine reed switch, which makes it more sensitive and accurate in measurement.Our stainless steel float switch features a compact long arm that allows for installation in deep containers. Our liquid level sensor is made of quality stainless steel, less prone to corrosion or deformation, and features a long life
  • Easy to use: Mount the switch vertically at the desired level detection point. Connect the two wires to your control circuit or alarm system. The float ball will rise and fall with liquid levels, automatically triggering the switch mechanism at the predetermined level
  • Notes: Avoid using with liquids that may damage the material or exceed the operating temperature range. Please install it in a standardized manner. Cut off the power supply during installation and pay attention to electrical safety. Avoid exceeding the maximum voltage
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specification:
Product Name: Stainless Steel Water Level Sensor
Float Ball Material: Stainless Steel
Float Body Material: Stainless Steel
Voltage, Current, Power: DC100V, 0.5A, 10W
Contacts: NO + NC
Temperature Rating: -10 to +85 degrees

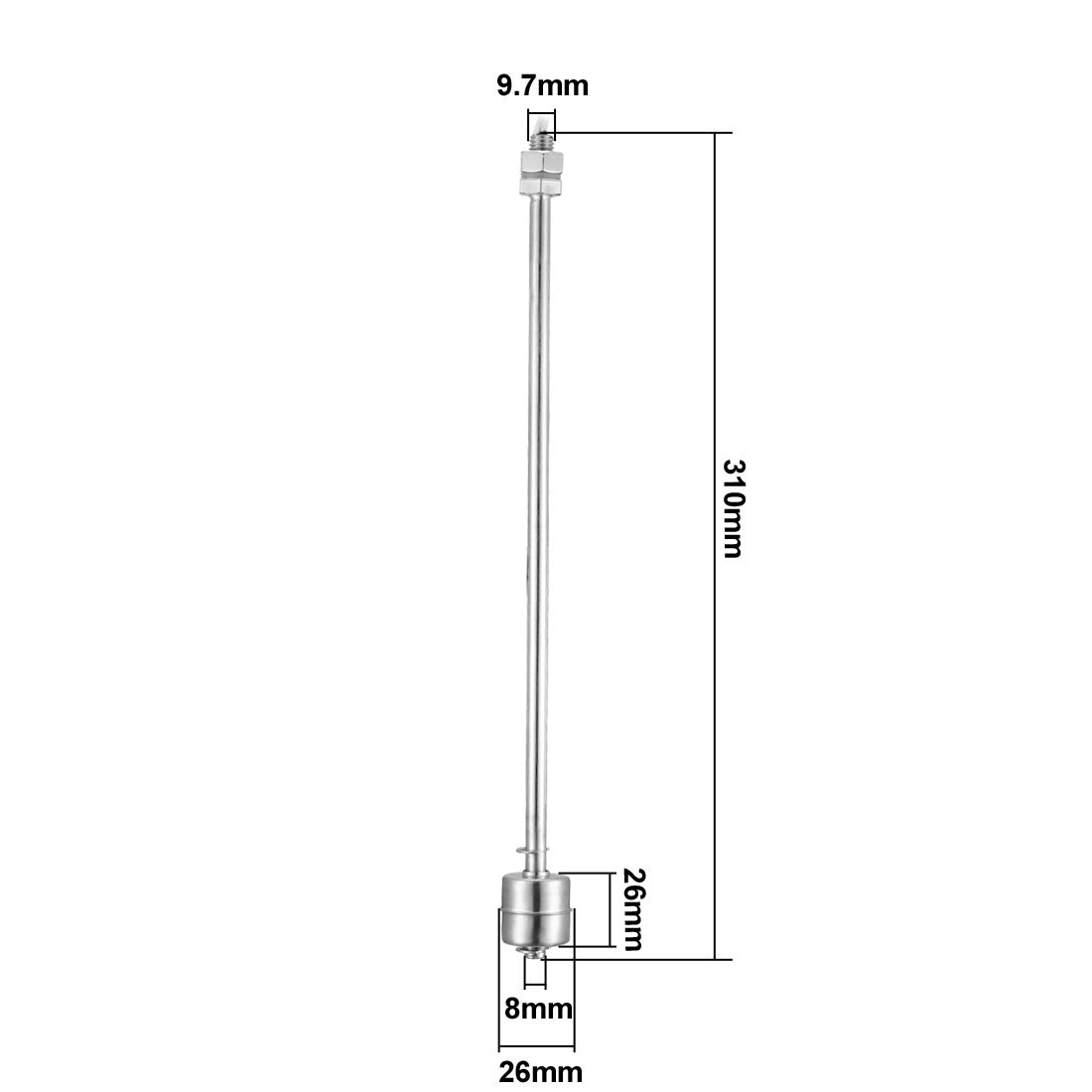

Float Ball Size: 26 x 26mm / 1" x 1" (H*D)
Screw Thread Diameter: 9.7mm/ 0.38"
Bottom Diameter(Approx.): 8mm/ 0.3"
Body Total Length: 310mm/ 12.2"
Cable Length: 30cm/ 11.8"
Color: Silver
Package Content: 1 x Stainless Steel float switch

Description:
Advantage: Our float switch has a fine reed switch, which makes it more sensitive and accurate in measurement.Our stainless steel float switch features a compact long arm that allows for installation in deep containers. Our liquid level sensor is made of quality stainless steel, less prone to corrosion or deformation, and features a long life.
Easy to use: Mount the switch vertically at the desired level detection point. Connect the two wires to your control circuit or alarm system. The float ball will rise and fall with liquid levels, automatically triggering the switch mechanism at the predetermined level.
Multiple Uses: This stainless steel float switch is a liquid level sensor designed to detect and control water levels in various applications, suitable for fish tanks, water dispensers, agricultural systems, or other industrial containers where automatic liquid level monitoring is required. This Liquid Water Level Sensor is suitable for gardening, fish tanks, filtration, heating and so on.
Notes: Avoid using with liquids that may damage the material or exceed the operating temperature range. Please install it in a standardized manner. Cut off the power supply during installation and pay attention to electrical safety. Avoid exceeding the maximum voltage.
