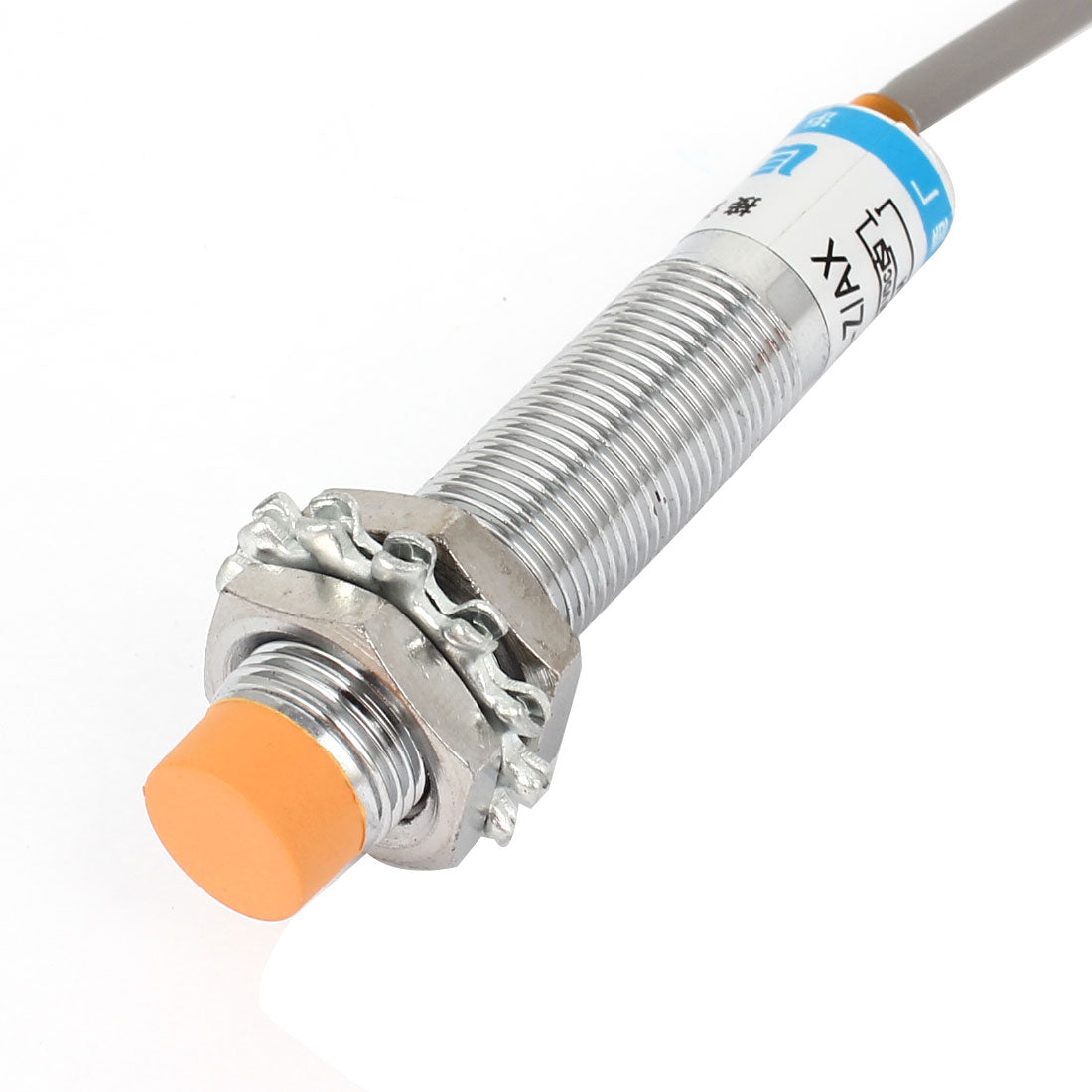

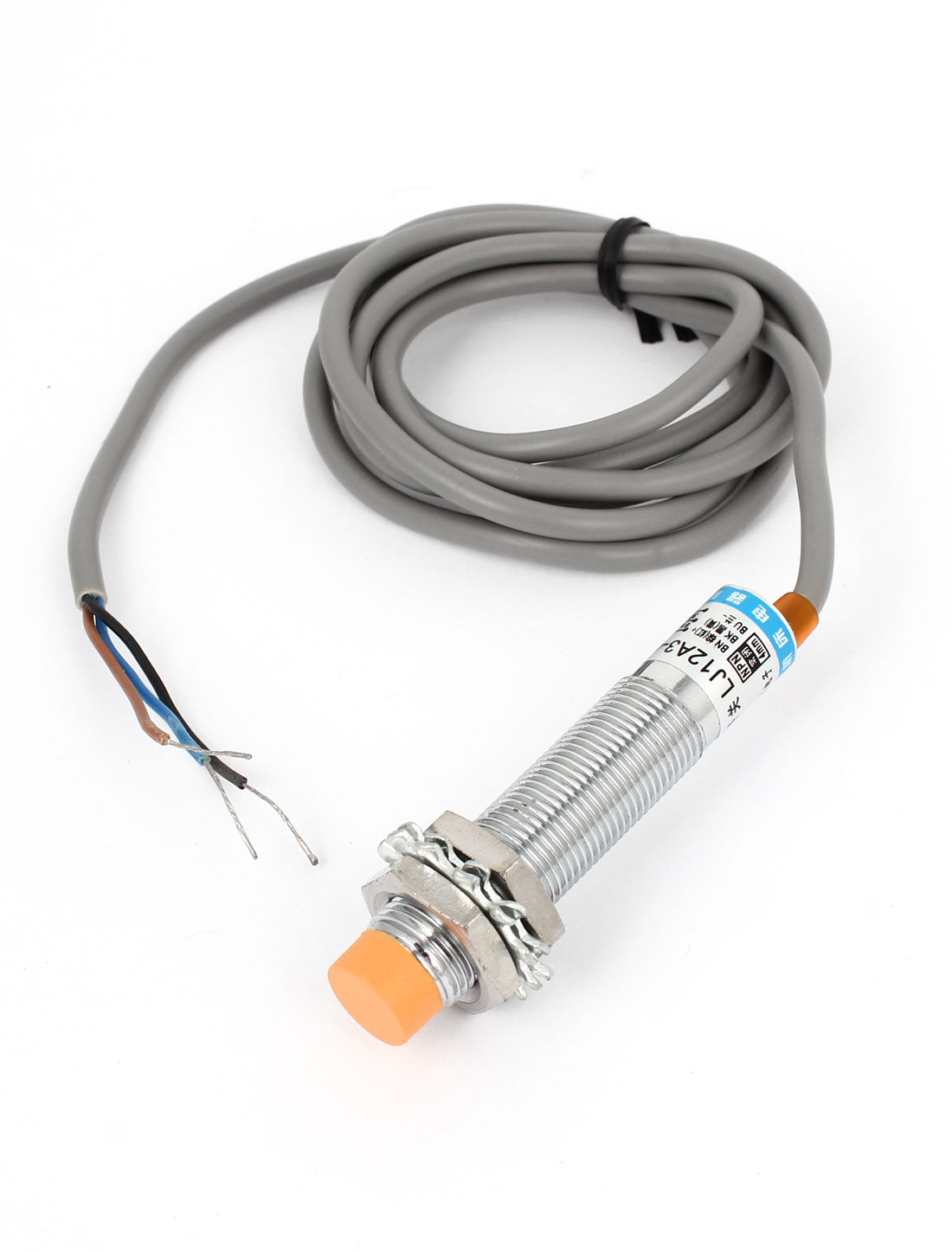

Uxcell LJ12A3-4-Z/AX 3-Wire DC6-36V 300mA NPN NC 4mm Inductive Proximity Sensor Switch

ID:1082443
ID:1082443
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Product Name : Inductive Proximity Switch;Model : LJ12A3-4-Z/AX;Theory : Inductive Sensor;Wire Type : 3 Wire Type (Brown, Blue, Black)
  • Switch Appearance Type : Cylinder Type, Metal Shell;Output Type : NPN NC;Detecting Distance : 4mm(+/-10%);Supply Voltage : DC 6-36V
  • Output Current : 300mA;Detect Object : Iron;Column Sensor Diameter : 10.4mm/0.4";Thread Diameter : 12mm/0.5"
  • Total Size : 66 x 21mm/ 2.6'' x 0.8'' (L*Max.D);Cable Length : 1.16m/35.7'';External Material : Plastic, Metal
  • Net Weight : 43g;Color : Silver Tone, Orange,Gray;Package Content : 1 x Inductive Proximity Switch
About this item
  • Product Name : Inductive Proximity Switch;Model : LJ12A3-4-Z/AX;Theory : Inductive Sensor;Wire Type : 3 Wire Type (Brown, Blue, Black)
  • Switch Appearance Type : Cylinder Type, Metal Shell;Output Type : NPN NC;Detecting Distance : 4mm(+/-10%);Supply Voltage : DC 6-36V
  • Output Current : 300mA;Detect Object : Iron;Column Sensor Diameter : 10.4mm/0.4";Thread Diameter : 12mm/0.5"
  • Total Size : 66 x 21mm/ 2.6'' x 0.8'' (L*Max.D);Cable Length : 1.16m/35.7'';External Material : Plastic, Metal
  • Net Weight : 43g;Color : Silver Tone, Orange,Gray;Package Content : 1 x Inductive Proximity Switch
Specification

Specification

SKU
a14090200ux0012
Product name
Inductive Proximity Switch
Model
LJ12A3-4-Z/AX
Theory
Inductive Sensor
Wire type
3 Wire Type (Brown, Blue, Black)
Switch appearance type
Cylinder Type, Metal Shell
Output type
NPN NC
Detecting distance
4mm(+/-10%)
Supply voltage
DC 6-36V
Output current
300mA
Detect object
Iron
Column sensor diameter
10.4mm/0.4 inch
Thread diameter
12mm/0.5 inch
Total size
66 x 21mm/ 2.6" x 0.8" (L*Max.D)
Cable length
1.16m/35.7"
External material
Plastic, Metal
Net weight
43g
Color
Silver Tone, Orange,Gray
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Power supply inverted connecting protection, short circuit protection, non-contact detecting device.
When proximity switch is close to some target object, it will send out control signal.
Used widely in the machine tool industry, frequency counters and other automatic control system.
US$7.05 Regular price
US/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Description

Description

Power supply inverted connecting protection, short circuit protection, non-contact detecting device.
When proximity switch is close to some target object, it will send out control signal.
Used widely in the machine tool industry, frequency counters and other automatic control system.
