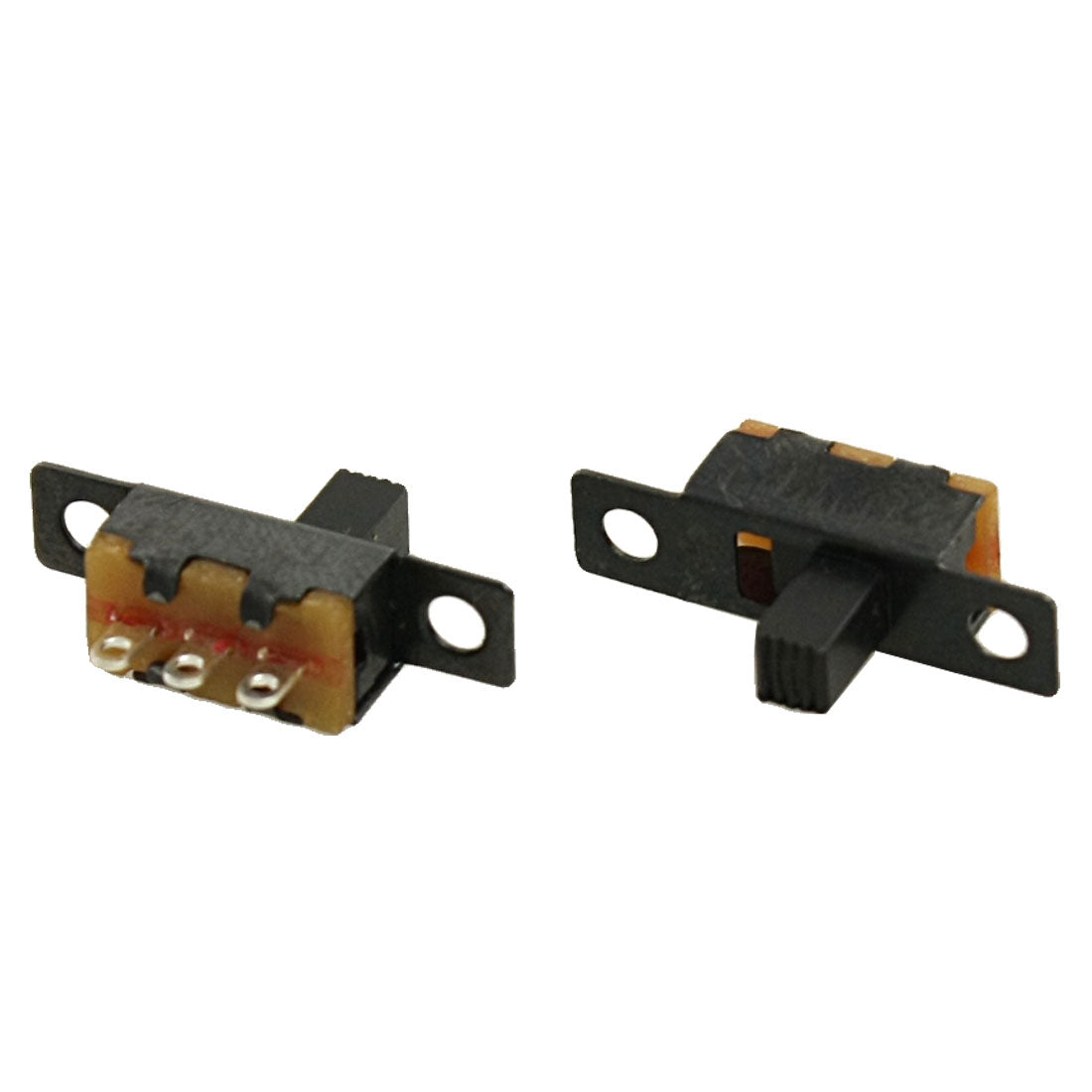

uxcell Uxcell 5 Pcs 50V 0.5A 3 Pin 2 Position On/OFF 1P2T SPDT Mini Slide Switch 3 Pin PCB DIY
2/ 0

Uxcell 5 Pcs 50V 0.5A 3 Pin 2 Position On/OFF 1P2T SPDT Mini Slide Switch 3 Pin PCB DIY

ID:1074712
ID:1074712
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Product Name : Slide Switch;Model No. : SS12F15-G5;Type : 1P2T;Contact Type : 2 Positions, On/Off
  • Pins Quantity : 3 Pins ( Single Row );Rating : DC 50V, 0.5A;Contacts Resistance : 30MΩ;Insulation Resistance : 100MΩ
  • Minimum Load : DC 500V;Dielectric Strengths : AC 500V / 1 minute;Life Test : 10000 cycles/ minute;Overall Size : 19.8 x 5.6 x13mm/ 0.78" x 0.22" x 0.51" (L*W*H)
  • Pin Size : 3 x 1.5mm/ 0.12" x 0.06" (L*W);Pins Pitch : 1.4mm/ 0.055";Knob Size : 3 x 3 x 5mm/ 0.12" x 0.12" x 0.2" (L*W*H);Mounting Hole Dia : 2.2mm/ 0.087"
  • Material : Plastic, Metal, Electronic Parts;Color : Black;Weight : 5g;Package : 5 x Slide Switch
About this item
  • Product Name : Slide Switch;Model No. : SS12F15-G5;Type : 1P2T;Contact Type : 2 Positions, On/Off
  • Pins Quantity : 3 Pins ( Single Row );Rating : DC 50V, 0.5A;Contacts Resistance : 30MΩ;Insulation Resistance : 100MΩ
  • Minimum Load : DC 500V;Dielectric Strengths : AC 500V / 1 minute;Life Test : 10000 cycles/ minute;Overall Size : 19.8 x 5.6 x13mm/ 0.78" x 0.22" x 0.51" (L*W*H)
  • Pin Size : 3 x 1.5mm/ 0.12" x 0.06" (L*W);Pins Pitch : 1.4mm/ 0.055";Knob Size : 3 x 3 x 5mm/ 0.12" x 0.12" x 0.2" (L*W*H);Mounting Hole Dia : 2.2mm/ 0.087"
  • Material : Plastic, Metal, Electronic Parts;Color : Black;Weight : 5g;Package : 5 x Slide Switch
Specification

Specification

SKU
a12022800ux0291
Product name
Slide Switch
Model no.
SS12F15-G5
Type
1P2T
Contact type
2 Positions, On/Off
Pins quantity
3 Pins ( Single Row )
Rating
DC 50V, 0.5A
Contacts resistance
30MΩ
Insulation resistance
100MΩ
Minimum load
DC 500V
Dielectric strengths
AC 500V / 1 minute
Life test
10000 cycles/ minute
Overall size
19.8 x 5.6 x13mm/ 0.78" x 0.22" x 0.51" (L*W*H)
Pin size
3 x 1.5mm/ 0.12" x 0.06" (L*W)
Pins pitch
1.4mm/ 0.055 inch
Knob size
3 x 3 x 5mm/ 0.12" x 0.12" x 0.2" (L*W*H)
Mounting hole dia
2.2mm/ 0.087 inch
Material
Plastic, Metal, Electronic Parts
Color
Black
Weight
5g
Package
5 x Slide Switch
Brand
Uxcell
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
  • Slide Switch is for changing circuit by sliding the mini handle of the switch to control the circuit to be ON or OFF.
  • The Slide Switch is widely used in the electric, sound equipment, fax, test instrument equipment, or other low voltage circuit electronic equipment.
  • This Slide Switch is with welding pin type terminals design for easily welding onto the circuit.
  • ON-ON type 2 Positions.
US$5.42 Regular price
US/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • Ship from the US
  • Dispatch on Sep.30 - Oct.07. Contact us for more precise lead time.
Cart
Cart
Free Shipping over US$30
30 Day Free Return

Description

Description

  • Slide Switch is for changing circuit by sliding the mini handle of the switch to control the circuit to be ON or OFF.
  • The Slide Switch is widely used in the electric, sound equipment, fax, test instrument equipment, or other low voltage circuit electronic equipment.
  • This Slide Switch is with welding pin type terminals design for easily welding onto the circuit.
  • ON-ON type 2 Positions.
